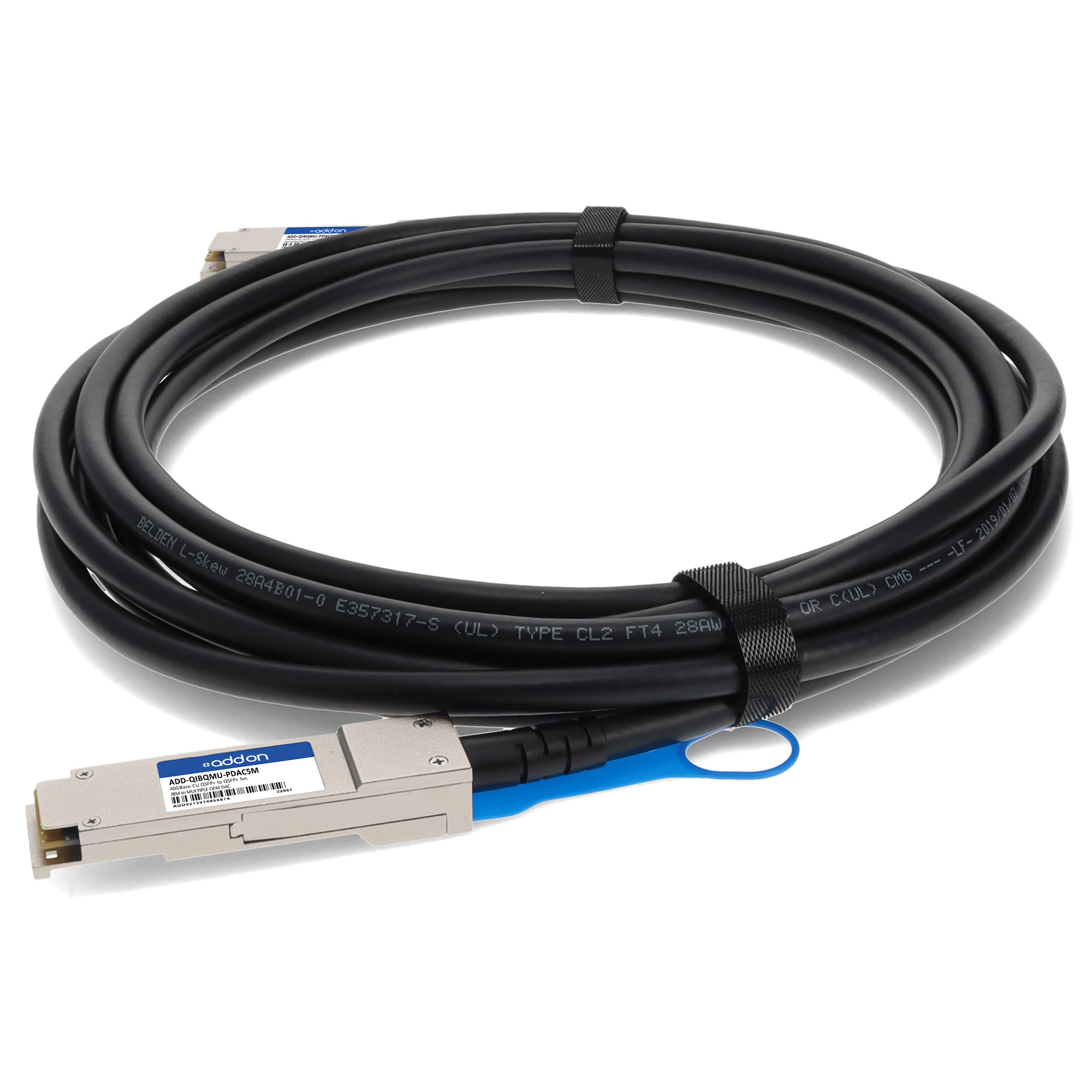

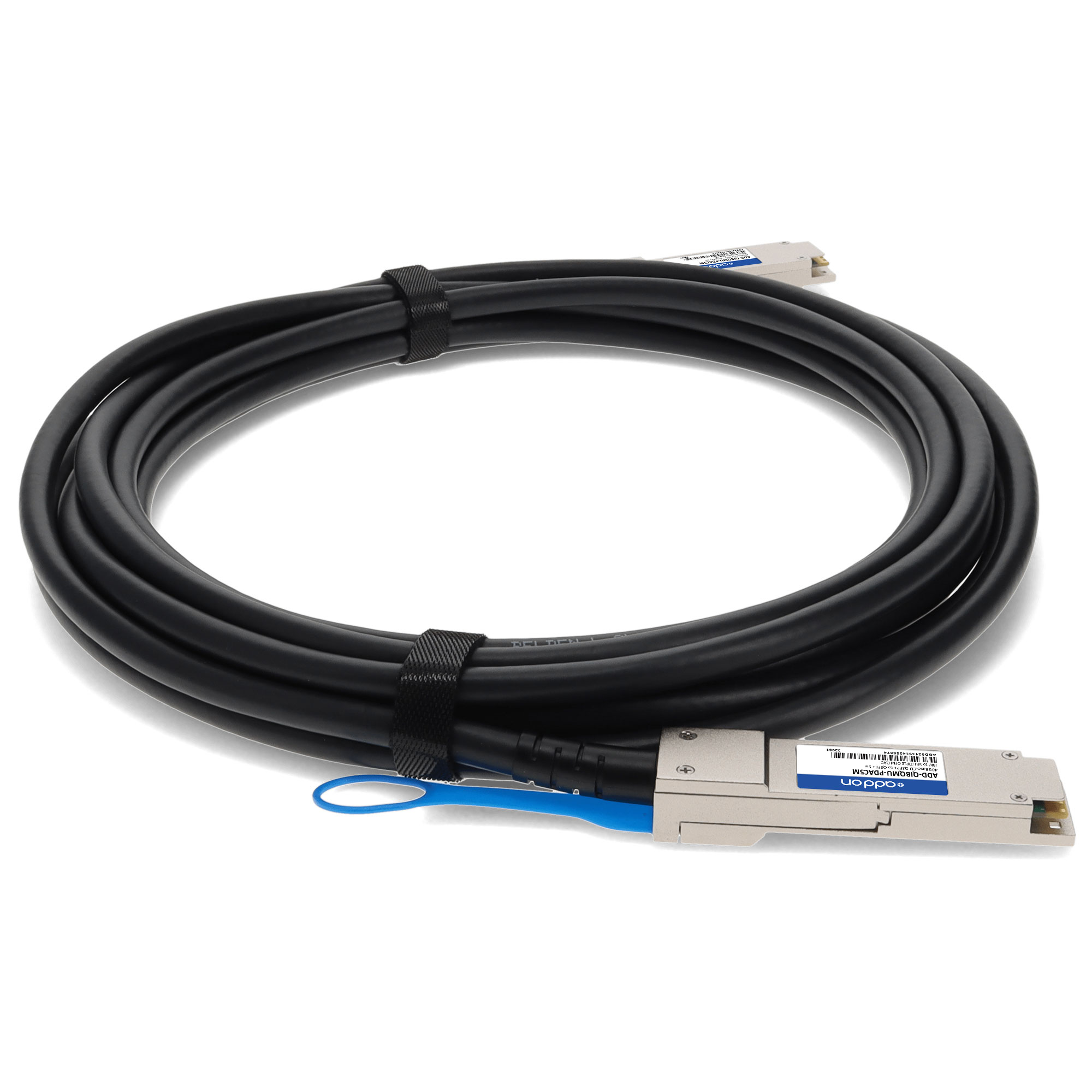

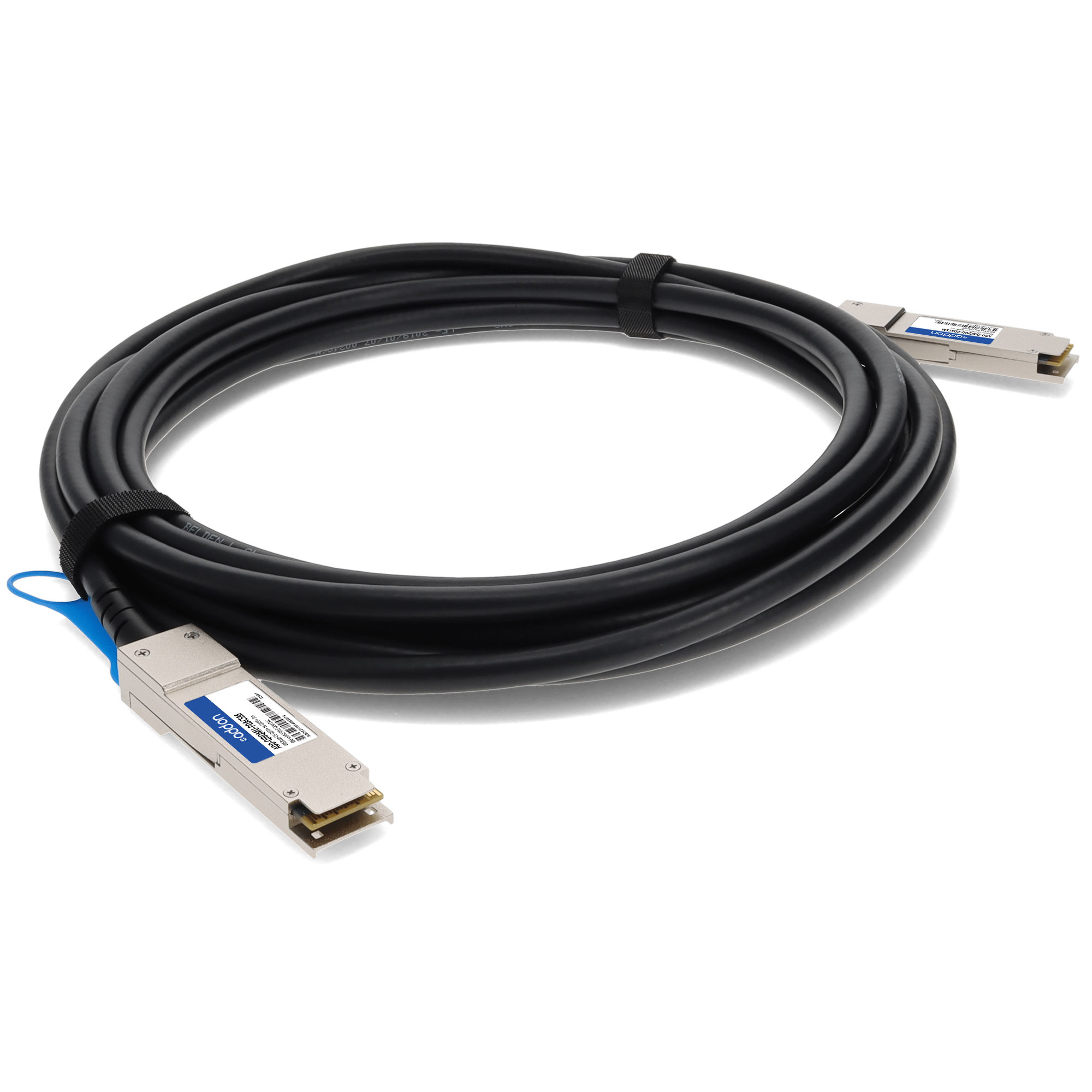

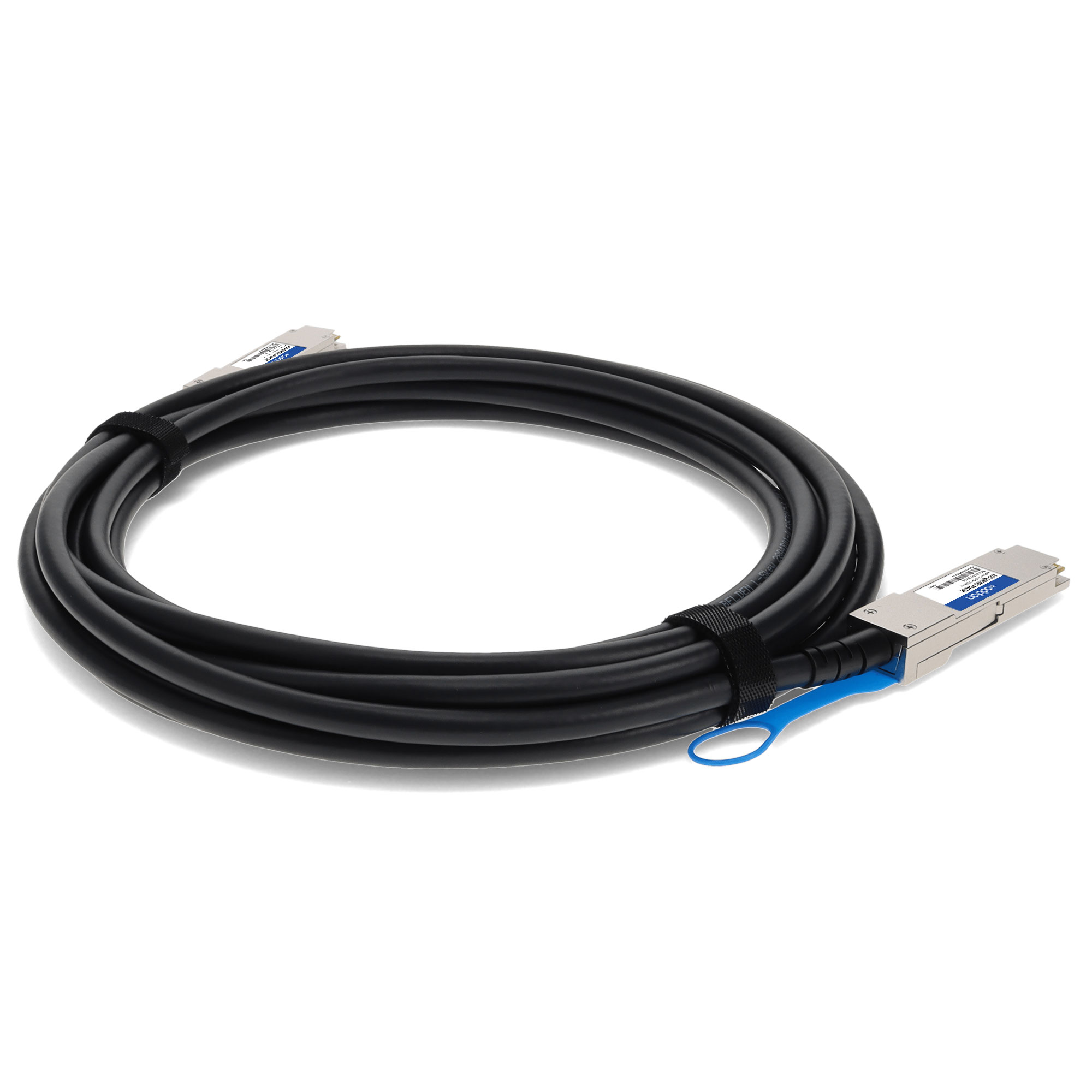

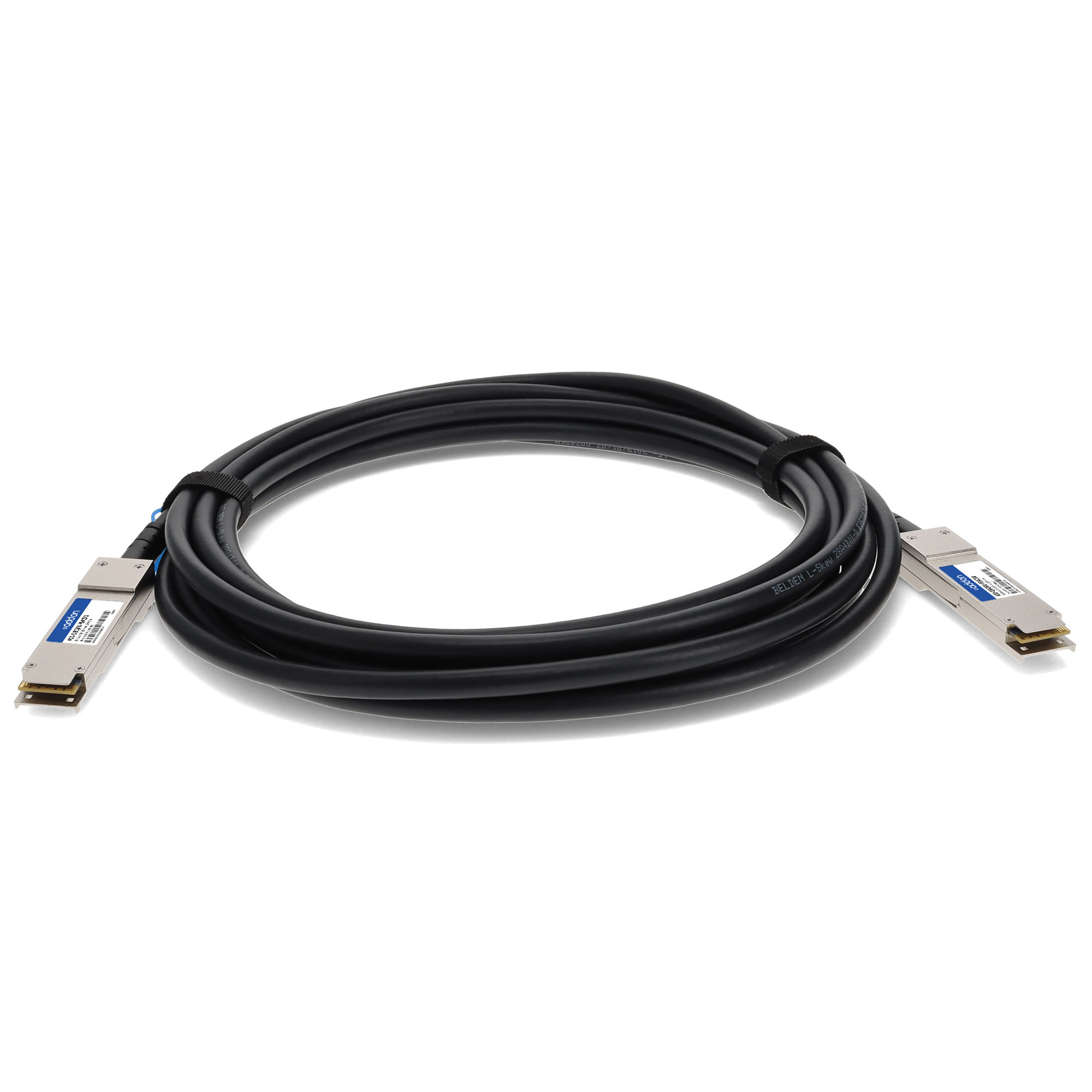

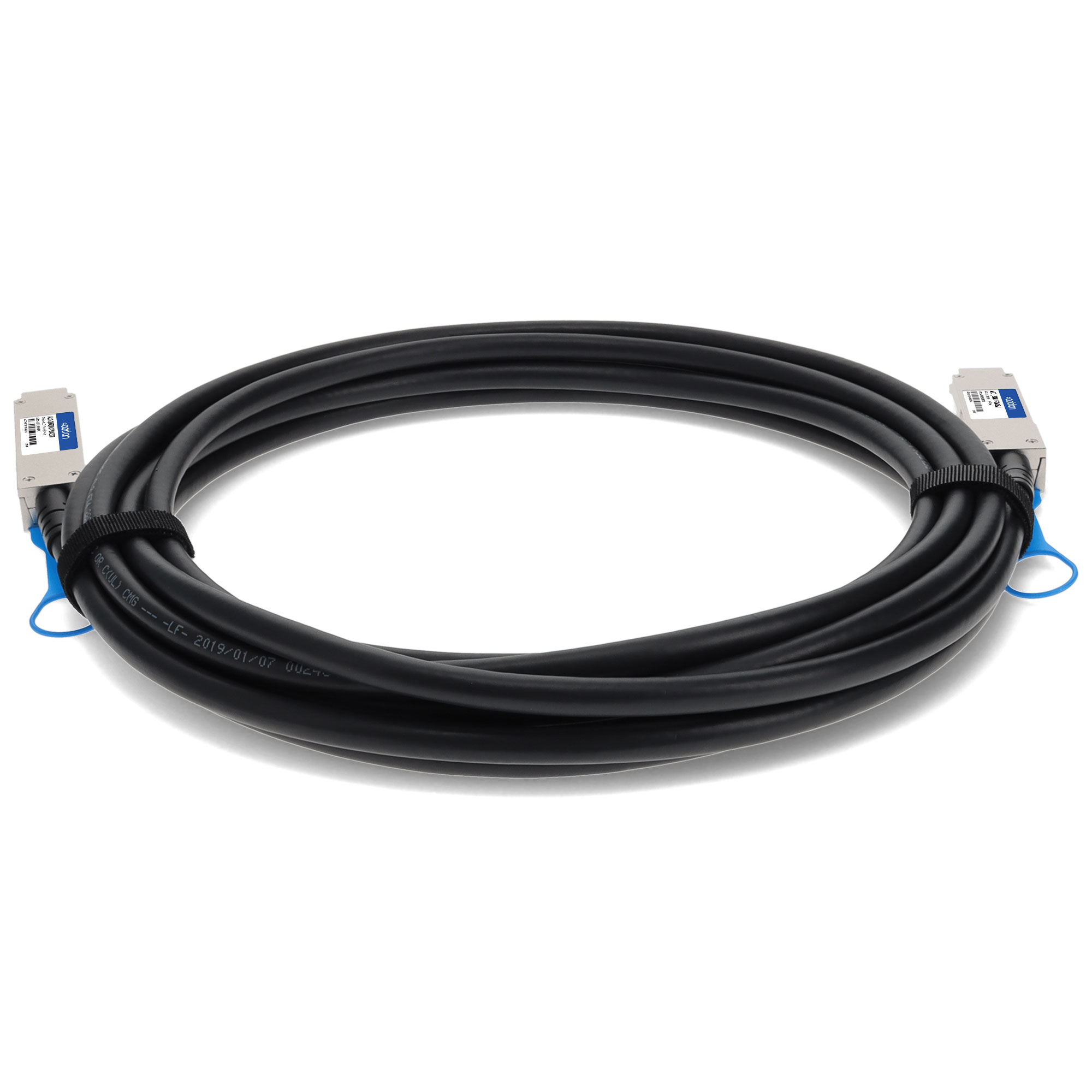

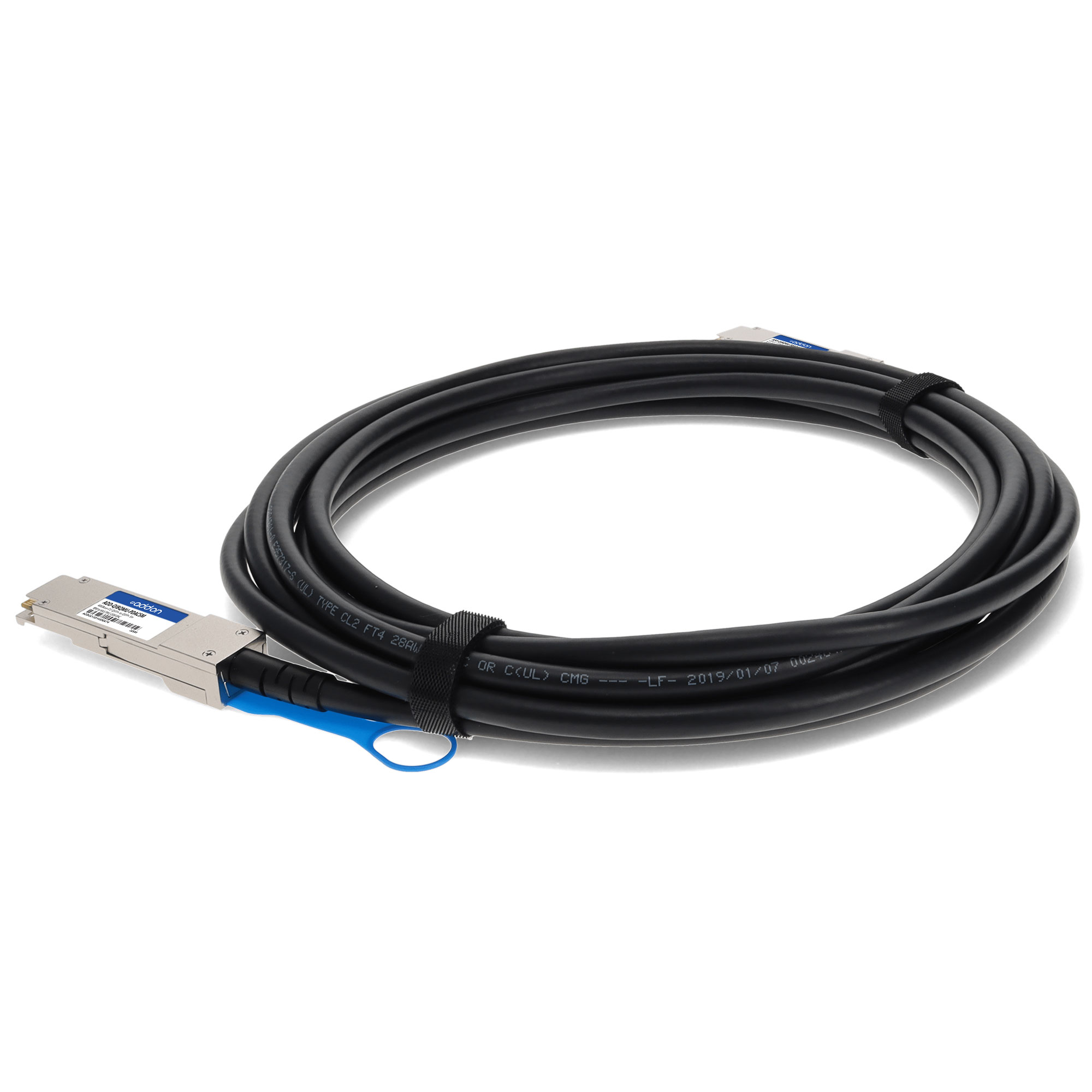

IBM® 00D5810 to Multiple OEM Compatible TAA Compliant 40GBase-CU QSFP+ to QSFP+ Direct Attach Cable (Passive Twinax, 5m)
SKU: ADD-QIBQMU-PDAC5M
United Kingdom: 23 in stock
North America: 81 in stock
Available from the following dealers:
This IBM® 00D5810 to multiple OEM compatible 40GBase-CU QSFP+ to QSFP+ passive TAA (Trade Acts Agreement) compliant direct attach cable has a maximum reach of 5.0m (16.4ft). It is 100% IBM® compatible and has been programmed to allow for connection to multiple OEMs. These OEMs include Avago, D-Link, Edge-corE, F5 Networks, Finisar, Fortinet, Linksys, Mellanox, NetAPP, Zyxel and more. This cable is also uniquely serialized and data-traffic and application tested to ensure that it is compliant and functional. This direct attach cable will initialize and perform identically to IBM® and the multiple OEM's individual cables and is built to meet or exceed IBM®'s specifications, and comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Technical Specification
| Compatible OEM | IBM® & Multiple |
| Compatible With OEM Part Number(s) | 00D5810, QSFP-40G-PDAC5M |
| Speed Description | 40-Gigabit |
| Form Type | QSFP+ to QSFP+ |
| Active or Passive | Passive |
| Transceiver Type | CU |
| Speed | 40GBase |
| Additional Information | Universal |
| Connecting Compatible OEMs | IBM® & Multiple |
| Length (m) | 5 |
| Length (ft) | 16.4 |
| Wire Gauge | 24 AWG |
| Media | Copper |
Physical Specification
| Product Shipping Dimension(HxWxD) | 1.5 in. x 14 in. x 14 in. |
| Product Shipping Weight(LB) | 0.6 |
Miscellaneous
| Country Of Origin | USA/UK |
| ECCN | 5A991 |
| HTS-Harmonized Code (US) | 8517.62.0090 |
| TAA Compliant | Yes |
| UNSPSC Code | 26121609 |
| UPC Code | 821455608166 |
| What's In The Box | 1x direct attach cable |
| AddOn Part# | ADD-QIBQMU-PDAC5M |
| Ingram Micro® | 4M6483 |
| Ingram Micro® Canada | 6426XD |
| Insight Electronics® | ADD-QIBQMU-PDAC5M |
| TD Synnex CA | 6185929 |
| TD Synnex US | 4748260 |
| Tech Data® | 12387847 |
Limited Lifetime
