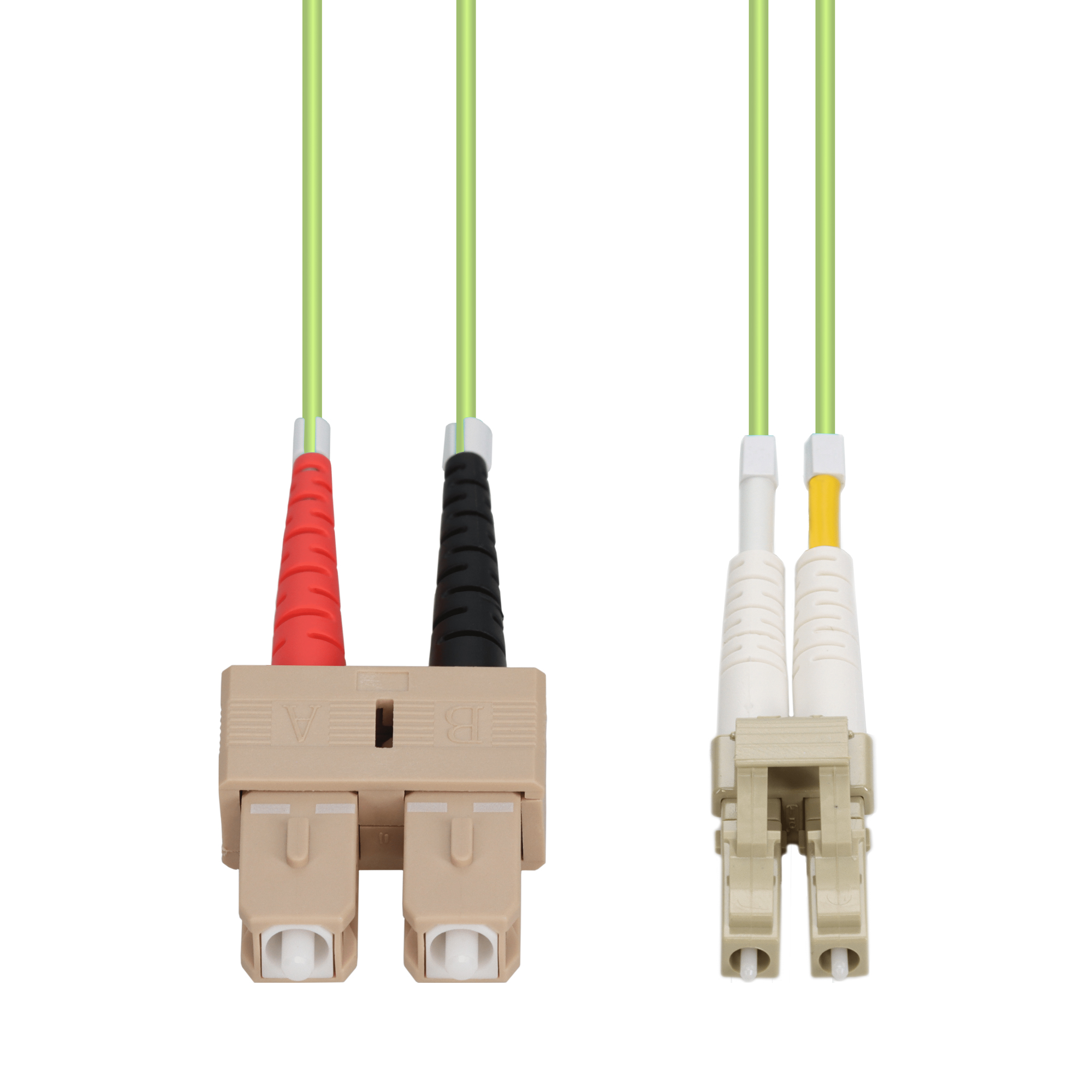

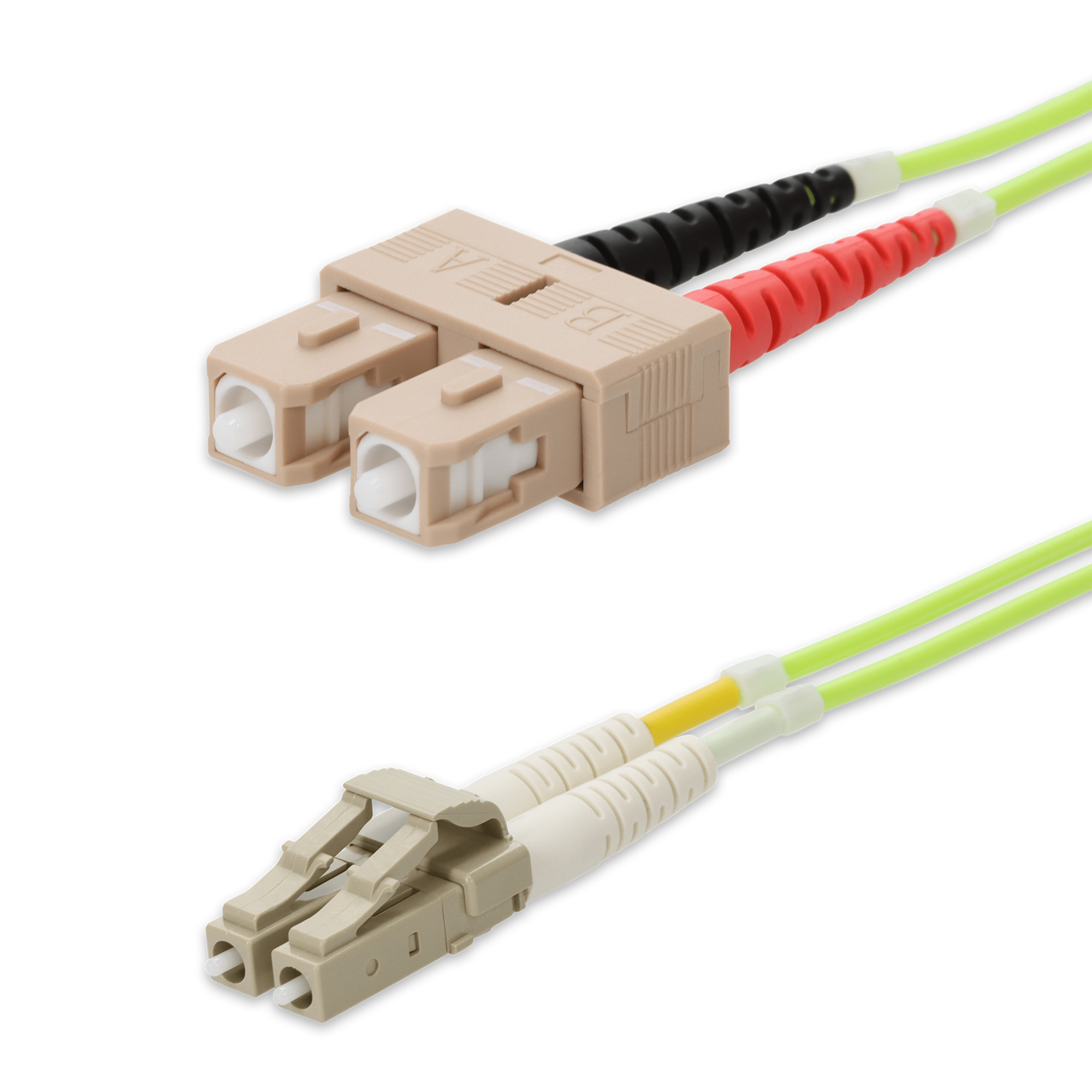

0.5m SC to LC Lime Green OM5 Duplex OFNR (Riser-Rated) Fiber Patch Cable

SKU: ADD-SC-LC-0-5M5OM5

North America: 0 in stock

United Kingdom: 0 in stock

Belgium: 0 in stock

Available from the following dealers:

Ingram Micro®TD Synnex US

This is a 0.5m SC to LC Lime Green OM5 Duplex OFNR (Riser-Rated) Fiber Patch Cable. OM5 fiber optic cable is an advanced multimode fiber optimized for high-speed, high-bandwidth applications, supporting up to 100G over 150 meters with the added benefit of Wideband support for future-proofing networks. It is ideal for data centers and enterprises looking to scale their networks efficiently while maintaining flexibility for future technology upgrades. OFNR riser fiber cable jackets are designed for vertical installations in building risers, providing fire-resistant protection to ensure safe data transmission between floors. These cables meet strict safety standards, making them ideal for businesses that need reliable, in-building network infrastructure without the risk of fire spreading through conduits. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.

Technical Specification

ArmoredNo
Bend Insensitivity (ITU)IEC 60793-2-10 Type A1a.4
Cable Length0.5m
Cable ModeDuplex
Cable TypeOM5
ColorLime
Compatible OEMIndustry Standard
ConnectorSC (Male) to LC (Male)
Connector 1 Boot StyleStandard Boot
Connector 1 ColorBeige
Connector 1 Ferrule Polish TypeUPC (Ultra Physical Contact)
Connector 2 Boot StyleStandard Boot
Connector 2 ColorBeige
Connector 2 Ferrule Polish TypeUPC (Ultra Physical Contact)
Core/Cladding50/125µm
EnvironmentIndoor
Fiber TerminationUPC - Ultra Physical Contact
Fiber TypeMMF
Fire RatingRiser (OFNR)
Insertion Loss GradeGrade C
Jacket MaterialPVC (Polyvinyl Chloride)
Jacket TypeRiser
Length (ft)1.64
Length (m)0.5
PolarityType A-B
ShieldedNo
Strand Count2
Termination TypeCrossover

Physical Specification

KitNo Kit - 1 Piece
Product Shipping Dimension(HxWxD)5 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB)0.8

Miscellaneous

Country Of OriginChina
ECCNEAR99
HTS-Harmonized Code (UK)85447000
HTS-Harmonized Code (US)8544.70.0000
TAA CompliantNo
UNSPSC Code26121609
UPC Code821455086018
What's In The Box1x patch cable

Ingram Micro®S38171
TD Synnex US14385410

Limited Lifetime
