ADD-SC-LC-0-5M5OM3 imageADD-SC-LC-0-5M5OM3 imageADD-SC-LC-0-5M5OM3 image

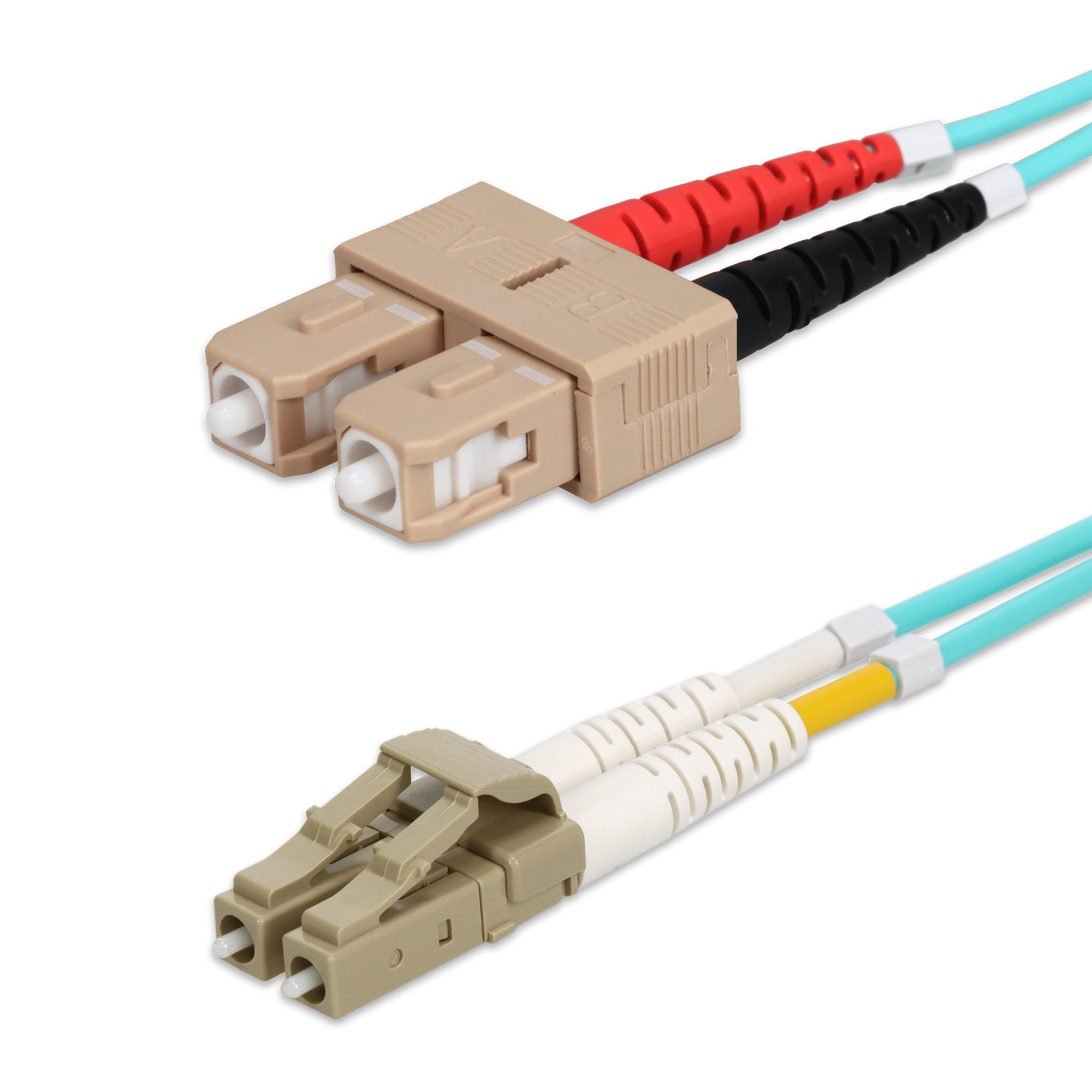

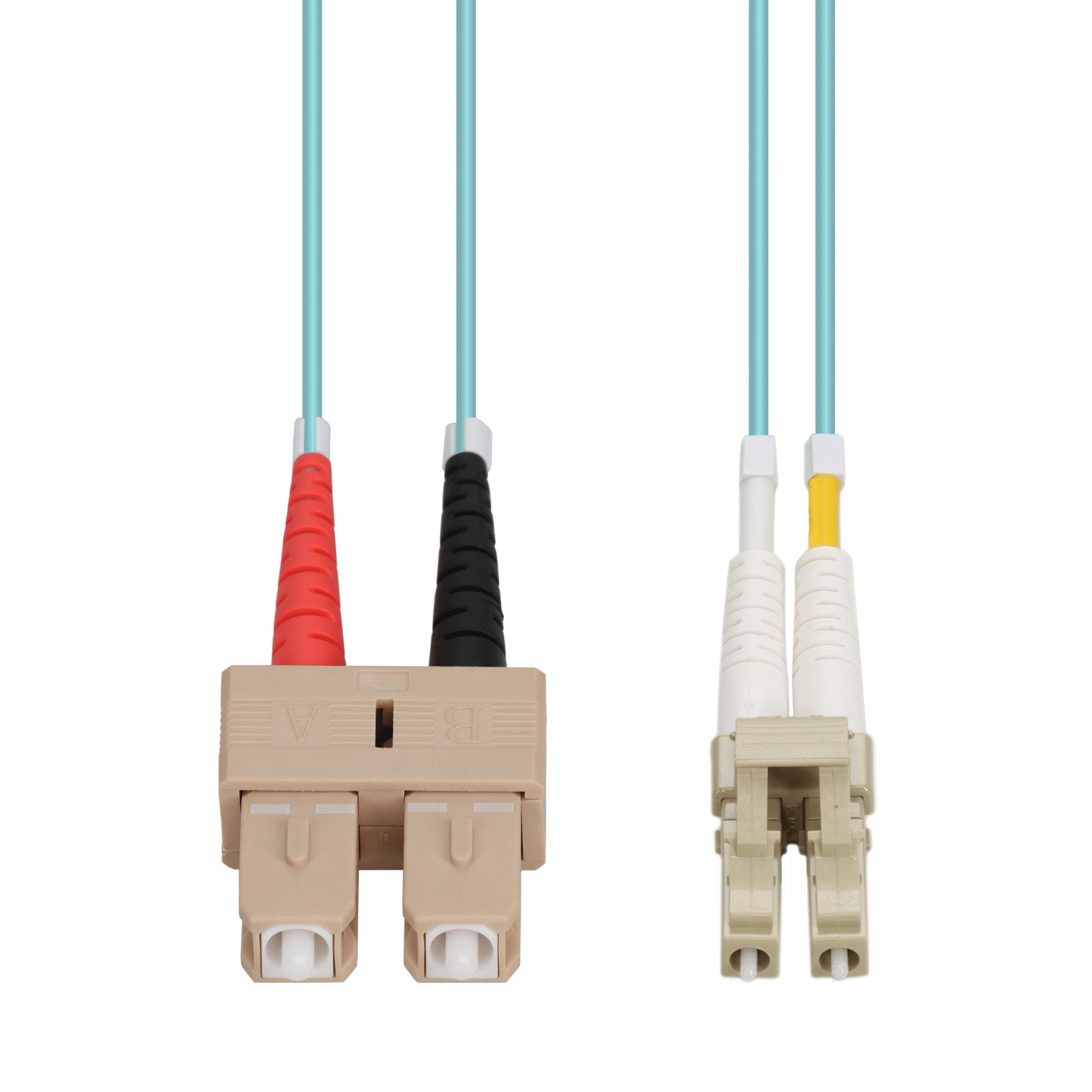

0.5m SC to LC Aqua OM3 Duplex OFNR (Riser-Rated) Fiber Patch Cable

SKU: ADD-SC-LC-0-5M5OM3

North America: 0 in stock

United Kingdom: 0 in stock

Belgium: 0 in stock

Available from the following dealers:

Ingram Micro®TD Synnex US

This is a 0.5m SC to LC Aqua OM3 Duplex OFNR (Riser-Rated) Fiber Patch Cable. OM3 fiberoptic cable provides high-speed, reliable data transfer up to 10 Gbps over 300 meters, ideal for data centers and high-bandwidth environments. Designed for minimal signal loss and maximum compatibility, it ensures smooth performance for your growing network needs. OFNR riser fiber cable jackets are designed for vertical installations in building risers, providing fire-resistant protection to ensure safe data transmission between floors. These cables meet strict safety standards, making them ideal for businesses that need reliable, in-building network infrastructure without the risk of fire spreading through conduits. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.

Technical Specification

Cable ModeDuplex
ColorAqua
Compatible OEMIndustry Standard
ConnectorLC (Male) to SC (Male)
Core/Cladding50/125µm
Fiber TerminationUPC - Ultra Physical Contact
Fiber TypeMMF
Jacket TypeRiser
Length (ft)1.64
Length (m)0.5
ShieldedNo
Strand Count2
Termination TypeCrossover
PolarityType A-B
ArmoredNo
Bend Insensitivity (ITU)IEC 60793-2-10 Type A1a.2
Cable Length0.5m
Cable TypeOM3
Connector 1 Boot StyleStandard Boot
Connector 1 ColorBlue
Connector 1 Ferrule Polish TypeUPC (Ultra Physical Contact)
Connector 2 Boot StyleStandard Boot
Connector 2 ColorBeige
Connector 2 Ferrule Polish TypeUPC (Ultra Physical Contact)
EnvironmentIndoor
Fire RatingRiser (OFNR)
Insertion Loss GradeGrade C
Outer Diameter2.0mm
Jacket MaterialPVC (Polyvinyl Chloride)

Physical Specification

KitNo Kit - 1 Piece
Product Shipping Dimension(HxWxD)5 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB)0.2

Miscellaneous

Country Of OriginChina
ECCNEAR99
HTS-Harmonized Code (UK)85447000
HTS-Harmonized Code (US)8544.70.0000
TAA CompliantNo
UNSPSC Code26121609
UPC Code195285750105
What's In The Box1x patch cable

Ingram Micro®13JT03
Insight Electronics®ADD-SC-LC-0-5M5OM3
TD Synnex US7323184

Limited Lifetime
