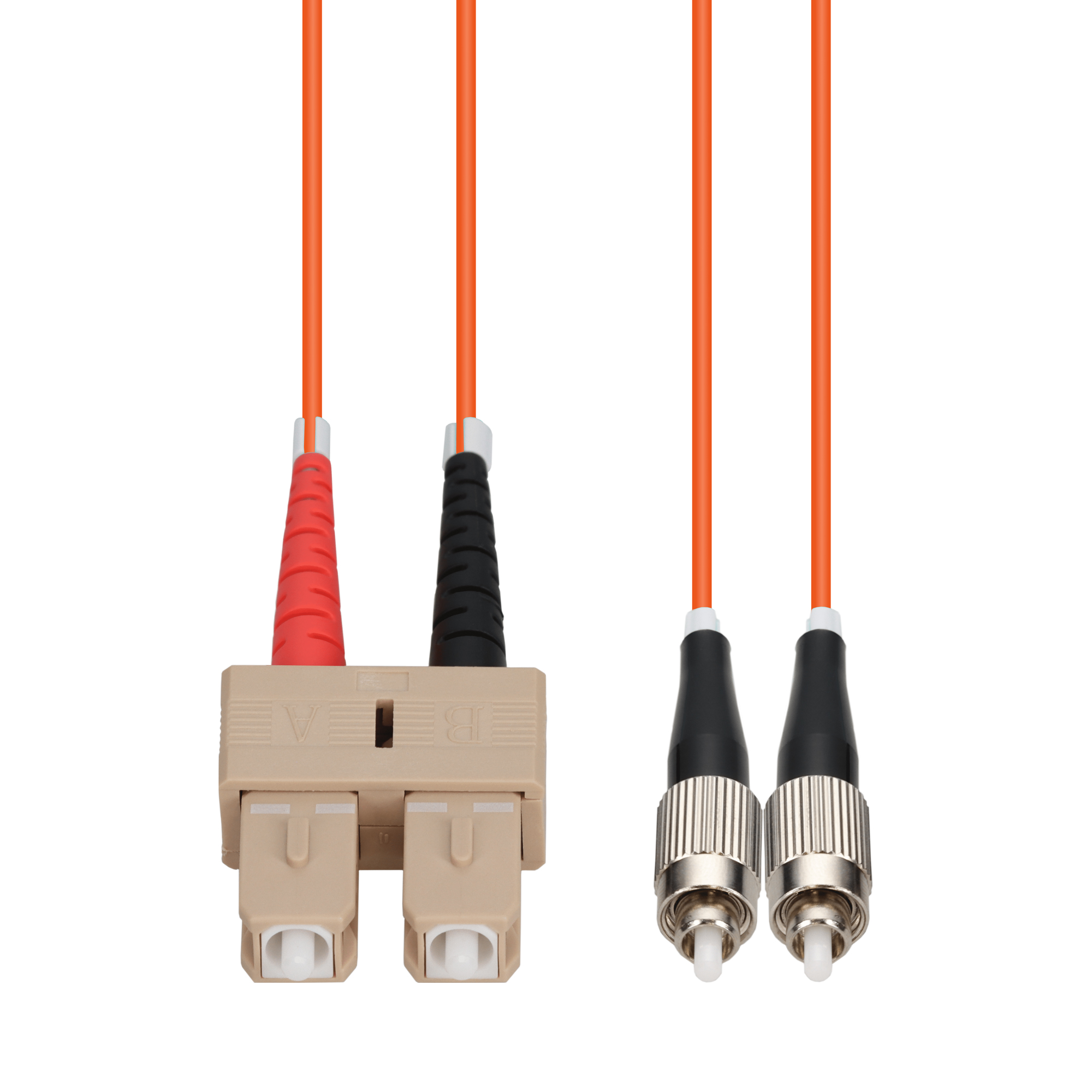

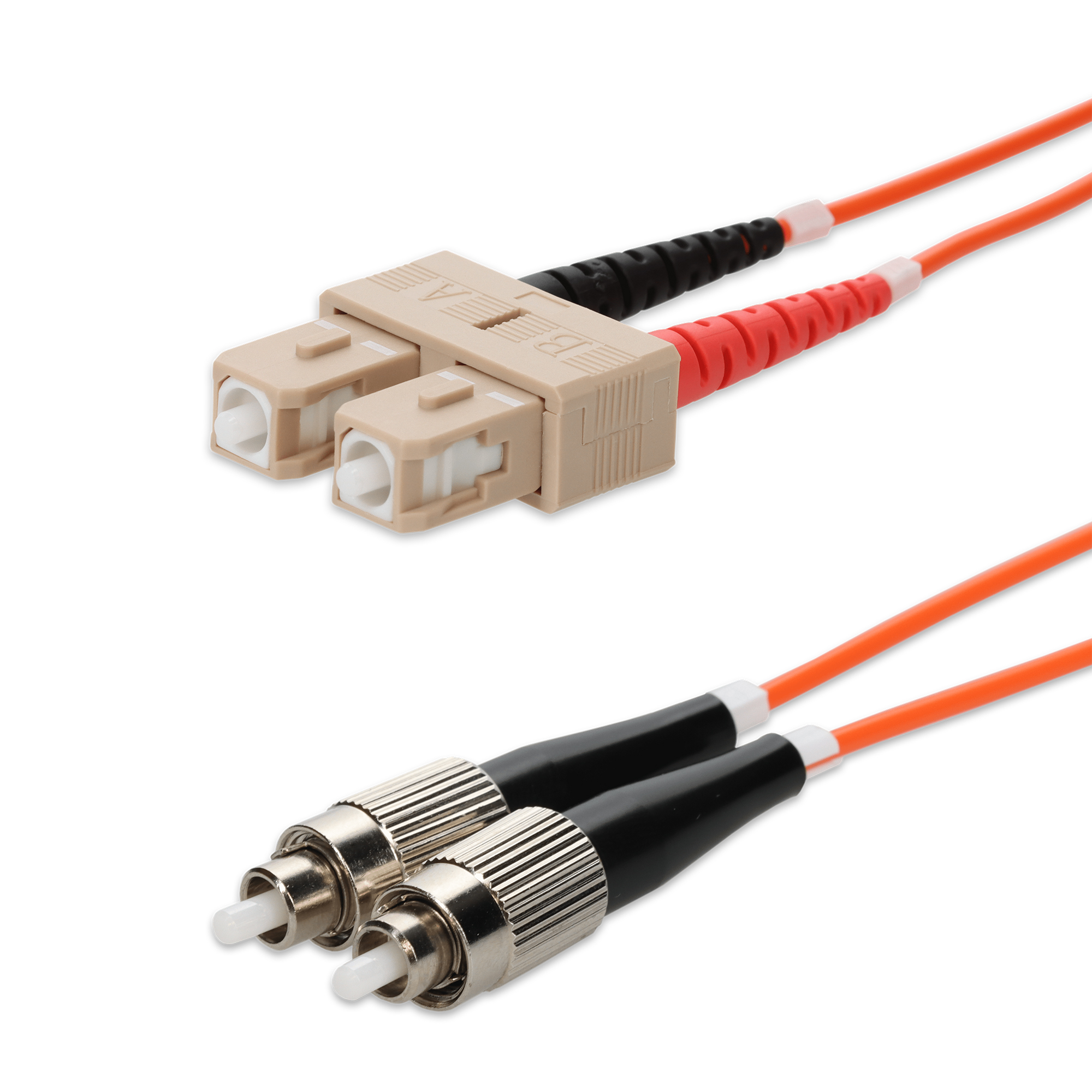

1m SC to FC Orange OM1 Duplex OFNR (Riser-Rated) MMF Fiber Patch Cable
SKU: ADD-SC-FC-1M6MMF
United Kingdom: 0 in stock
North America: 0 in stock
This is a 1m SC to FC Orange OM1 Duplex OFNR (Riser-Rated) MMF Fiber Patch Cable. OM1 fiber optic cable is a cost-effective multimode fiber solution, best suited for short-distance network connections, such as within buildings or small data centers. It supports 1G speeds at a maximum distance of 300 meters, or up to 10G over 33 meters, providing reliable performance for businesses with local networking needs. OFNR riser fiber cable jackets are designed for vertical installations in building risers, providing fire-resistant protection to ensure safe data transmission between floors. These cables meet strict safety standards, making them ideal for businesses that need reliable, in-building network infrastructure without the risk of fire spreading through conduits. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
Compatible OEM | Industry Standard |
Environment | Indoor |
Standard | OM1 |
Fiber Type | MMF |
Connector | SC (Male) to FC (Male) |
Color | Orange |
Shielded | No |
Strand Count | 2 |
Cable Mode | Duplex |
Jacket Type | Riser |
Termination Type | Crossover |
Core/Cladding | 62.5/125µm |
Fiber Termination | UPC - Ultra Physical Contact |
Length (m) | 1 |
Length (ft) | 3.28 |
Polarity | Type A-B |
Cable Type | OM1 |
Cable Length | 1m |
Armored | No |
Bend Insensitivity | G.657.A1 |
Connector 1 Ferrule Polish | UPC (Ultra Physical Contact) |
Connector 2 Ferrule Polish | UPC (Ultra Physical Contact) |
Insertion Loss Grade | Grade C |
Fire Rating | Riser (OFNR) |
Jacket Material | PVC (Polyvinyl Chloride) |
Connector 1 Boot Style | Standard Boot |
Connector 2 Boot Style | Standard Boot |
Connector 1 Color | Beige |
Connector 2 Color | Black |
Physical Specification
Product Shipping Dimension(HxWxD) | 5 in. x 2.75 in. x 4.75 in. |
Product Shipping Weight(LB) | 0.8 |
Kit | No Kit - 1 Piece |
Miscellaneous
Country Of Origin | China |
ECCN | EAR99 |
HTS-Harmonized Code (UK) | 85447000 |
HTS-Harmonized Code (US) | 8544.70.0000 |
TAA Compliant | No |
UNSPSC Code | 26121609 |
UPC Code | 821455068892 |
What's In The Box | 1x patch cable |
Limited Lifetime
