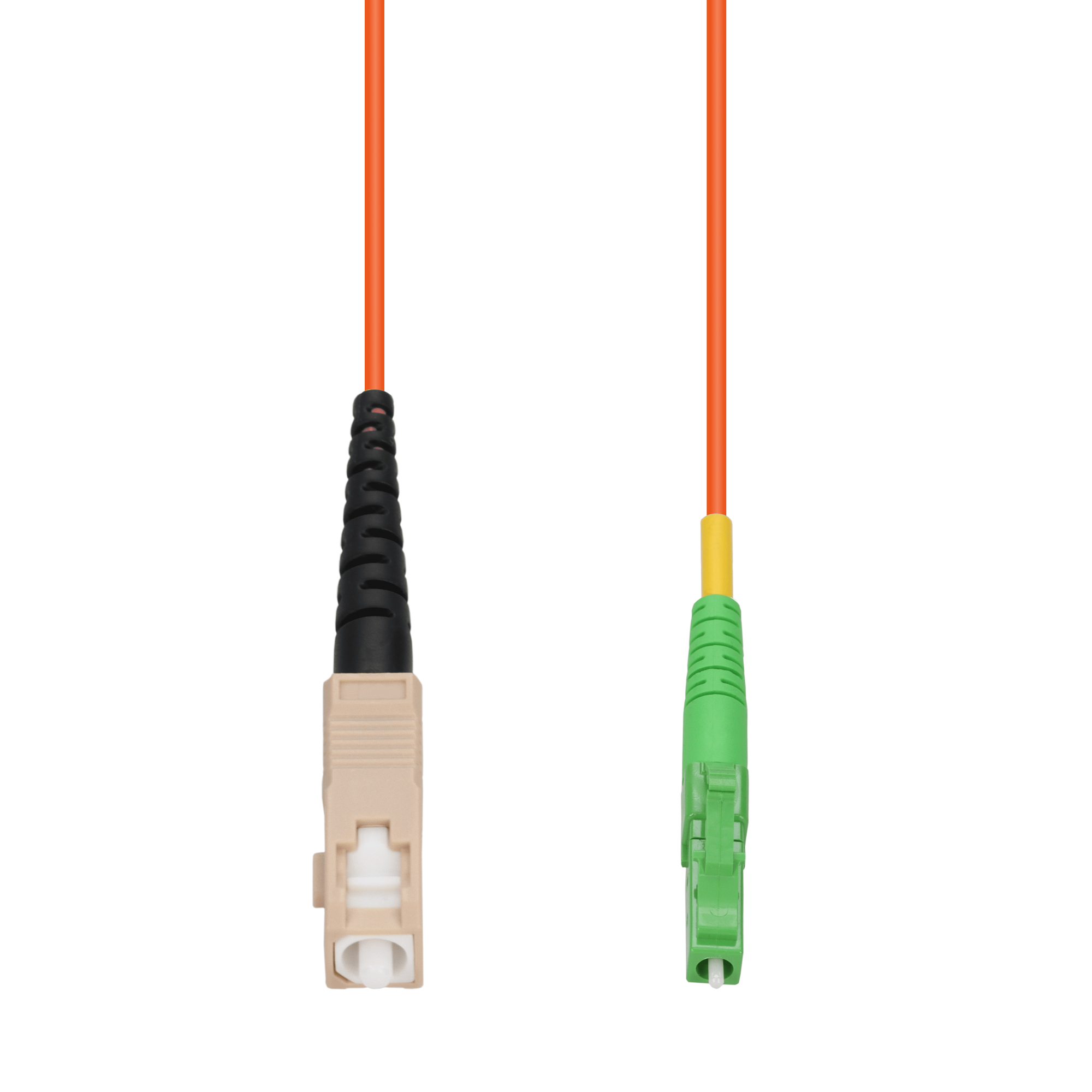

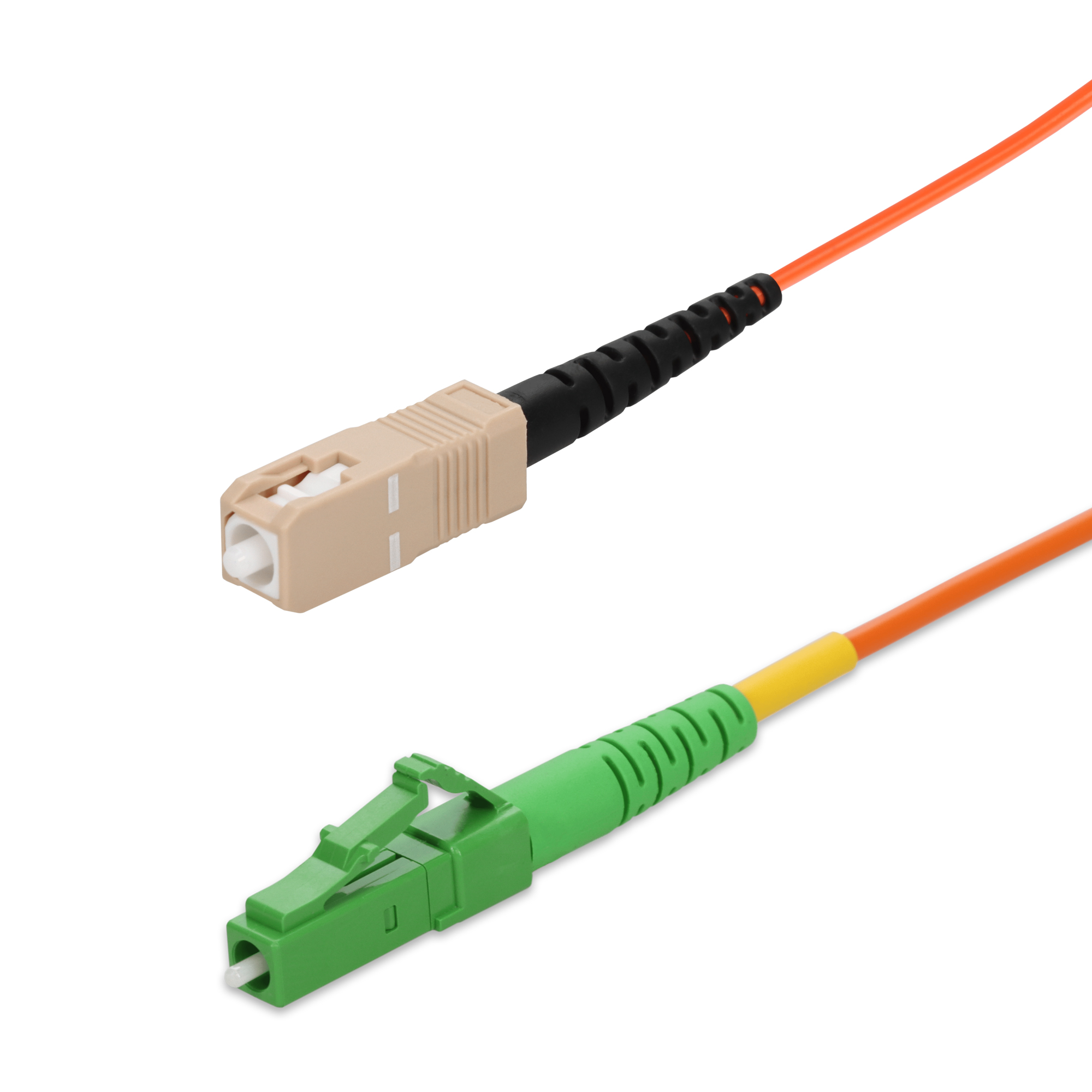

85m SC to ALC Orange OM2 Simplex OFNP (Plenum-Rated) Fiber Patch Cable
SKU: ADD-SC-ALC-85MS5OM2P
United Kingdom: 0 in stock
North America: 0 in stock
This is an 85m SC to ALC Orange OM2 Simplex OFNP (Plenum-Rated) Fiber Patch Cable. OM2 fiber optic cable is a multimode fiber designed for medium-distance network connections, making it ideal for office buildings and small data centers. It supports speeds up to 10G over distances of up to 550 meters, offering a balance between performance and affordability for business networks. OFNP plenum fiber cable jackets are engineered for use in air-handling spaces, such as ceilings and ducts, offering the highest fire resistance to prevent flame spread and reduce smoke in the event of a fire. These cables meet stringent safety standards, making them the top choice for businesses that need safe, reliable networking in critical building areas. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
Compatible OEM | Industry Standard |
Environment | Indoor |
Standard | OM2 |
Fiber Type | MMF |
Connector | SC (Male) to ALC (Male) |
Color | Orange |
Shielded | No |
Strand Count | 1 |
Cable Mode | Simplex |
Jacket Type | Plenum |
Termination Type | Straight |
Core/Cladding | 50/125µm |
Fiber Termination | APC - Angled Physical Contact |
Length (m) | 85 |
Length (ft) | 278.89 |
Cable Type | OM2 |
Cable Length | 85m |
Armored | No |
Bend Insensitivity | G.657.A1 |
Connector 1 Ferrule Polish | UPC (Ultra Physical Contact) |
Connector 2 Ferrule Polish | APC (Angled Physical Contact) |
Insertion Loss Grade | Grade C |
Fire Rating | Plenum (OFNP) |
Jacket Material | PVDF (Polyvinylidene Fluoride) |
Connector 1 Boot Style | Standard Boot |
Connector 2 Boot Style | Standard Boot |
Connector 1 Color | Beige |
Connector 2 Color | Green |
Physical Specification
Product Shipping Dimension(HxWxD) | 5 in. x 2.75 in. x 4.75 in. |
Product Shipping Weight(LB) | 0.8 |
Kit | No Kit - 1 Piece |
Miscellaneous
Country Of Origin | China |
ECCN | EAR99 |
HTS-Harmonized Code (UK) | 85447000 |
HTS-Harmonized Code (US) | 8544.70.0000 |
TAA Compliant | No |
UNSPSC Code | 26121609 |
UPC Code | 821455058428 |
What's In The Box | 1x patch cable |
Limited Lifetime
