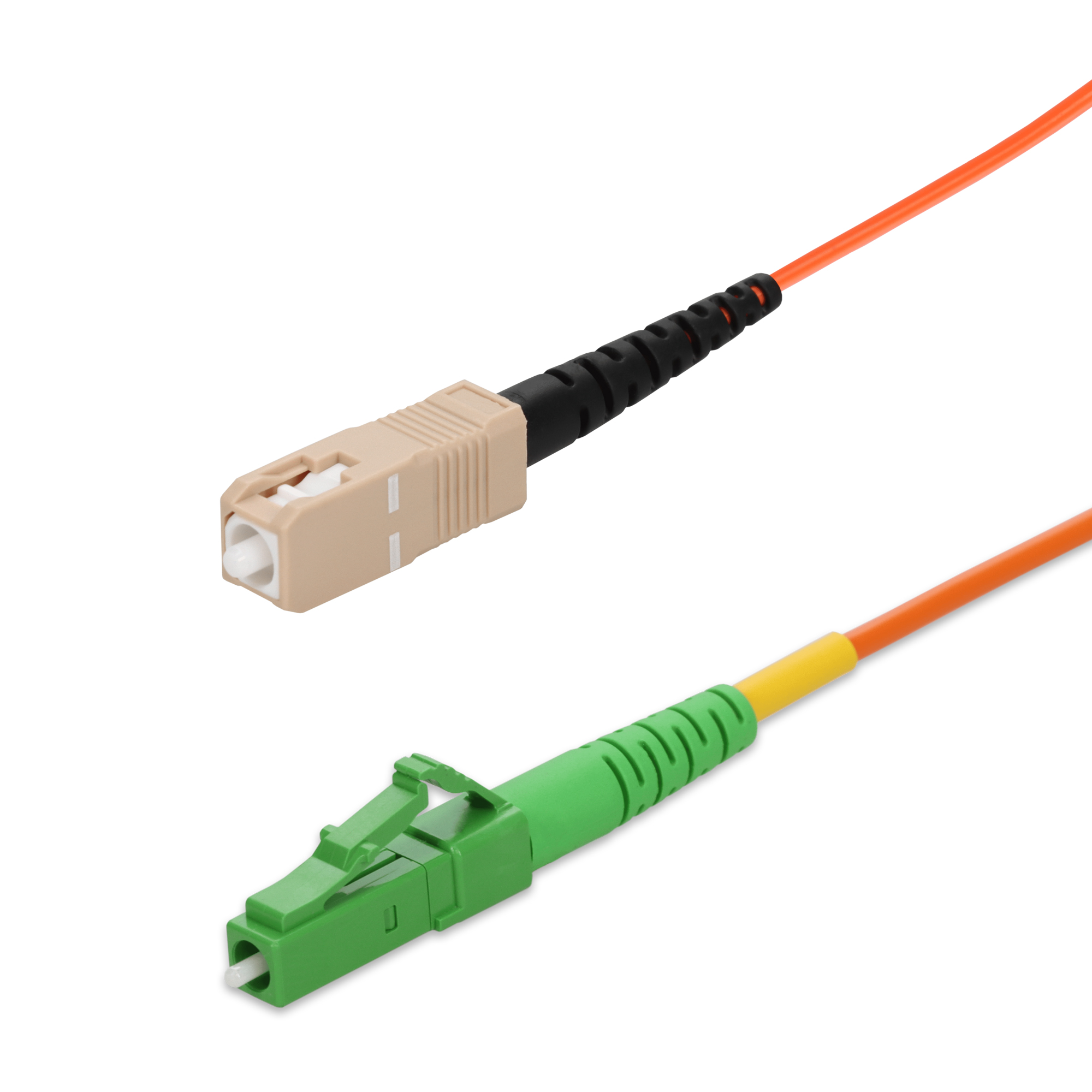

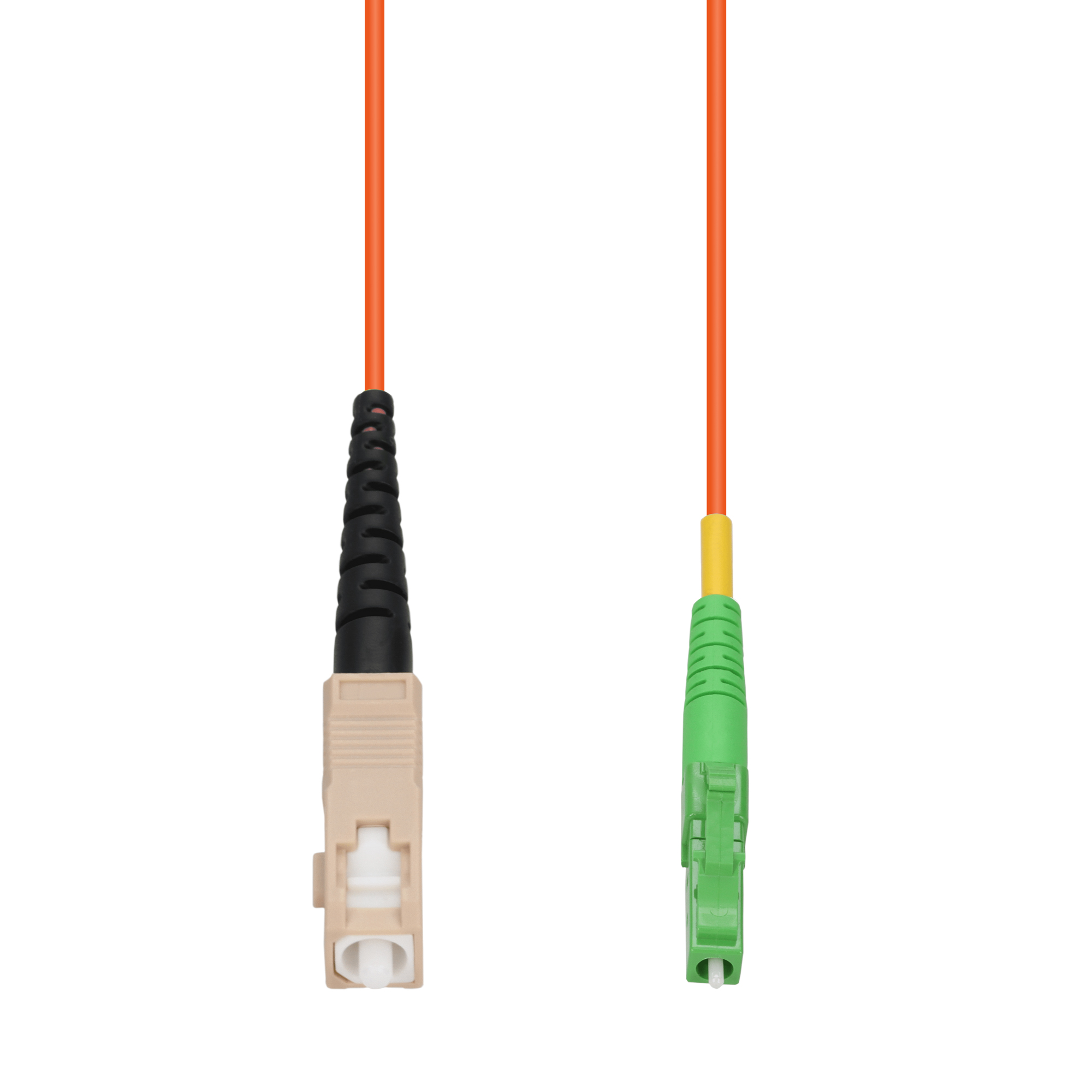

75m SC to ALC Orange OM1 Simplex LSZH MMF Fiber Patch Cable

SKU: ADD-SC-ALC-75MS6MMFLZ

United Kingdom: 0 in stock

North America: 0 in stock

This is a 75m SC to ALC Orange OM1 Simplex LSZH MMF Fiber Patch Cable. OM1 fiber optic cable is a cost-effective multimode fiber solution, best suited for short-distance network connections, such as within buildings or small data centers. It supports 1G speeds at a maximum distance of 300 meters, or up to 10G over 33 meters, providing reliable performance for businesses with local networking needs. LSZH (Low Smoke Zero Halogen) fiber cable jackets are designed to minimize toxic smoke and harmful emissions in the event of a fire, making them ideal for enclosed or high-traffic areas. These cables provide enhanced safety and environmental protection, making them a popular choice for businesses prioritizing workplace safety and eco-friendly infrastructure. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.

Technical Specification

Compatible OEMIndustry Standard
EnvironmentIndoor
StandardOM1
Fiber TypeMMF
ConnectorSC (Male) to ALC (Male)
ColorOrange
ShieldedNo
Strand Count1
Cable ModeSimplex
Jacket TypeLSZH
Termination TypeStraight
Core/Cladding62.5/125µm
Fiber TerminationAPC - Angled Physical Contact
Length (m)75
Length (ft)246.08
Cable TypeOM1
Cable Length75m
ArmoredNo
Bend InsensitivityG.657.A1
Connector 1 Ferrule PolishUPC (Ultra Physical Contact)
Connector 2 Ferrule PolishAPC (Angled Physical Contact)
Insertion Loss GradeGrade C
Fire RatingGeneral Purpose (OFNG)
Jacket MaterialLSZH (Low Smoke Zero Halogen)
Connector 1 Boot StyleStandard Boot
Connector 2 Boot StyleStandard Boot
Connector 1 ColorBeige
Connector 2 ColorGreen

Physical Specification

Product Shipping Dimension(HxWxD)5 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB)0.8
KitNo Kit - 1 Piece

Miscellaneous

Country Of OriginChina
ECCNEAR99
HTS-Harmonized Code (UK)85447000
HTS-Harmonized Code (US)8544.70.0000
TAA CompliantNo
UNSPSC Code26121609
UPC Code821455055953
What's In The Box1x patch cable

Limited Lifetime
