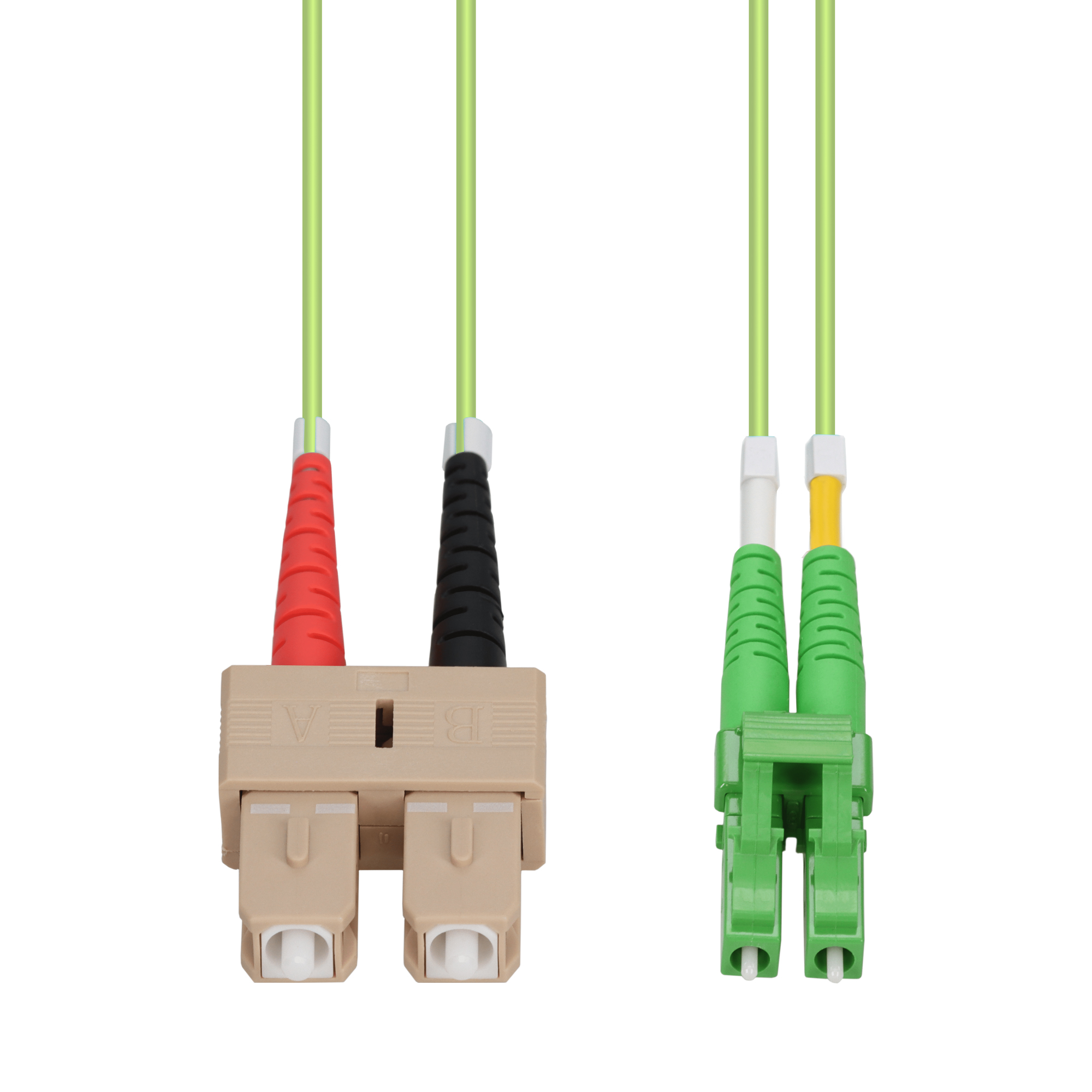

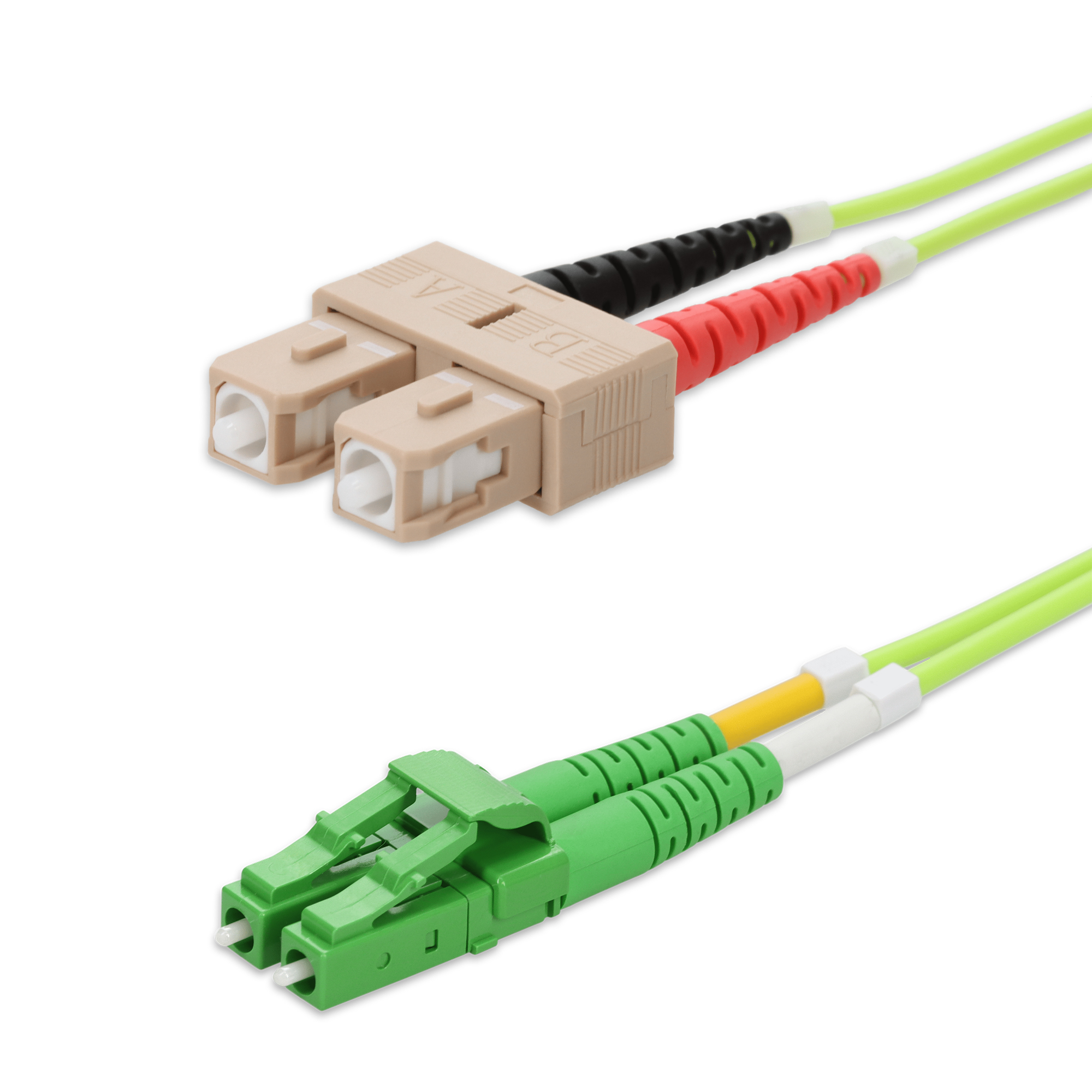

70m SC to ALC Lime Green OM5 Duplex LSZH Fiber Patch Cable

SKU: ADD-SC-ALC-70M5OM5LZ

United Kingdom: 0 in stock

North America: 0 in stock

This is a 70m SC to ALC Lime Green OM5 Duplex LSZH Fiber Patch Cable. OM5 fiber optic cable is an advanced multimode fiber optimized for high-speed, high-bandwidth applications, supporting up to 100G over 150 meters with the added benefit of Wideband support for future-proofing networks. It is ideal for data centers and enterprises looking to scale their networks efficiently while maintaining flexibility for future technology upgrades. LSZH (Low Smoke Zero Halogen) fiber cable jackets are designed to minimize toxic smoke and harmful emissions in the event of a fire, making them ideal for enclosed or high-traffic areas. These cables provide enhanced safety and environmental protection, making them a popular choice for businesses prioritizing workplace safety and eco-friendly infrastructure. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.

Technical Specification

Compatible OEMIndustry Standard
EnvironmentIndoor
StandardOM5
Fiber TypeMMF
ConnectorSC (Male) to ALC (Male)
ColorLime
ShieldedNo
Strand Count2
Cable ModeDuplex
Jacket TypeLSZH
Termination TypeCrossover
Core/Cladding50/125µm
Fiber TerminationAPC - Angled Physical Contact
Length (m)70
Length (ft)229.67
PolarityType A-B
Cable TypeOM5
Cable Length70m
ArmoredNo
Bend InsensitivityG.657.A1
Connector 1 Ferrule PolishUPC (Ultra Physical Contact)
Connector 2 Ferrule PolishAPC (Angled Physical Contact)
Insertion Loss GradeGrade C
Fire RatingGeneral Purpose (OFNG)
Jacket MaterialLSZH (Low Smoke Zero Halogen)
Connector 1 Boot StyleStandard Boot
Connector 2 Boot StyleStandard Boot
Connector 1 ColorBeige
Connector 2 ColorGreen

Physical Specification

Product Shipping Dimension(HxWxD)5 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB)0.8
KitNo Kit - 1 Piece

Miscellaneous

Country Of OriginChina
ECCNEAR99
HTS-Harmonized Code (UK)85447000
HTS-Harmonized Code (US)8544.70.0000
TAA CompliantNo
UNSPSC Code26121609
UPC Code821455054956
What's In The Box1x patch cable
