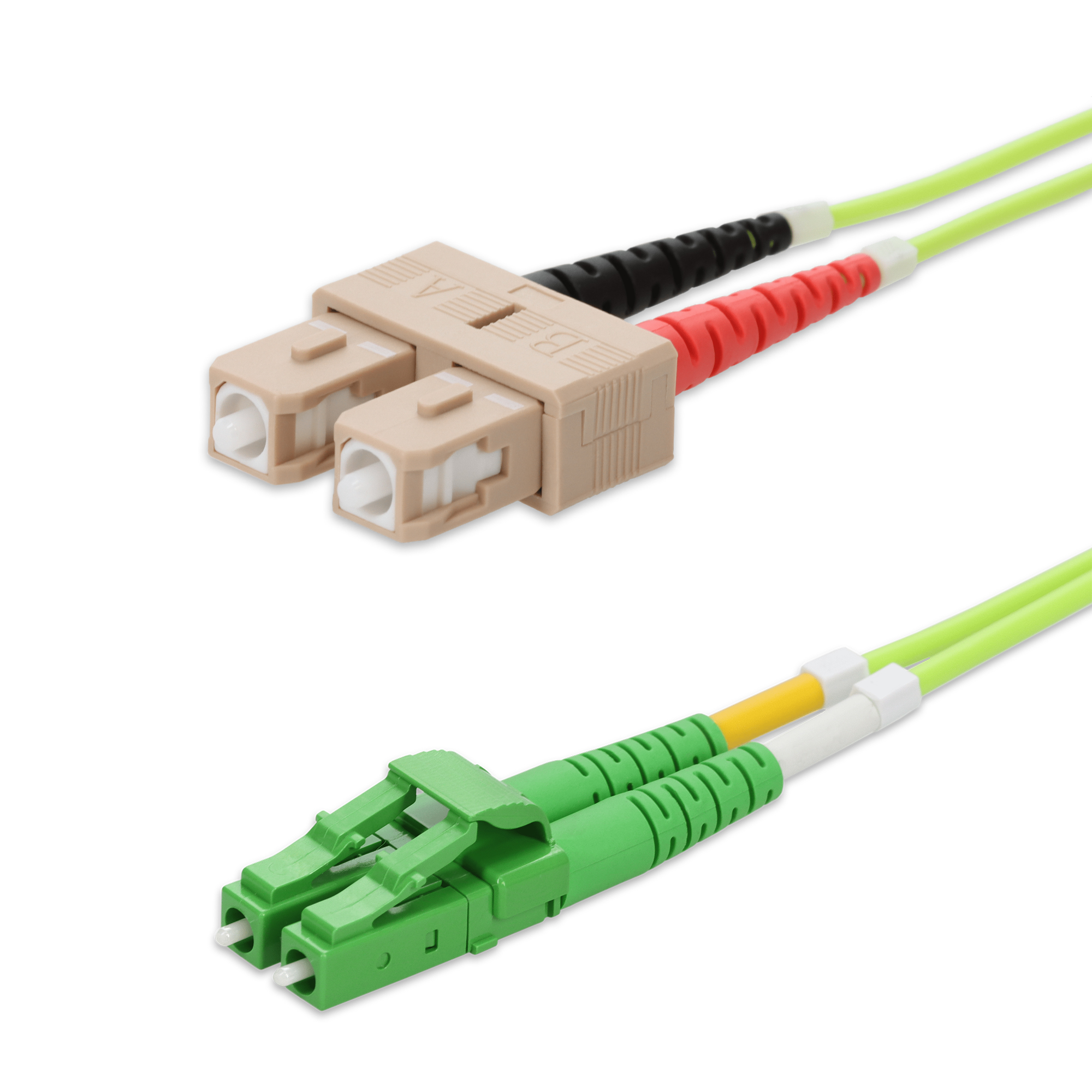

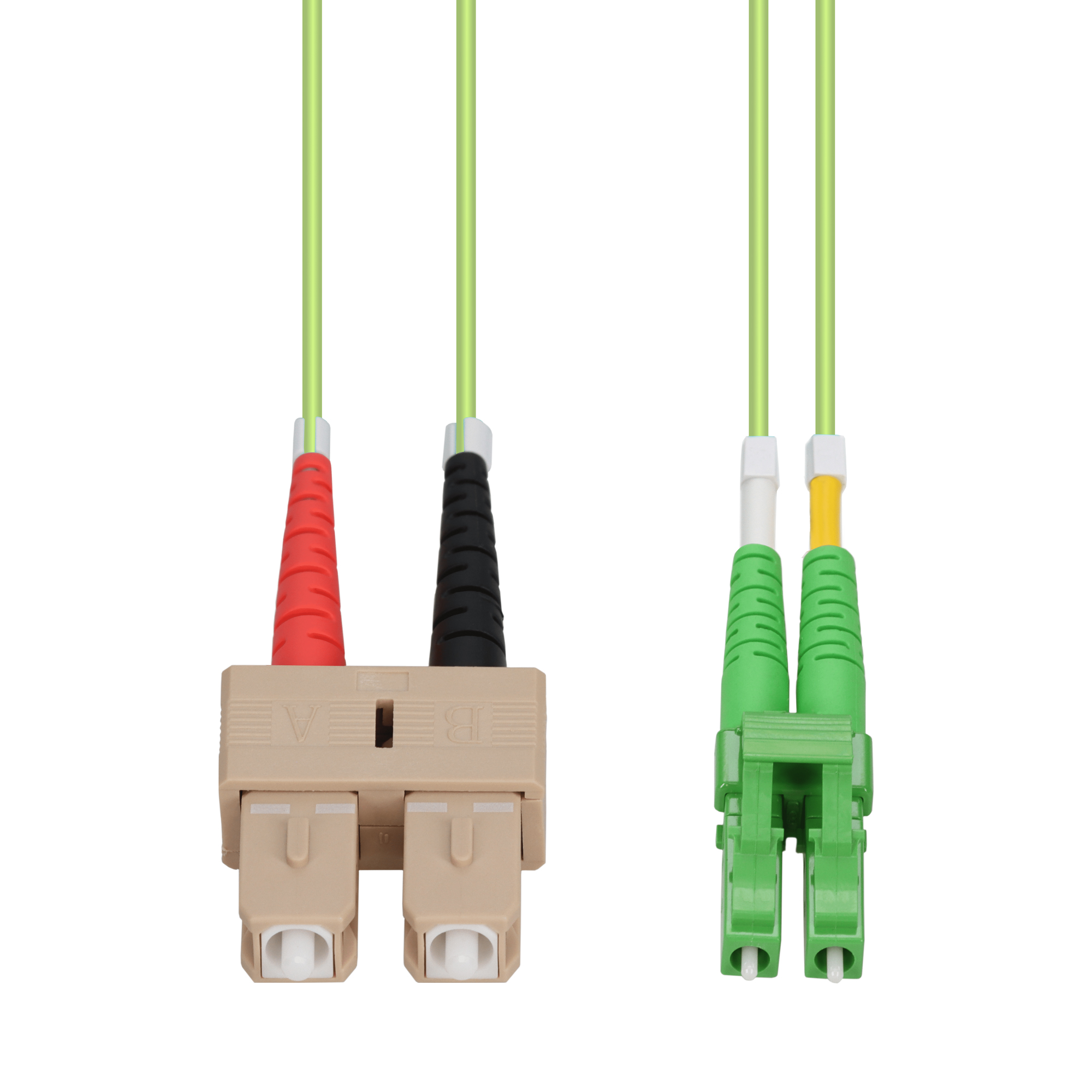

6m SC to ALC Lime Green OM5 Duplex OFNP (Plenum-Rated) Fiber Patch Cable

SKU: ADD-SC-ALC-6M5OM5P

United Kingdom: 0 in stock

North America: 0 in stock

This is a 6m SC to ALC Lime Green OM5 Duplex OFNP (Plenum-Rated) Fiber Patch Cable. OM5 fiber optic cable is an advanced multimode fiber optimized for high-speed, high-bandwidth applications, supporting up to 100G over 150 meters with the added benefit of Wideband support for future-proofing networks. It is ideal for data centers and enterprises looking to scale their networks efficiently while maintaining flexibility for future technology upgrades. OFNP plenum fiber cable jackets are engineered for use in air-handling spaces, such as ceilings and ducts, offering the highest fire resistance to prevent flame spread and reduce smoke in the event of a fire. These cables meet stringent safety standards, making them the top choice for businesses that need safe, reliable networking in critical building areas. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.

Technical Specification

Compatible OEMIndustry Standard
EnvironmentIndoor
StandardOM5
Fiber TypeMMF
ConnectorSC (Male) to ALC (Male)
ColorLime
ShieldedNo
Strand Count2
Cable ModeDuplex
Jacket TypePlenum
Termination TypeCrossover
Core/Cladding50/125µm
Fiber TerminationAPC - Angled Physical Contact
Length (m)6
Length (ft)19.69
PolarityType A-B
Cable TypeOM5
Cable Length6m
ArmoredNo
Bend InsensitivityG.657.A1
Connector 1 Ferrule PolishUPC (Ultra Physical Contact)
Connector 2 Ferrule PolishAPC (Angled Physical Contact)
Insertion Loss GradeGrade C
Fire RatingPlenum (OFNP)
Jacket MaterialPVDF (Polyvinylidene Fluoride)
Connector 1 Boot StyleStandard Boot
Connector 2 Boot StyleStandard Boot
Connector 1 ColorBeige
Connector 2 ColorGreen

Physical Specification

Product Shipping Dimension(HxWxD)5 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB)0.8
KitNo Kit - 1 Piece

Miscellaneous

Country Of OriginChina
ECCNEAR99
HTS-Harmonized Code (UK)85447000
HTS-Harmonized Code (US)8544.70.0000
TAA CompliantNo
UNSPSC Code26121609
UPC Code821455052716
What's In The Box1x patch cable

Limited Lifetime
