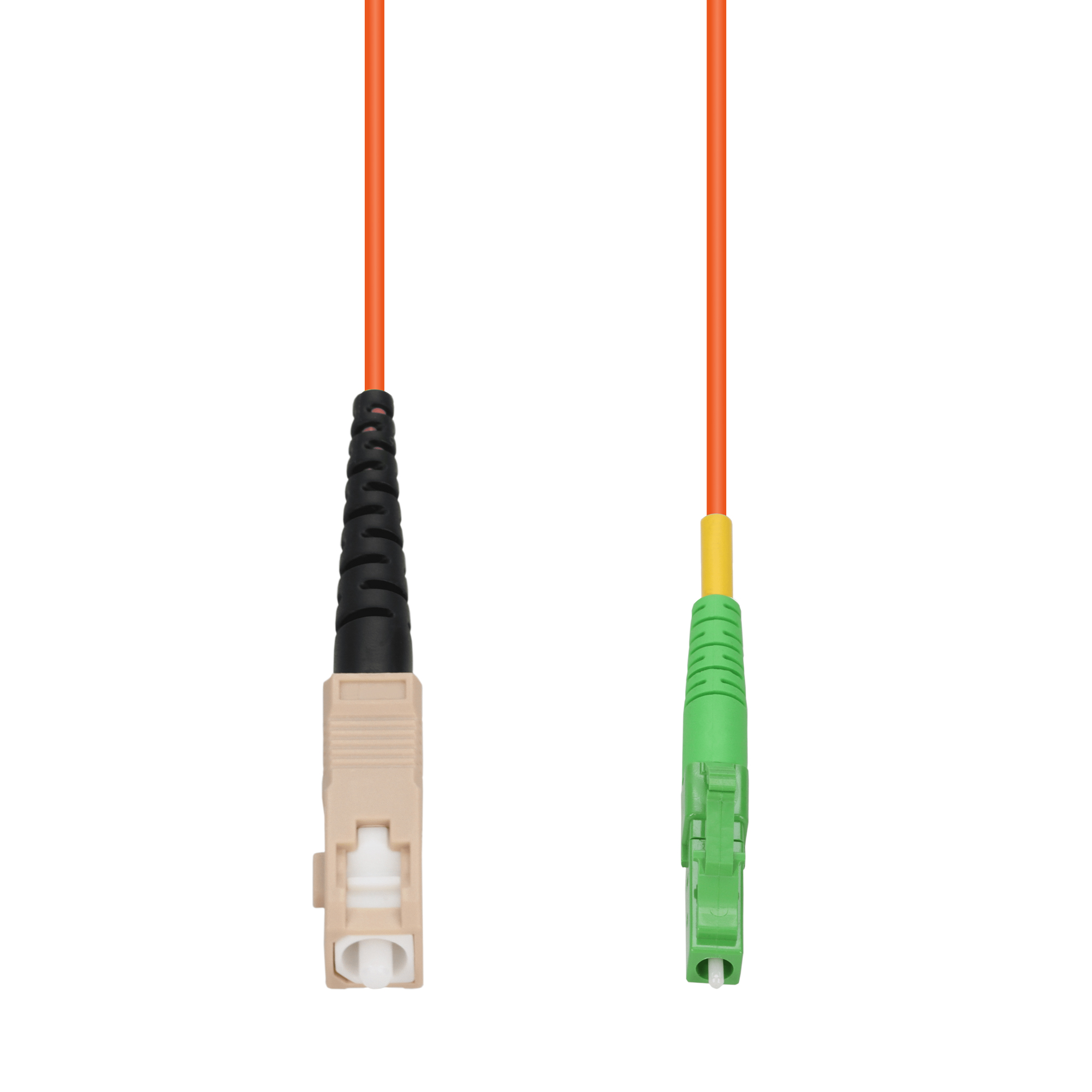

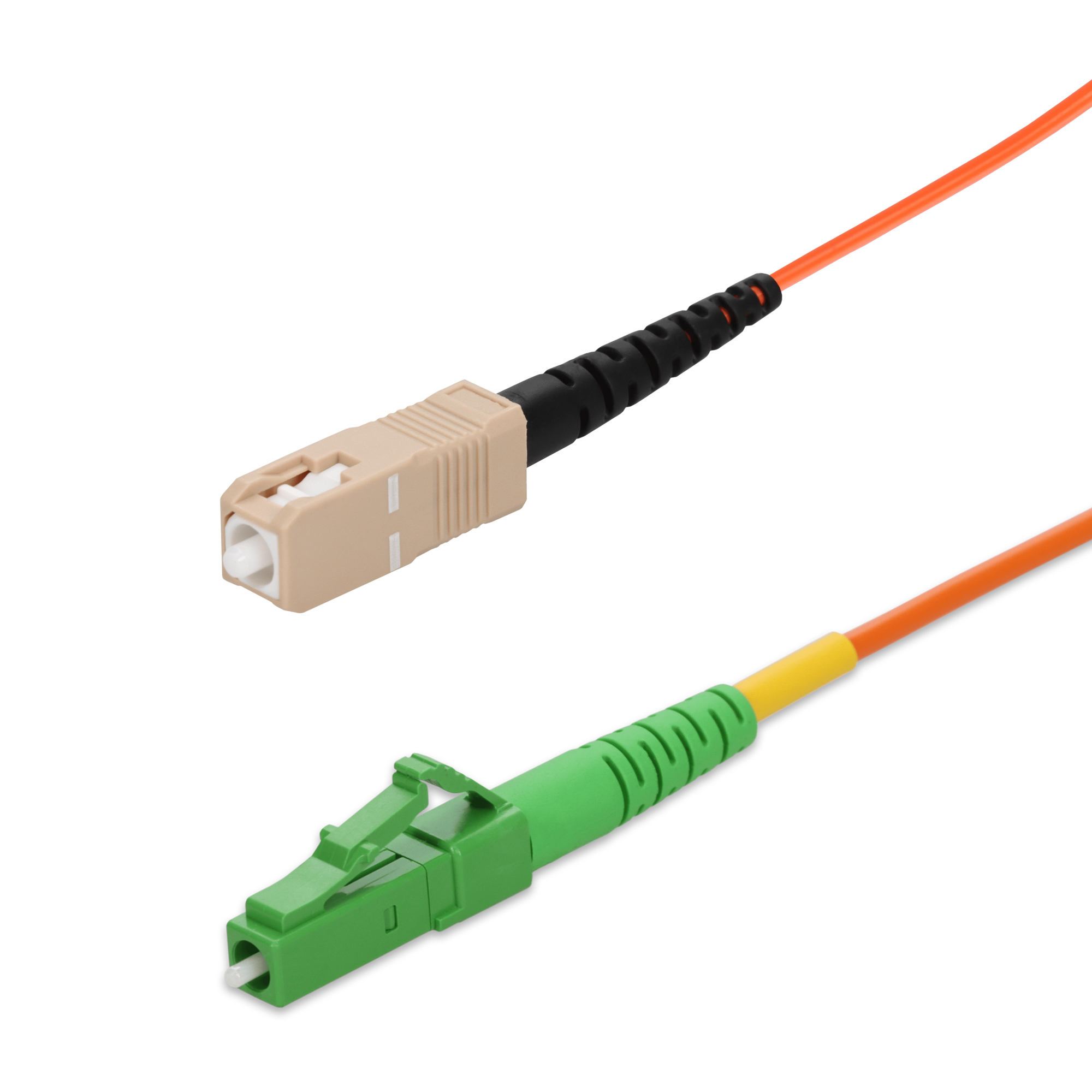

4m SC to ALC Orange OM2 Simplex OFNP (Plenum-Rated) Fiber Patch Cable

SKU: ADD-SC-ALC-4MS5OM2P

United Kingdom: 0 in stock

North America: 0 in stock

This is a 4m SC to ALC Orange OM2 Simplex OFNP (Plenum-Rated) Fiber Patch Cable. OM2 fiber optic cable is a multimode fiber designed for medium-distance network connections, making it ideal for office buildings and small data centers. It supports speeds up to 10G over distances of up to 550 meters, offering a balance between performance and affordability for business networks. OFNP plenum fiber cable jackets are engineered for use in air-handling spaces, such as ceilings and ducts, offering the highest fire resistance to prevent flame spread and reduce smoke in the event of a fire. These cables meet stringent safety standards, making them the top choice for businesses that need safe, reliable networking in critical building areas. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.

Technical Specification

Compatible OEMIndustry Standard
EnvironmentIndoor
StandardOM2
Fiber TypeMMF
ConnectorSC (Male) to ALC (Male)
ColorOrange
ShieldedNo
Strand Count1
Cable ModeSimplex
Jacket TypePlenum
Termination TypeStraight
Core/Cladding50/125µm
Fiber TerminationAPC - Angled Physical Contact
Length (m)4
Length (ft)13.12
Cable TypeOM2
Cable Length4m
ArmoredNo
Bend InsensitivityG.657.A1
Connector 1 Ferrule PolishUPC (Ultra Physical Contact)
Connector 2 Ferrule PolishAPC (Angled Physical Contact)
Insertion Loss GradeGrade C
Fire RatingPlenum (OFNP)
Jacket MaterialPVDF (Polyvinylidene Fluoride)
Connector 1 Boot StyleStandard Boot
Connector 2 Boot StyleStandard Boot
Connector 1 ColorBeige
Connector 2 ColorGreen

Physical Specification

Product Shipping Dimension(HxWxD)5 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB)0.8
KitNo Kit - 1 Piece

Miscellaneous

Country Of OriginChina
ECCNEAR99
HTS-Harmonized Code (UK)85447000
HTS-Harmonized Code (US)8544.70.0000
TAA CompliantNo
UNSPSC Code26121609
UPC Code821455046937
What's In The Box1x patch cable
