ADD-SC-ALC-40MS9SMFP imageADD-SC-ALC-40MS9SMFP imageADD-SC-ALC-40MS9SMFP image

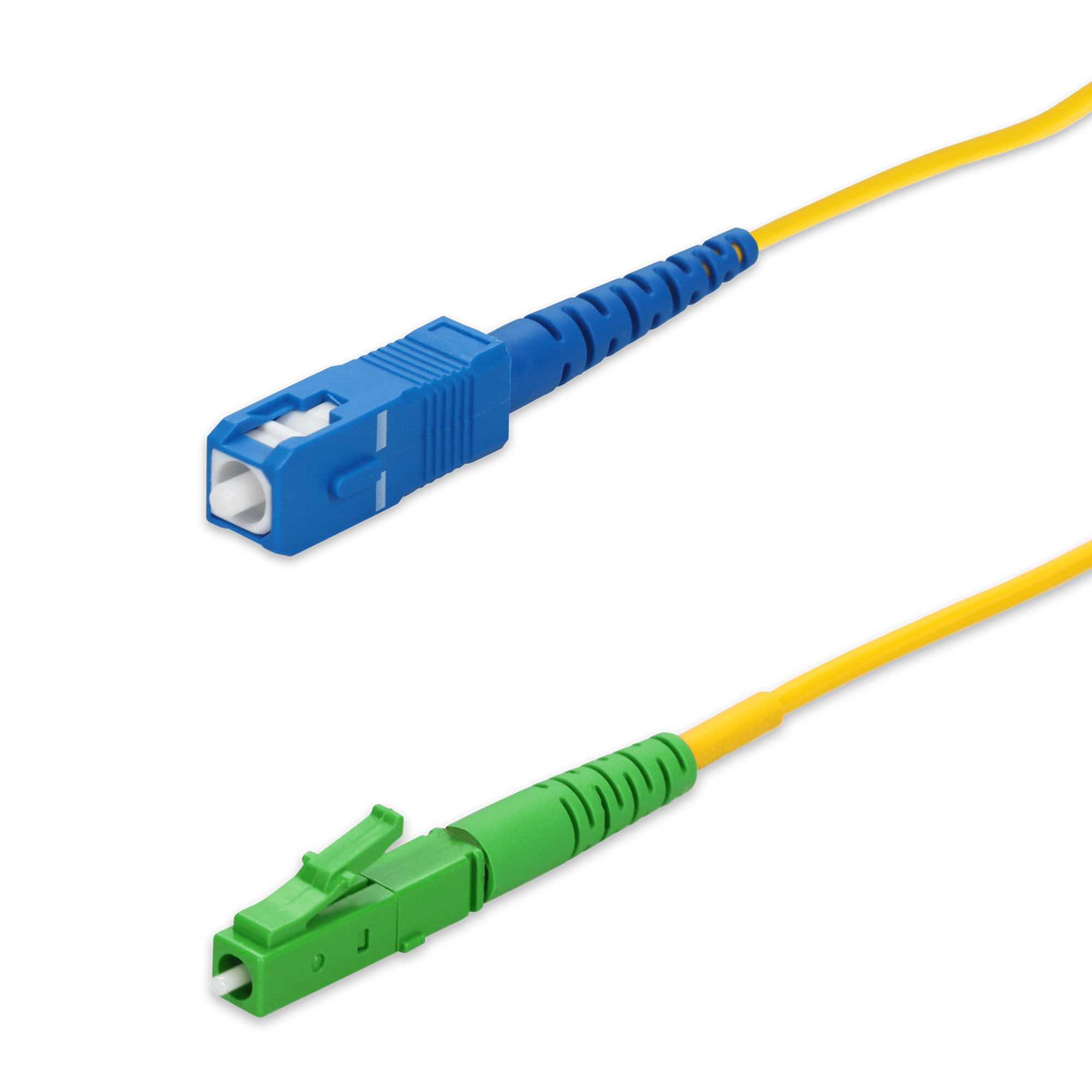

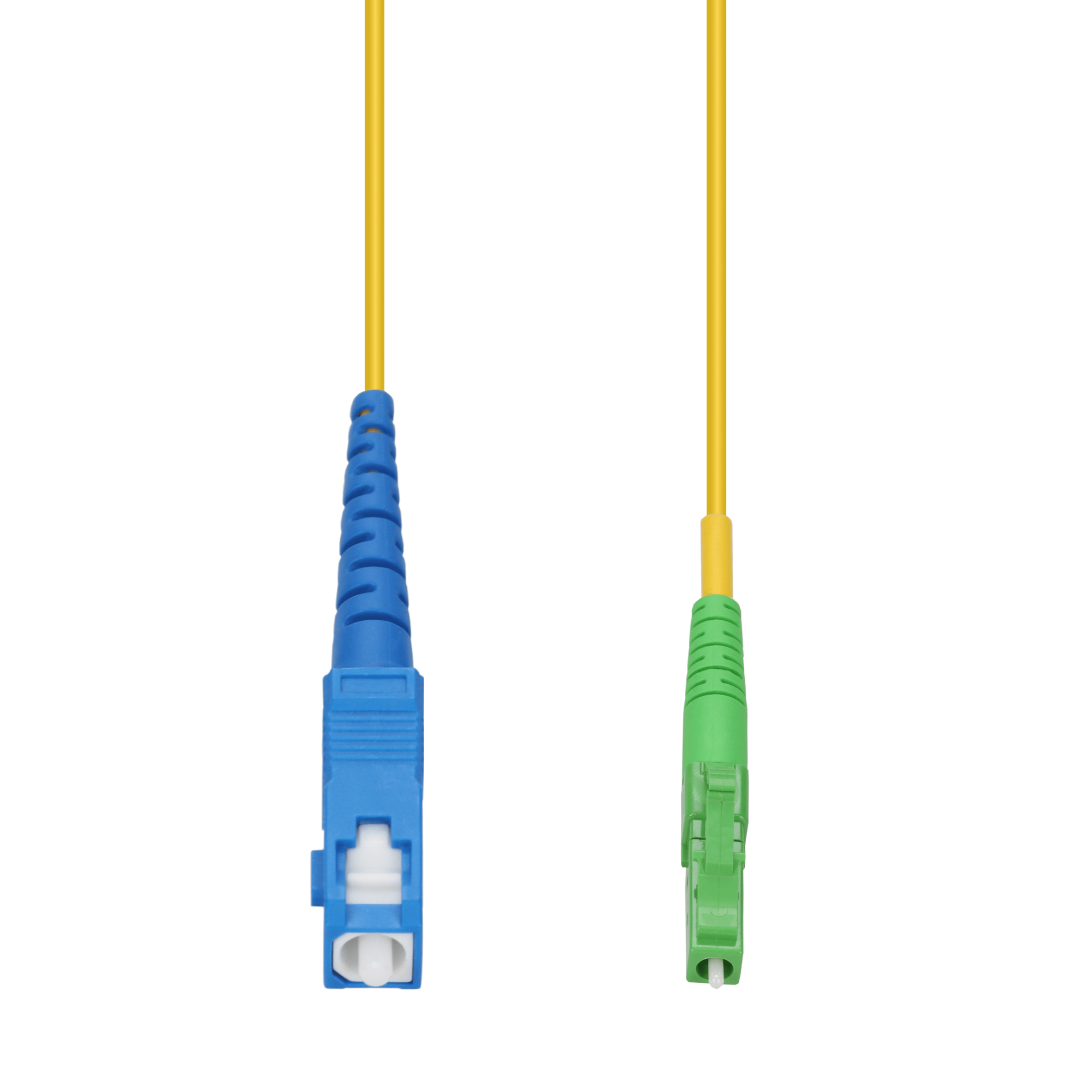

40m SC to ALC Yellow OS2 Simplex OFNP (Plenum-Rated) SMF Fiber Patch Cable

SKU: ADD-SC-ALC-40MS9SMFP

United Kingdom: 0 in stock

North America: 0 in stock

This is a 40m SC to ALC Yellow OS2 Simplex OFNP (Plenum-Rated) SMF Fiber Patch Cable. OS2 fiber optic cable is a high-performance single-mode fiber designed for long-distance data transmission, making it ideal for businesses requiring reliable and fast network connections over longer distances up to 200kilometers. With low signal loss and the ability to support 1G to 100G speeds, ensuring efficient communication across offices, data centers, or industrial facilities. OFNP plenum fiber cable jackets are engineered for use in air-handling spaces, such as ceilings and ducts, offering the highest fire resistance to prevent flame spread and reduce smoke in the event of a fire. These cables meet stringent safety standards, making them the top choice for businesses that need safe, reliable networking in critical building areas. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.

Technical Specification

Compatible OEMIndustry Standard
EnvironmentIndoor
StandardOS2
Fiber TypeSMF
ConnectorSC (Male) to ALC (Male)
ColorYellow
ShieldedNo
Strand Count1
Cable ModeSimplex
Jacket TypePlenum
Termination TypeStraight
Core/Cladding9/125µm
Fiber TerminationAPC - Angled Physical Contact
Length (m)40
Length (ft)131.24
Cable TypeOS2
Cable Length40m
ArmoredNo
Bend InsensitivityG.657.A1
Connector 1 Ferrule PolishUPC (Ultra Physical Contact)
Connector 2 Ferrule PolishAPC (Angled Physical Contact)
Insertion Loss GradeGrade C
Fire RatingPlenum (OFNP)
Jacket MaterialPVDF (Polyvinylidene Fluoride)
Connector 1 Boot StyleStandard Boot
Connector 2 Boot StyleStandard Boot
Connector 1 ColorBlue
Connector 2 ColorGreen

Physical Specification

Product Shipping Dimension(HxWxD)5 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB)0.8
KitNo Kit - 1 Piece

Miscellaneous

Country Of OriginChina
ECCNEAR99
HTS-Harmonized Code (UK)85447000
HTS-Harmonized Code (US)8544.70.0000
TAA CompliantNo
UNSPSC Code26121609
UPC Code821455045497
What's In The Box1x patch cable
