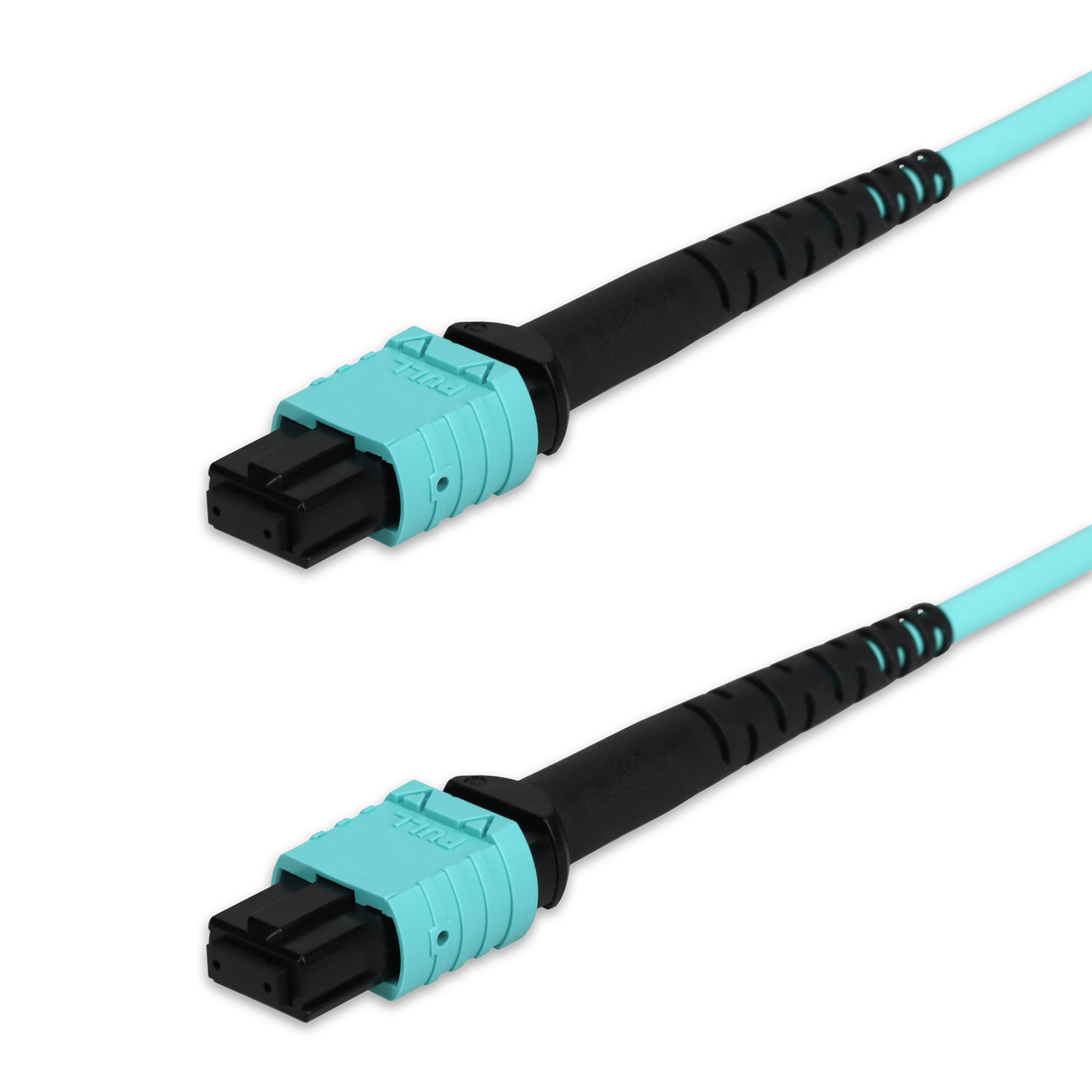

1m MPO/UPC to MPO/UPC Aqua OM4 OFNR (Riser-Rated) 12-Strand Type-A (Straight) Fiber Patch Cable
SKU: ADD-MPOMPO-1M5OM4S
North America: 5 in stock
United Kingdom: 0 in stock
Belgium: 0 in stock
Available from the following dealers:
This is a 1m MPO/UPC to MPO/UPC Aqua OM4 OFNR (Riser-Rated) 12-Strand Type-A (Straight) Fiber Patch Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. OFNR riser fiber cable jackets are designed for vertical installations in building risers, providing fire-resistant protection to ensure safe data transmission between floors. These cables meet strict safety standards, making them ideal for businesses that need reliable, in-building network infrastructure without the risk of fire spreading through conduits. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
| Cable Mode | Multiple |
| Color | Aqua |
| Compatible OEM | Industry Standard |
| Connector | MPO (Female) to MPO (Female) |
| Core/Cladding | 50/125µm |
| Fiber Termination | UPC - Ultra Physical Contact |
| Jacket Type | Riser |
| Length (ft) | 3.28 |
| Length (m) | 1 |
| Fiber Type | MMF |
| Strand Count | 12 |
| Termination Type | Straight |
| Shielded | No |
| Armored | No |
| Bend Insensitivity (ITU) | IEC 60793-2-10 Type A1a.3 |
| Cable Length | 1m |
| Cable Type | OM4 |
| Connector 1 Boot Style | Standard Boot |
| Connector 1 Color | Aqua |
| Connector 1 Ferrule Polish Type | UPC (Ultra Physical Contact) |
| Connector 2 Boot Style | Standard Boot |
| Connector 2 Color | Aqua |
| Connector 2 Ferrule Polish Type | UPC (Ultra Physical Contact) |
| Environment | Indoor |
| Fire Rating | Riser (OFNR) |
| Insertion Loss Grade | Grade C |
| Outer Diameter | 3.0mm |
| Polarity | Method A |
| Jacket Material | PVC (Polyvinyl Chloride) |
Physical Specification
| Product Shipping Dimension(HxWxD) | 5 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight(LB) | 0.2 |
| Kit | No Kit - 1 Piece |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | No |
| UNSPSC Code | 26121609 |
| UPC Code | 821455093825 |
| What's In The Box | 1x patch cable |
| AddOn Part# | ADD-MPOMPO-1M5OM4S |
| Ingram Micro® | 6E4279 |
| Insight Electronics® | ADD-MPOMPO-1M5OM4S |
| TD Synnex CA | 5766784 |
| TD Synnex US | 4070952 |
Limited Lifetime
