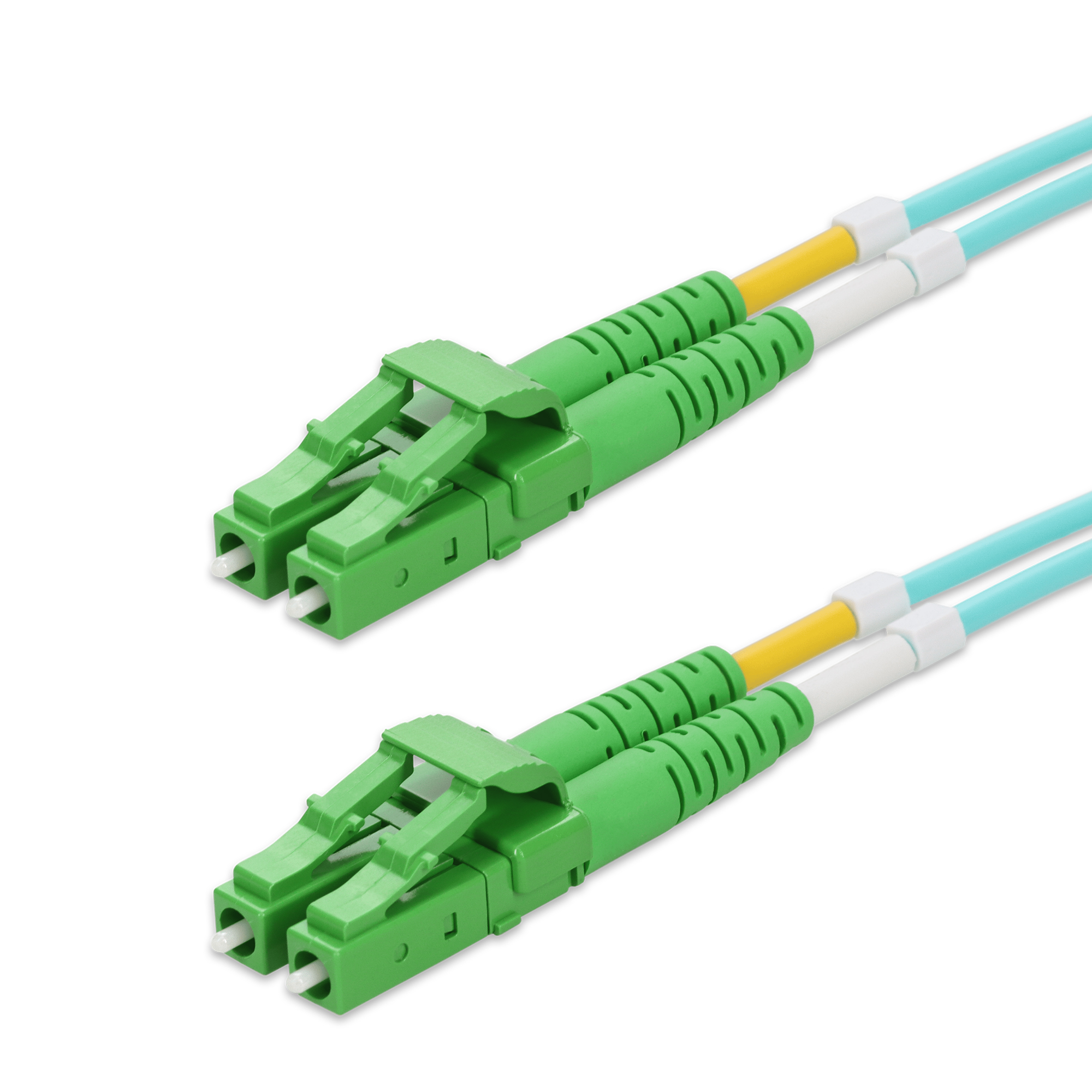

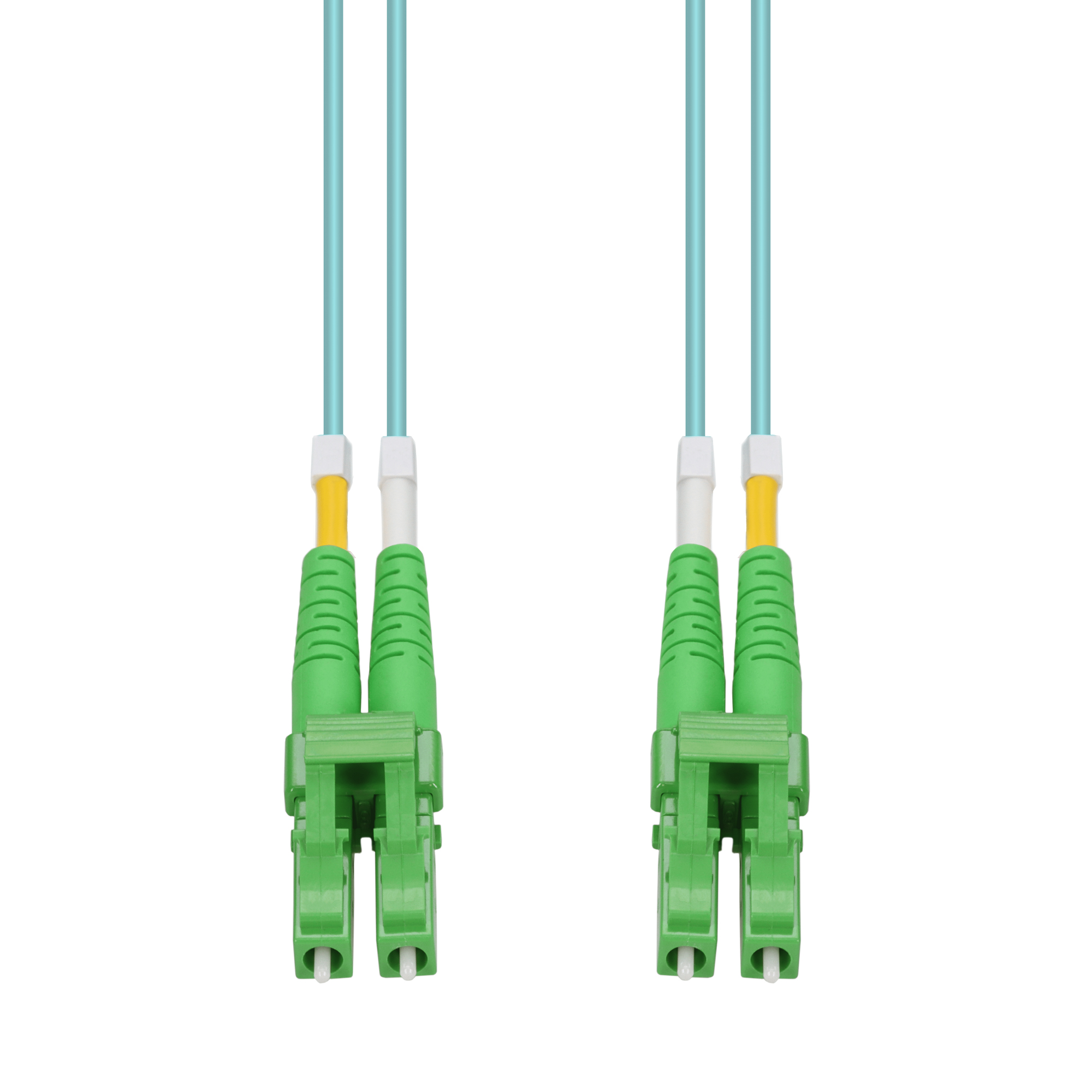

100m ALC to ALC Aqua OM4 Duplex LSZH Fiber Patch Cable
SKU: ADD-ALC-ALC-100M5OM4LZ
Belgium: 0 in stock
United Kingdom: 0 in stock
North America: 0 in stock
This is a 100m ALC to ALC Aqua OM4 Duplex LSZH Fiber Patch Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. LSZH (Low Smoke Zero Halogen) fiber cable jackets are designed to minimize toxic smoke and harmful emissions in the event of a fire, making them ideal for enclosed or high-traffic areas. These cables provide enhanced safety and environmental protection, making them a popular choice for businesses prioritizing workplace safety and eco-friendly infrastructure. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
| Armored | No |
| Bend Insensitivity | G.657.A1 |
| Cable Length | 100m |
| Cable Mode | Duplex |
| Cable Type | OM4 |
| Color | Aqua |
| Compatible OEM | Industry Standard |
| Connector | ALC (Male) to ALC (Male) |
| Connector 1 Boot Style | Standard Boot |
| Connector 1 Color | Green |
| Connector 1 Ferrule Polish Type | APC (Angled Physical Contact) |
| Connector 2 Boot Style | Standard Boot |
| Connector 2 Color | Green |
| Connector 2 Ferrule Polish Type | APC (Angled Physical Contact) |
| Core/Cladding | 50/125µm |
| Environment | Indoor |
| Fiber Termination | APC - Angled Physical Contact |
| Fiber Type | MMF |
| Fire Rating | General Purpose (OFNG) |
| Insertion Loss Grade | Grade C |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Jacket Type | LSZH |
| Length (ft) | 328.1 |
| Length (m) | 100 |
| Polarity | Type A-B |
| Shielded | No |
| Strand Count | 2 |
| Termination Type | Crossover |
| Outer Diameter | 2.0mm |
Physical Specification
| Kit | No Kit - 1 Piece |
| Product Shipping Dimension(HxWxD) | 12 in. x 12 in. x 8 in. |
| Product Shipping Weight(LB) | 5.1 |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | No |
| UNSPSC Code | 26121609 |
| UPC Code | 195285904966 |
| What's In The Box | 1x patch cable |
Limited Lifetime
