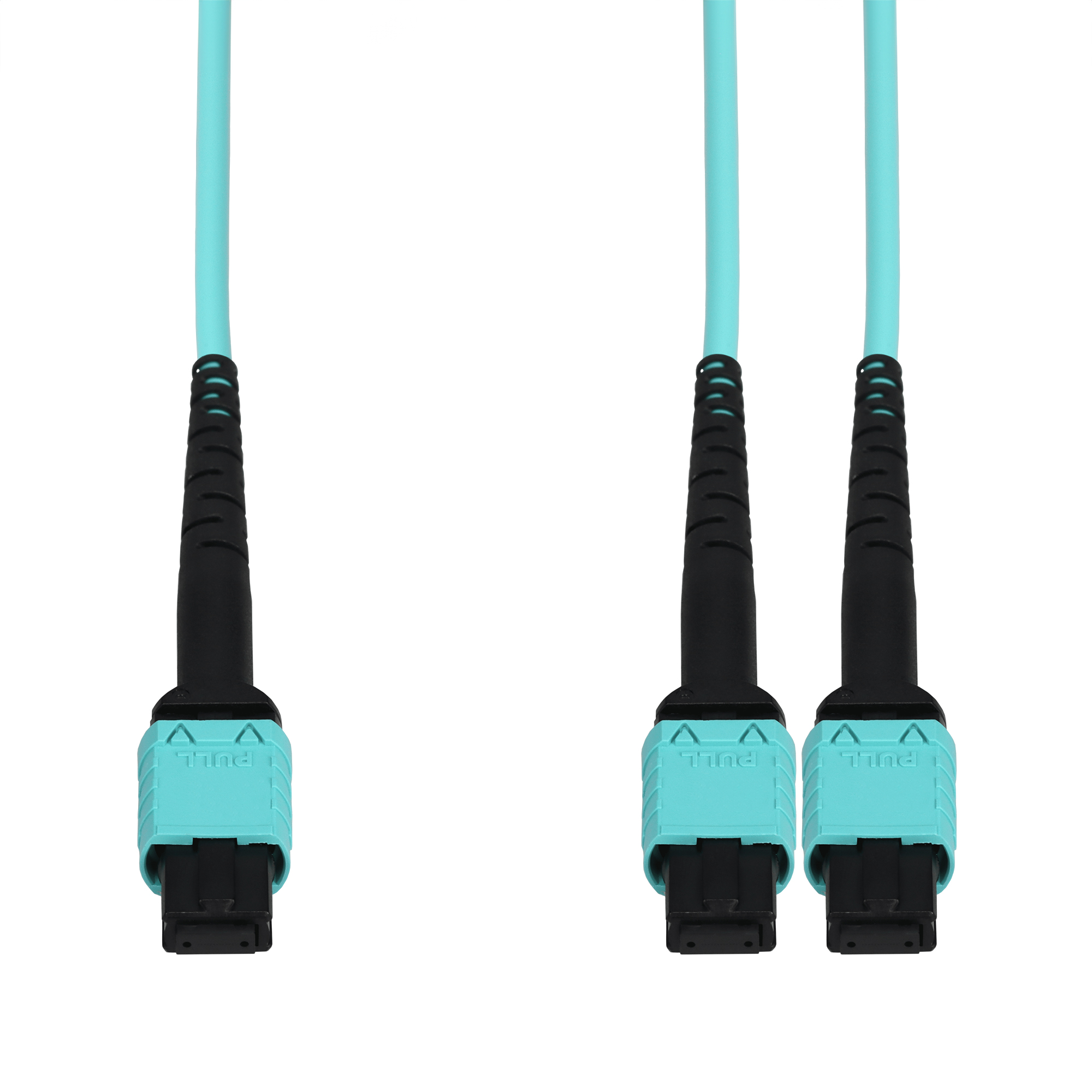

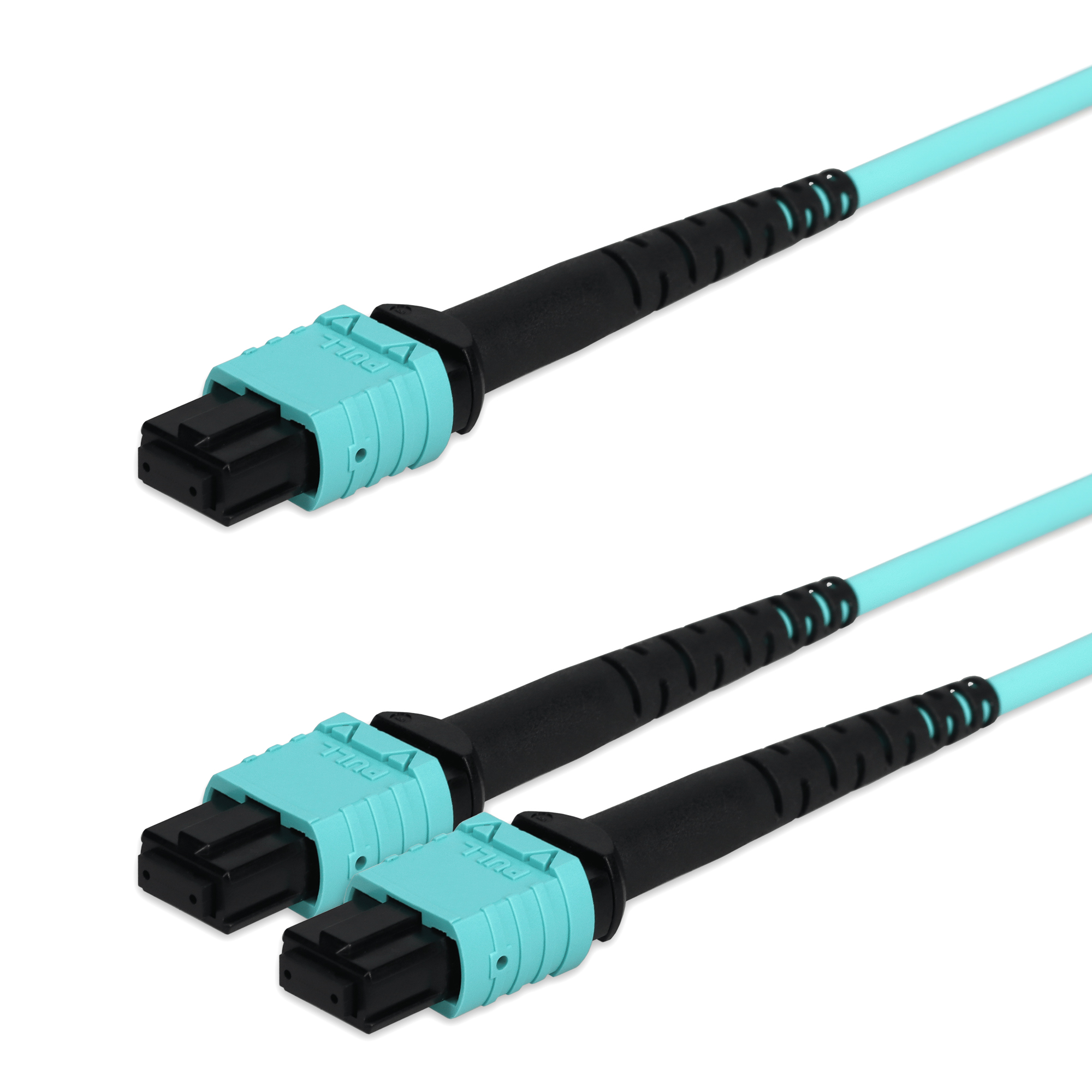

15m MPO/UPC to 2xMPO/UPC Aqua OM4 LSZH 24-Strand Fiber Fanout Cable
SKU: ADD-24FMPO-2MPO15M5OM4LZ
Belgium: 0 in stock
United Kingdom: 0 in stock
North America: 0 in stock
Available from the following dealers:
This is a 15m MPO/UPC to 2xMPO/UPC Aqua OM4 LSZH 24-Strand Fiber Fanout Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. LSZH (Low Smoke Zero Halogen) fiber cable jackets are designed to minimize toxic smoke and harmful emissions in the event of a fire, making them ideal for enclosed or high-traffic areas. These cables provide enhanced safety and environmental protection, making them a popular choice for businesses prioritizing workplace safety and eco-friendly infrastructure. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
| Cable Mode | Multiple |
| Color | Aqua |
| Compatible OEM | Industry Standard |
| Connector | MPO-24 (Female) to 2xMPO-12 (Female) |
| Core/Cladding | 50/125µm |
| Fiber Termination | UPC - Ultra Physical Contact |
| Fiber Type | MMF |
| Jacket Type | LSZH |
| Length (ft) | 49.22 |
| Length (m) | 15 |
| Strand Count | 24 |
| Termination Type | Crossover |
| Shielded | No |
| Armored | No |
| Bend Insensitivity | G.657.A1 |
| Cable Length | 15m |
| Cable Type | OM4 |
| Connector 1 Boot Style | Standard Boot |
| Connector 1 Color | Aqua |
| Connector 1 Ferrule Polish Type | UPC (Ultra Physical Contact) |
| Connector 2 Boot Style | Standard Boot |
| Connector 2 Color | Aqua |
| Connector 2 Ferrule Polish Type | UPC (Ultra Physical Contact) |
| Environment | Indoor |
| Insertion Loss Grade | Grade C |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Polarity | Method B |
| Fire Rating | General Purpose (OFNG) |
| Outer Diameter | 3.0mm |
Physical Specification
| Product Shipping Dimension(HxWxD) | 5 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight(LB) | 0.9 |
| Kit | No Kit - 1 Piece |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | No |
| UNSPSC Code | 26121609 |
| UPC Code | 195285210630 |
| What's In The Box | 1x patch cable |
| AddOn Part# | ADD-24FMPO-2MPO15M5OM4LZ |
| Ingram Micro® | 9GY817 |
| Insight Electronics® | ADD-24FMPO-2MPO15M5OM4LZ |
| TD Synnex CA | 6773699 |
Limited Lifetime
