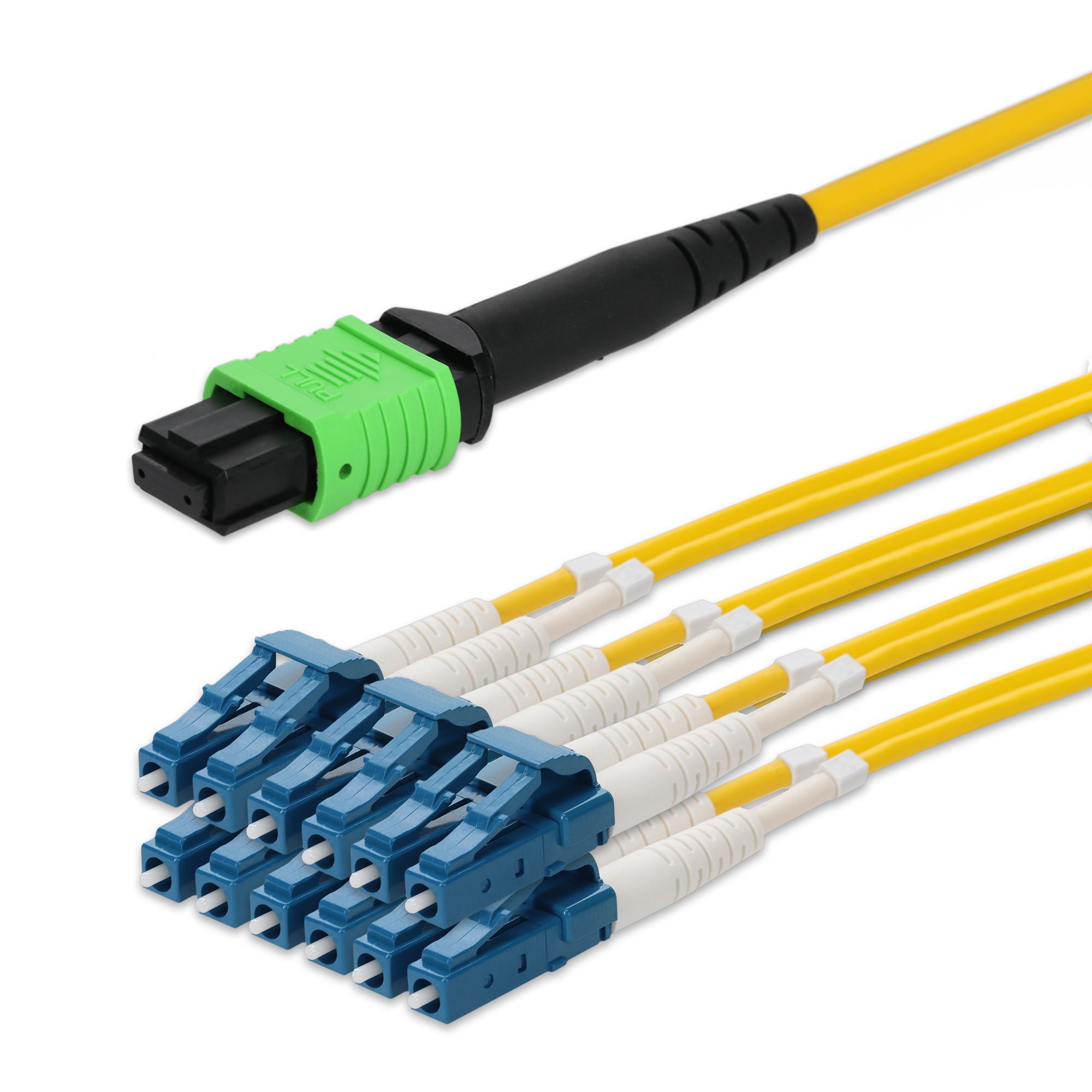

7m MPO/APC to 6xLC/UPC Duplex Yellow OS2 LSZH 12-Strand SMF Fiber Fanout Cable
SKU: ADD-12FMPO-6LC7M9SMFLZ
North America: 0 in stock
United Kingdom: 0 in stock
Belgium: 0 in stock
This is a 7m MPO/APC to 6xLC/UPC Duplex Yellow OS2 LSZH 12-Strand SMF Fiber Fanout Cable. OS2 fiber optic cable is a high-performance single-mode fiber designed for long-distance data transmission, making it ideal for businesses requiring reliable and fast network connections over longer distances up to 200 kilometers. With low signal loss and the ability to support 1G to 100G speeds, ensuring efficient communication across offices, data centers, or industrial facilities. LSZH (Low Smoke Zero Halogen) fiber cable jackets are designed to minimize toxic smoke and harmful emissions in the event of a fire, making them ideal for enclosed or high-traffic areas. These cables provide enhanced safety and environmental protection, making them a popular choice for businesses prioritizing workplace safety and eco-friendly infrastructure. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
| Cable Mode | Multiple |
| Color | Yellow |
| Compatible OEM | Industry Standard |
| Connector | MPO (Female) to 6xLC (Male) |
| Core/Cladding | 9/125µm |
| Fiber Termination | APC - Angled Physical Contact |
| Fiber Type | SMF |
| Jacket Type | LSZH |
| Length (ft) | 22.97 |
| Length (m) | 7 |
| Shielded | No |
| Strand Count | 12 |
| Termination Type | Crossover |
| Armored | No |
| Bend Insensitivity (ITU) | G.657.A1 |
| Cable Length | 7m |
| Cable Type | OS2 |
| Connector 1 Boot Style | Standard Boot |
| Connector 1 Color | Green |
| Connector 1 Ferrule Polish Type | APC (Angled Physical Contact) |
| Connector 2 Boot Style | Standard Boot |
| Connector 2 Color | Blue |
| Connector 2 Ferrule Polish Type | UPC (Ultra Physical Contact) |
| Environment | Indoor |
| Insertion Loss Grade | Grade C |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Polarity | Method B |
| Fire Rating | General Purpose (OFNG) |
| Outer Diameter | 3.0mm |
Physical Specification
| Kit | No Kit - 1 Piece |
| Product Shipping Dimension(HxWxD) | 5 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight(LB) | 0.5 |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | No |
| UNSPSC Code | 26121609 |
| UPC Code | 195285890948 |
| What's In The Box | 1x patch cable |
Limited Lifetime
