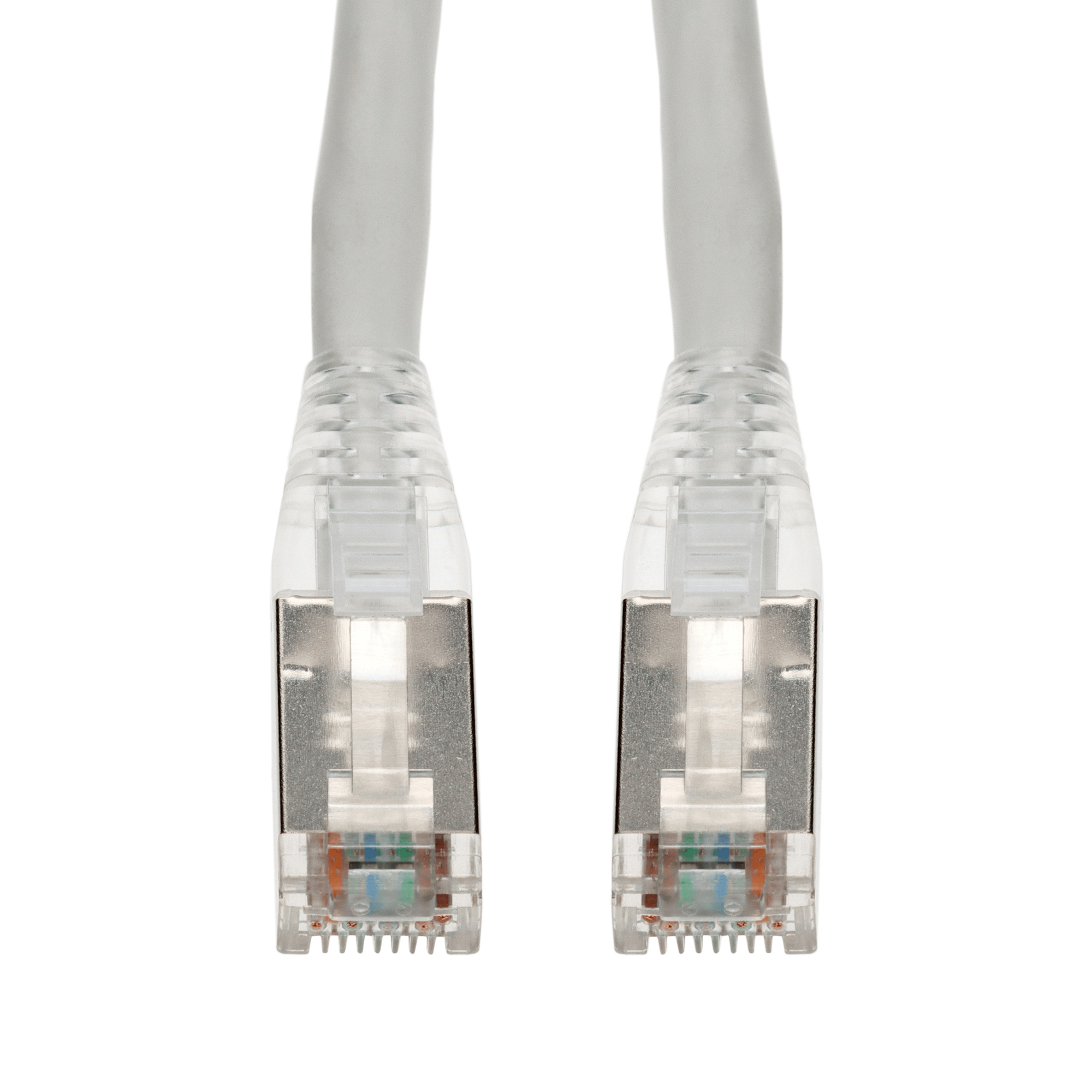

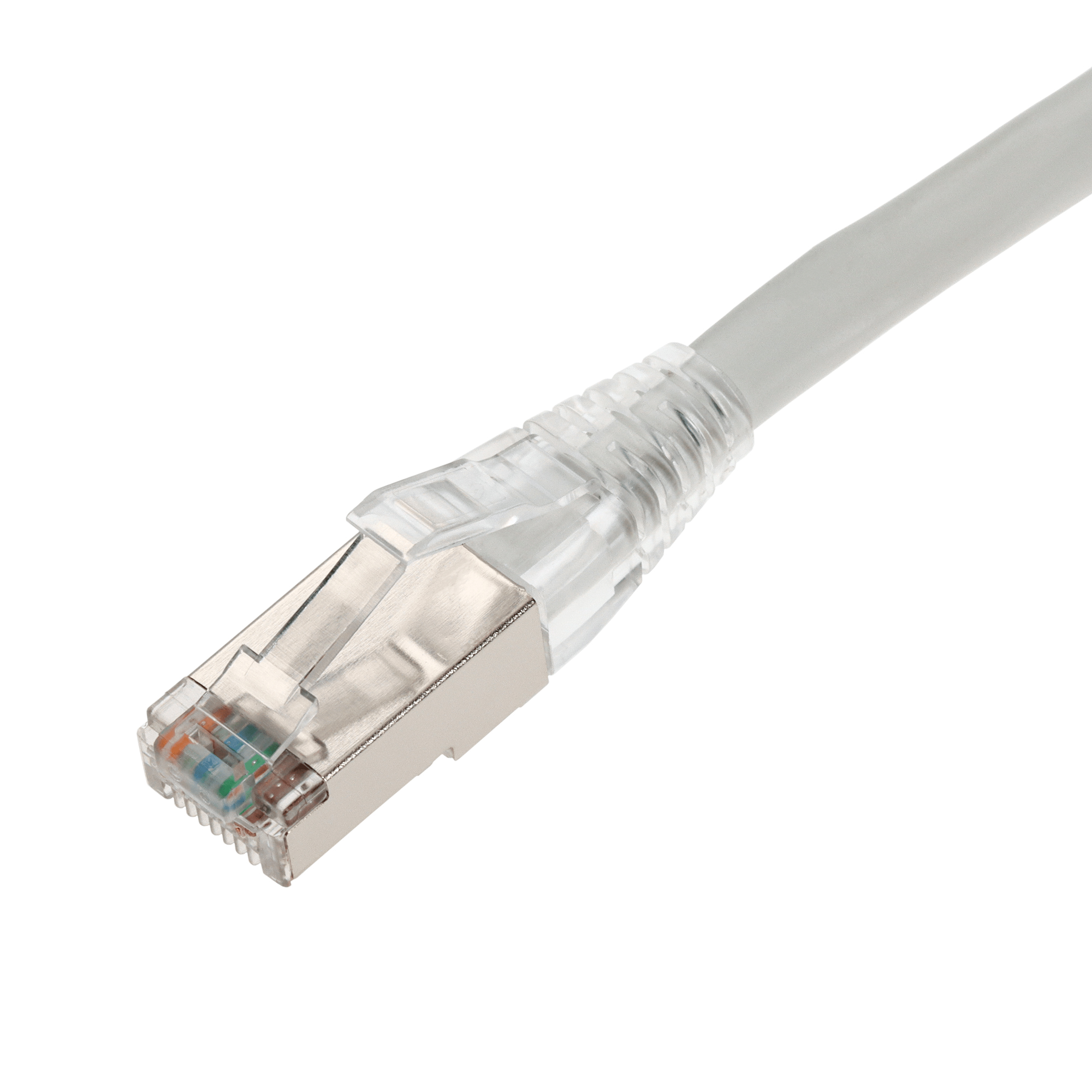

10ft White CAT 6 Shielded Plenum-Rated Ethernet Cable Snagless Easy Clear Boot RJ-45 M/M

SKU: ADD-10FCAT6FPSD-WE

North America: 0 in stock

United Kingdom: 0 in stock

Belgium: 0 in stock

Available from the following dealers:

This is a 10ft White CAT 6 Shielded Plenum-Rated Ethernet Cable Snagless Easy Clear Boot RJ-45 M/M. CAT6 cables deliver ultra-fast internet speeds at up to 250 MHz, with a maximum speed of 10 Gbps (Gigabits per second) over shorter distances (up to 55 meters or 180 feet) and 1 Gbps over longer distances (up to 100 meters or 328 feet). They are ideal for high-performance home or office networks. FTP cables feature twisted pairs of copper wires, each pair surrounded by an overall foil shield. This foil shield helps to mitigate EMI and crosstalk, providing more reliable data transmission in environments with higher interference. The foil shield covers all the pairs collectively, rather than individually. CMP (Plenum) has superior fire resistance and low smoke production, these cables are perfect for installations in air circulation spaces, keeping your home or office safe and compliant with building codes. Our cables are PoE capable and TIA compliant, ensuring performance for all networking needs.

Technical Specification

Cable ModeFTP
ColorWhite
Compatible OEMIndustry Standard
ConnectorRJ-45 (Male) to RJ-45 (Male)
Jacket TypePlenum
Length (ft)10
Length (m)3.05
Termination TypeStraight
Wire Gauge24 AWG
Boot StyleEasy Clear Boot
ShieldedYes
Cable TypeCAT6
Conductor MaterialCopper
Conductor TypeSolid
Cable Length10ft
ArmoredNo
EnvironmentIndoor
SnaglessYes
Strain ReliefYes
Wire SchemeT568B

Physical Specification

Product Shipping Dimension(HxWxD)5 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB)0.7
KitNo Kit - 1 Piece

Miscellaneous

Country Of OriginChina
ECCNEAR99
HTS-Harmonized Code (UK)85444210
HTS-Harmonized Code (US)8544.42.2000
TAA CompliantNo
UNSPSC Code26121609
UPC Code821456766674
What's In The Box1x patch cable

AddOn Part#ADD-10FCAT6FPSD-WE
Insight Electronics®ADD-10FCAT6FPSD-WE

Limited Lifetime
