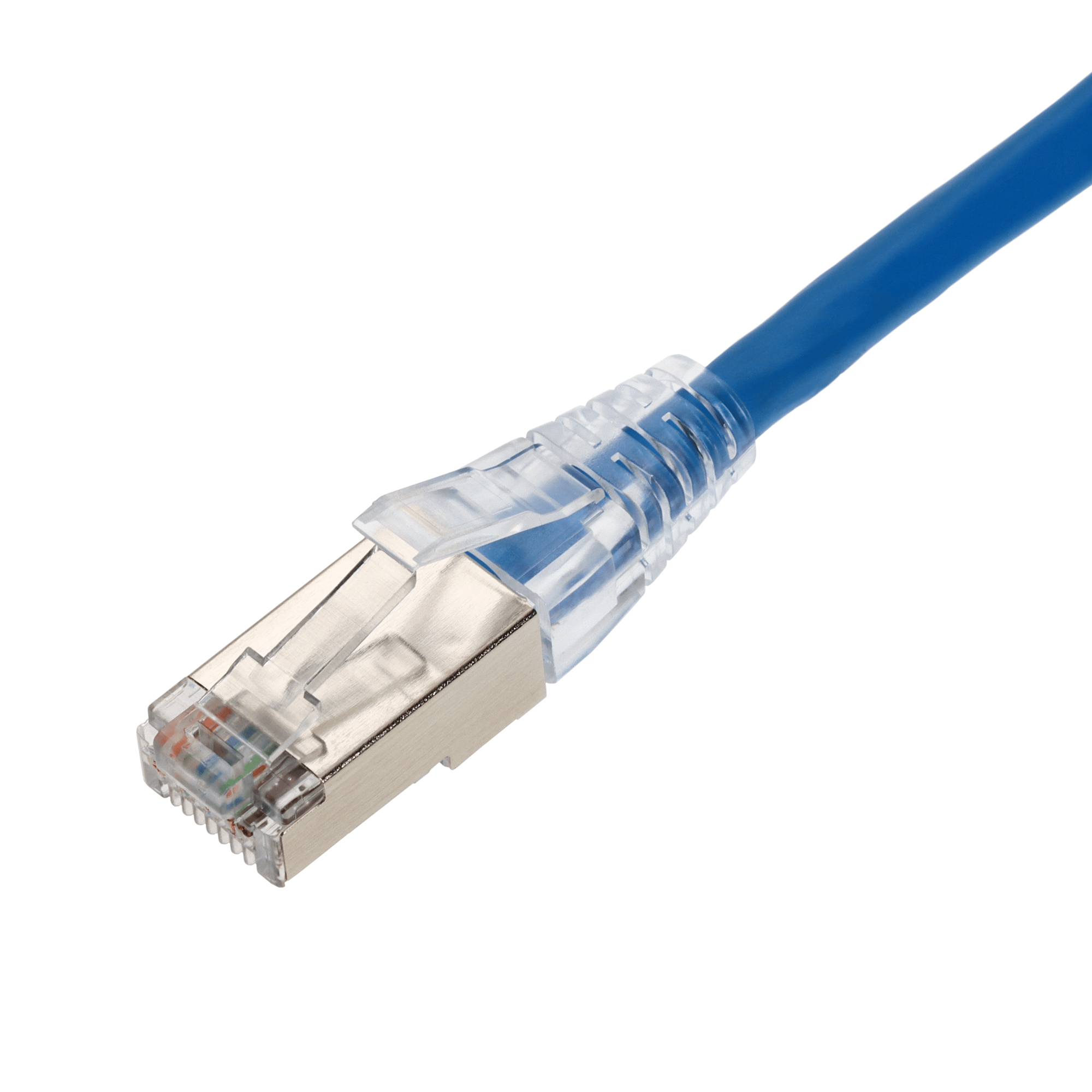

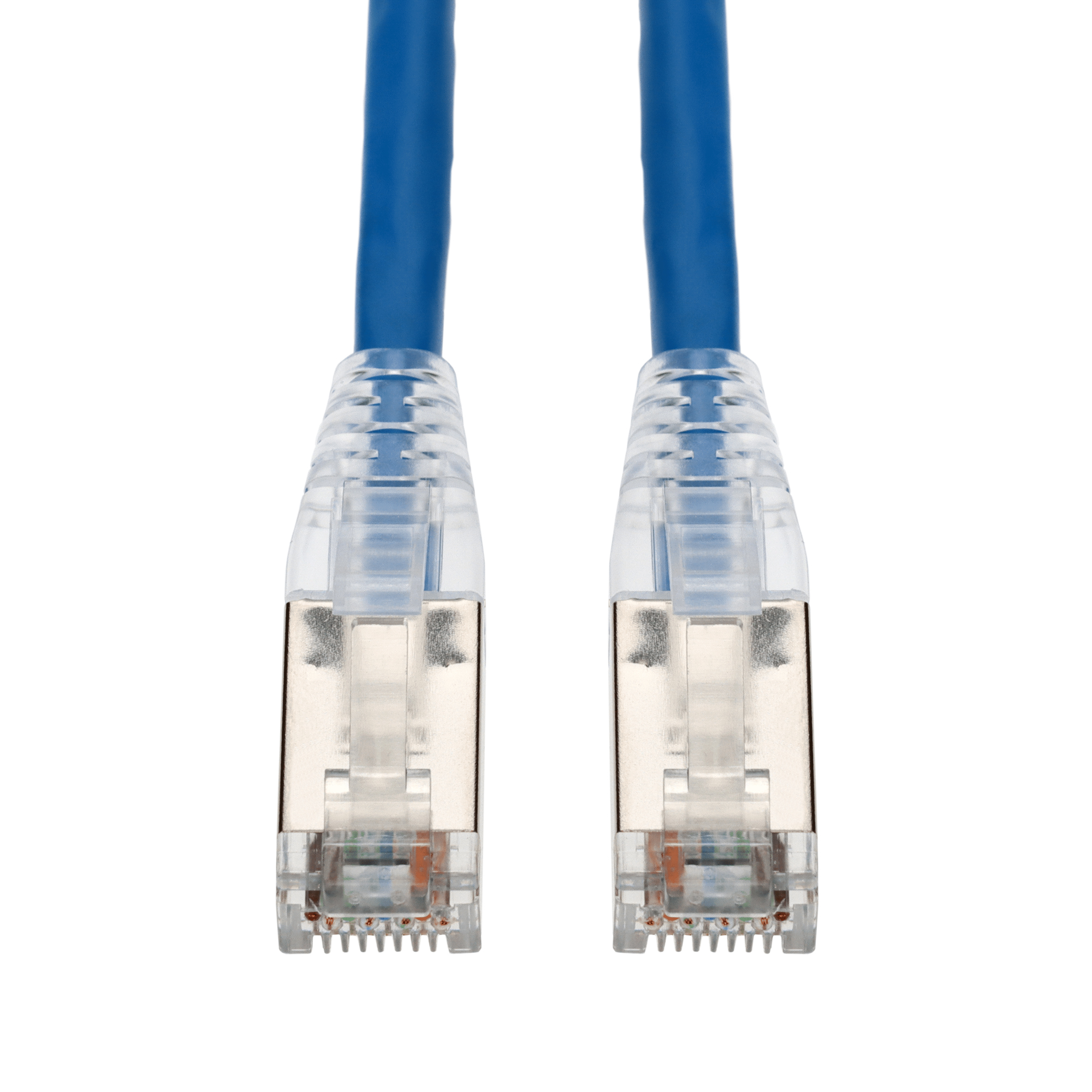

100ft Blue CAT 6 Shielded Plenum-Rated Ethernet Cable Snagless Easy Clear Boot RJ-45 M/M

SKU: ADD-100FCAT6SP-BE

North America: 0 in stock

United Kingdom: 0 in stock

Belgium: 0 in stock

Available from the following dealers:

TD Synnex US

This is a 100ft Blue CAT 6 Shielded Plenum-Rated Ethernet Cable Snagless Easy Clear Boot RJ-45 M/M. CAT6 cables deliver ultra-fast internet speeds at up to 250 MHz, with a maximum speed of 10 Gbps (Gigabits per second) over shorter distances (up to 55 meters or 180 feet) and 1 Gbps over longer distances (up to 100 meters or 328 feet). They are ideal for high-performance home or office networks. STP cables have pairs of twisted copper wires, similar to UTP, but each pair is enclosed in a conductive shield, usually made of foil or braided wire. This shielding provides a barrier against external EMI and reduces crosstalk. The entire bundle of pairs is also wrapped in an additional shield, enhancing protection. CMP (Plenum) has superior fire resistance and low smoke production, these cables are perfect for installations in air circulation spaces, keeping your home or office safe and compliant with building codes. Our cables are PoE capable and TIA compliant, ensuring performance for all networking needs.

Technical Specification

Boot StyleEasy Clear Boot
Cable ModeSTP
ColorBlue
Compatible OEMIndustry Standard
ConnectorRJ-45 (Male) to RJ-45 (Male)
Jacket TypePlenum
Length (ft)100
Length (m)30.48
ShieldedYes
Termination TypeStraight
Wire Gauge24 AWG
Cable TypeCAT6
Cable Length100ft
ArmoredNo
Conductor MaterialCopper
Conductor TypeStranded
EnvironmentIndoor
SnaglessYes
Strain ReliefYes
Wire SchemeT568B
Fire RatingPlenum (CMP)

Physical Specification

KitNo Kit - 1 Piece
Product Shipping Dimension(HxWxD)12 in. x 12 in. x 8 in.
Product Shipping Weight(LB)2

Miscellaneous

Country Of OriginChina
ECCNEAR99
HTS-Harmonized Code (UK)85444210
HTS-Harmonized Code (US)8544.42.2000
TAA CompliantNo
UNSPSC Code26121609
UPC Code195285773517
What's In The Box1x patch cable

Insight Electronics®ADD-100FCAT6SP-BE
TD Synnex US7633035

Limited Lifetime
