Mellanox MCX653106A-HDAT ConnectX®-6 InfiniBand/Ethernet Adapter Card 200GbE/HDR, Dual-Port QSFP56, PCIe 4.0 x 16, Tall and Short Bracket based on Intel XL710 Chipset
SKU: MCX653106A-HDAT-AO
Belgium: 0 in stock
United Kingdom: 0 in stock
North America: 17 in stock
Available from the following dealers:

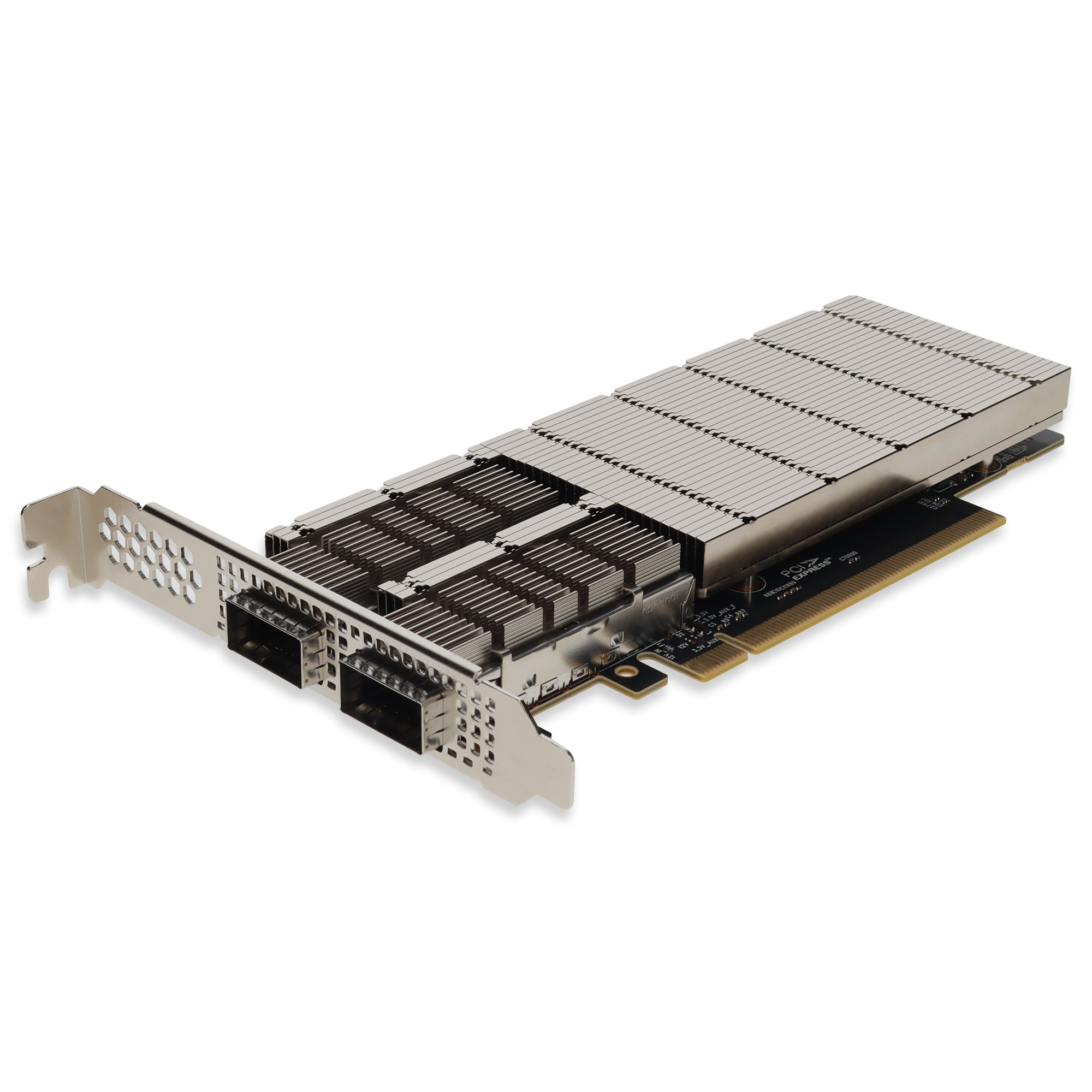

This is a Mellanox MCX653106A-HDAT ConnectX®-5 EN Network Interface Card, 200GbE Dual-Port QSFP56, PCIe4.0 x 16 network interface card with a Dual-Port QSFP56 port that complies with IEEE 802.3 standards. It is based on an Intel XL710 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 200Gbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The Dual-Port QSFP56 allows users to choose from a range of QSFP56 transceivers to accommodate multi-mode (MMF) and single-mode (SMF) fiber, granting customizable reach. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time.
Technical Specification
| Bus Type | PCIe 4.0 |
| Bus Width | PCIEx16 |
| Chipset | Intel XL710 |
| Compatible OEM | Mellanox® |
| Compatible OS | Windows 8, Windows 8 64-bit, Windows 7, Windows 7 64-bit, Windows Vista, Windows Vista 64-bit, Windows XP, Windows XP 64-bit, Windows 2000, Windows Server 2003, Windows Server 2003 64-bit, Windows 98, Windows ME, Windows NT, Mac OS X (10.4.x), Novell (6.x, 5.x), Linux (2.6.x and 2.4.x), WinCE, Windows Vista 64bit, Windows XP 64bit, Windows 98 SE, Unixware, SCO, FreeBSD 5, Windows CE, FreeBSD 6.0, Windows, Windows Server 2008, Novell server, Mac OS 10.x, Windows Server 2008 64-bit, Windows Server 2008 R2 64-bit, Windows Server 2008 R2 |
| Data Protocol | Ethernet |
| External Connector | QSFP56 |
| Media Type | MMF or SMF |
| Number of Ports | 2 Ports |
| Type | Network Interface Card |
| Data Rate | 200Gbs |
| Compatible With OEM Part Number(s) | MCX653106A-HDAT |
| Reach | 100m |
Physical Specification
| Product Shipping Dimension(HxWxD) | 10.0 in. x 6.0 in. x 2.0 in. |
| Product Shipping Weight(LB) | 0.4 |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85176290 |
| HTS-Harmonized Code (US) | 8517.62.0090 |
| TAA Compliant | No |
| UNSPSC Code | 43201411 |
| UPC Code | 821455286104 |
| What's In The Box | 1x network interface card |
| Ingram Micro® | RS8428 |
| Ingram Micro® Canada | FL9702 |
| Insight Electronics® | MCX653106A-HDAT-AO |
| TD Synnex CA | 8784084 |
| TD Synnex US | 14325213 |
Limited Lifetime - For details about AddOn Computer's Warranty, please go to AddOn's Warranty Page located here
