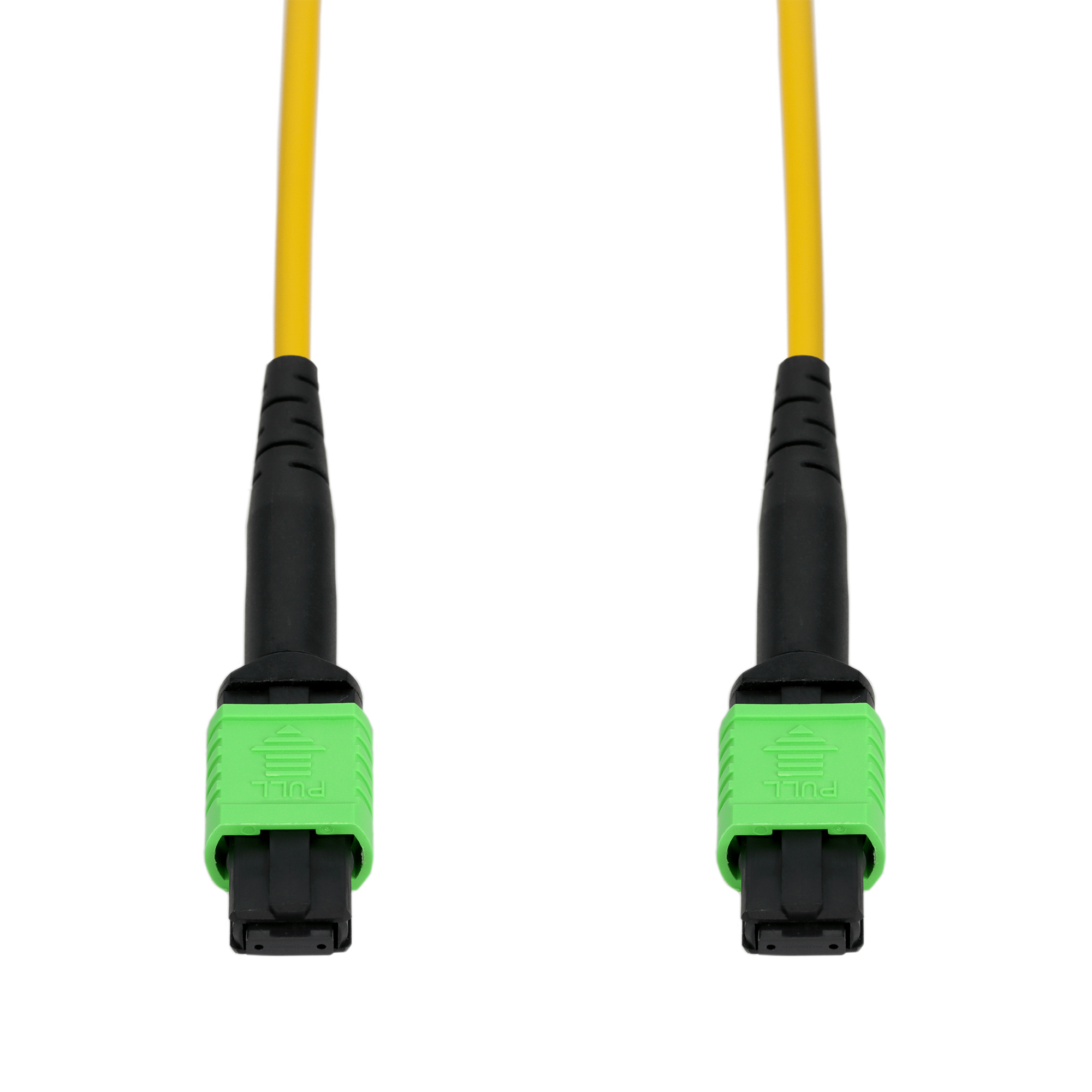

Mellanox® Compatible 60m MPO/APC to MPO/APC Yellow OS2 LSZH 12-Strand Fiber Patch Cable
SKU: MFP7E30-N060-AO
United Kingdom: 0 in stock
North America: 0 in stock
This is a Mellanox® Compatible 60m MPO/APC to MPO/APC Yellow OS2 LSZH 12-Strand Fiber Patch Cable. OS2 fiber optic cable is a high-performance single-mode fiber designed for long-distance data transmission, making it ideal for businesses requiring reliable and fast network connections over longer distances up to 200kilometers. With low signal loss and the ability to support 1G to 100G speeds, ensuring efficient communication across offices, data centers, or industrial facilities. LSZH (Low Smoke Zero Halogen) fiber cable jackets are designed to minimize toxic smoke and harmful emissions in the event of a fire, making them ideal for enclosed or high-traffic areas. These cables provide enhanced safety and environmental protection, making them a popular choice for businesses prioritizing workplace safety and eco-friendly infrastructure. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
| Armored | No |
| Bend Insensitivity | G.657.A1 |
| Cable Length | 60m |
| Cable Mode | Multiple |
| Cable Type | OS2 |
| Color | Yellow |
| Compatible OEM | Mellanox® |
| Connector | MPO (Female) to MPO (Female) |
| Connector 1 Boot Style | Standard Boot |
| Connector 1 Color | Green |
| Connector 1 Ferrule Polish Type | APC (Angled Physical Contact) |
| Connector 2 Boot Style | Standard Boot |
| Connector 2 Color | Green |
| Connector 2 Ferrule Polish Type | APC (Angled Physical Contact) |
| Core/Cladding | 9/125µm |
| Environment | Indoor |
| Fiber Termination | APC - Angled Physical Contact |
| Fiber Type | SMF |
| Fire Rating | General Purpose (OFNG) |
| Insertion Loss Grade | Grade C |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Jacket Type | LSZH |
| Length (ft) | 196.86 |
| Length (m) | 60 |
| Outer Diameter | 3.0mm |
| Polarity | Method B |
| Shielded | No |
| Strand Count | 12 |
| Termination Type | Crossover |
Physical Specification
| Kit | No Kit - 1 Piece |
| Product Shipping Dimension(HxWxD) | 12 in. x 12 in. x 8 in. |
| Product Shipping Weight(LB) | 3.1 |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | No |
| UNSPSC Code | 26121609 |
| UPC Code | 199278122276 |
| What's In The Box | 1x patch cable |
Limited Lifetime
