ADD-SC-SC-5MS9SMFP imageADD-SC-SC-5MS9SMFP imageADD-SC-SC-5MS9SMFP image

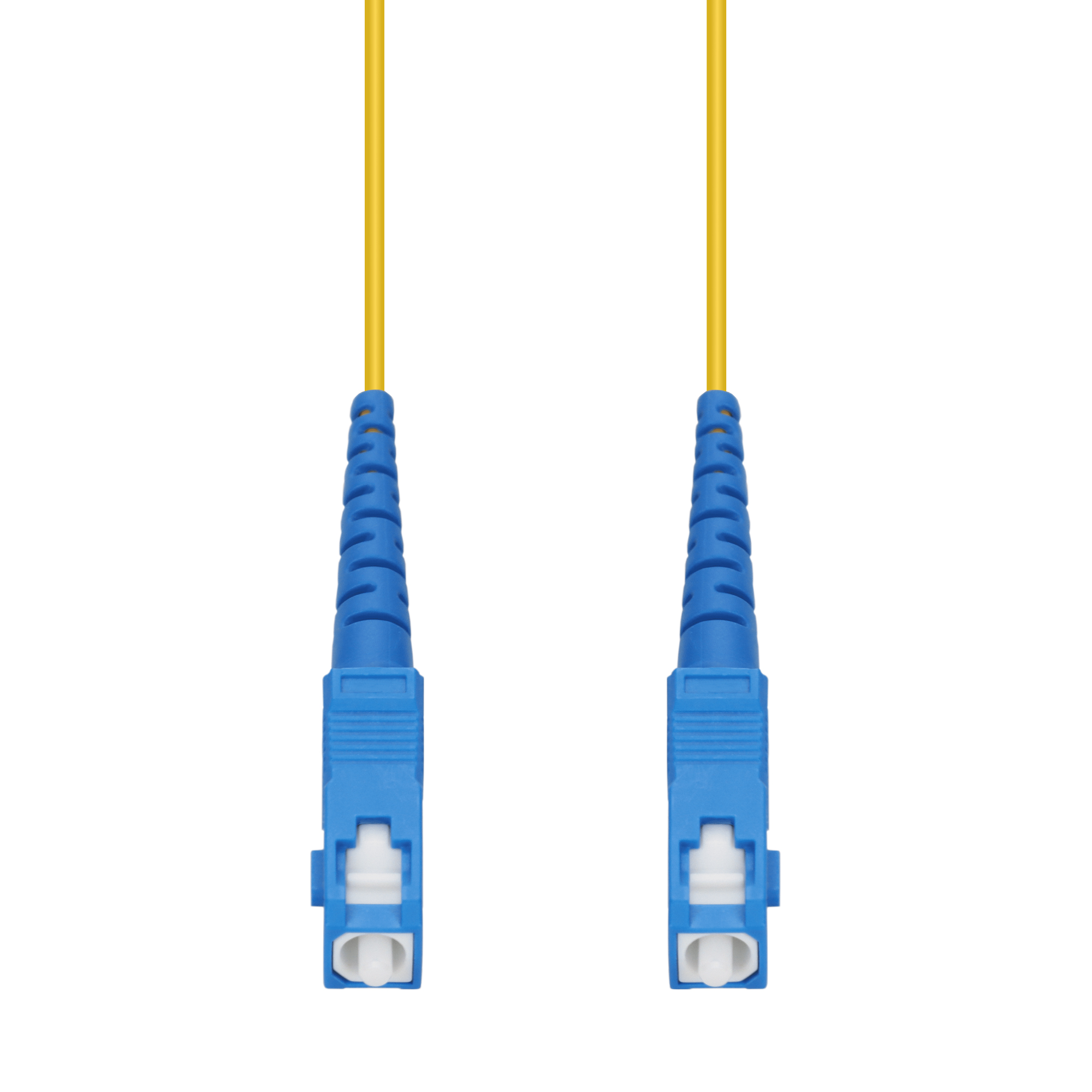

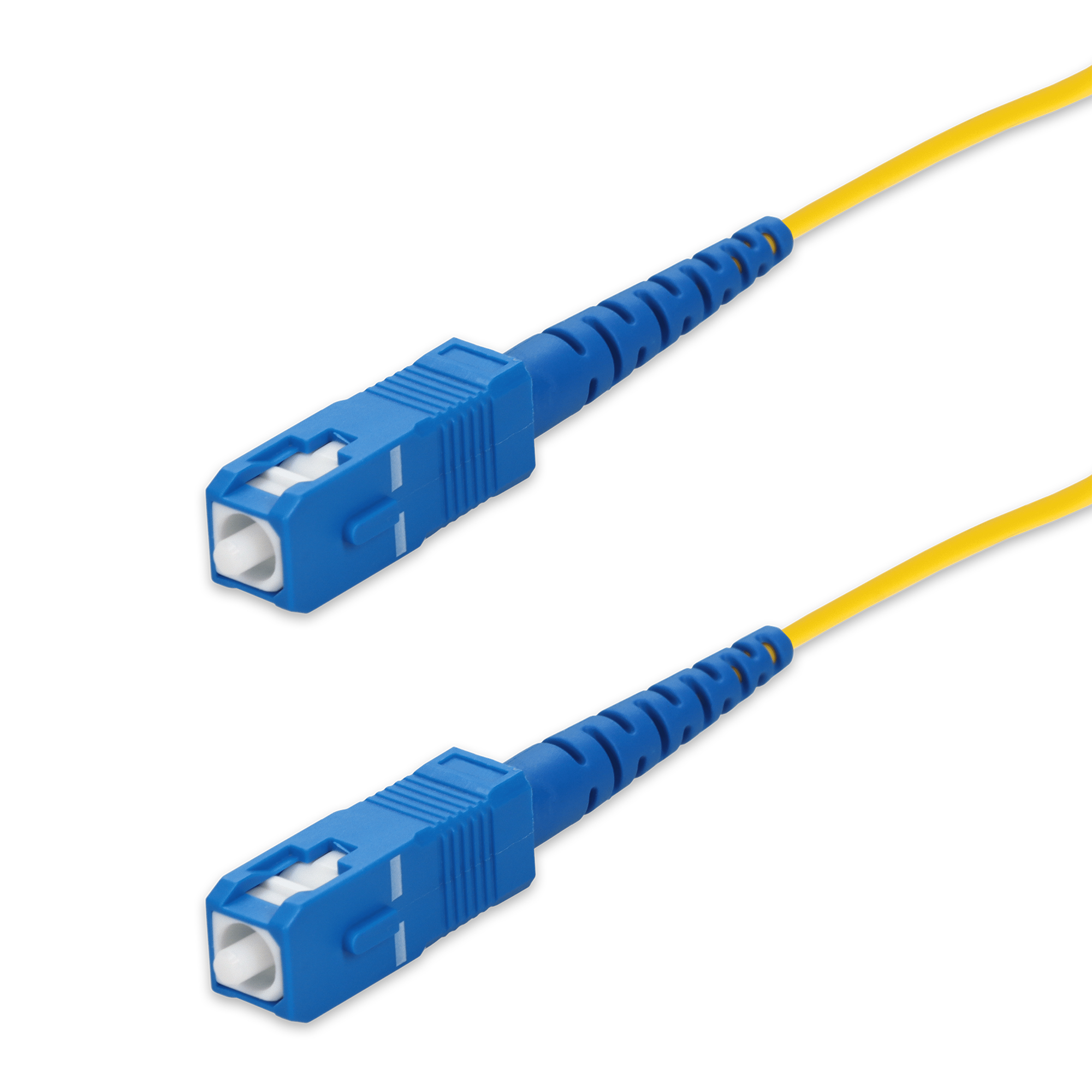

5m SC to SC Yellow OS2 Simplex OFNP (Plenum-Rated) SMF Fiber Patch Cable

SKU: ADD-SC-SC-5MS9SMFP

Belgium: 0 in stock

United Kingdom: 0 in stock

North America: 0 in stock

Available from the following dealers:

Ingram Micro®TD Synnex US

This is a 5m SC to SC Yellow OS2 Simplex OFNP (Plenum-Rated) SMF Fiber Patch Cable. OS2 fiber optic cable is a high-performance single-mode fiber designed for long-distance data transmission, making it ideal for businesses requiring reliable and fast network connections over longer distances up to 200kilometers. With low signal loss and the ability to support 1G to 100G speeds, ensuring efficient communication across offices, data centers, or industrial facilities. OFNP plenum fiber cable jackets are engineered for use in air-handling spaces, such as ceilings and ducts, offering the highest fire resistance to prevent flame spread and reduce smoke in the event of a fire. These cables meet stringent safety standards, making them the top choice for businesses that need safe, reliable networking in critical building areas. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.

Technical Specification

Cable ModeSimplex
ColorYellow
Compatible OEMIndustry Standard
ConnectorSC (Male) to SC (Male)
Core/Cladding9/125µm
Fiber TerminationUPC - Ultra Physical Contact
Fiber TypeSMF
Jacket TypePlenum
Length (ft)16.41
Length (m)5
Strand Count1
Termination TypeStraight
ShieldedNo
ArmoredNo
Bend InsensitivityG.657.A1
Cable Length5m
Cable TypeOS2
Connector 1 Boot StyleStandard Boot
Connector 1 ColorBlue
Connector 1 Ferrule Polish TypeUPC (Ultra Physical Contact)
Connector 2 Boot StyleStandard Boot
Connector 2 ColorBlue
Connector 2 Ferrule Polish TypeUPC (Ultra Physical Contact)
EnvironmentIndoor
Fire RatingPlenum (OFNP)
Insertion Loss GradeGrade C
Outer Diameter2.0mm
Jacket MaterialPVDF (Polyvinylidene Fluoride)
PolarityType A-A

Physical Specification

Product Shipping Dimension(HxWxD)5 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB)0.4
KitNo Kit - 1 Piece

Miscellaneous

Country Of OriginChina
ECCNEAR99
HTS-Harmonized Code (UK)85447000
HTS-Harmonized Code (US)8544.70.0000
TAA CompliantNo
UNSPSC Code26121609
UPC Code821456623090
What's In The Box1x patch cable

AddOn Part#ADD-SC-SC-5MS9SMFP
Ingram Micro®S61719
Insight Electronics®ADD-SC-SC-5MS9SMFP
TD Synnex US14409737

Limited Lifetime
