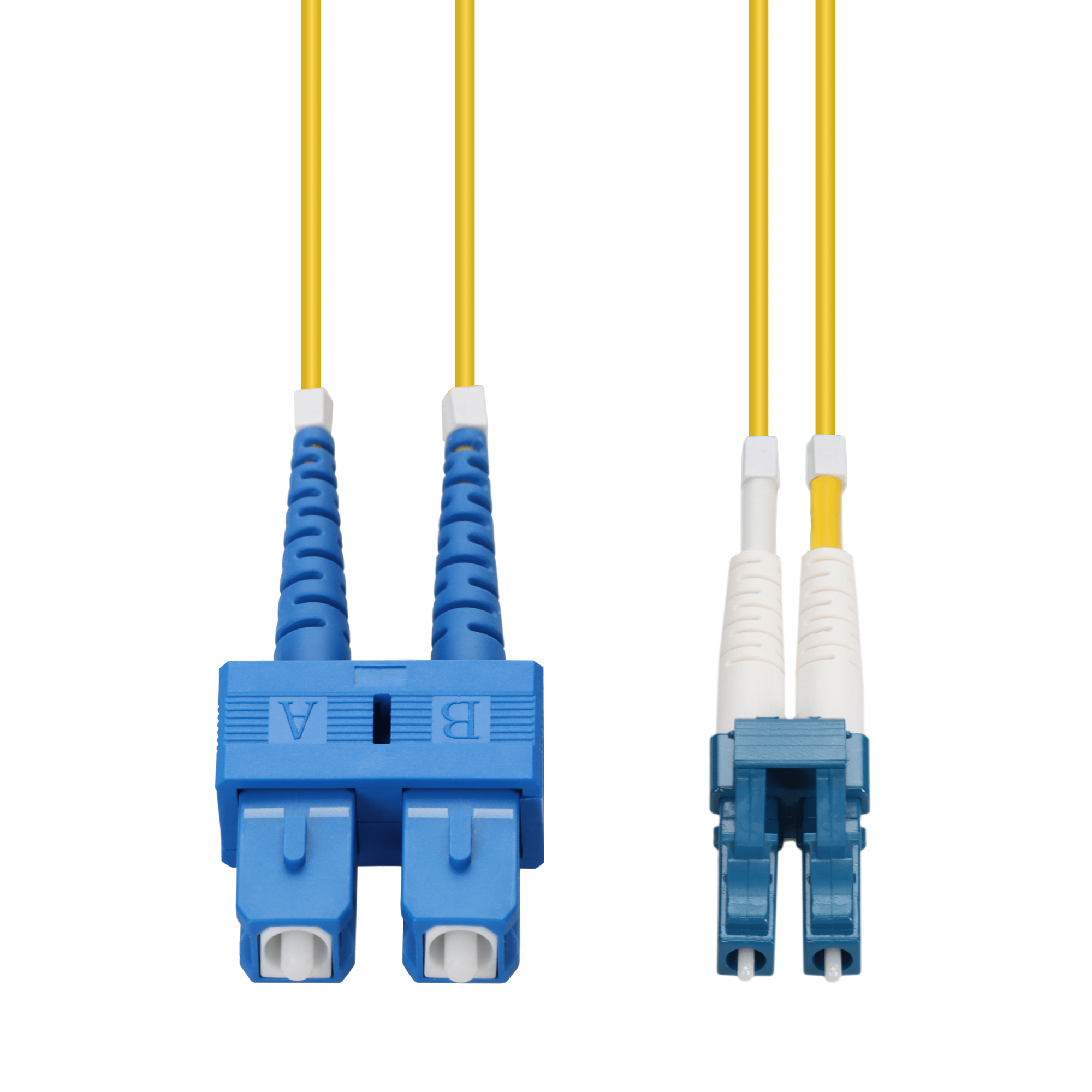

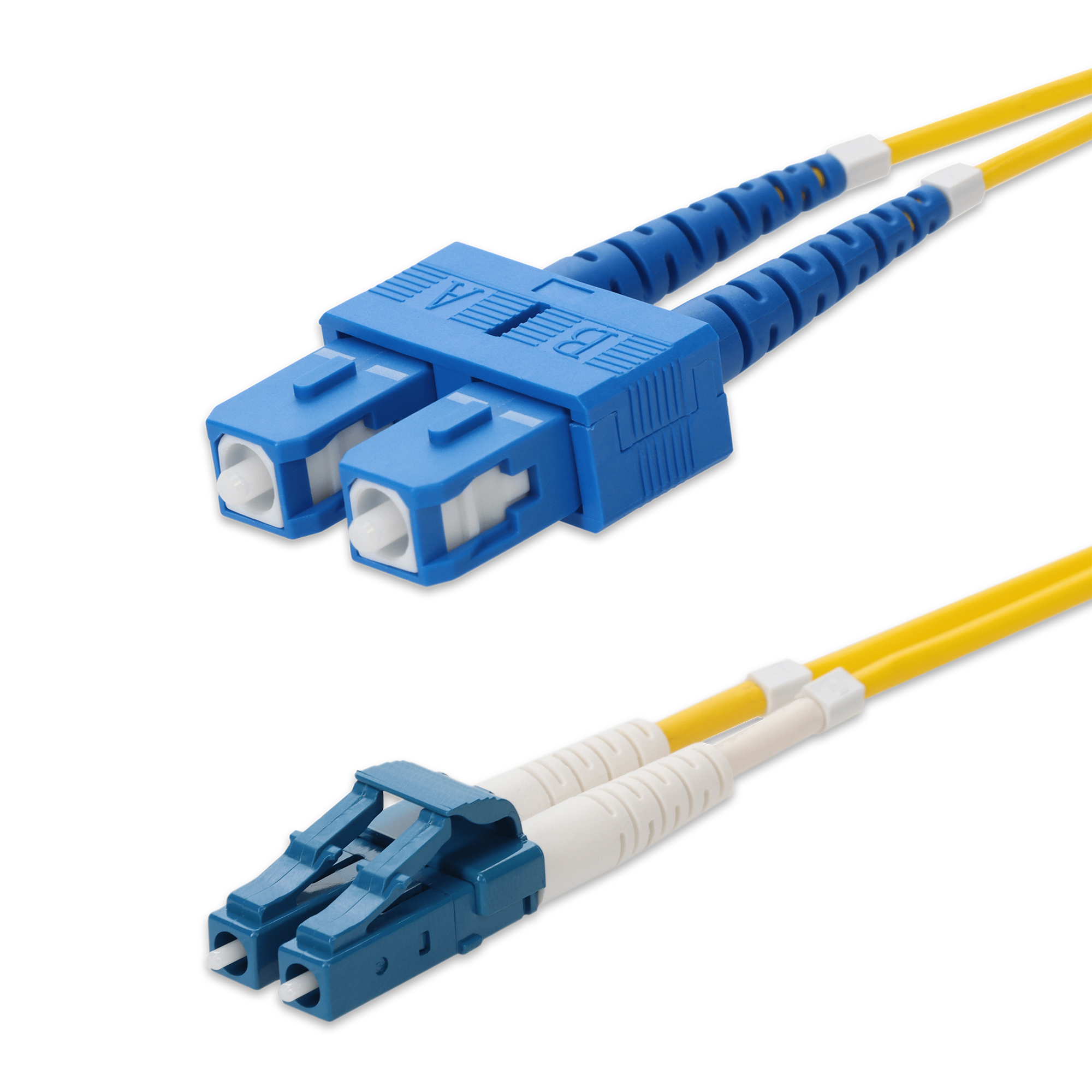

21m SC to LC Yellow OS2 Duplex LSZH Fiber Patch Cable

SKU: ADD-SC-LC-21M9OS2LZ

Belgium: 0 in stock

United Kingdom: 0 in stock

North America: 0 in stock

Available from the following dealers:

Ingram Micro®Ingram Micro®TD Synnex US

This is a 21m SC to LC Yellow OS2 Duplex LSZH Fiber Patch Cable. OS2 fiber optic cable is a high-performance single-mode fiber designed for long-distance data transmission, making it ideal for businesses requiring reliable and fast network connections over longer distances up to 200kilometers. With low signal loss and the ability to support 1G to 100G speeds, ensuring efficient communication across offices, data centers, or industrial facilities. LSZH (Low Smoke Zero Halogen) fiber cable jackets are designed to minimize toxic smoke and harmful emissions in the event of a fire, making them ideal for enclosed or high-traffic areas. These cables provide enhanced safety and environmental protection, making them a popular choice for businesses prioritizing workplace safety and eco-friendly infrastructure. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.

Technical Specification

Cable ModeDuplex
ColorYellow
Compatible OEMIndustry Standard
ConnectorLC (Male) to SC (Male)
Core/Cladding9/125µm
Fiber TerminationUPC - Ultra Physical Contact
Fiber TypeSMF
Jacket TypeLSZH
Length (ft)68.9
Length (m)21
Strand Count2
Termination TypeCrossover
ShieldedNo
PolarityType A-B
ArmoredNo
Bend InsensitivityG.657.A1
Cable Length21m
Cable TypeOS2
Connector 1 Boot StyleStandard Boot
Connector 1 ColorBlue
Connector 1 Ferrule Polish TypeUPC (Ultra Physical Contact)
Connector 2 Boot StyleStandard Boot
Connector 2 ColorBlue
Connector 2 Ferrule Polish TypeUPC (Ultra Physical Contact)
EnvironmentIndoor
Insertion Loss GradeGrade C
Jacket MaterialLSZH (Low Smoke Zero Halogen)
Outer Diameter2.0mm
Fire RatingGeneral Purpose (OFNG)

Physical Specification

Product Shipping Dimension(HxWxD)5 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB)1.2
KitNo Kit - 1 Piece

Miscellaneous

Country Of OriginChina
ECCNEAR99
HTS-Harmonized Code (UK)85447000
HTS-Harmonized Code (US)8544.70.0000
TAA CompliantNo
UNSPSC Code26121609
UPC Code821456127116
What's In The Box1x patch cable

AddOn Part#ADD-SC-LC-21M9OS2LZ
Ingram Micro®7PU922
Ingram Micro®230J65
Insight Electronics®ADD-SC-LC-21M9OS2LZ
TD Synnex US5591463

Limited Lifetime
