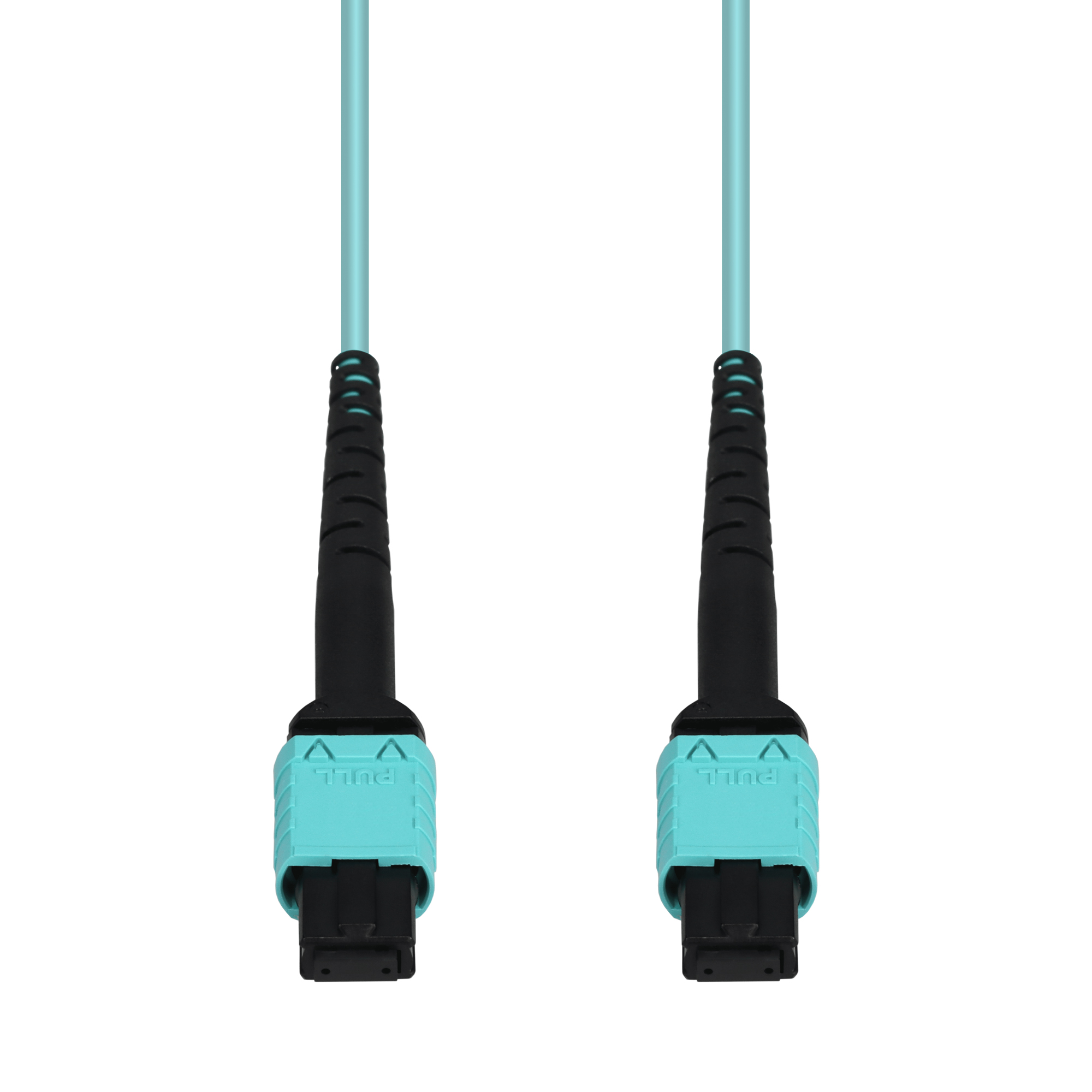

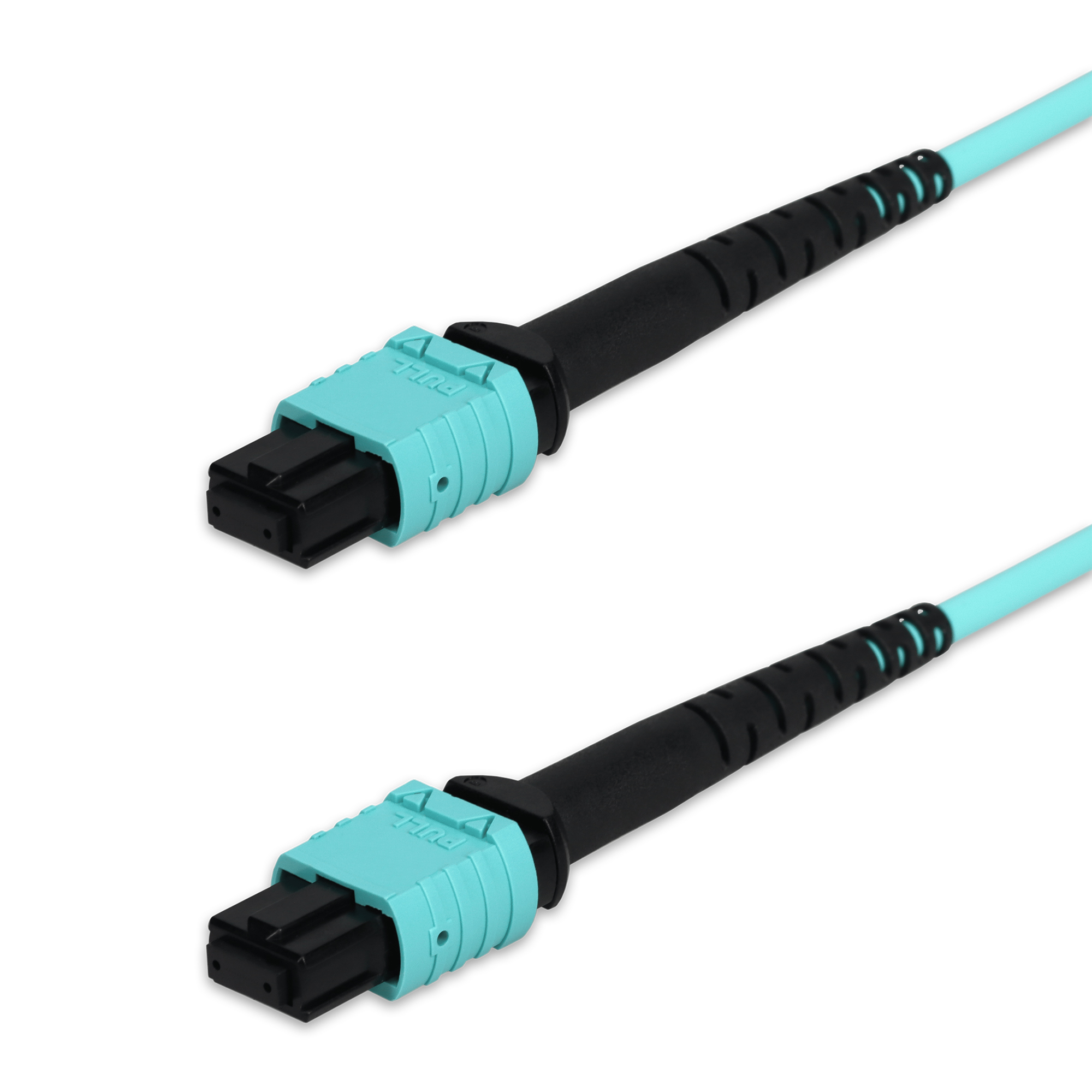

10m MPO/UPC to MPO/UPC Aqua OM4 Armored OFNP (Plenum-Rated) 12-Strand Fiber Patch Cable
SKU: ADD-MPOMPO-10M5OM4AP
Belgium: 0 in stock
United Kingdom: 0 in stock
North America: 0 in stock
Available from the following dealers:
This is a 10m MPO/UPC to MPO/UPC Aqua OM4 Armored OFNP (Plenum-Rated) 12-Strand Fiber Patch Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. OFNP plenum fiber cable jackets are engineered for use in air-handling spaces, such as ceilings and ducts, offering the highest fire resistance to prevent flame spread and reduce smoke in the event of a fire. These cables meet stringent safety standards, making them the top choice for businesses that need safe, reliable networking in critical building areas. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
| Compatible OEM | Industry Standard |
| Environment | Indoor |
| Fiber Type | MMF |
| Connector | MPO (Female) to MPO (Female) |
| Color | Aqua |
| Shielded | No |
| Strand Count | 12 |
| Cable Mode | Multiple |
| Jacket Type | Plenum Armored |
| Termination Type | Crossover |
| Core/Cladding | 50/125µm |
| Fiber Termination | UPC - Ultra Physical Contact |
| Length (m) | 10 |
| Length (ft) | 32.81 |
| Polarity | Method B |
| Cable Type | OM4 |
| Cable Length | 10m |
| Armored | Yes |
| Bend Insensitivity | G.657.A1 |
| Connector 1 Ferrule Polish Type | UPC (Ultra Physical Contact) |
| Connector 2 Ferrule Polish Type | UPC (Ultra Physical Contact) |
| Insertion Loss Grade | Grade C |
| Fire Rating | Plenum (OFNP) |
| Jacket Material | PVDF (Polyvinylidene Fluoride) |
| Outer Diameter | 3.0mm |
| Connector 1 Boot Style | Standard Boot |
| Connector 2 Boot Style | Standard Boot |
| Connector 1 Color | Aqua |
| Connector 2 Color | Aqua |
Physical Specification
| Product Shipping Dimension(HxWxD) | 5 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight(LB) | 0.6 |
| Kit | No Kit - 1 Piece |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | No |
| UNSPSC Code | 26121609 |
| UPC Code | 821456103073 |
| What's In The Box | 1x patch cable |
| AddOn Part# | ADD-MPOMPO-10M5OM4AP |
| Ingram Micro® | YS9562 |
| Insight Electronics® | ADD-MPOMPO-10M5OM4AP |
| TD Synnex US | 6664900 |
