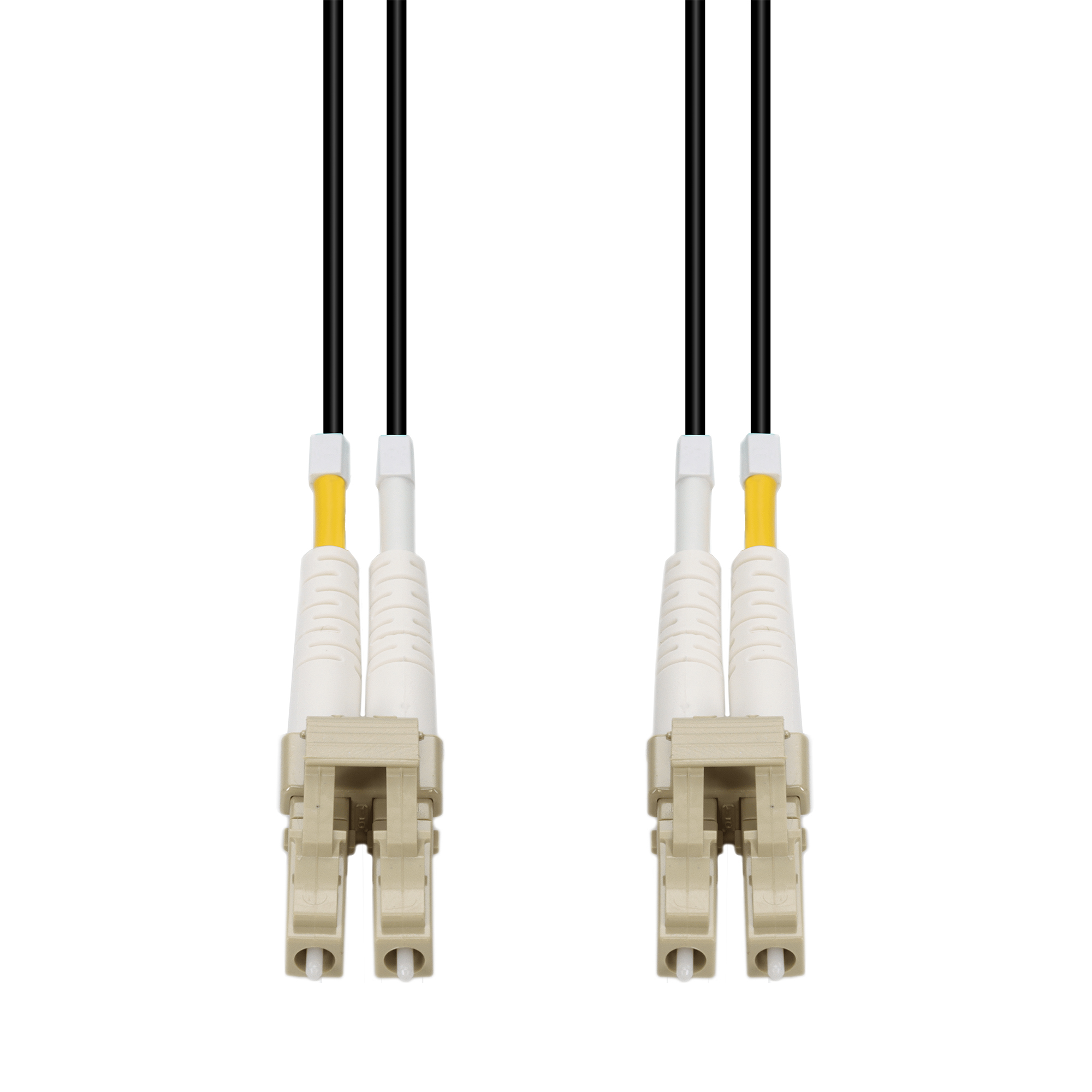

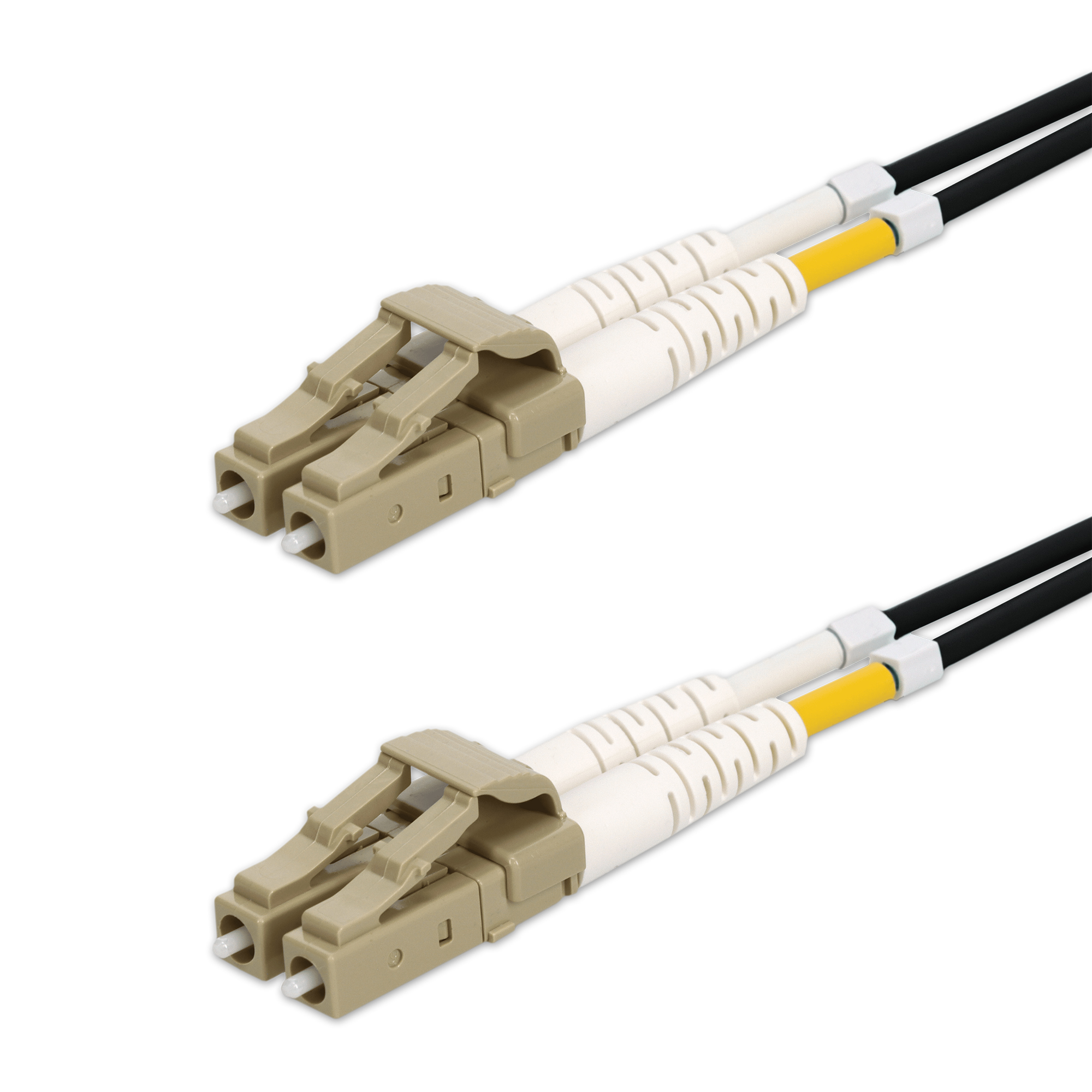

6m LC to LC Black OM4 Duplex OFNR (Riser-Rated) Fiber Patch Cable

SKU: ADD-LC-LC-6M5OM4-BK

Belgium: 0 in stock

United Kingdom: 0 in stock

North America: 0 in stock

Available from the following dealers:

This is a 6m LC to LC Black OM4 Duplex OFNR (Riser-Rated) Fiber Patch Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. OFNR riser fiber cable jackets are designed for vertical installations in building risers, providing fire-resistant protection to ensure safe data transmission between floors. These cables meet strict safety standards, making them ideal for businesses that need reliable, in-building network infrastructure without the risk of fire spreading through conduits. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.

Technical Specification

Cable ModeDuplex
ColorBlack
Compatible OEMIndustry Standard
ConnectorLC (Male) to LC (Male)
Fiber TerminationUPC - Ultra Physical Contact
Jacket TypeRiser
Length (m)6
Length (ft)19.69
Strand Count2
Termination TypeCrossover
Fiber TypeMMF
ShieldedNo
Core/Cladding50/125µm
PolarityType A-B
ArmoredNo
Bend InsensitivityG.657.A1
Cable Length6m
Cable TypeOM4
Connector 1 Boot StyleStandard Boot
Connector 1 ColorBeige
Connector 1 Ferrule Polish TypeUPC (Ultra Physical Contact)
Connector 2 Boot StyleStandard Boot
Connector 2 ColorBeige
Connector 2 Ferrule Polish TypeUPC (Ultra Physical Contact)
EnvironmentIndoor
Fire RatingRiser (OFNR)
Insertion Loss GradeGrade C
Outer Diameter2.0mm
Jacket MaterialPVC (Polyvinyl Chloride)

Physical Specification

Product Shipping Weight(LB)0.4
KitNo Kit - 1 Piece
Product Shipping Dimension(HxWxD)5 in. x 2.75 in. x 4.75 in.

Miscellaneous

Country Of OriginChina
ECCNEAR99
HTS-Harmonized Code (UK)85447000
HTS-Harmonized Code (US)8544.70.0000
TAA CompliantNo
UNSPSC Code26121609
UPC Code195285136428
What's In The Box1x patch cable

AddOn Part#ADD-LC-LC-6M5OM4-BK
Insight Electronics®ADD-LC-LC-6M5OM4-BK

Limited Lifetime
