ADD-LC-LC-61M5OM4OA imageADD-LC-LC-61M5OM4OA imageADD-LC-LC-61M5OM4OA image

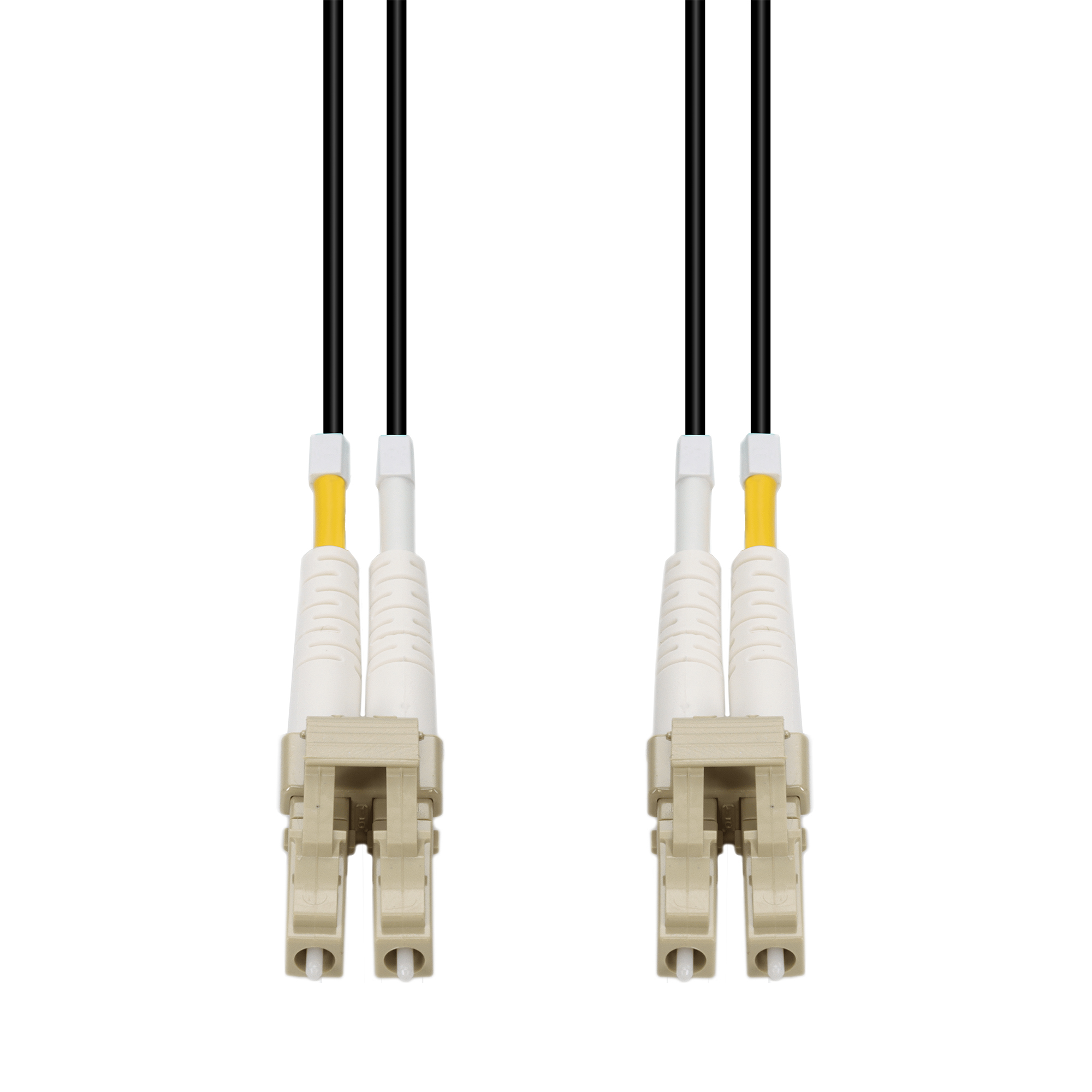

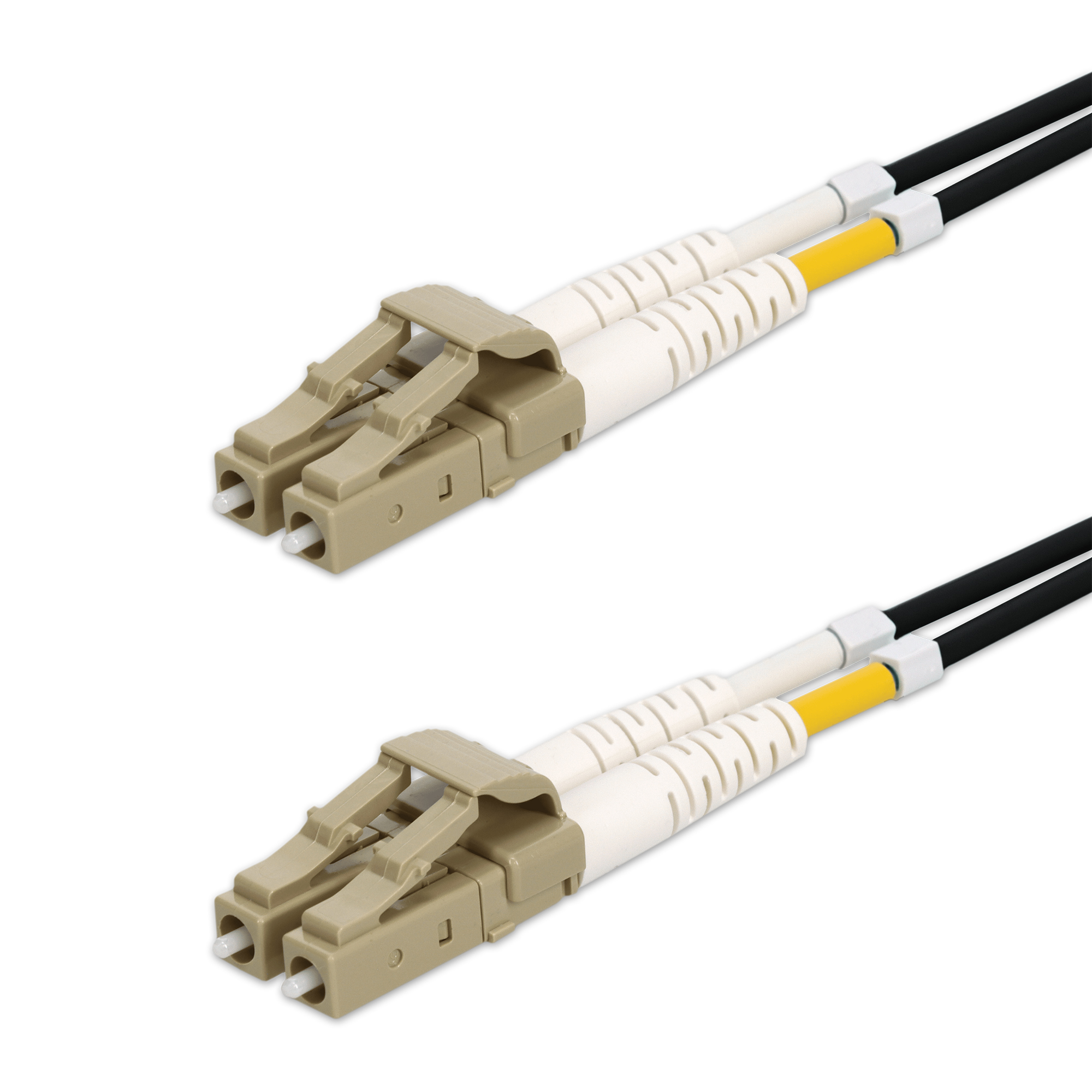

61m LC to LC Black OM4 Duplex Armored Outdoor Fiber Patch Cable

SKU: ADD-LC-LC-61M5OM4OA

North America: 0 in stock

Available from the following dealers:

Ingram Micro®Ingram Micro®

This is a 61m LC to LC Black OM4 Duplex Armored Outdoor Fiber Patch Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. OFNR riser fiber cable jackets are designed for vertical installations in building risers, providing fire-resistant protection to ensure safe data transmission between floors. These cables meet strict safety standards, making them ideal for businesses that need reliable, in-building network infrastructure without the risk of fire spreading through conduits. Outdoor-rated fiber cable jackets are built to withstand harsh environmental conditions, offering protection against moisture, UV rays, and temperature extremes. These cables are ideal for businesses that need durable, weather-resistant networking solutions for outdoor installations like campus networks or long-distance connections between buildings. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.

Technical Specification

Cable ModeDuplex
ColorBlack
Compatible OEMIndustry Standard
ConnectorLC (Male) to LC (Male)
Core/Cladding50/125µm
EnvironmentOutdoor
Fiber TerminationUPC - Ultra Physical Contact
Fiber TypeMMF
Jacket TypeArmored
Length (ft)200.14
Length (m)61
Strand Count2
Termination TypeCrossover
ShieldedNo
PolarityType A-B
ArmoredYes
Bend InsensitivityG.657.A1
Cable Length61m
Cable TypeOM4
Connector 1 Boot StyleStandard Boot
Connector 1 ColorBeige
Connector 1 Ferrule Polish TypeUPC (Ultra Physical Contact)
Connector 2 Boot StyleStandard Boot
Connector 2 ColorBeige
Connector 2 Ferrule Polish TypeUPC (Ultra Physical Contact)
Fire RatingRiser (OFNR)
Insertion Loss GradeGrade C
Outer Diameter2.0mm
Jacket MaterialPVC (Polyvinyl Chloride)

Physical Specification

Product Shipping Dimension(HxWxD)12 in. x 12 in. x 8 in.
Product Shipping Weight(LB)3.2
KitNo Kit - 1 Piece

Miscellaneous

Country Of OriginChina
ECCNEAR99
HTS-Harmonized Code (UK)85447000
HTS-Harmonized Code (US)8544.70.0000
TAA CompliantNo
UNSPSC Code26121609
UPC Code195285713711
What's In The Box1x patch cable

AddOn Part#ADD-LC-LC-61M5OM4OA
Ingram Micro®09XM15
Ingram Micro®180J79
Insight Electronics®ADD-LC-LC-61M5OM4OA

Limited Lifetime
