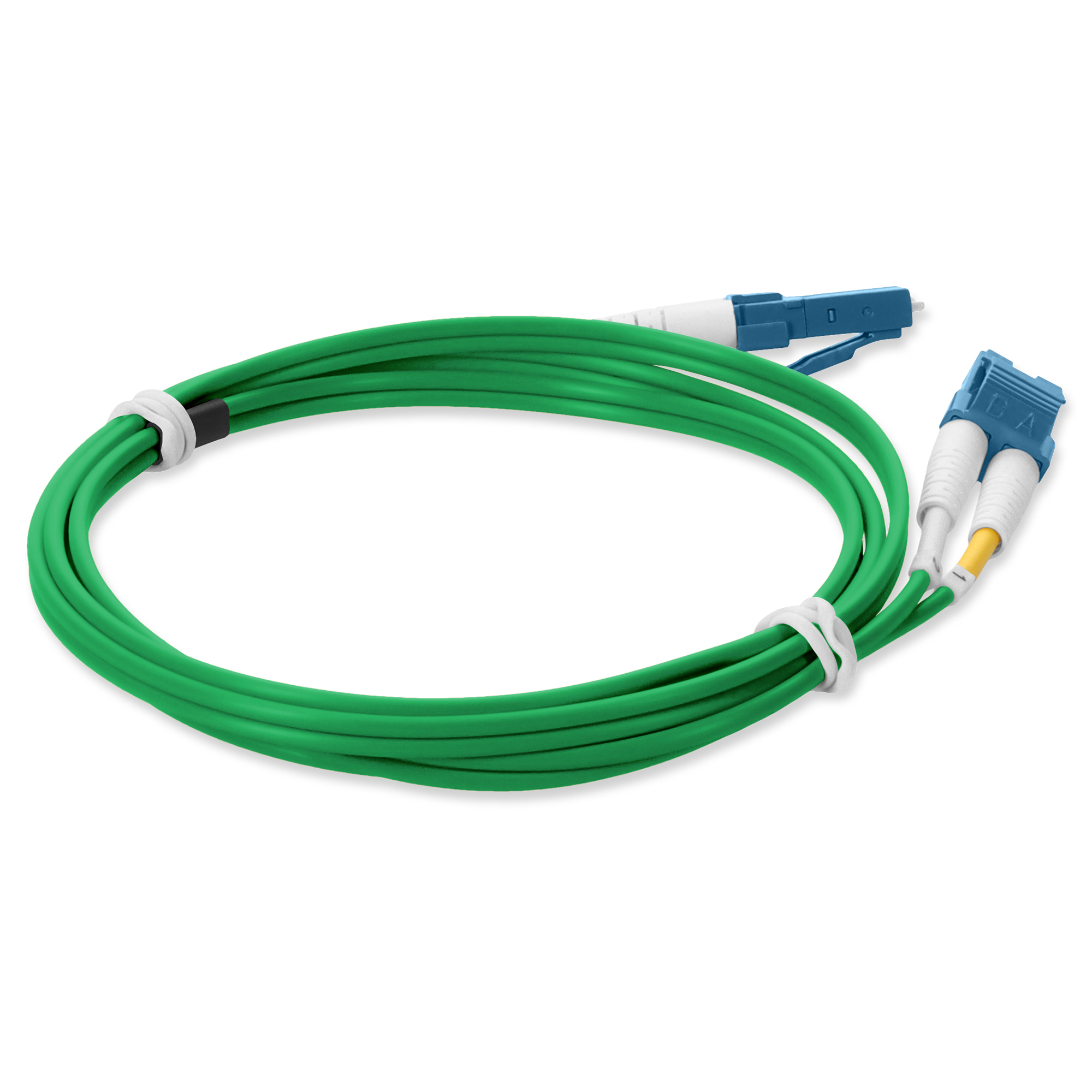

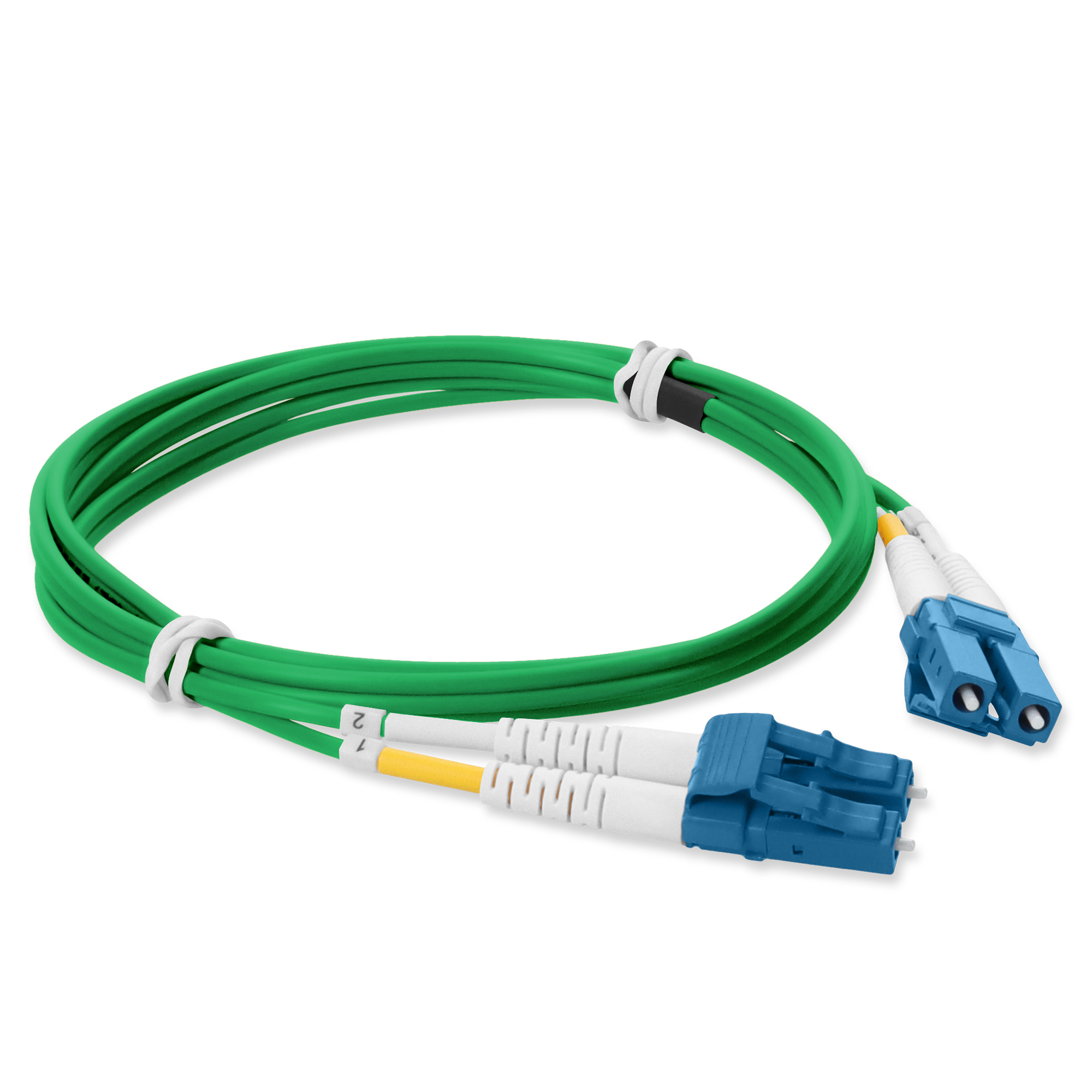

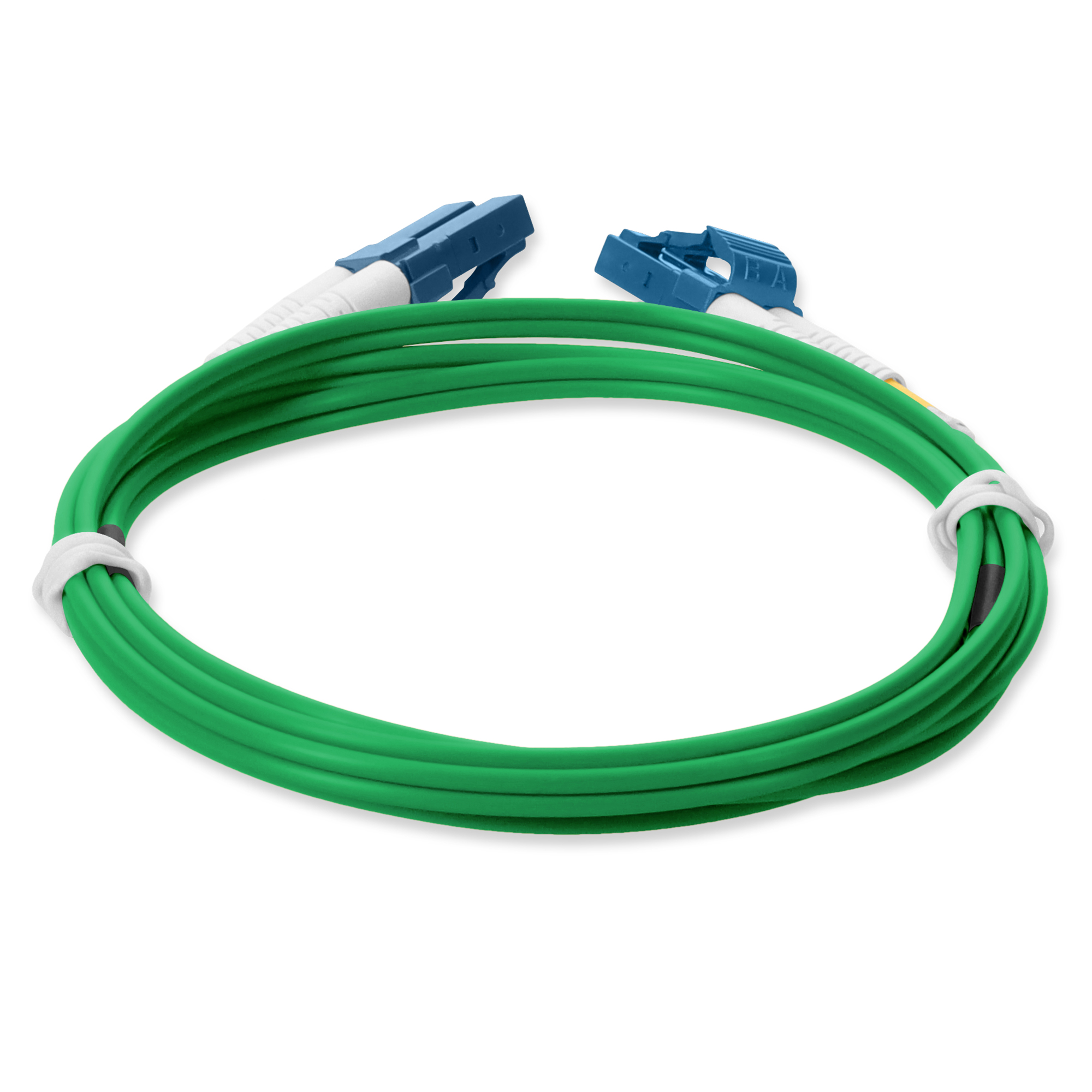

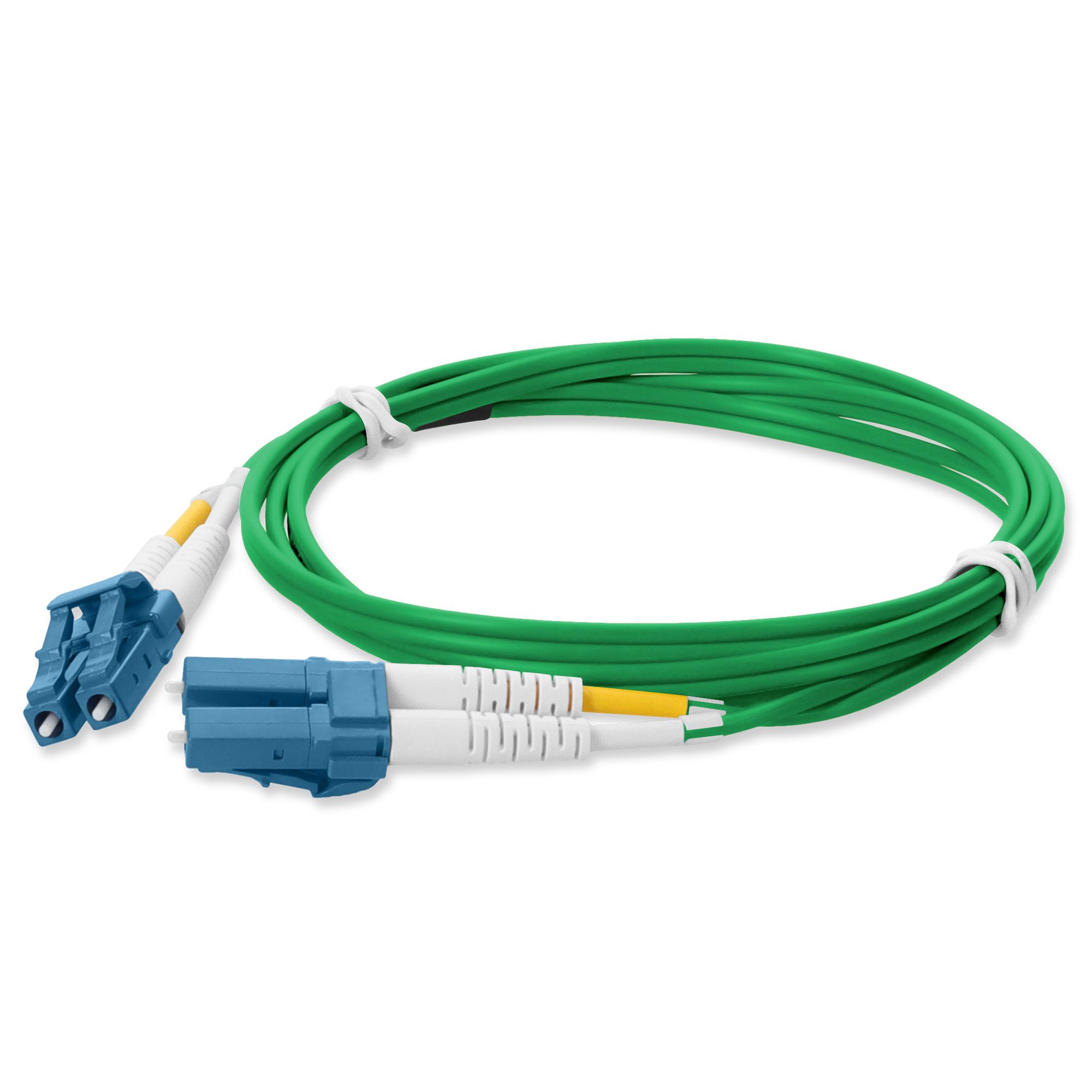

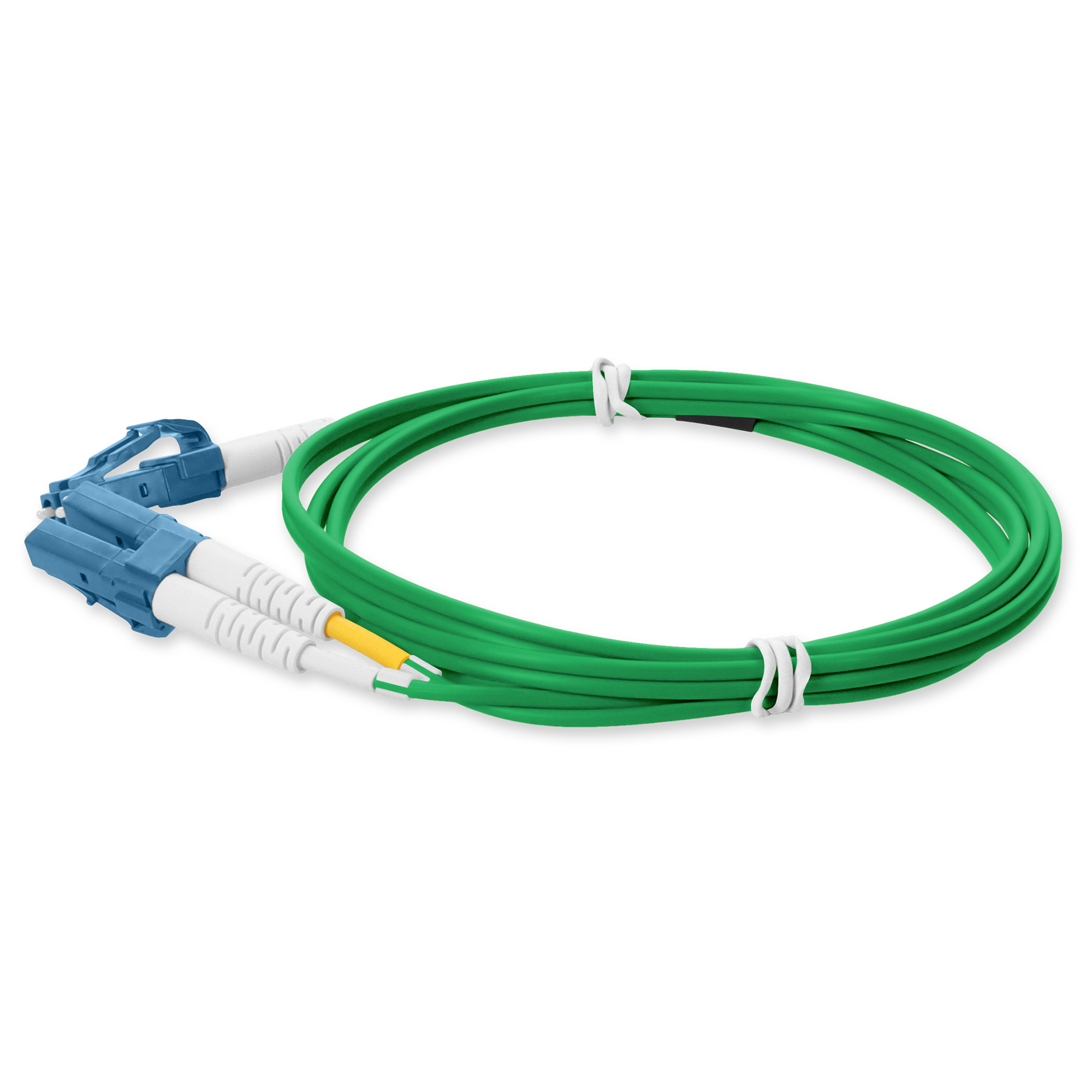

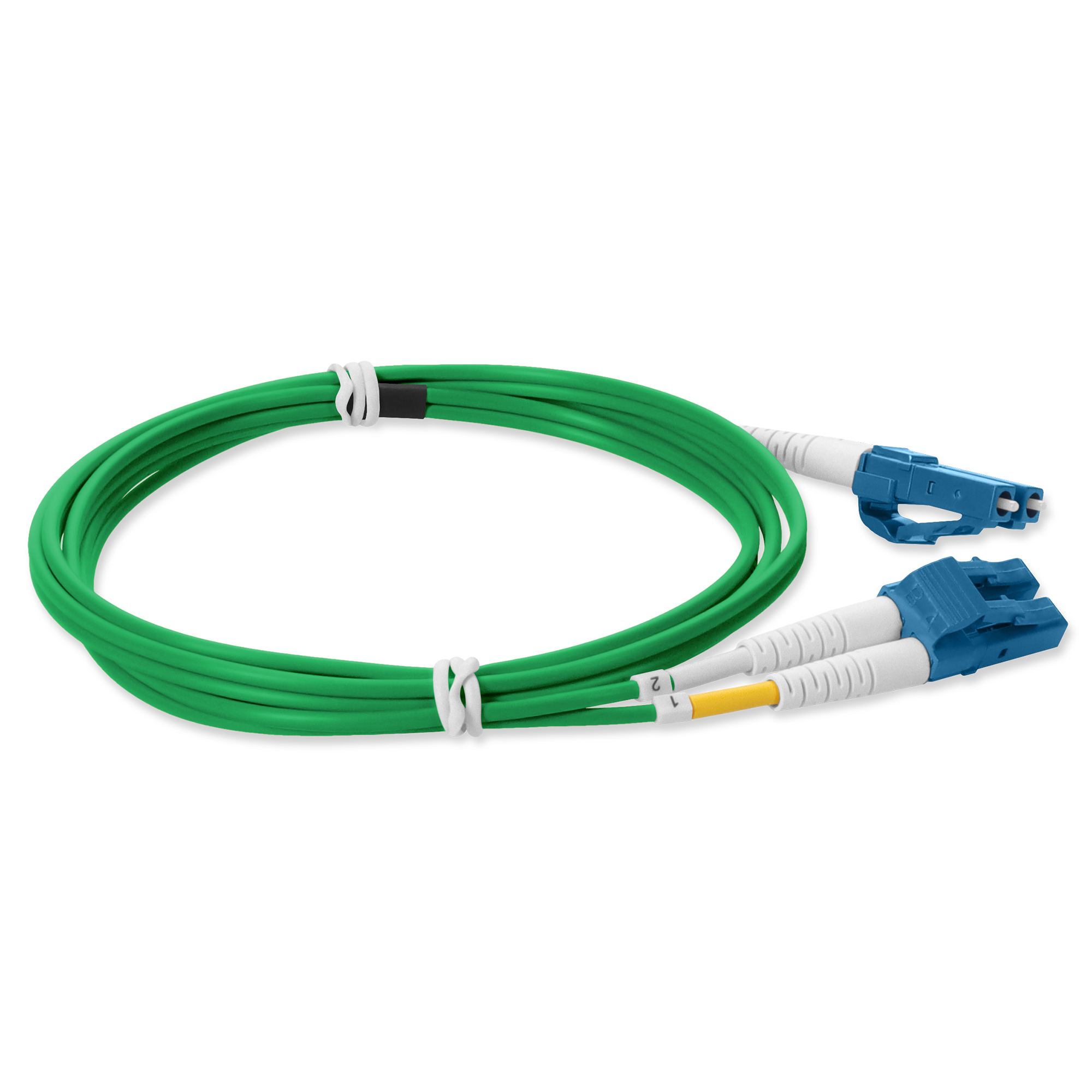

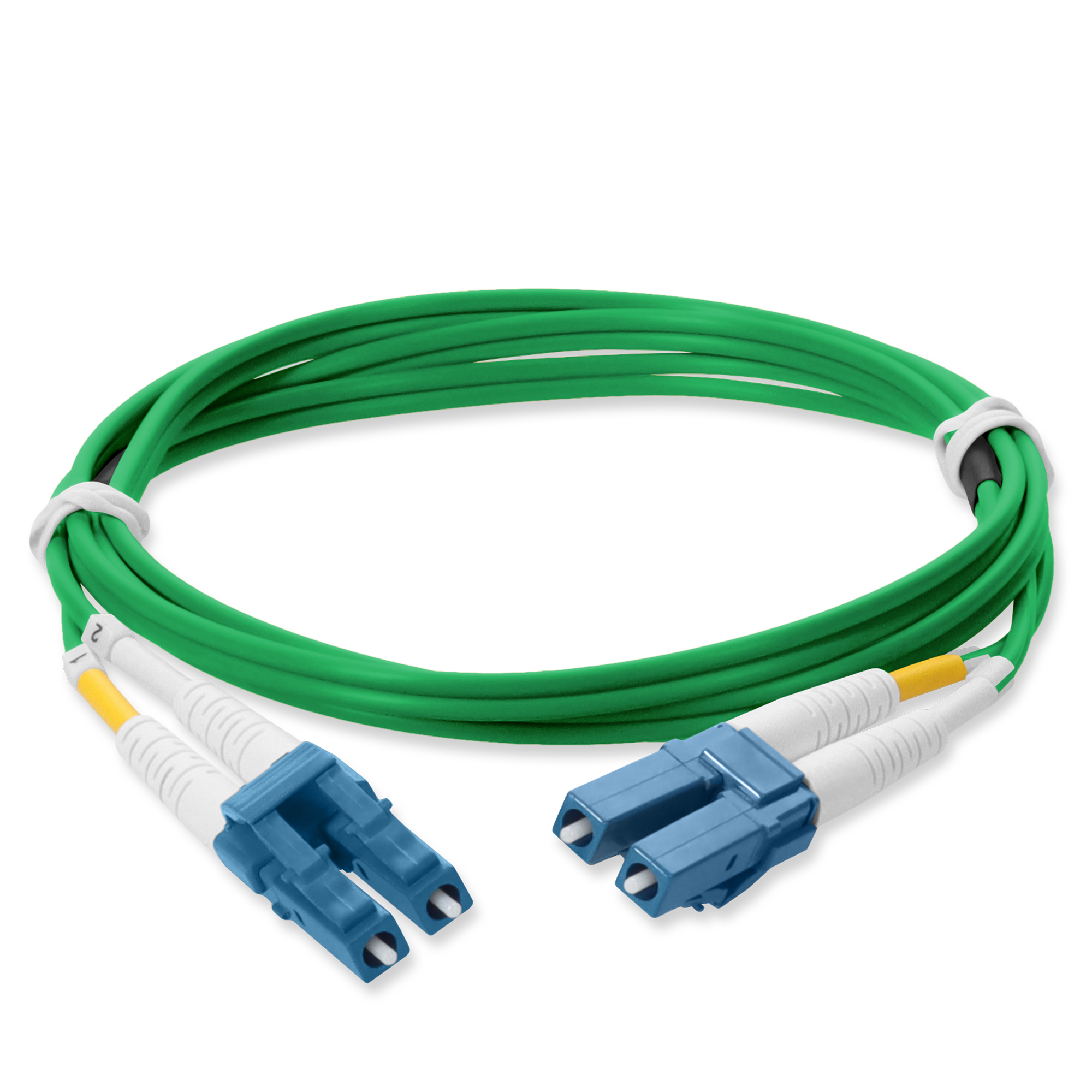

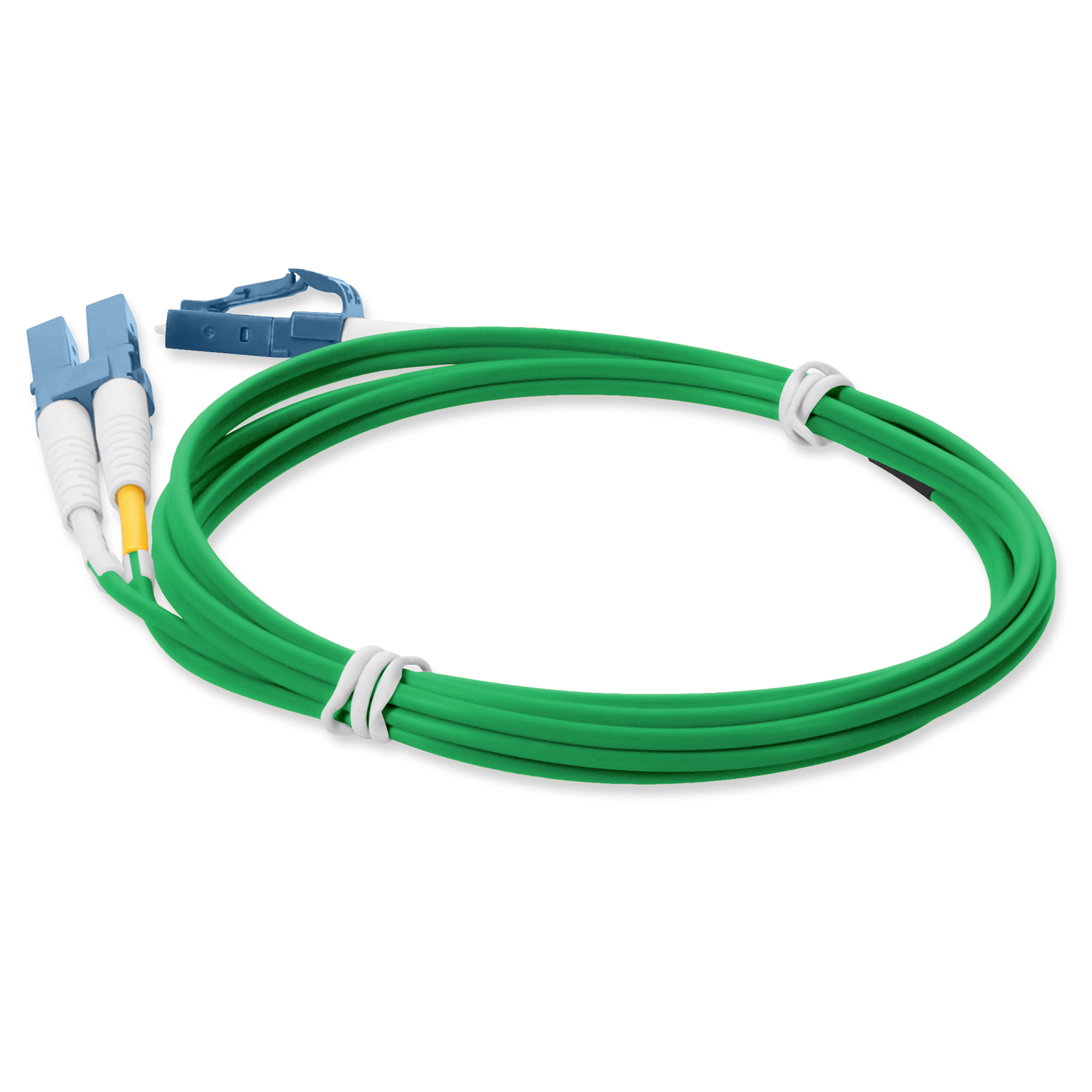

5m LC (Male) to LC (Male) Green OS2 Duplex Fiber OFNP (Plenum-Rated) TAA Compliant Fiber Patch Cable
SKU: ADD-LC-LC-5M9SMFP-GN-TAA
North America: 0 in stock
Available from the following dealers:
This is a 5.0m LC (male) to LC (male) green OS2 duplex OFNP (Plenum-rated) patch straight cable that is used for high speed data transfer. OS2 is a standard single-mode optical fiber commonly used with wavelengths of 1310nm and 1550nm (9/125 microns), and has a maximum attenuation of 1dB/km. The OS2 standard is defined in ISO/IEC 11801. OFNP (Plenum-rated) cables must self-extinguish and prevent re-ignition. Duplex cabling provides two-strands of fiber and is most commonly used in applications that utilize one lane to transmit and one lane to receive. Our patch cables are 100% compliant for all of your networking needs and are guaranteed by federal law to not affect or void OEM warranties.
Technical Specification
| Compatible OEM | Industry Standard |
| Application | Patch |
| Standard | OS2 |
| Fiber Type | SMF |
| Connector | LC (Male) to LC (Male) |
| Color | Green |
| Shielded | Not Shielded |
| Strand Count | 2 |
| Cable Mode | Duplex |
| Jacket Type | Plenum |
| Termination Type | Straight |
| Core/Cladding | 9/125µm |
| Length (m) | 5 |
| Length (ft) | 16.4 |
| Media | Fiber |
Physical Specification
| Product Shipping Dimension(HxWxD) | 5 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight(LB) | 0.6 |
| Kit | No Kit - 1 Piece |
Miscellaneous
| Country Of Origin | USA |
| ECCN | EAR99 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | Yes |
| UNSPSC Code | 26121609 |
| UPC Code | 195285552181 |
| What's In The Box | 1x patch cable |
| AddOn Part# | ADD-LC-LC-5M9SMFP-GN-TAA |
| Insight Electronics® | ADD-LC-LC-5M9SMFP-GN-TAA |
Limited Lifetime
