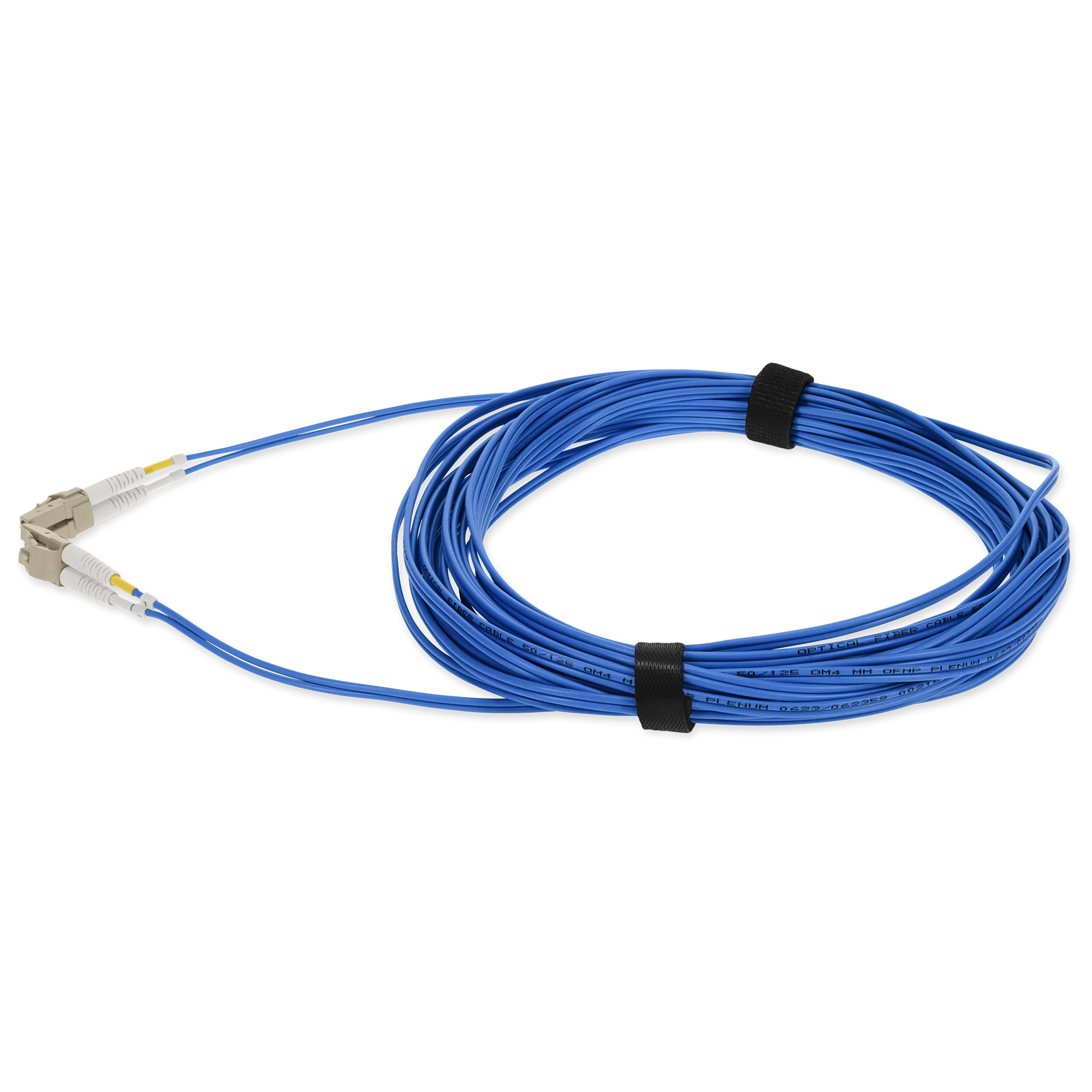

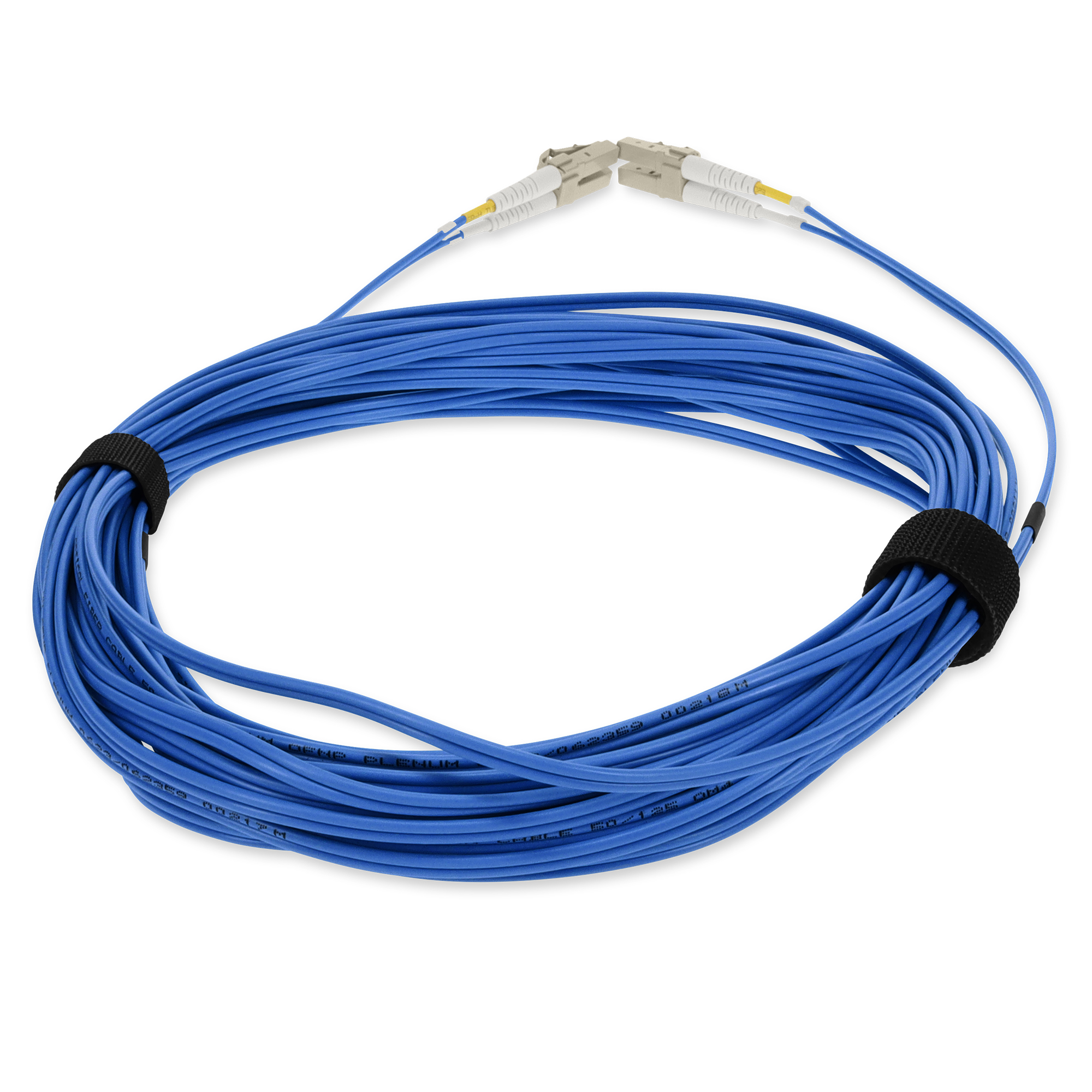

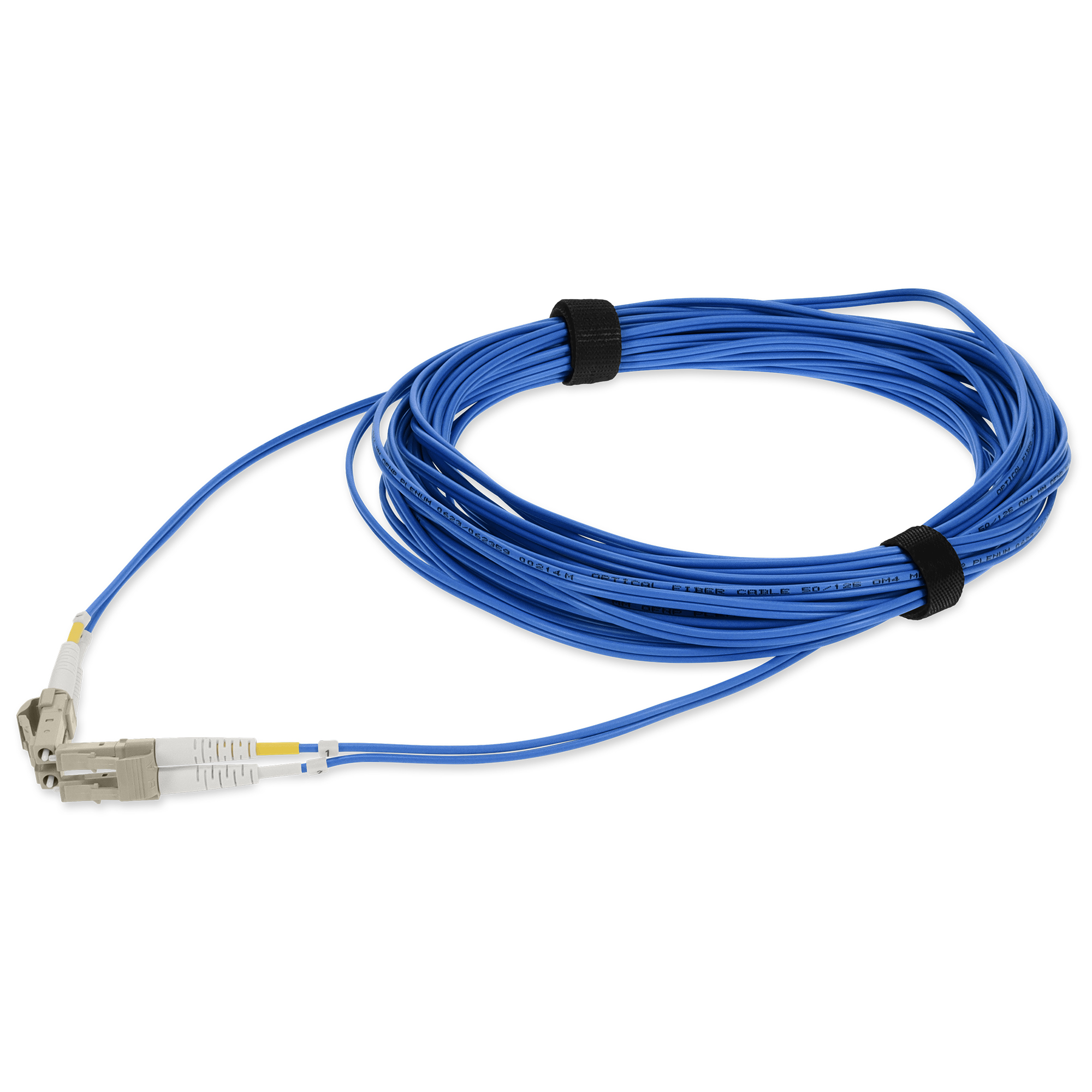

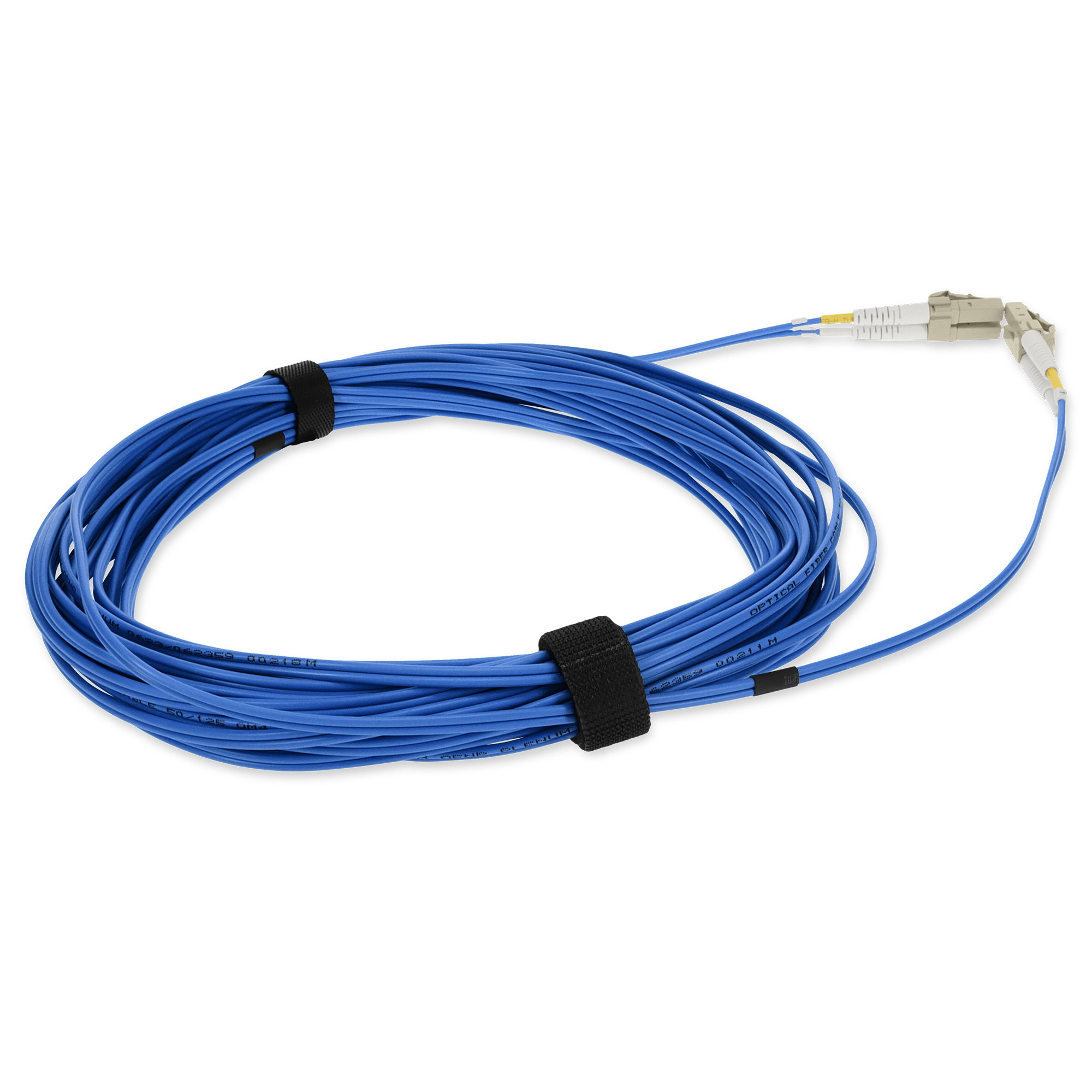

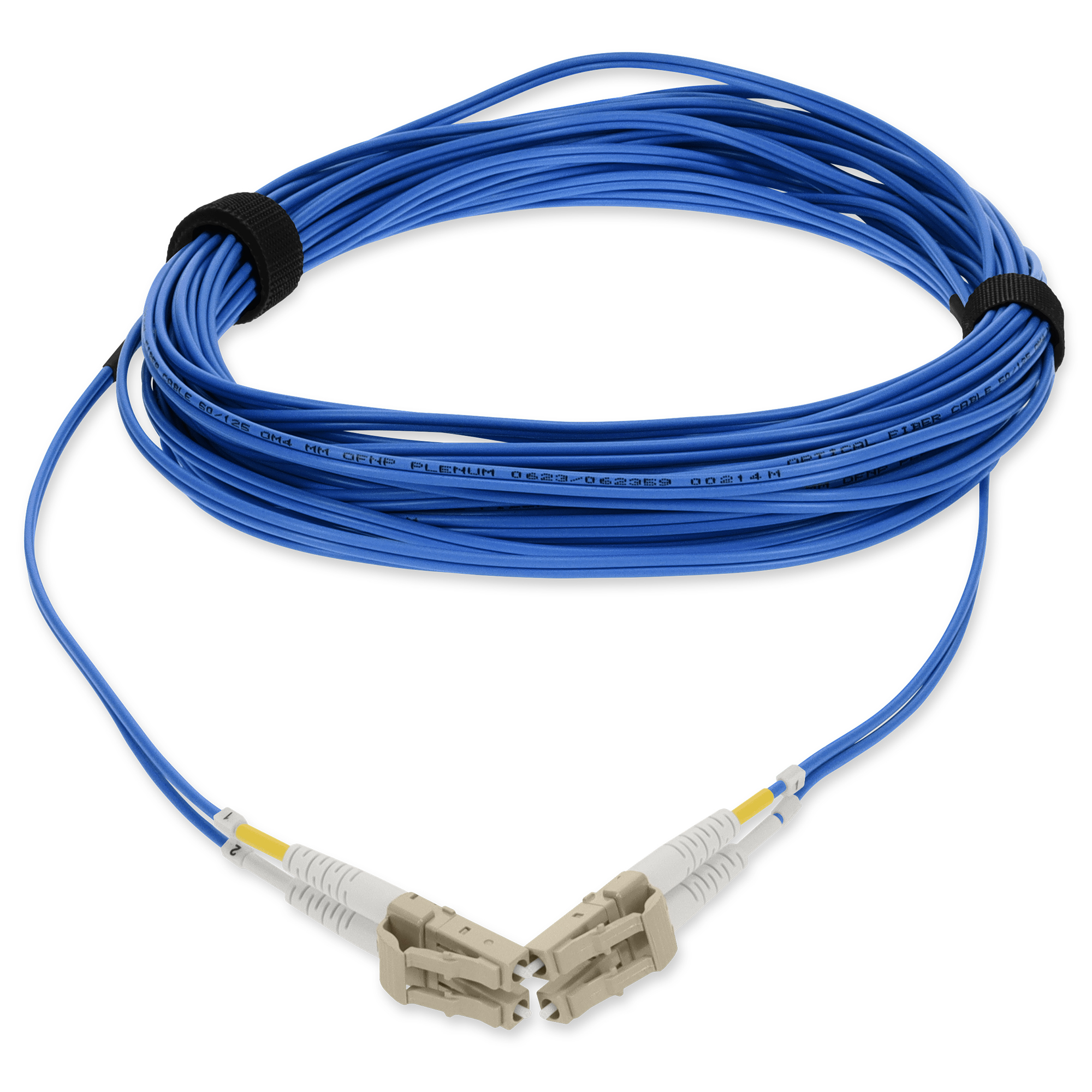

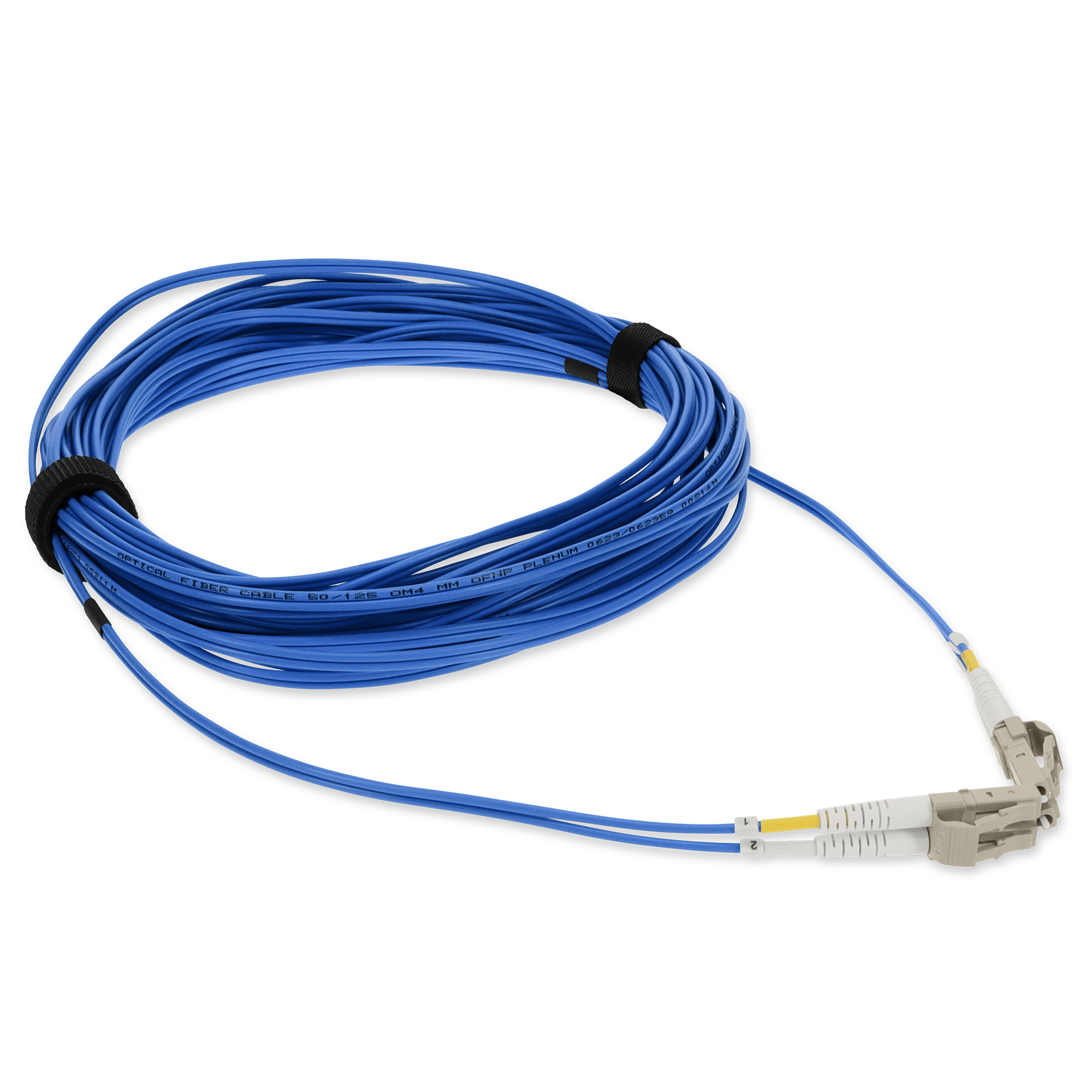

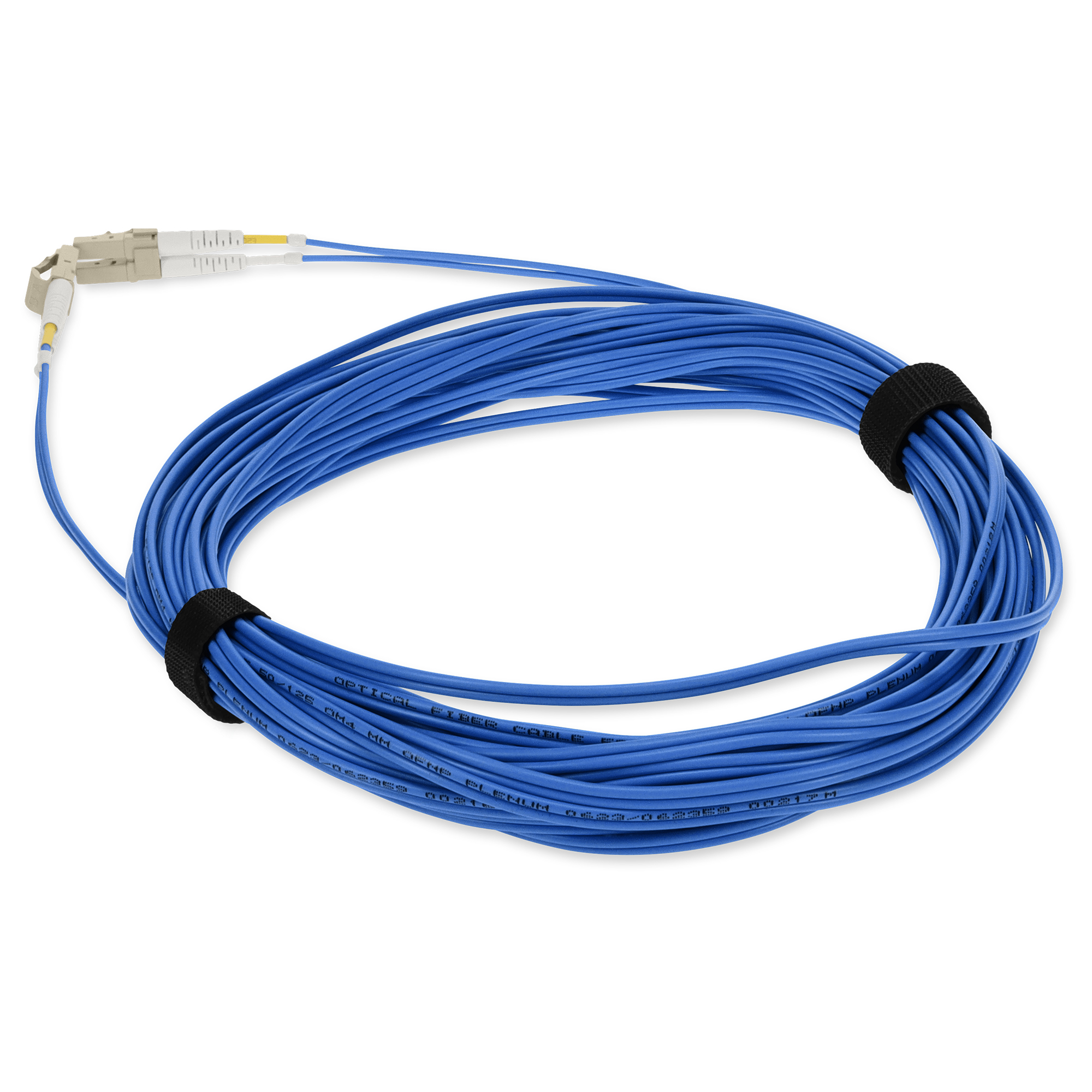

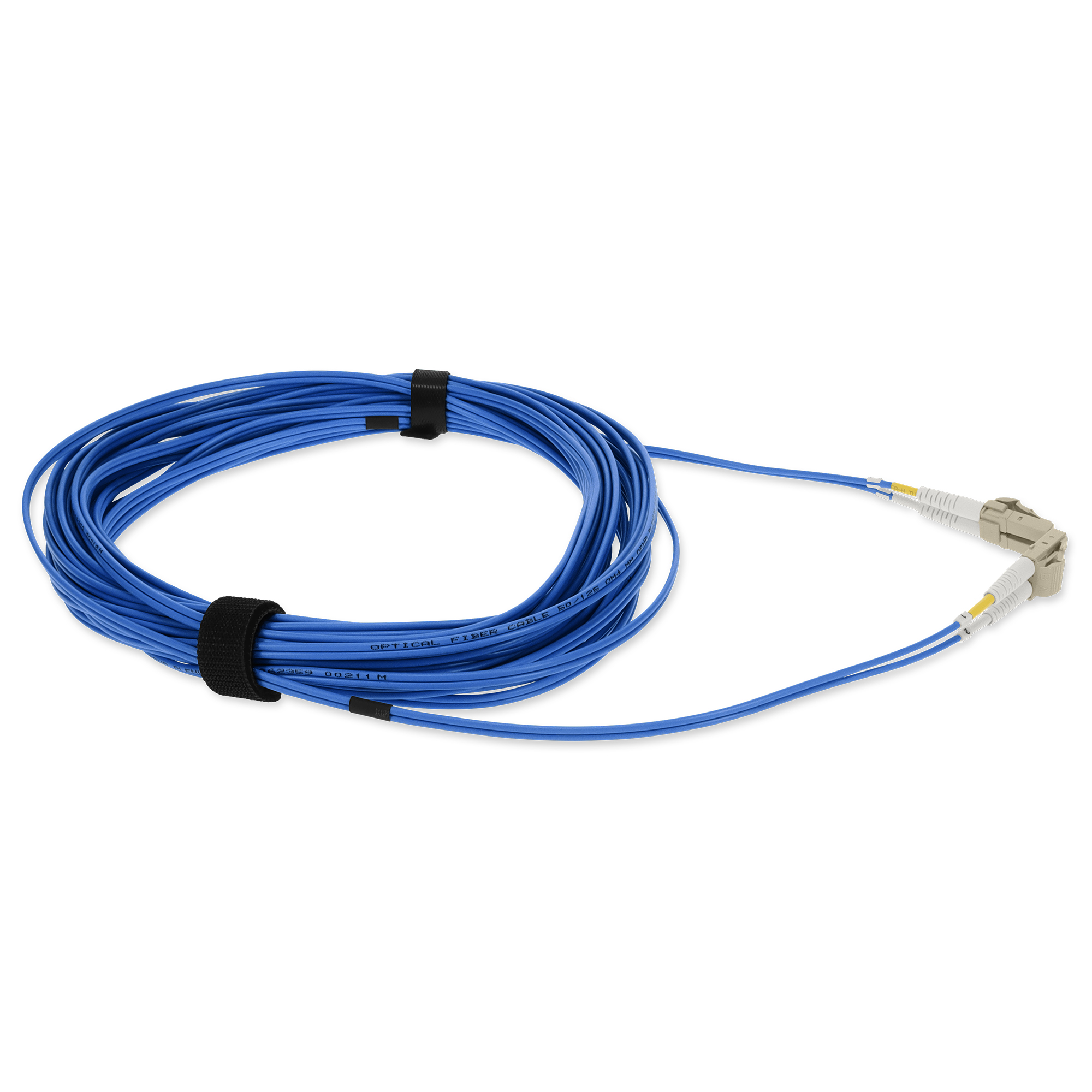

5m LC (Male) to LC (Male) Blue OM4 Duplex Fiber OFNP (Plenum-Rated) TAA Compliant Patch Cable
SKU: ADD-LC-LC-5M5OM4P-BE-TAA
North America: 0 in stock
Available from the following dealers:
This is a 5m LC (male) to LC (male) Blue OM4 duplex plenum-rated patch straight cable that is used for high speed data transfer. An OM4 cable has a core size of 50m microns that supports 10 Gigabit Ethernet at lengths measuring up to 550 meters , and 100 Gigabit Ethernet measuring up to 150 meters and is reverse compatible with OM3. Plenum-rated cables must self-extinguish and prevent re-ignition. Duplex cabling provides two-strands of fiber and is most commonly used in applications that utilize one lane to transmit and one lane to receive. Our patch cables are 100% compliant for all of your networking needs and are guaranteed by federal law to not affect or void OEM warranties.
Technical Specification
| Compatible OEM | Industry Standard |
| Application | Patch |
| Standard | OM4 |
| Fiber Type | LOMM |
| Connector | LC (Male) to LC (Male) |
| Color | Blue |
| Shielded | Not Shielded |
| Strand Count | 2 |
| Cable Mode | Duplex |
| Jacket Type | Plenum |
| Termination Type | Straight |
| Core/Cladding | 50/125µm |
| Fiber Termination | PC - Physical Contact |
| Length (m) | 5 |
| Length (ft) | 16.4 |
| Media | Fiber |
Physical Specification
| Product Shipping Dimension(HxWxD) | 5 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight(LB) | 1.1 |
| Kit | No Kit - 1 Piece |
Miscellaneous
| Country Of Origin | USA |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | Yes |
| UNSPSC Code | 26121609 |
| UPC Code | 195285754493 |
| What's In The Box | 1x patch cable |
| Insight Electronics® | ADD-LC-LC-5M5OM4P-BE-TAA |
Limited Lifetime
