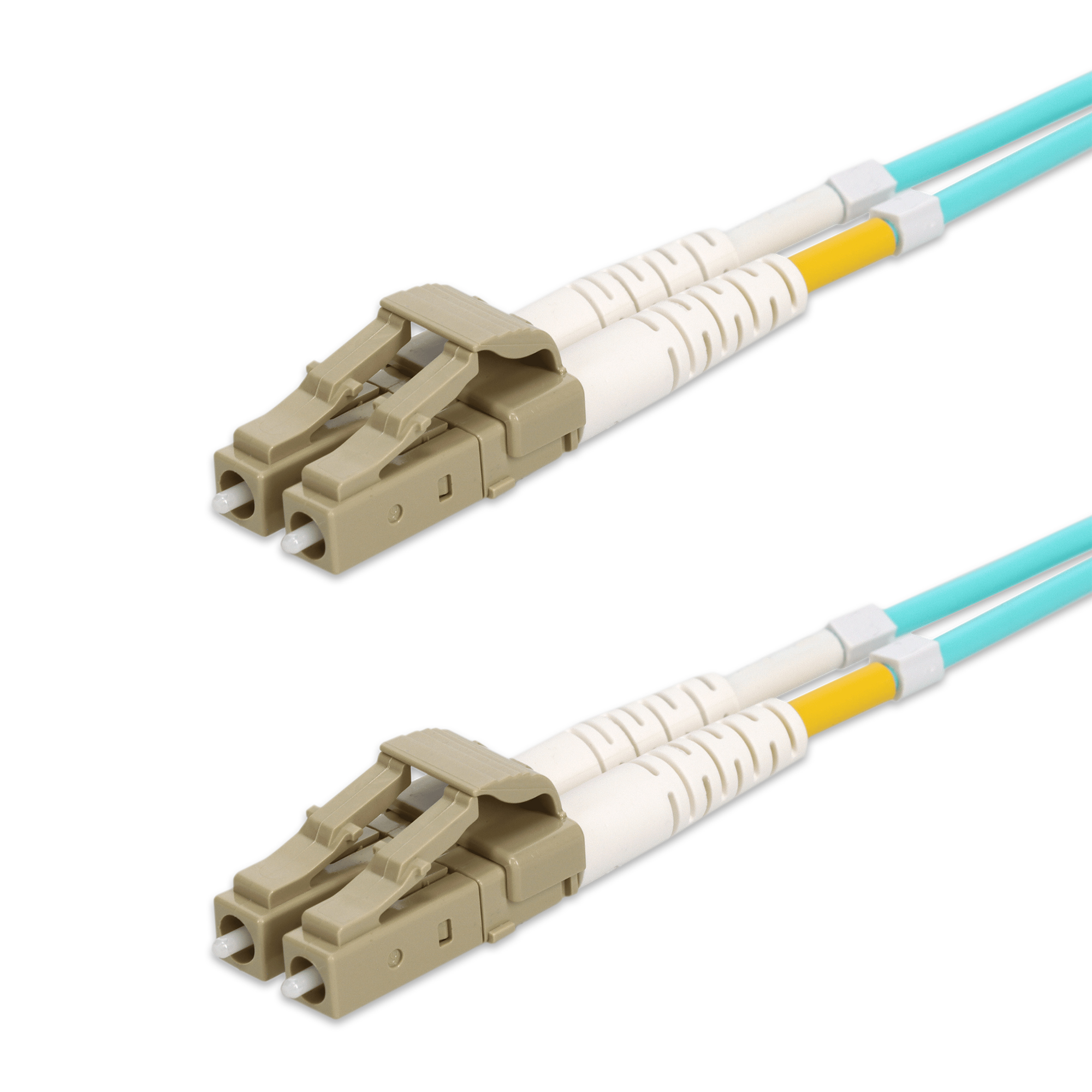

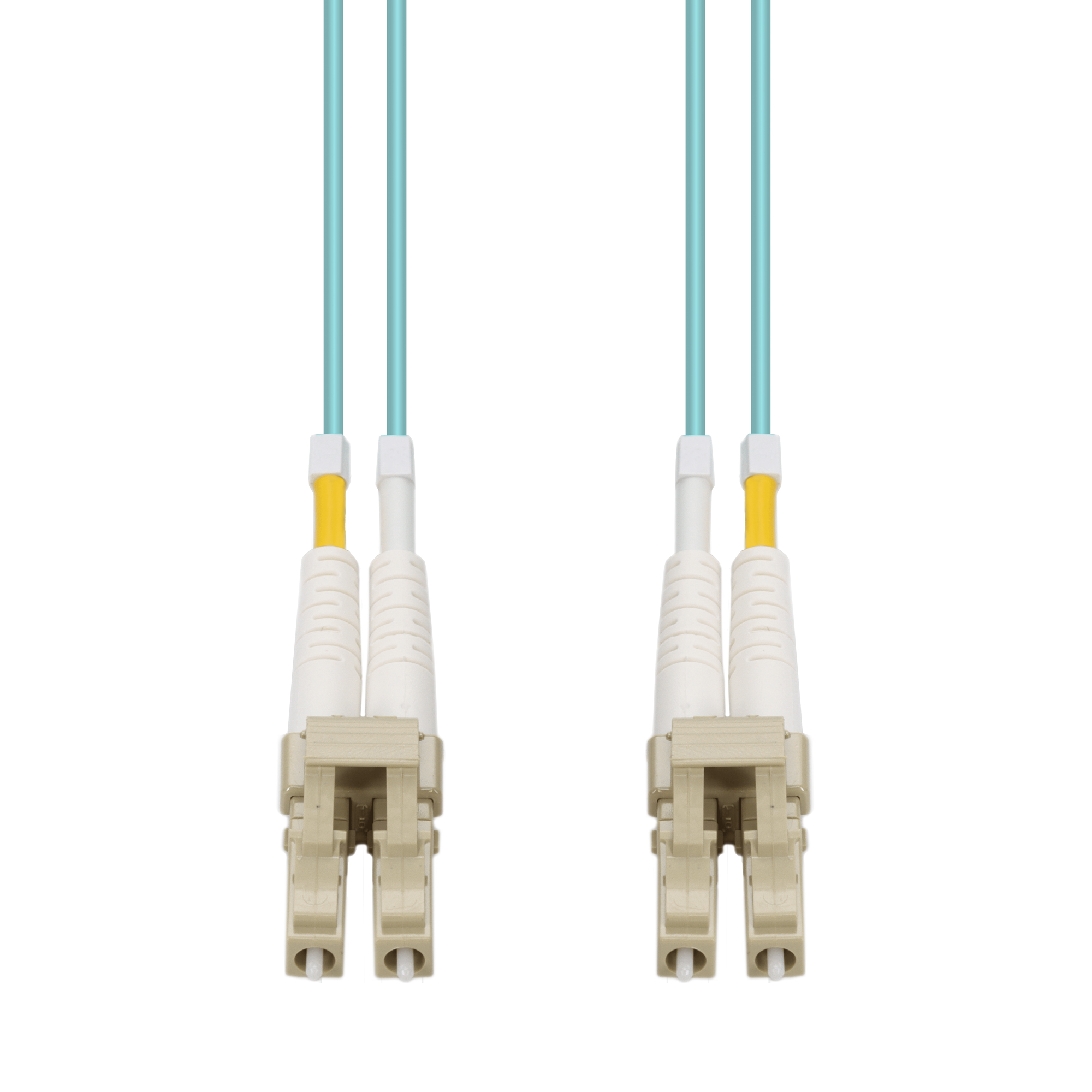

50m LC to LC Aqua OM4 Duplex Armored OFNP (Plenum-Rated) Fiber Patch Cable

SKU: ADD-LC-LC-50M5OM4PA

Belgium: 0 in stock

United Kingdom: 0 in stock

North America: 4 in stock

Available from the following dealers:

Ingram Micro®Ingram Micro® CanadaTD Synnex US

This is a 50m LC to LC Aqua OM4 Duplex Armored OFNP (Plenum-Rated) Fiber Patch Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. OFNP plenum fiber cable jackets are engineered for use in air-handling spaces, such as ceilings and ducts, offering the highest fire resistance to prevent flame spread and reduce smoke in the event of a fire. These cables meet stringent safety standards, making them the top choice for businesses that need safe, reliable networking in critical building areas. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.

Technical Specification

Compatible OEMIndustry Standard
Fiber TypeMMF
ConnectorLC (Male) to LC (Male)
ColorAqua
Strand Count2
Cable ModeDuplex
Jacket TypePlenum Armored
Termination TypeCrossover
Fiber TerminationUPC - Ultra Physical Contact
Length (m)50
Length (ft)164.05
ShieldedNo
Core/Cladding50/125µm
PolarityType A-B
ArmoredYes
Bend InsensitivityG.657.A1
Cable Length50m
Cable TypeOM4
Connector 1 Boot StyleStandard Boot
Connector 1 ColorBeige
Connector 1 Ferrule Polish TypeUPC (Ultra Physical Contact)
Connector 2 Boot StyleStandard Boot
Connector 2 ColorBeige
Connector 2 Ferrule Polish TypeUPC (Ultra Physical Contact)
EnvironmentIndoor
Fire RatingPlenum (OFNP)
Insertion Loss GradeGrade C
Outer Diameter2.0mm
Jacket MaterialPVDF (Polyvinylidene Fluoride)

Physical Specification

Product Shipping Dimension(HxWxD)12 in. x 12 in. x 8 in.
Product Shipping Weight(LB)2.6
KitNo Kit - 1 Piece

Miscellaneous

Country Of OriginChina
ECCNEAR99
HTS-Harmonized Code (UK)85447000
HTS-Harmonized Code (US)8544.70.0000
TAA CompliantNo
UNSPSC Code26121609
UPC Code821456437550
What's In The Box1x patch cable

AddOn Part#ADD-LC-LC-50M5OM4PA
Ingram Micro®7AG807
Ingram Micro® Canada566LLD
Insight Electronics®ADD-LC-LC-50M5OM4PA
TD Synnex CA6463909
TD Synnex US5741397

Limited Lifetime
