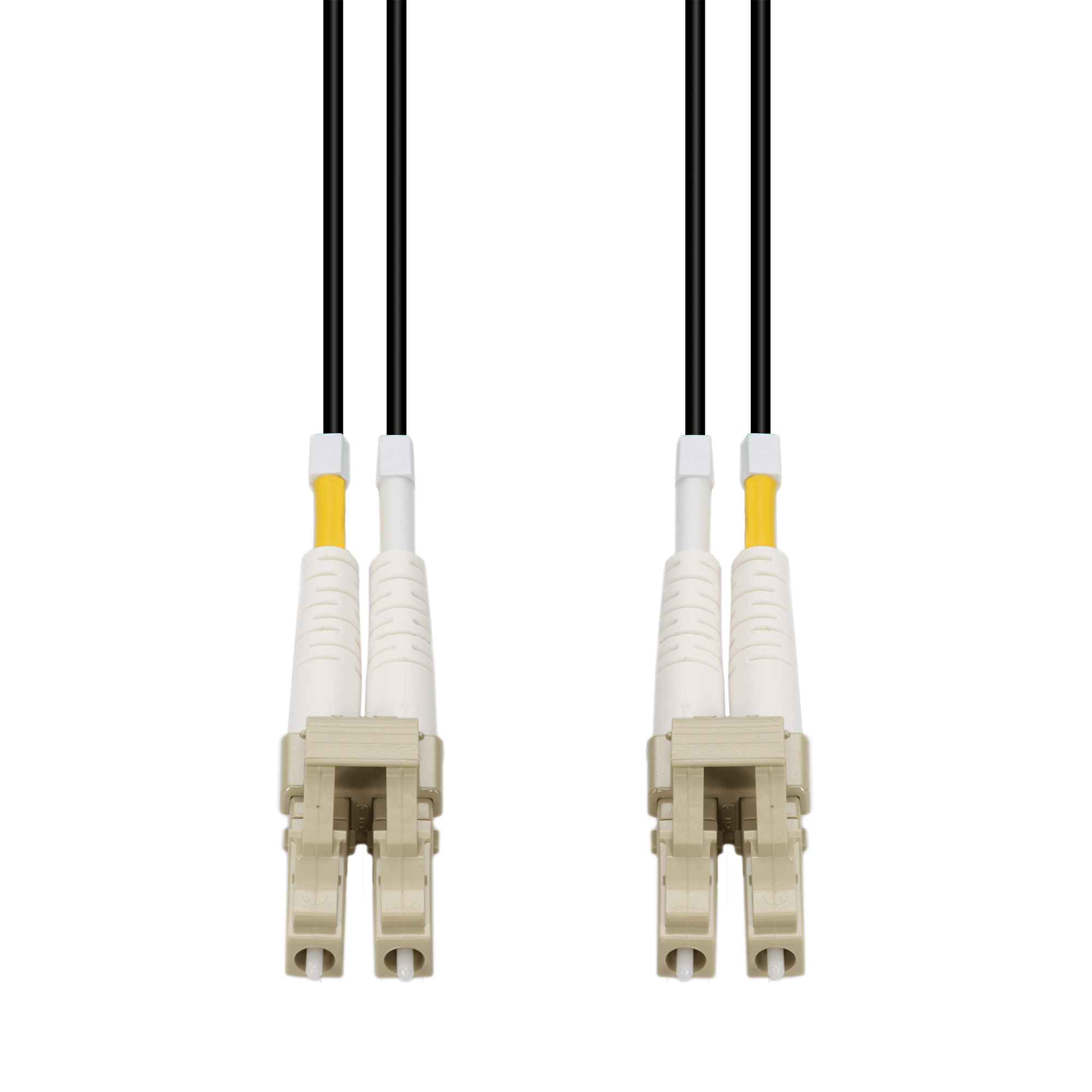

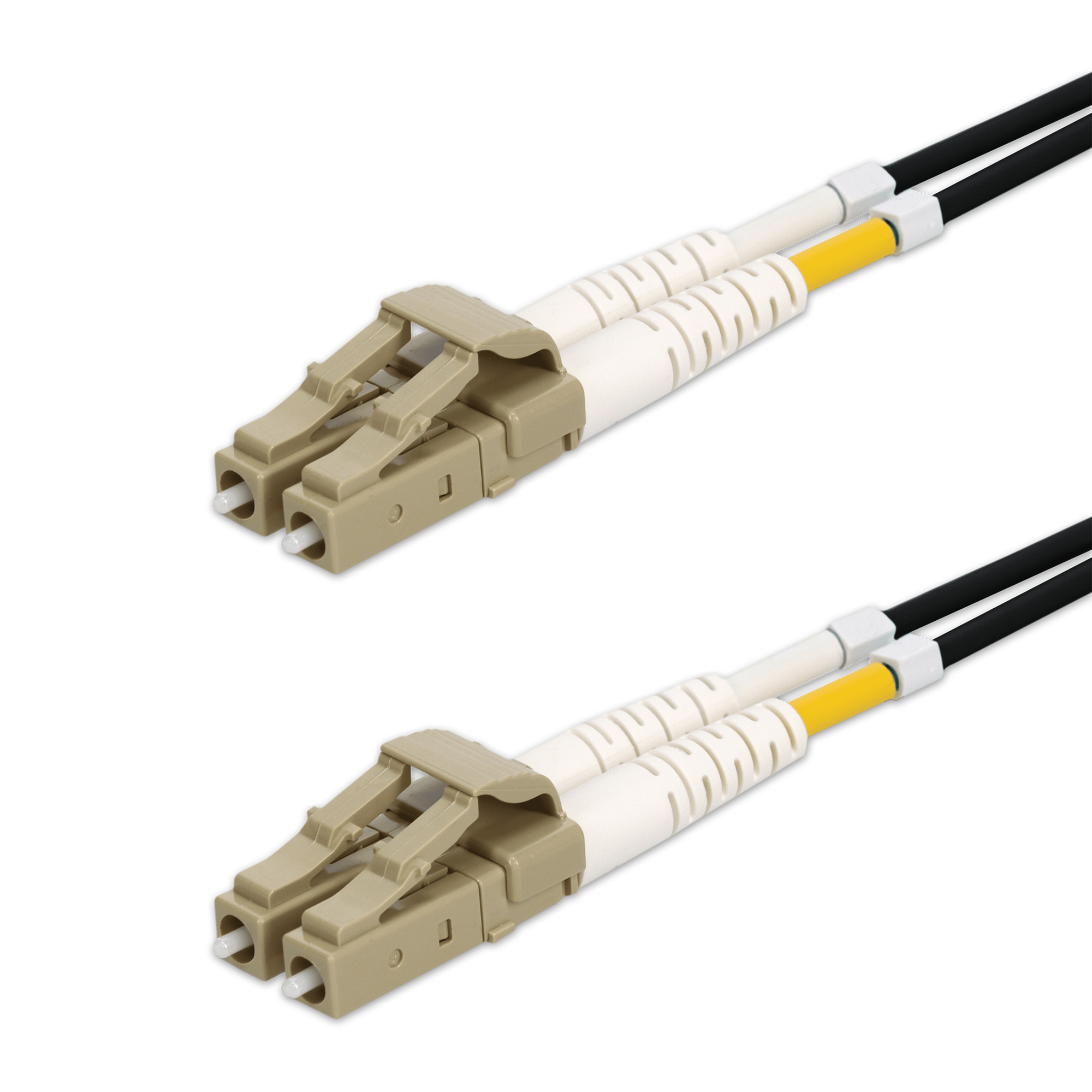

50m LC to LC Black OM4 Duplex LSZH Armored Outdoor Fiber Patch Cable

SKU: ADD-LC-LC-50M5OM4OALZ

Belgium: 0 in stock

United Kingdom: 0 in stock

Available from the following dealers:

This is a 50m LC to LC Black OM4 Duplex LSZH Armored Outdoor Fiber Patch Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. LSZH (Low Smoke Zero Halogen) fiber cable jackets are designed to minimize toxic smoke and harmful emissions in the event of a fire, making them ideal for enclosed or high-traffic areas. These cables provide enhanced safety and environmental protection, making them a popular choice for businesses prioritizing workplace safety and eco-friendly infrastructure. Outdoor-rated fiber cable jackets are built to withstand harsh environmental conditions, offering protection against moisture, UV rays, and temperature extremes. These cables are ideal for businesses that need durable, weather-resistant networking solutions for outdoor installations like campus networks or long-distance connections between buildings. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.

Technical Specification

Cable ModeDuplex
ColorBlack
Compatible OEMIndustry Standard
ConnectorLC (Male) to LC (Male)
EnvironmentOutdoor
Fiber TerminationUPC - Ultra Physical Contact
Fiber TypeMMF
Jacket TypeLSZH Armored
Length (ft)164.05
Length (m)50
Strand Count2
Termination TypeCrossover
ShieldedNo
Core/Cladding50/125µm
PolarityType A-B
ArmoredYes
Bend InsensitivityG.657.A1
Cable Length50m
Cable TypeOM4
Connector 1 Boot StyleStandard Boot
Connector 1 ColorBeige
Connector 1 Ferrule Polish TypeUPC (Ultra Physical Contact)
Connector 2 Boot StyleStandard Boot
Connector 2 ColorBeige
Connector 2 Ferrule Polish TypeUPC (Ultra Physical Contact)
Insertion Loss GradeGrade C
Jacket MaterialLSZH (Low Smoke Zero Halogen)
Outer Diameter2.0mm
Fire RatingGeneral Purpose (OFNG)

Physical Specification

Product Shipping Dimension(HxWxD)12 in. x 12 in. x 8 in.
Product Shipping Weight(LB)2.6
KitNo Kit - 1 Piece

Miscellaneous

Country Of OriginChina
ECCNEAR99
HTS-Harmonized Code (UK)85447000
HTS-Harmonized Code (US)8544.70.0000
TAA CompliantNo
UNSPSC Code26121609
UPC Code195285690401
What's In The Box1x patch cable

AddOn Part#ADD-LC-LC-50M5OM4OALZ
Insight Electronics®ADD-LC-LC-50M5OM4OALZ
