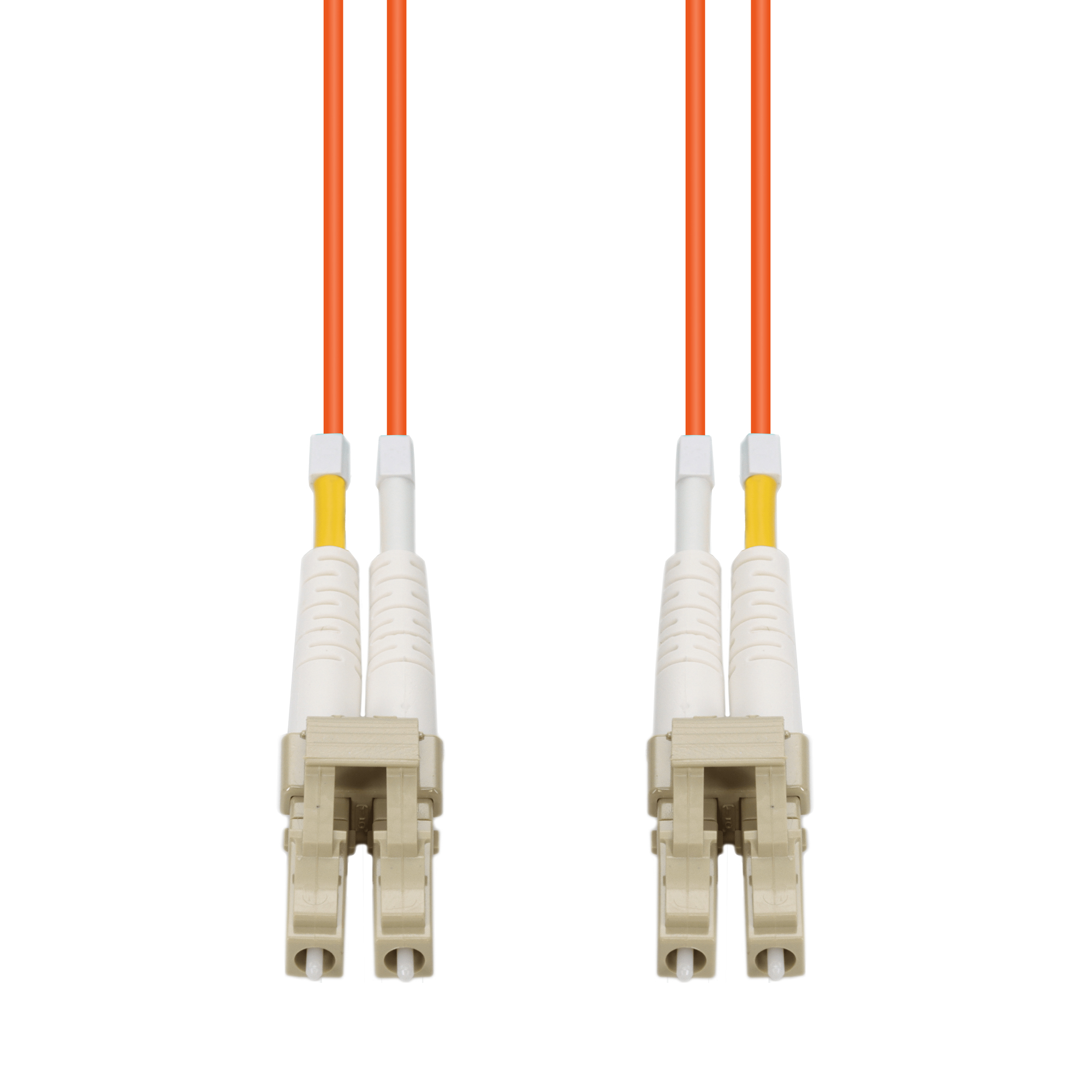

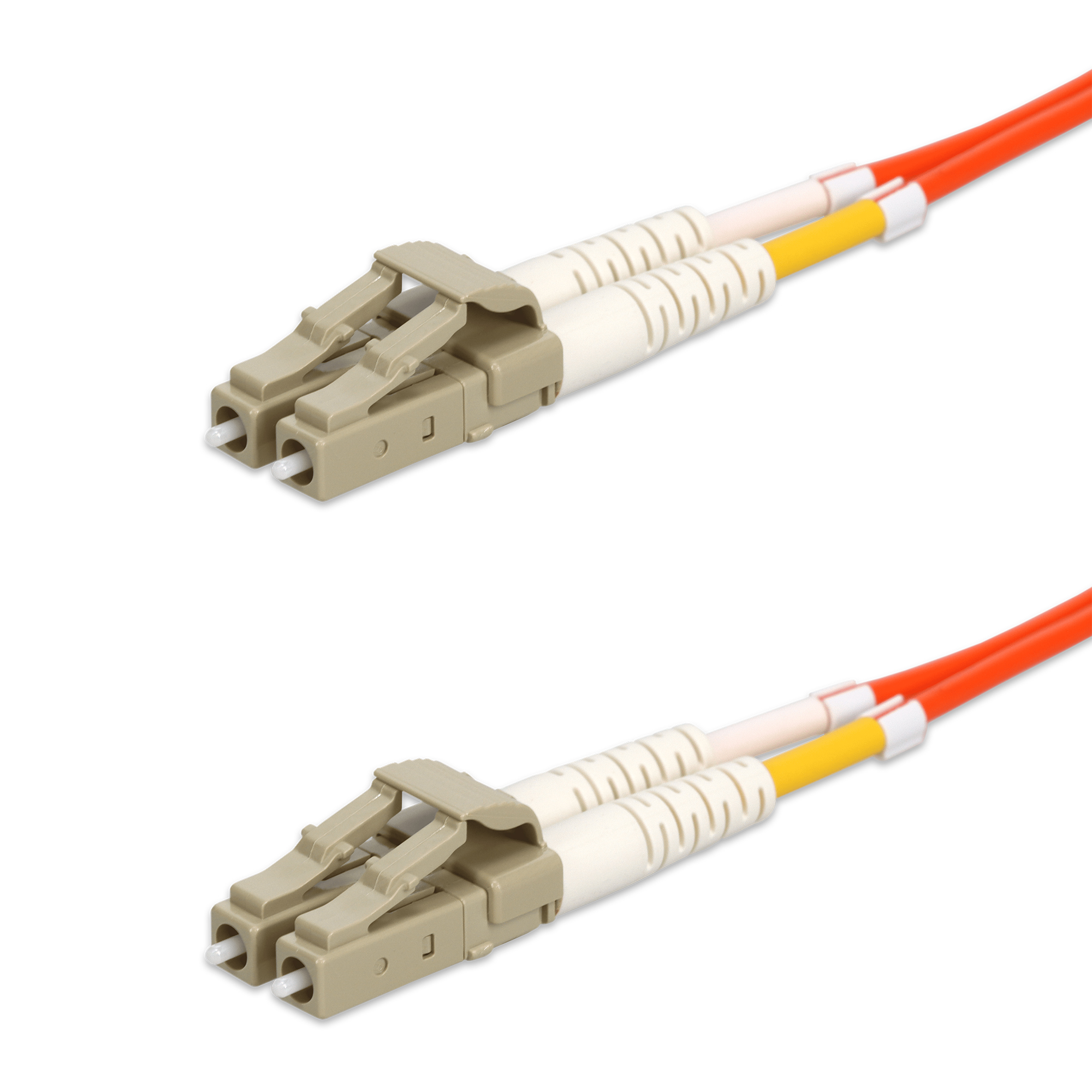

50m LC to LC Orange OM2 Duplex LSZH Fiber Patch Cable
SKU: ADD-LC-LC-50M5OM2LZ
Belgium: 0 in stock
United Kingdom: 0 in stock
North America: 0 in stock
This is a 50m LC to LC Orange OM2 Duplex LSZH Fiber Patch Cable. OM2 fiber optic cable is a multimode fiber designed for medium-distance network connections, making it ideal for office buildings and small data centers. It supports speeds up to 10G over distances of up to 550 meters, offering a balance between performance and affordability for business networks. LSZH (Low Smoke Zero Halogen) fiber cable jackets are designed to minimize toxic smoke and harmful emissions in the event of a fire, making them ideal for enclosed or high-traffic areas. These cables provide enhanced safety and environmental protection, making them a popular choice for businesses prioritizing workplace safety and eco-friendly infrastructure. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
| Compatible OEM | Industry Standard |
| Environment | Indoor |
| Fiber Type | MMF |
| Connector | LC (Male) to LC (Male) |
| Color | Orange |
| Shielded | No |
| Strand Count | 2 |
| Cable Mode | Duplex |
| Jacket Type | LSZH |
| Termination Type | Crossover |
| Core/Cladding | 50/125µm |
| Fiber Termination | UPC - Ultra Physical Contact |
| Length (m) | 50 |
| Length (ft) | 164.05 |
| Polarity | Type A-B |
| Cable Type | OM2 |
| Cable Length | 50m |
| Armored | No |
| Bend Insensitivity | IEC 60793-2-10 Type A1a.1 |
| Connector 1 Ferrule Polish Type | UPC (Ultra Physical Contact) |
| Connector 2 Ferrule Polish Type | UPC (Ultra Physical Contact) |
| Insertion Loss Grade | Grade C |
| Fire Rating | General Purpose (OFNG) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Outer Diameter | 2.0mm |
| Connector 1 Boot Style | Standard Boot |
| Connector 2 Boot Style | Standard Boot |
| Connector 1 Color | Beige |
| Connector 2 Color | Beige |
Physical Specification
| Product Shipping Dimension(HxWxD) | 12 in. x 12 in. x 8 in. |
| Product Shipping Weight(LB) | 2.6 |
| Kit | No Kit - 1 Piece |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | No |
| UNSPSC Code | 26121609 |
| UPC Code | 821455002872 |
| What's In The Box | 1x patch cable |
Limited Lifetime
