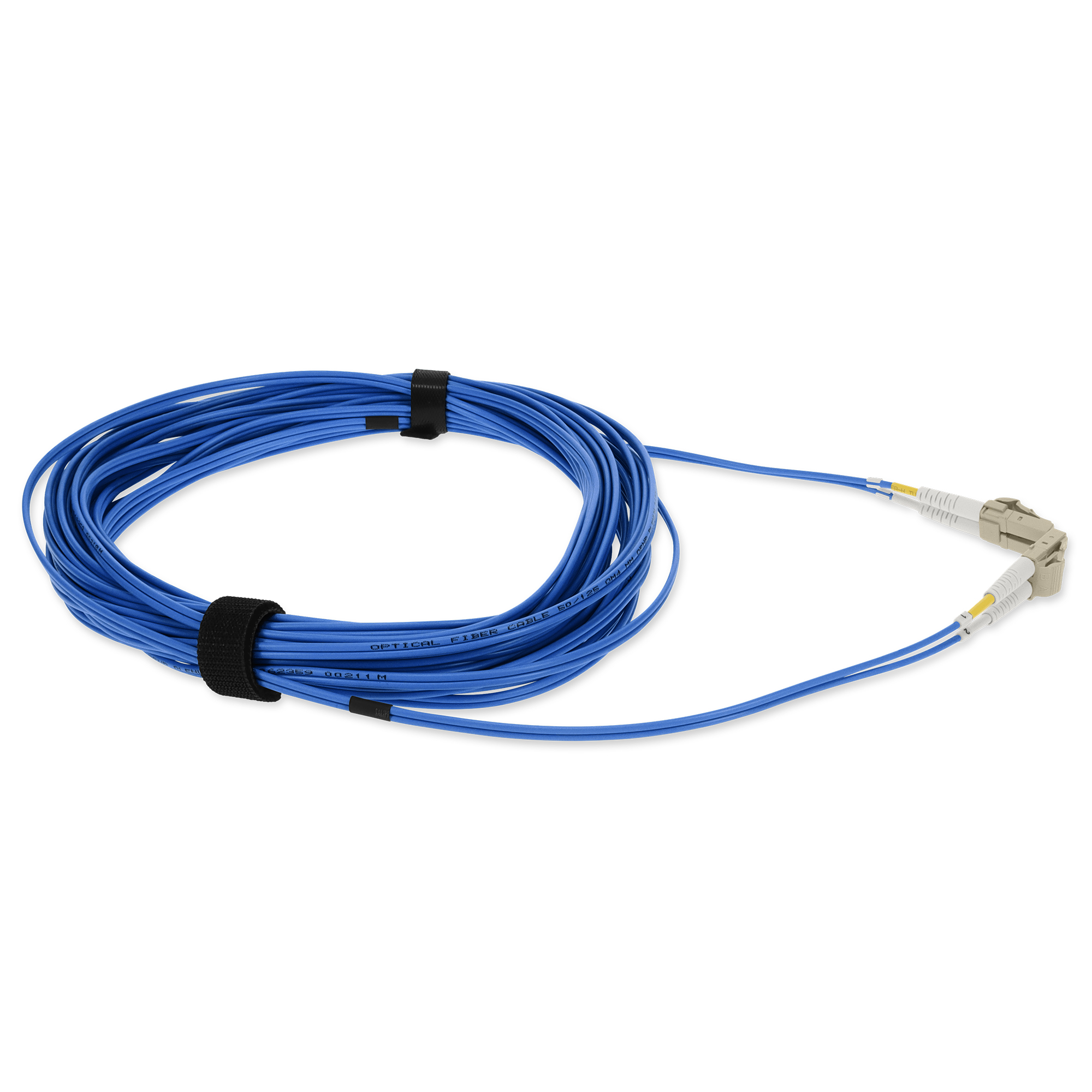

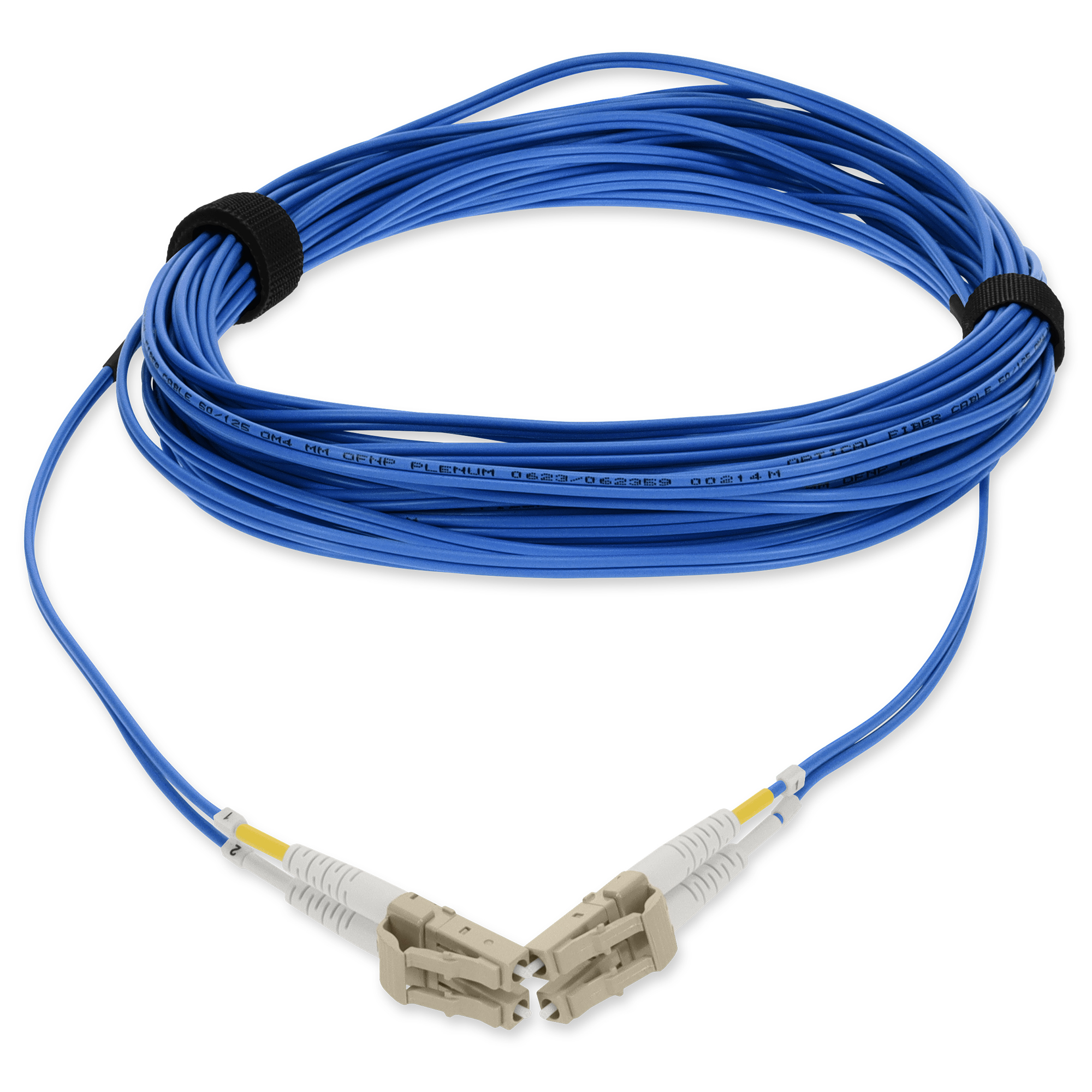

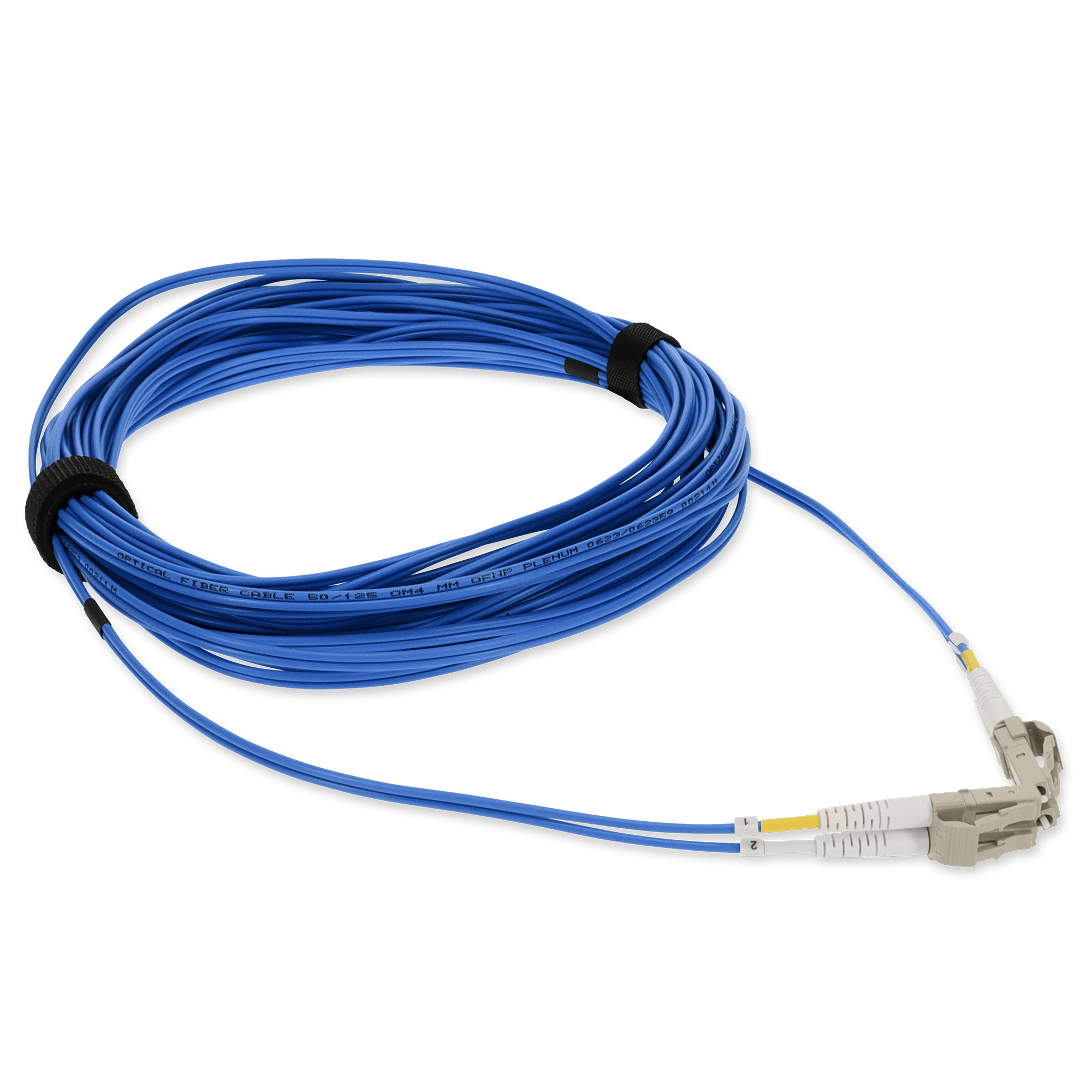

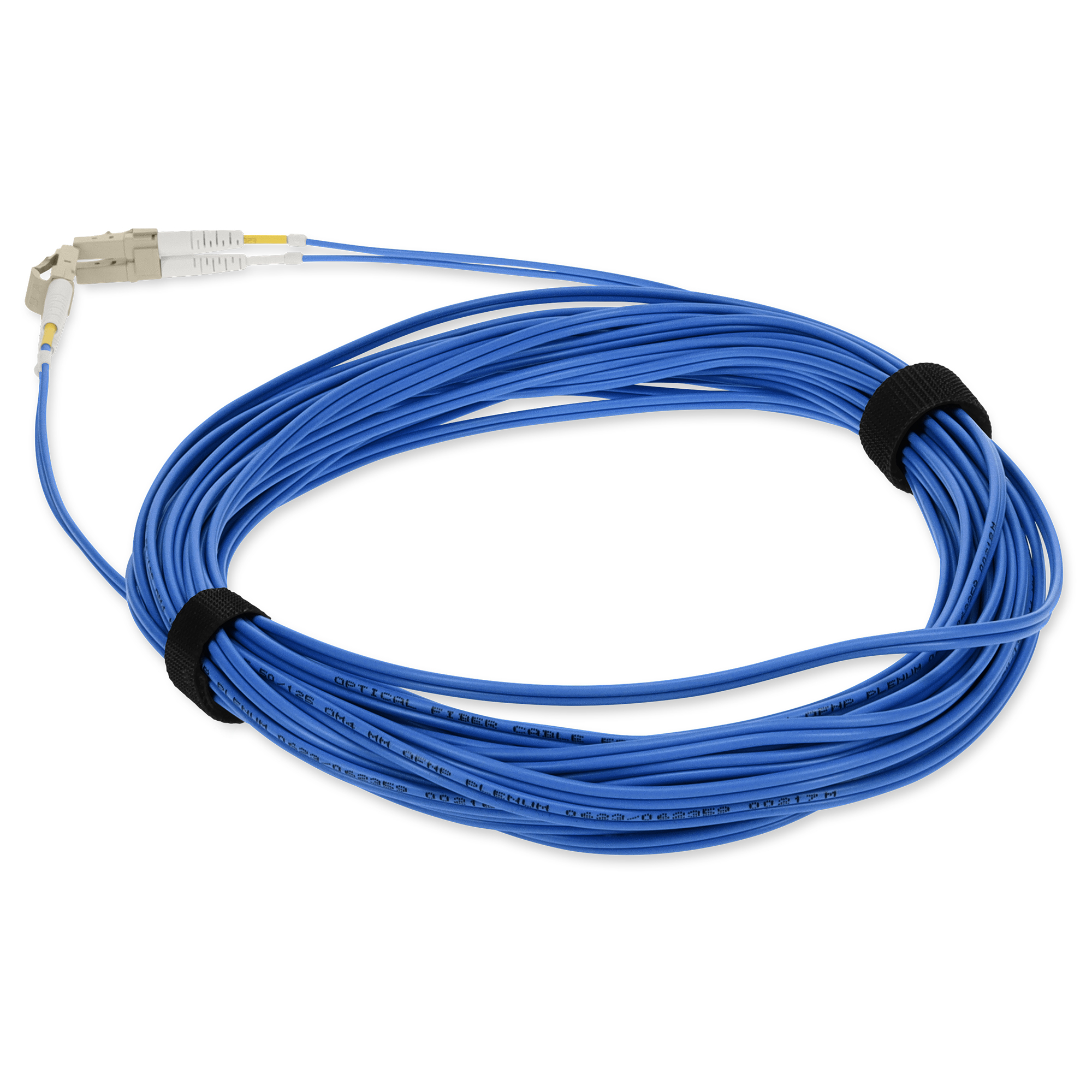

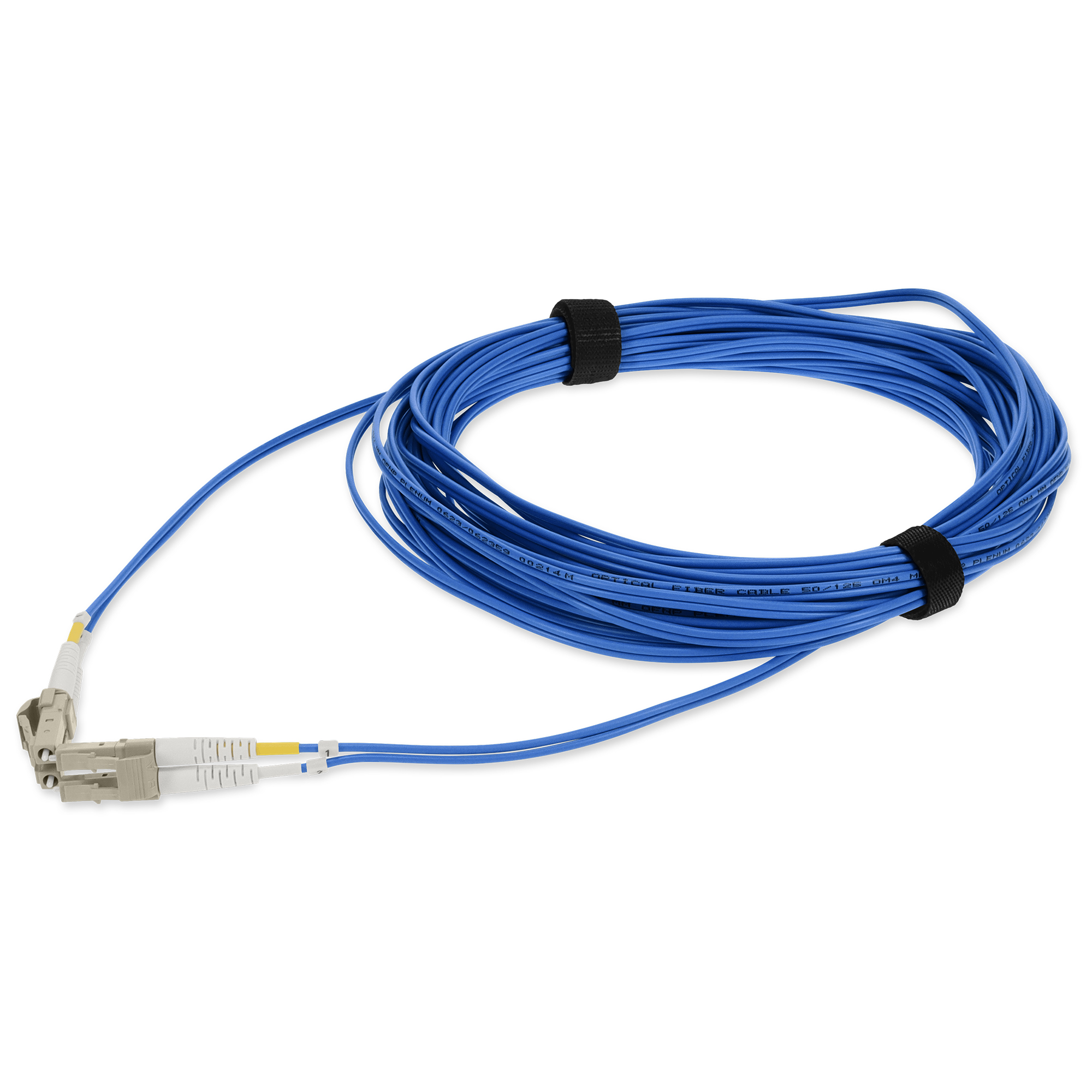

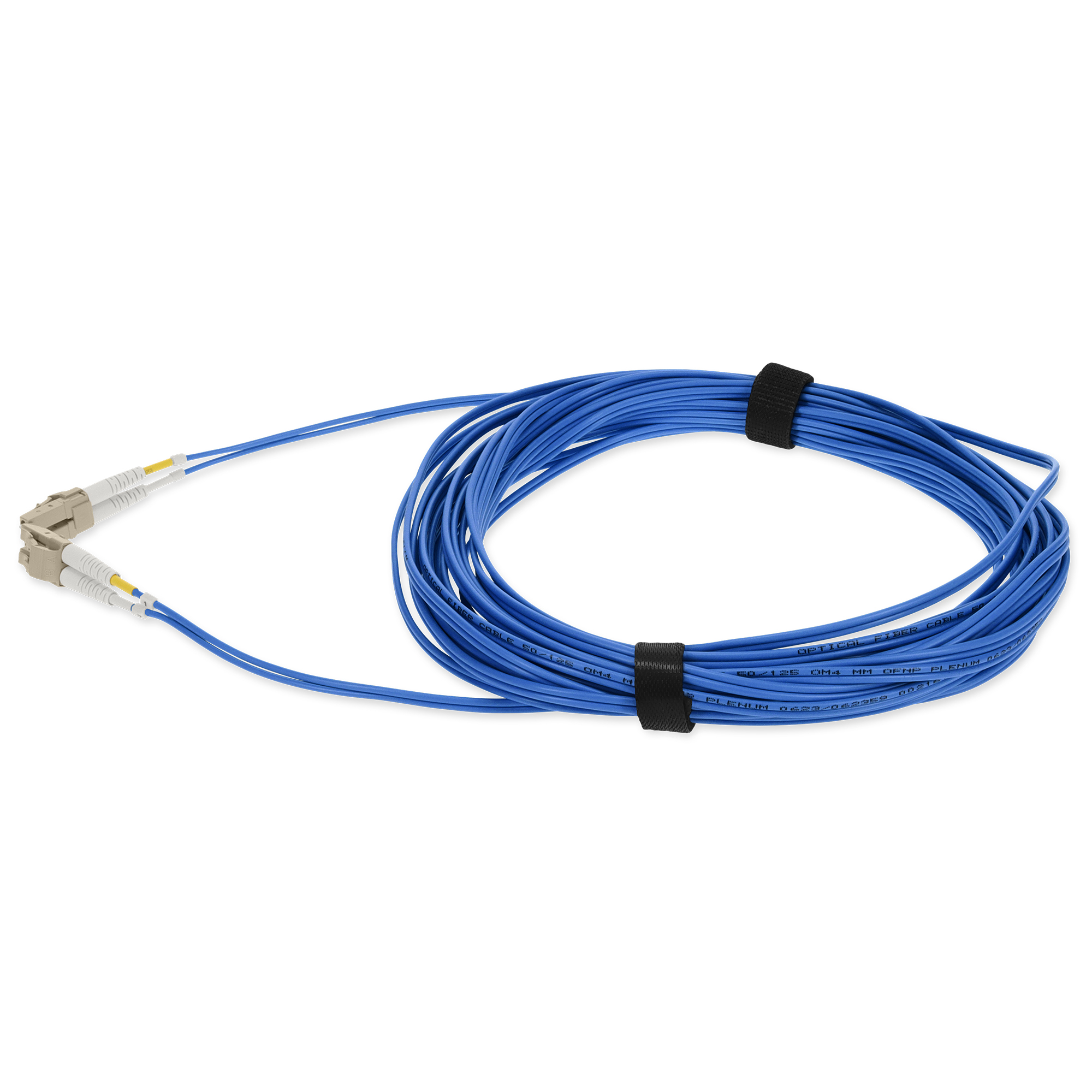

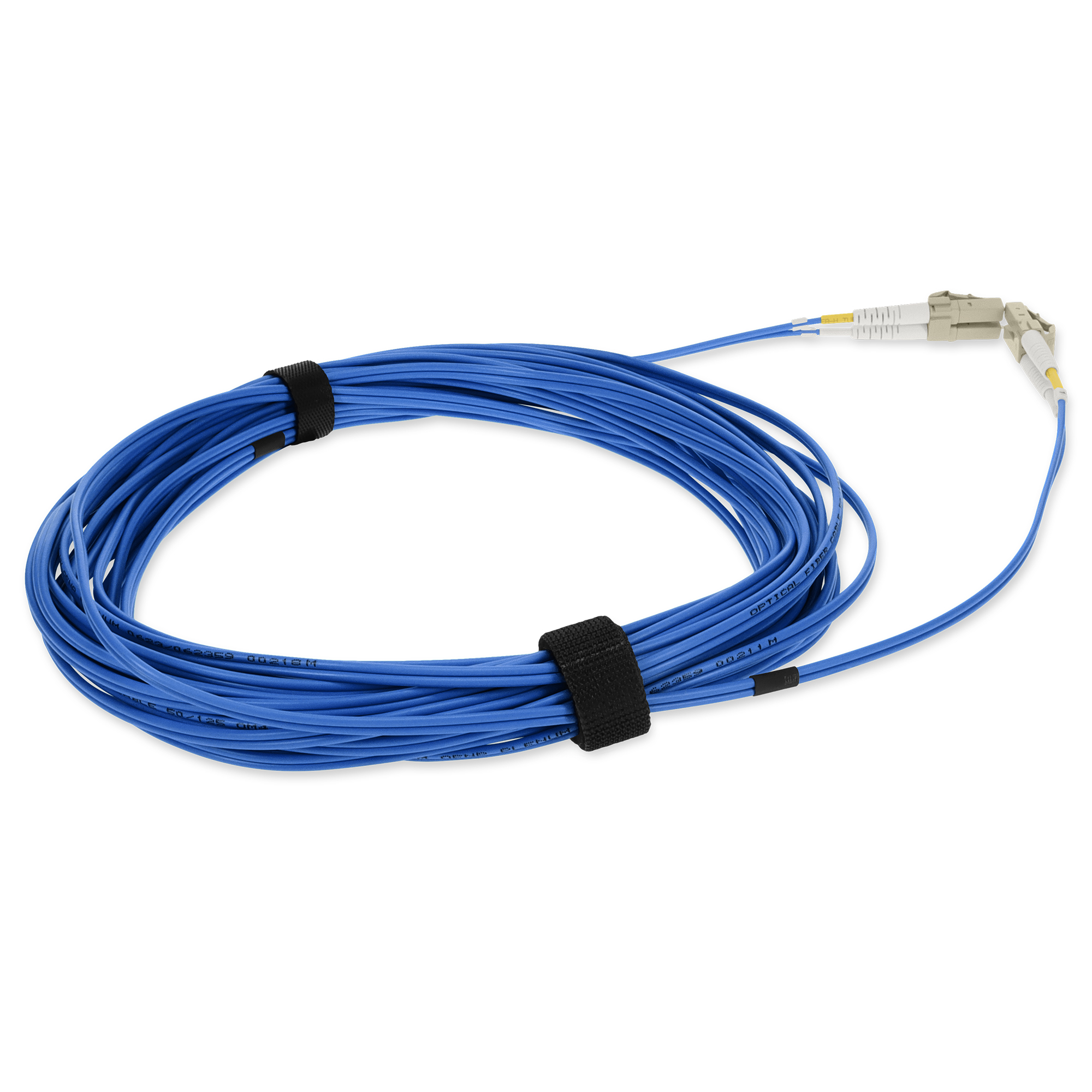

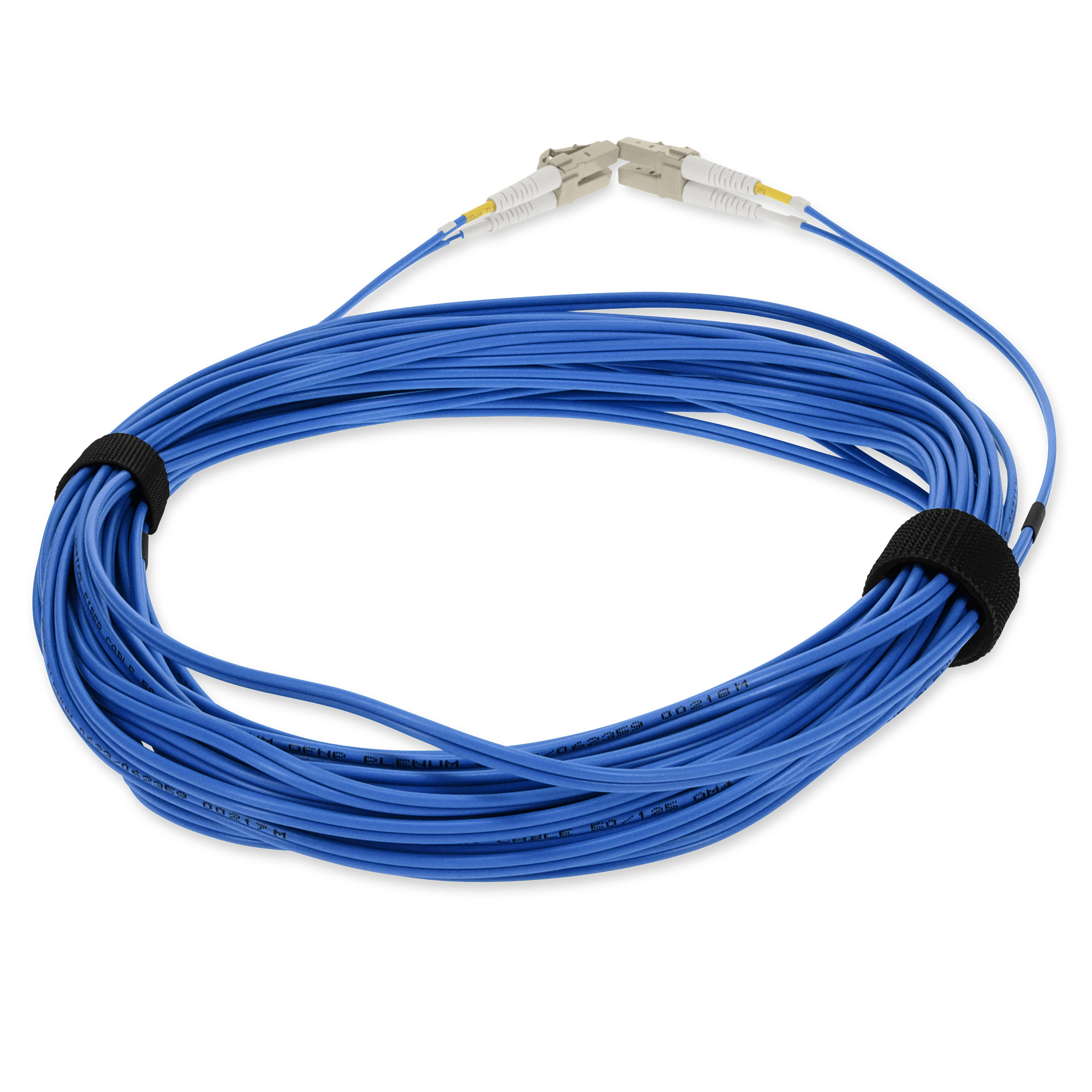

4m LC to LC Blue OM4 Duplex OFNP (Plenum-Rated) Fiber Patch Cable
SKU: ADD-LC-LC-4M5OM4P-BE
Available from the following dealers:
This is a 4m LC to LC Blue OM4 Duplex OFNP (Plenum-Rated) Fiber Patch Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. OFNP plenum fiber cable jackets are engineered for use in air-handling spaces, such as ceilings and ducts, offering the highest fire resistance to prevent flame spread and reduce smoke in the event of a fire. These cables meet stringent safety standards, making them the top choice for businesses that need safe, reliable networking in critical building areas. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
| Cable Mode | Duplex |
| Color | Blue |
| Compatible OEM | Industry Standard |
| Connector | LC (Male) to LC (Male) |
| Core/Cladding | 50/125µm |
| Fiber Termination | UPC - Ultra Physical Contact |
| Fiber Type | MMF |
| Jacket Type | Plenum |
| Length (ft) | 13.12 |
| Length (m) | 4 |
| Strand Count | 2 |
| Termination Type | Crossover |
| Shielded | No |
| Polarity | Type A-B |
| Armored | No |
| Bend Insensitivity | G.657.A1 |
| Cable Length | 4m |
| Cable Type | OM4 |
| Connector 1 Boot Style | Standard Boot |
| Connector 1 Color | Beige |
| Connector 1 Ferrule Polish Type | UPC (Ultra Physical Contact) |
| Connector 2 Boot Style | Standard Boot |
| Connector 2 Color | Beige |
| Connector 2 Ferrule Polish Type | UPC (Ultra Physical Contact) |
| Environment | Indoor |
| Fire Rating | Plenum (OFNP) |
| Insertion Loss Grade | Grade C |
| Outer Diameter | 2.0mm |
| Jacket Material | PVDF (Polyvinylidene Fluoride) |
Physical Specification
| Product Shipping Dimension(HxWxD) | 5 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight(LB) | 0.3 |
| Kit | No Kit - 1 Piece |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | No |
| UNSPSC Code | 26121609 |
| UPC Code | 195285135674 |
| What's In The Box | 1x patch cable |
| AddOn Part# | ADD-LC-LC-4M5OM4P-BE |
| Insight Electronics® | ADD-LC-LC-4M5OM4P-BE |
Limited Lifetime
