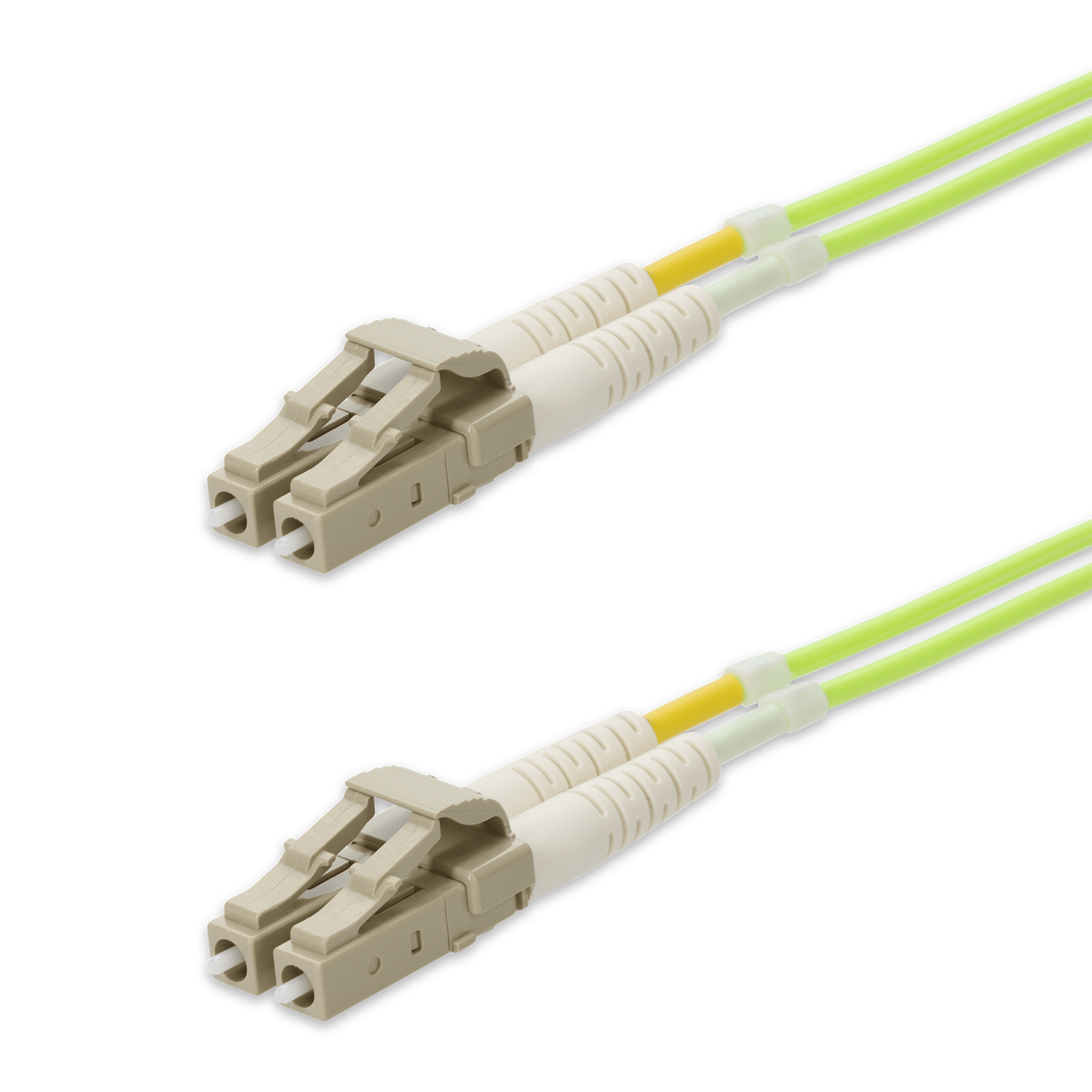

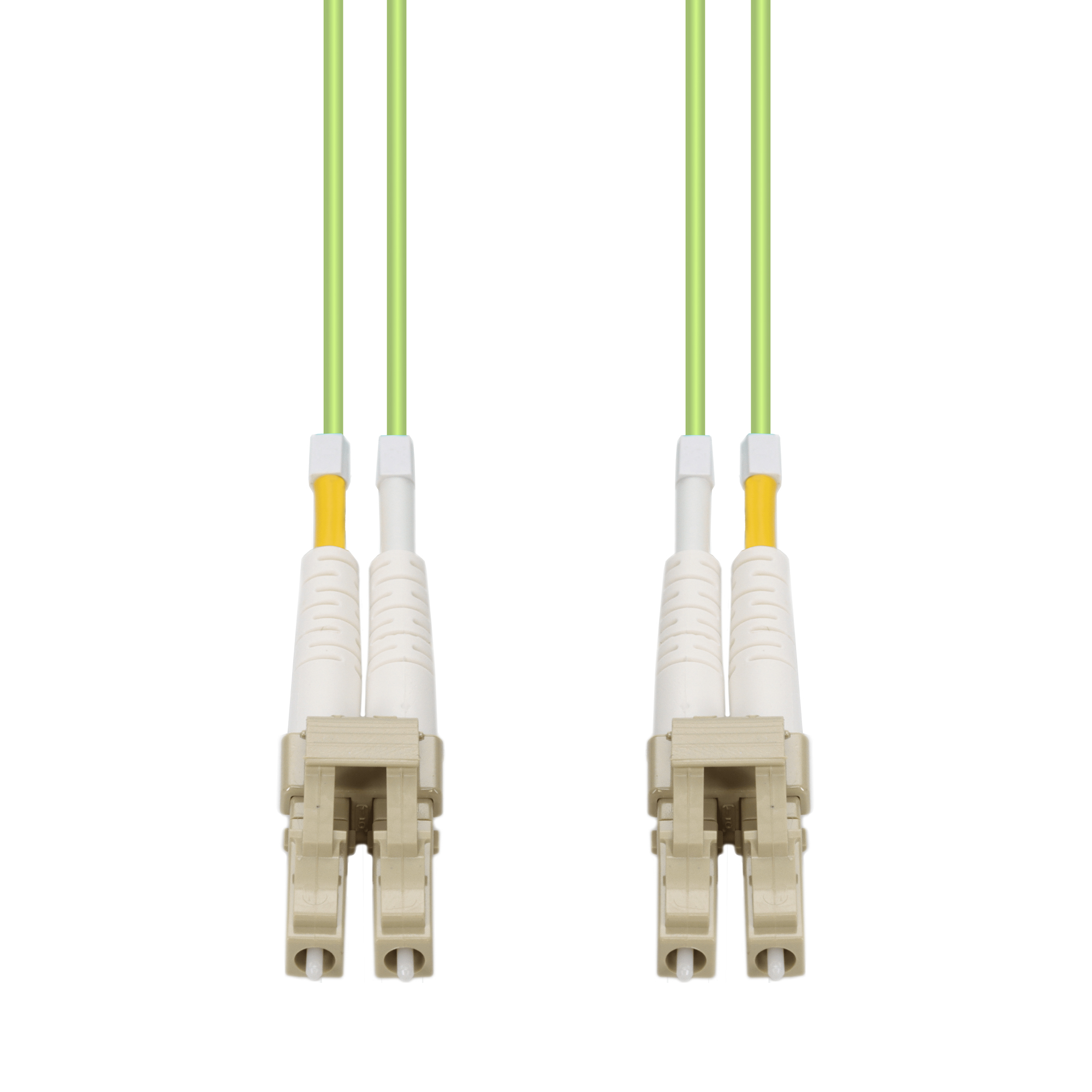

This is a 45m LC to LC Lime Green OM5 Duplex OFNP (Plenum-Rated) Fiber Patch Cable. OM5 fiber optic cable is an advanced multimode fiber optimized for high-speed, high-bandwidth applications, supporting up to 100G over 150 meters with the added benefit of Wideband support for future-proofing networks. It is ideal for data centers and enterprises looking to scale their networks efficiently while maintaining flexibility for future technology upgrades. OFNP plenum fiber cable jackets are engineered for use in air-handling spaces, such as ceilings and ducts, offering the highest fire resistance to prevent flame spread and reduce smoke in the event of a fire. These cables meet stringent safety standards, making them the top choice for businesses that need safe, reliable networking in critical building areas. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
| Compatible OEM | Industry Standard |
| Environment | Indoor |
| Fiber Type | MMF |
| Connector | LC (Male) to LC (Male) |
| Color | Lime |
| Shielded | No |
| Strand Count | 2 |
| Cable Mode | Duplex |
| Jacket Type | Plenum |
| Termination Type | Crossover |
| Core/Cladding | 50/125µm |
| Fiber Termination | UPC - Ultra Physical Contact |
| Length (m) | 45 |
| Length (ft) | 147.65 |
| Polarity | Type A-B |
| Cable Type | OM5 |
| Cable Length | 45m |
| Armored | No |
| Bend Insensitivity | IEC 60793-2-10 Type A1a.4 |
| Connector 1 Ferrule Polish Type | UPC (Ultra Physical Contact) |
| Connector 2 Ferrule Polish Type | UPC (Ultra Physical Contact) |
| Insertion Loss Grade | Grade C |
| Fire Rating | Plenum (OFNP) |
| Jacket Material | PVDF (Polyvinylidene Fluoride) |
| Outer Diameter | 2.0mm |
| Connector 1 Boot Style | Standard Boot |
| Connector 2 Boot Style | Standard Boot |
| Connector 1 Color | Beige |
| Connector 2 Color | Beige |
Physical Specification
| Product Shipping Dimension(HxWxD) | 12 in. x 12 in. x 8 in. |
| Product Shipping Weight(LB) | 2.4 |
| Kit | No Kit - 1 Piece |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | No |
| UNSPSC Code | 26121609 |
| UPC Code | 821455002254 |
| What's In The Box | 1x patch cable |
