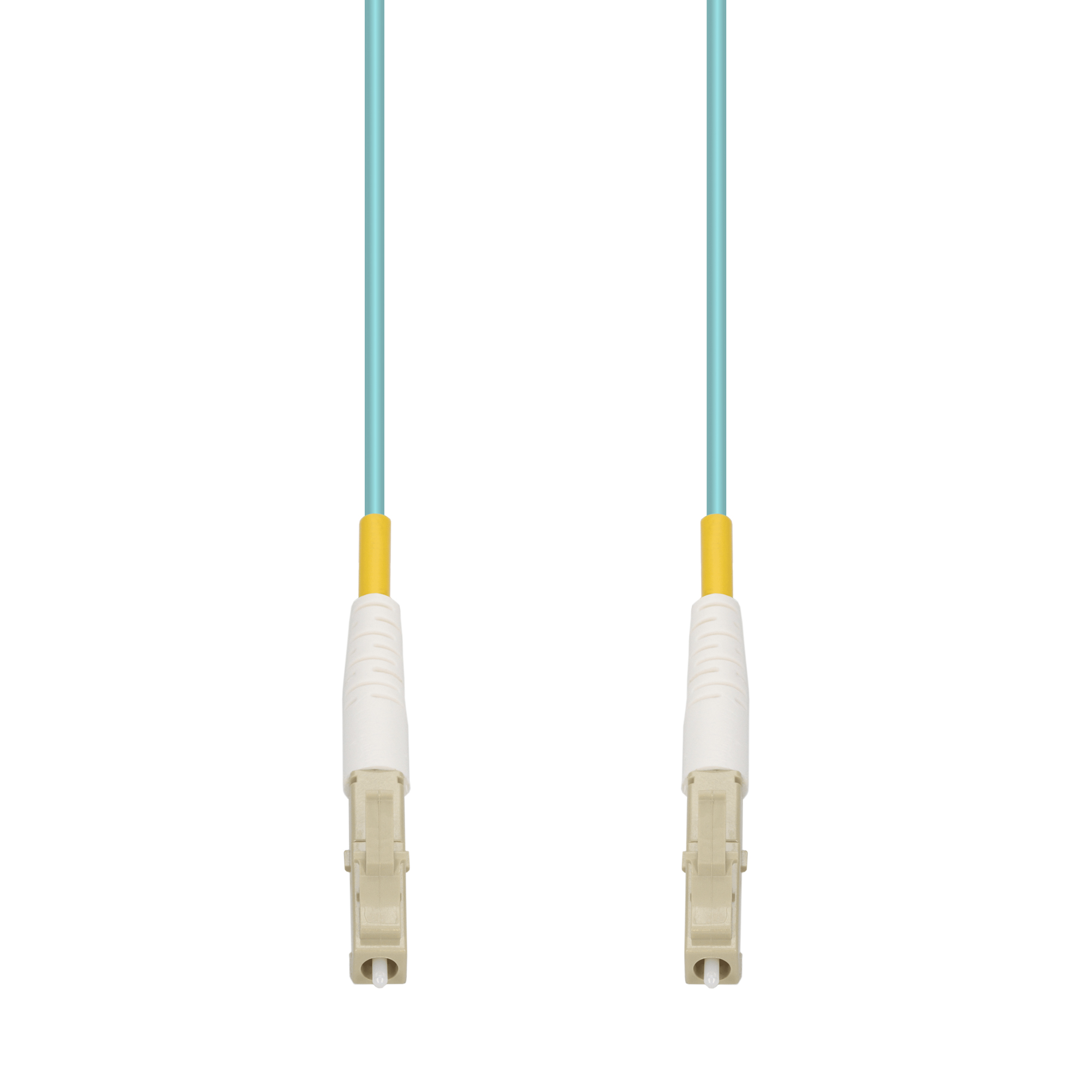

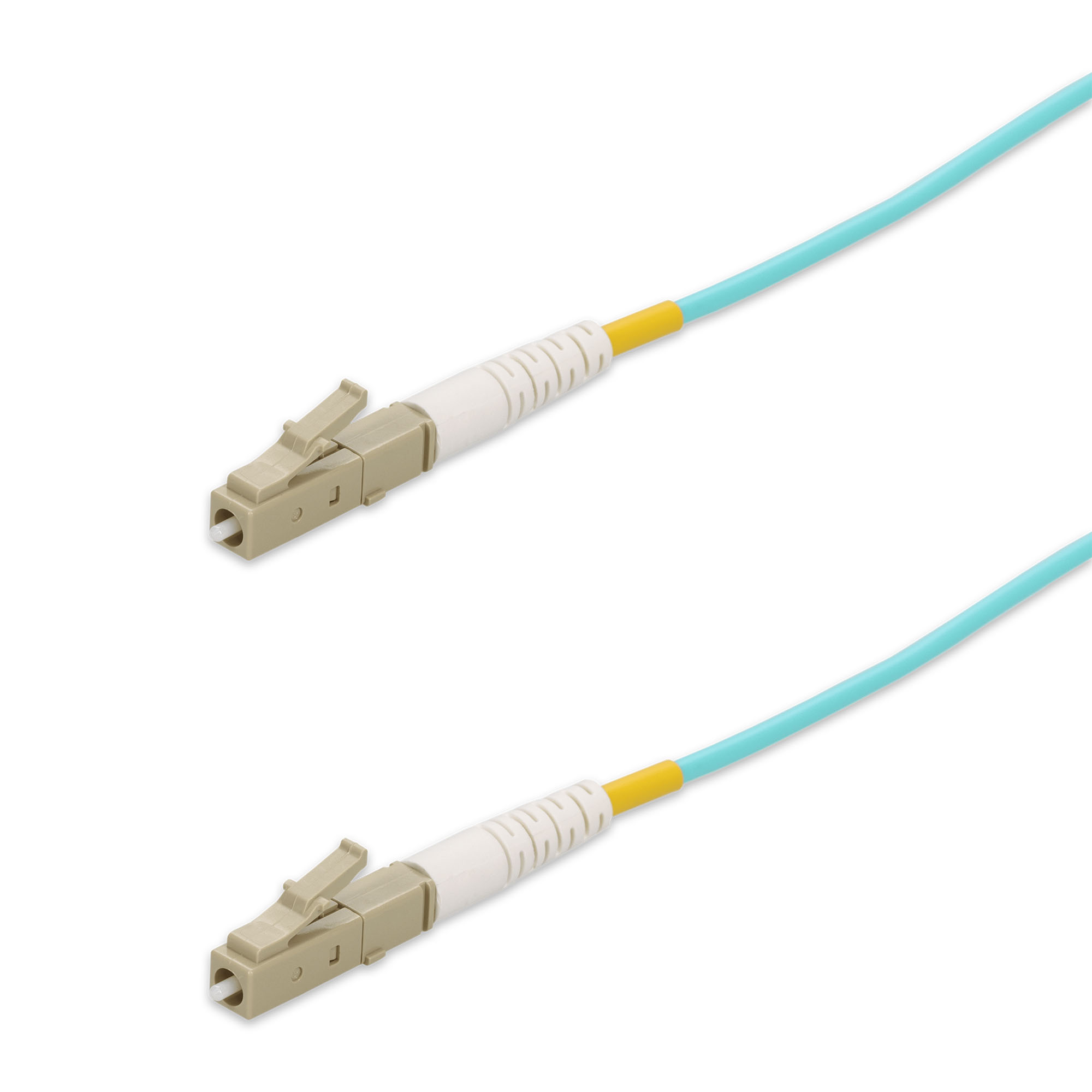

3m LC to LC Aqua OM4 Simplex OFNR (Riser-Rated) Fiber Patch Cable

SKU: ADD-LC-LC-3MS5OM4

Belgium: 0 in stock

United Kingdom: 0 in stock

North America: 124 in stock

Available from the following dealers:

Ingram Micro®TD Synnex US

This is a 3m LC to LC Aqua OM4 Simplex OFNR (Riser-Rated) Fiber Patch Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. OFNR riser fiber cable jackets are designed for vertical installations in building risers, providing fire-resistant protection to ensure safe data transmission between floors. These cables meet strict safety standards, making them ideal for businesses that need reliable, in-building network infrastructure without the risk of fire spreading through conduits. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.

Technical Specification

Compatible OEMIndustry Standard
Length (m)3
Length (ft)9.84
Fiber TypeMMF
ConnectorLC (Male) to LC (Male)
ColorAqua
Strand Count1
Cable ModeSimplex
Jacket TypeRiser
Termination TypeStraight
Core/Cladding50/125µm
Fiber TerminationUPC - Ultra Physical Contact
ShieldedNo
ArmoredNo
Bend InsensitivityG.657.A1
Cable Length3m
Cable TypeOM4
Connector 1 Boot StyleStandard Boot
Connector 1 ColorBeige
Connector 1 Ferrule Polish TypeUPC (Ultra Physical Contact)
Connector 2 Boot StyleStandard Boot
Connector 2 ColorBeige
Connector 2 Ferrule Polish TypeUPC (Ultra Physical Contact)
EnvironmentIndoor
Fire RatingRiser (OFNR)
Insertion Loss GradeGrade C
Outer Diameter2.0mm
Jacket MaterialPVC (Polyvinyl Chloride)
PolarityType A-A

Physical Specification

Product Shipping Dimension(HxWxD)5 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB)0.3
KitNo Kit - 1 Piece

Miscellaneous

Country Of OriginChina
ECCNEAR99
HTS-Harmonized Code (UK)85447000
HTS-Harmonized Code (US)8544.70.0000
TAA CompliantNo
UNSPSC Code26121609
UPC Code821456221913
What's In The Box1x patch cable

AddOn Part#ADD-LC-LC-3MS5OM4
Ingram Micro®7AF116
Insight Electronics®ADD-LC-LC-3MS5OM4
TD Synnex US5773632

Limited Lifetime
