3m LC (Male) to LC (Male) Green OS2 Duplex OFNP (Plenum-Rated) TAA Fiber Patch Cable
SKU: ADD-LC-LC-3M9SMFP-GN-TAA
United Kingdom: 0 in stock
North America: 0 in stock
Available from the following dealers:

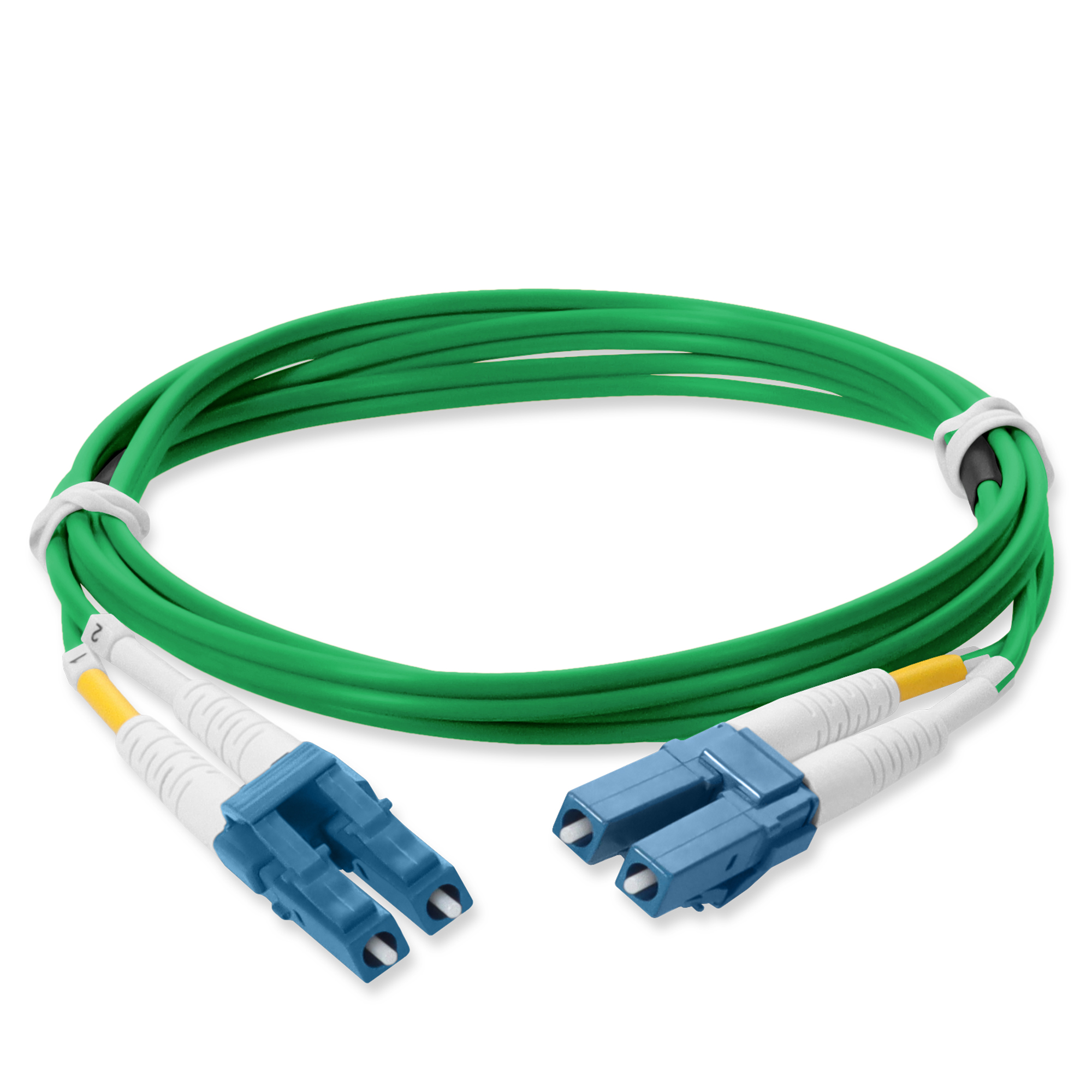

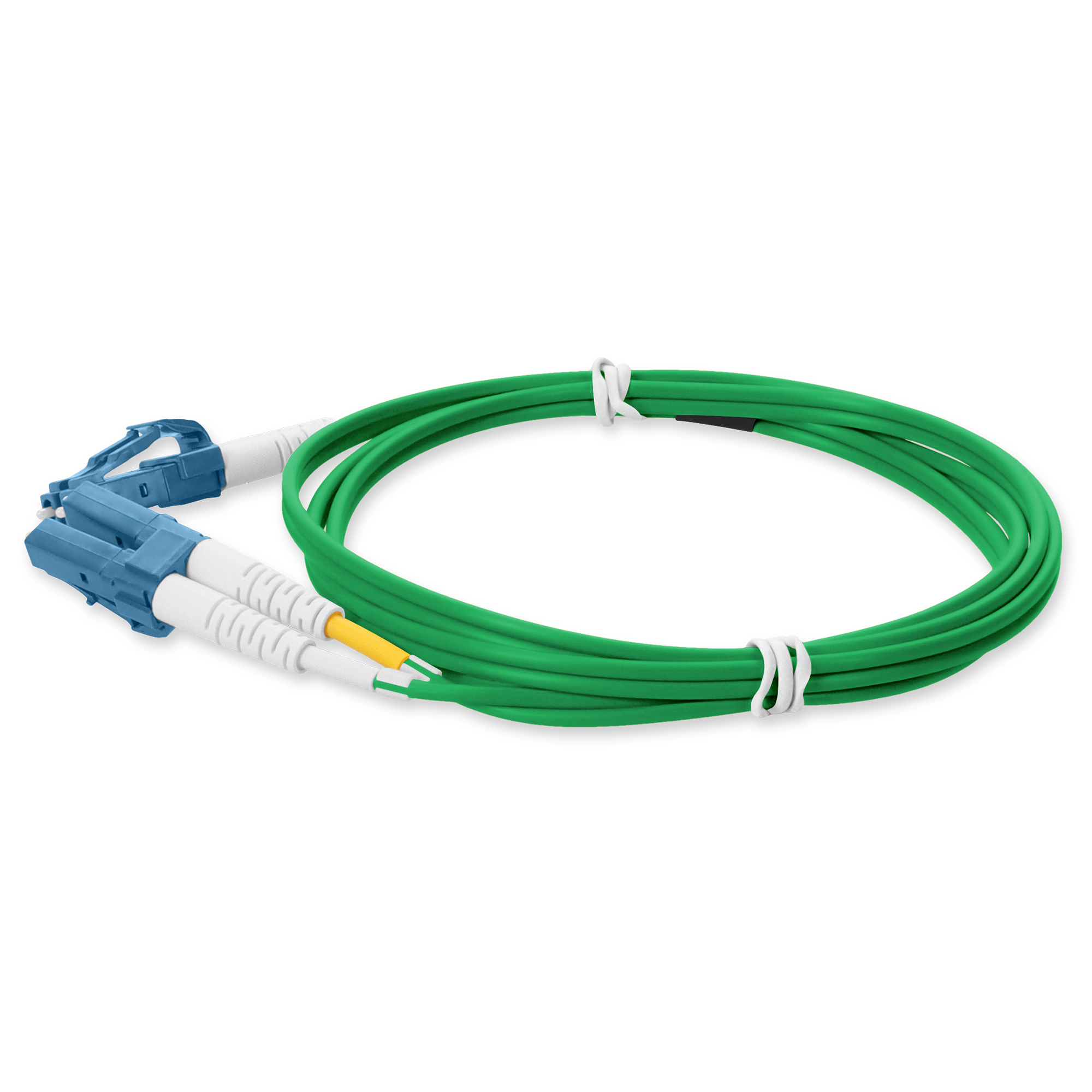

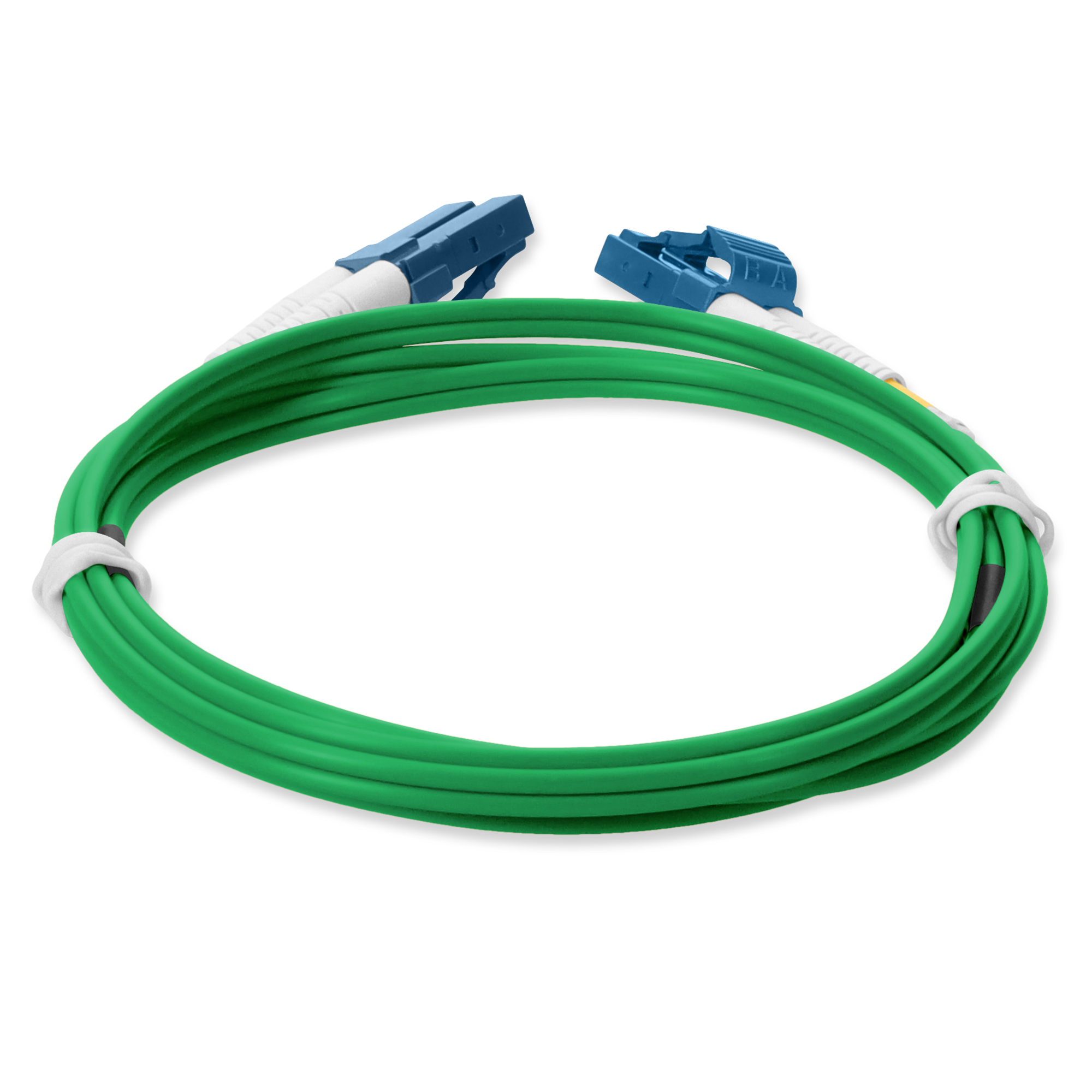

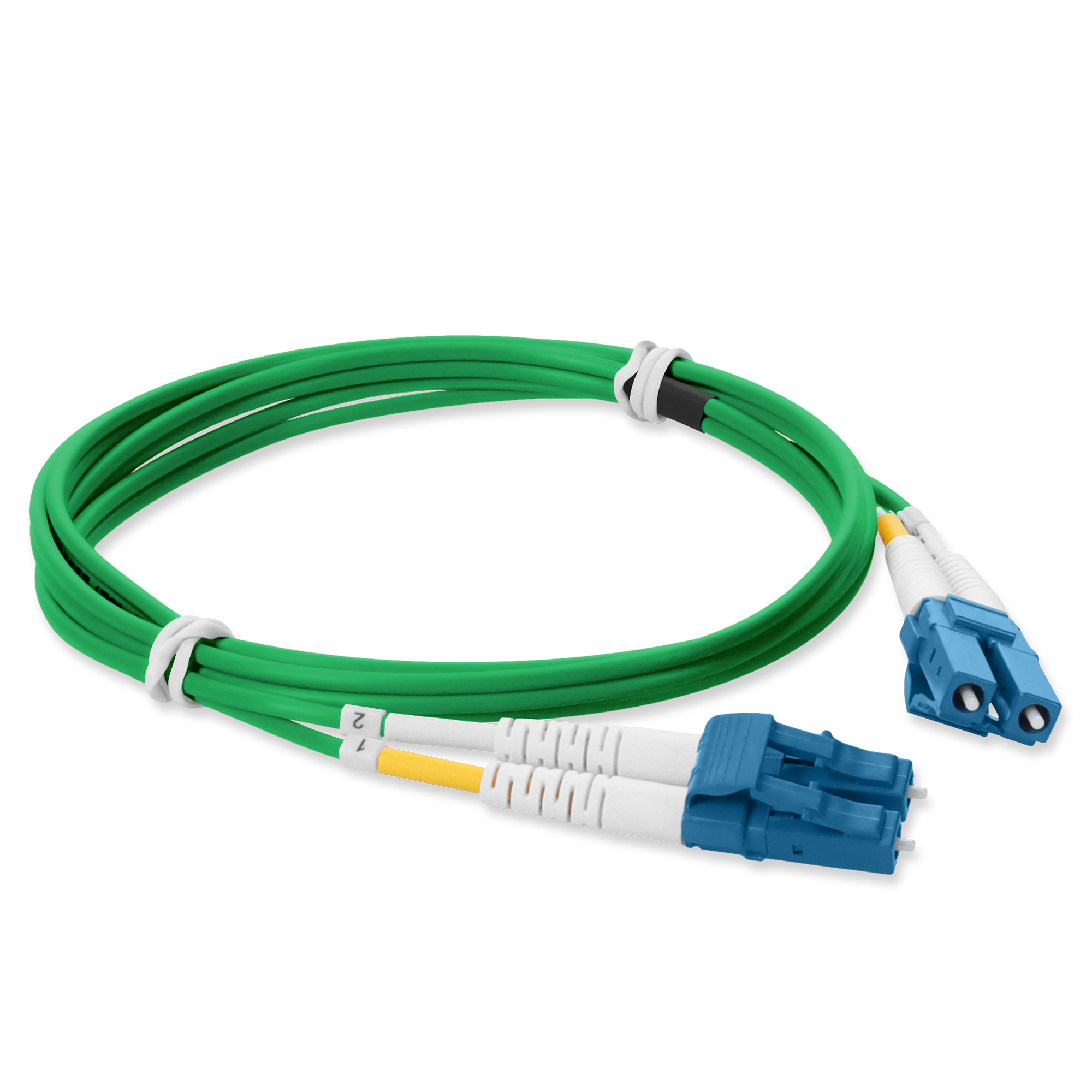

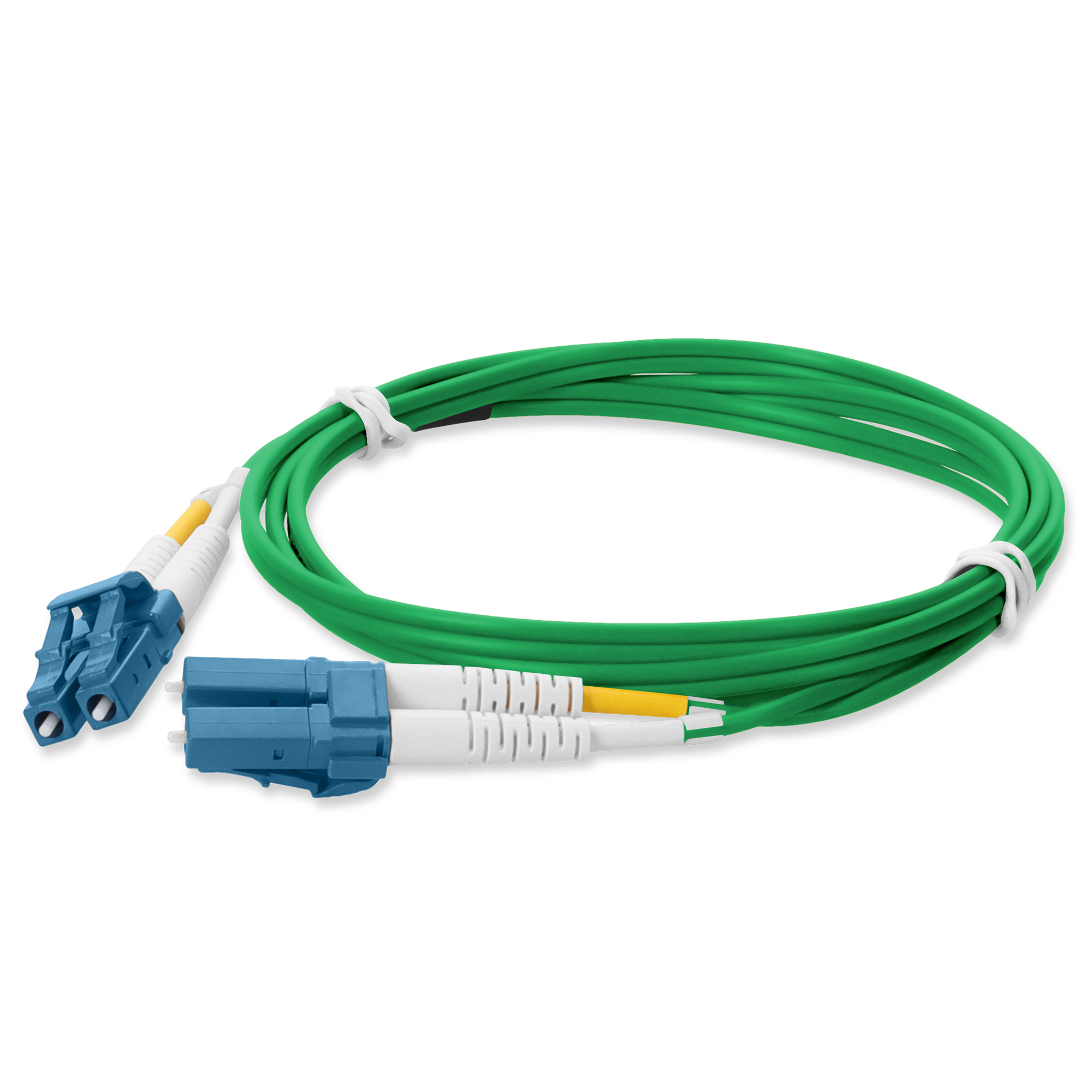

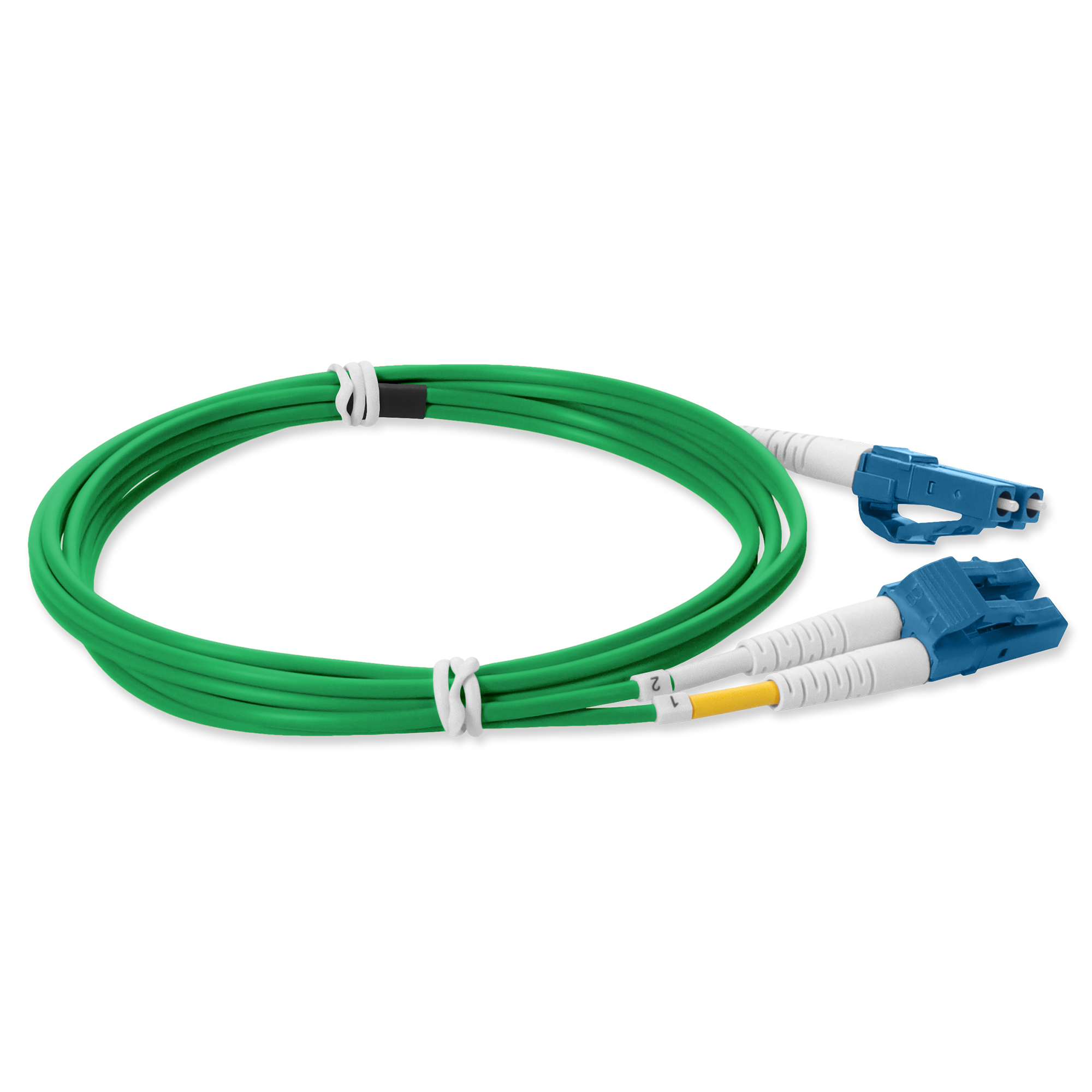

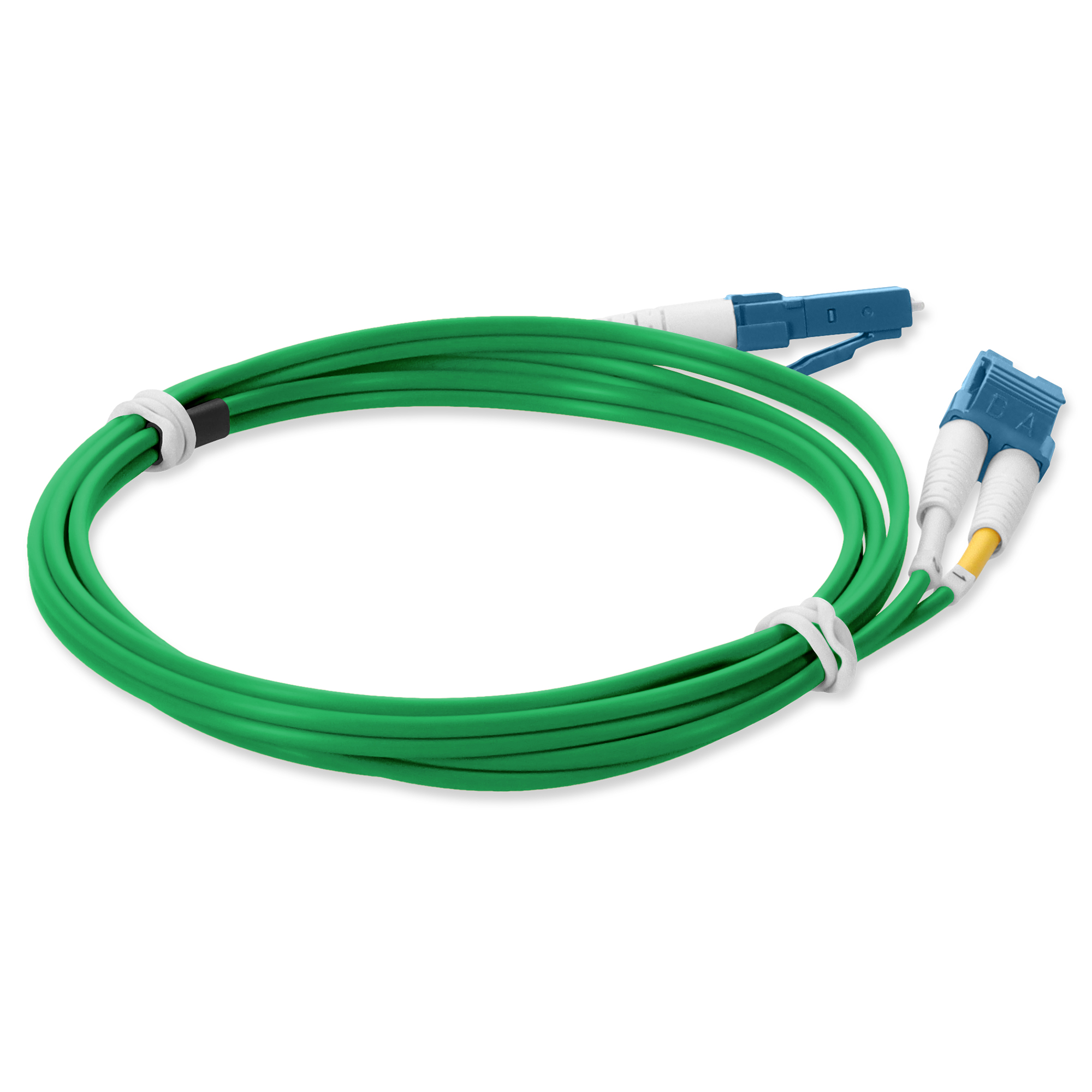

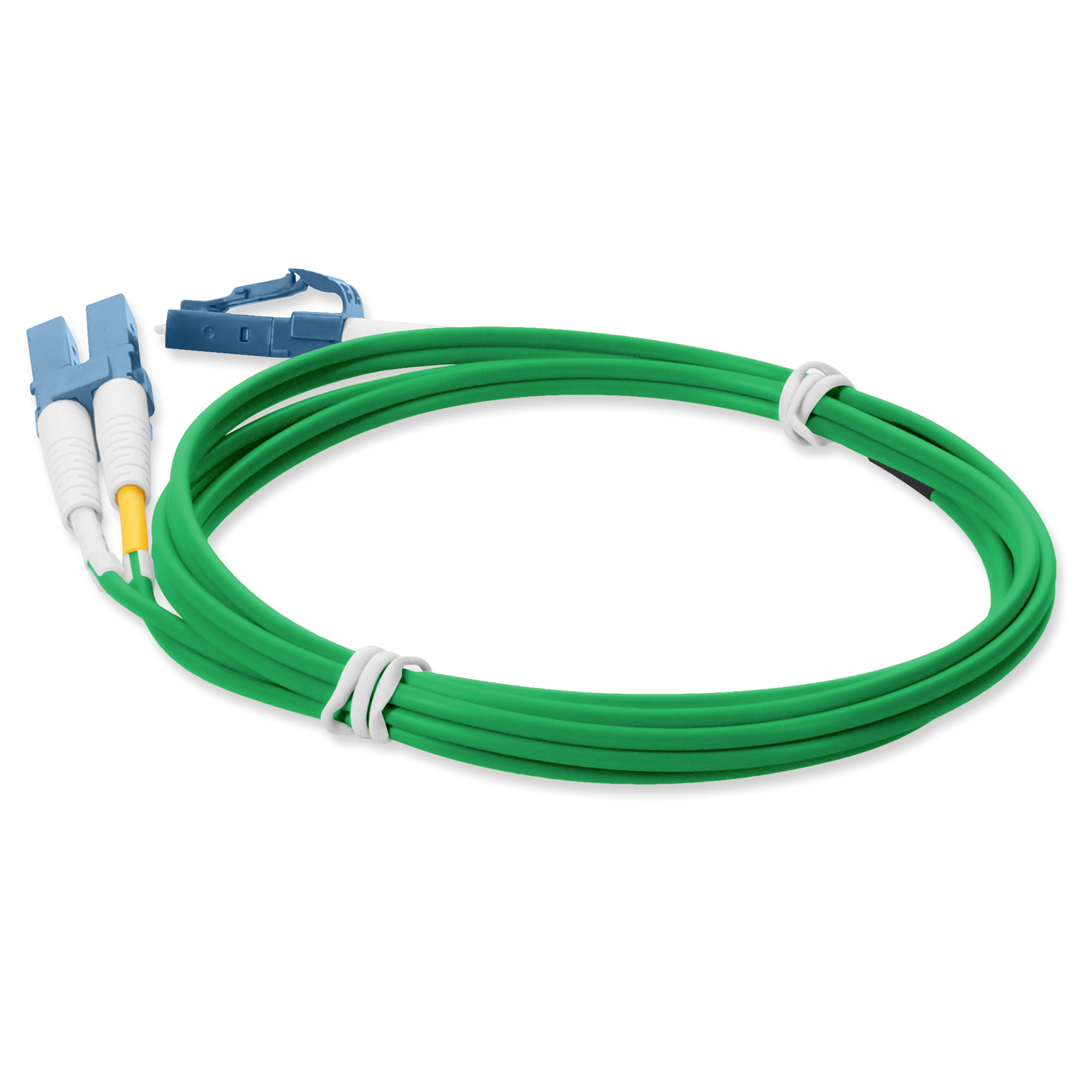

This is a 3m LC (male) to LC (male) green duplex plenum-rated TAA compliant fiber patch cable. OS2 is a standard single-mode optical fiber commonly used with wavelengths of 1310nm and 1550nm (9/125 microns), and has a maximum attenuation of 1dB/km. The OS2 standard is defined in ISO/IEC 11801. This optical fiber, nonconductive, plenum (OFNP) cable is best suited for use in interior fiber-optic applications. Plenum-rated cables must self-extinguish and prevent re-ignition. A duplex cable is a two-strand fiber optic patch cable that works best with transceivers that both transmit and receive. Our patch cables are 100% compliant for all of your networking needs. Our products are guaranteed by federal law to not affect or void OEM warranties.
Technical Specification
| Compatible OEM | Industry Standard |
| Standard | OS2 |
| Fiber Type | SMF |
| Connector | LC (Male) to LC (Male) |
| Color | Green |
| Shielded | No |
| Strand Count | 2 |
| Cable Mode | Duplex |
| Jacket Type | Plenum |
| Termination Type | Crossover |
| Core/Cladding | 9/125µm |
| Fiber Termination | UPC - Ultra Physical Contact |
| Length (m) | 3 |
| Length (ft) | 9.84 |
| Polarity | Type A-B |
Physical Specification
| Product Shipping Dimension(HxWxD) | 5 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight(LB) | 0.4 |
| Kit | No Kit - 1 Piece |
Miscellaneous
| Country Of Origin | USA/UK |
| ECCN | EAR99 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | Yes |
| UNSPSC Code | 26121609 |
| UPC Code | 195285126023 |
| What's In The Box | 1x patch cable |
| AddOn Part# | ADD-LC-LC-3M9SMFP-GN-TAA |
| Insight Electronics® | ADD-LC-LC-3M9SMFP-GN-TAA |
| TD Synnex US | 9119760 |
Limited Lifetime
