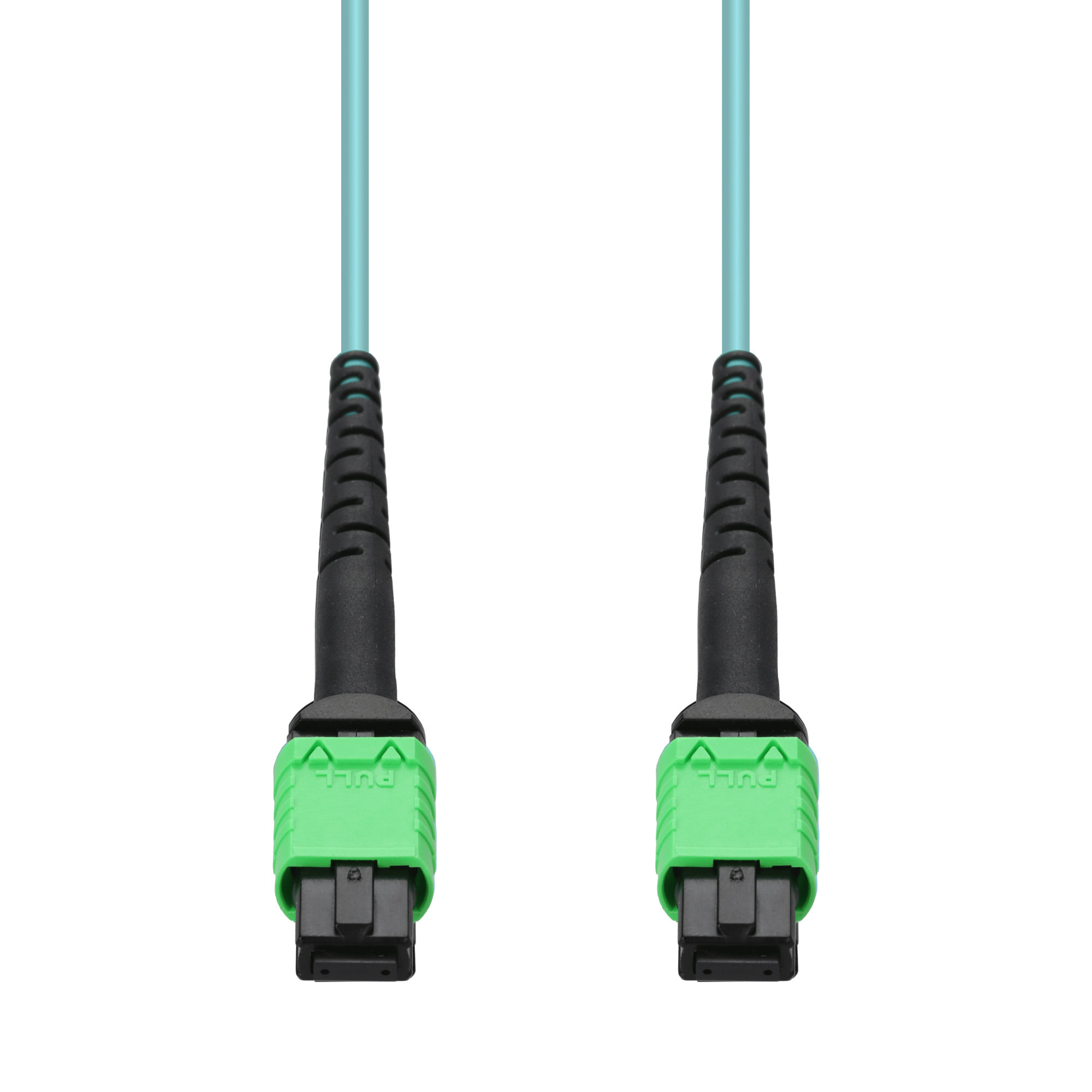

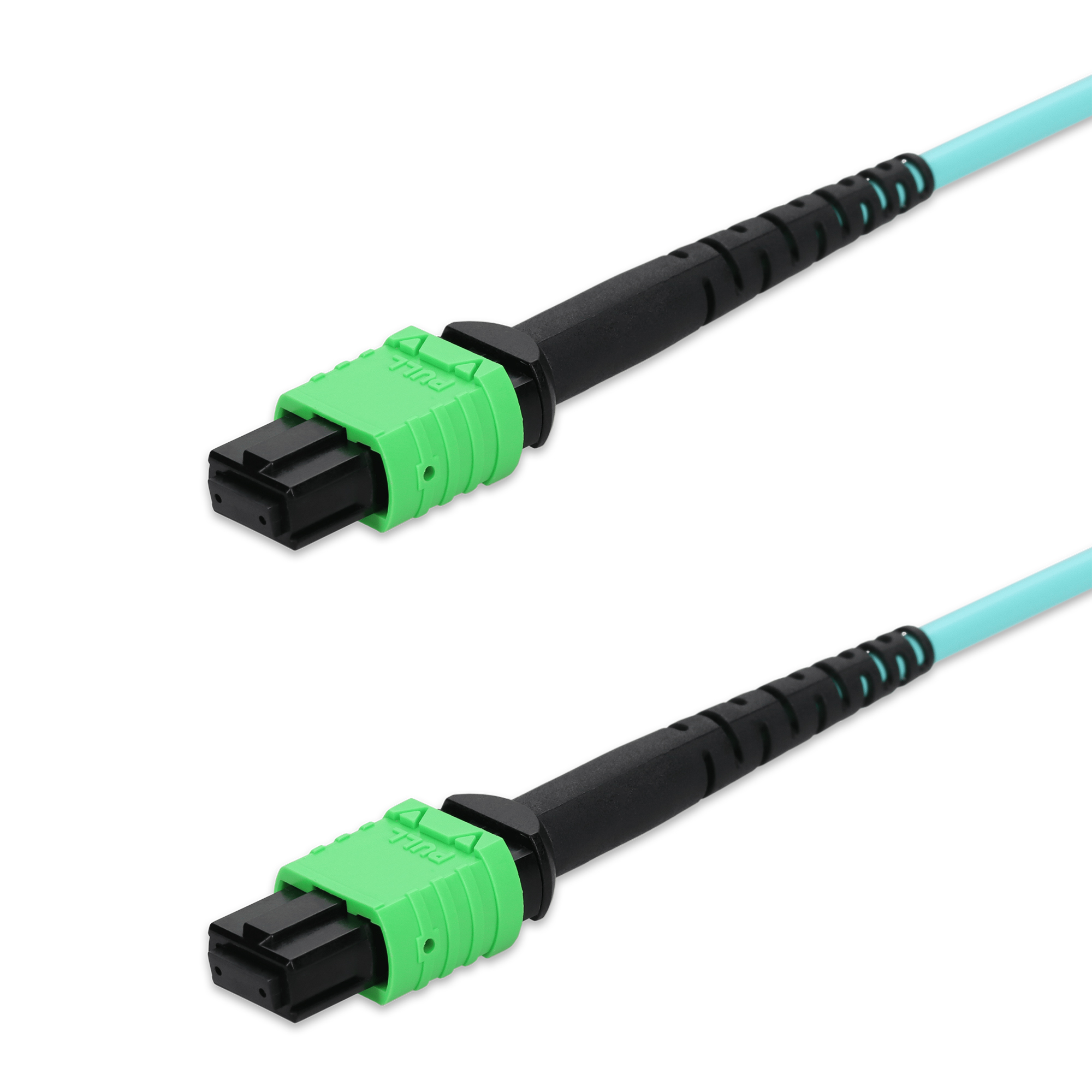

30m MPO/APC to MPO/APC Aqua OM4 OFNP (Plenum-Rated) 16-Strand Fiber Patch Cable
SKU: ADD-16FAMPOAMPO-30M5OM4P
Belgium: 0 in stock
United Kingdom: 0 in stock
North America: 0 in stock
This is a 30m MPO/APC to MPO/APC Aqua OM4 OFNP (Plenum-Rated) 16-Strand Fiber Patch Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. OFNP plenum fiber cable jackets are engineered for use in air-handling spaces, such as ceilings and ducts, offering the highest fire resistance to prevent flame spread and reduce smoke in the event of a fire. These cables meet stringent safety standards, making them the top choice for businesses that need safe, reliable networking in critical building areas. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
| Armored | No |
| Bend Insensitivity | G.657.A1 |
| Cable Length | 30m |
| Cable Mode | Multiple |
| Cable Type | OM4 |
| Color | Aqua |
| Compatible OEM | Industry Standard |
| Connector | MPO (Female) to MPO (Female) |
| Connector 1 Boot Style | Standard Boot |
| Connector 1 Color | Green |
| Connector 1 Ferrule Polish Type | APC (Angled Physical Contact) |
| Connector 2 Boot Style | Standard Boot |
| Connector 2 Color | Green |
| Connector 2 Ferrule Polish Type | APC (Angled Physical Contact) |
| Core/Cladding | 50/125µm |
| Environment | Indoor |
| Fiber Termination | APC - Angled Physical Contact |
| Fiber Type | MMF |
| Fire Rating | Plenum (OFNP) |
| Insertion Loss Grade | Grade C |
| Jacket Material | PVDF (Polyvinylidene Fluoride) |
| Jacket Type | Plenum |
| Length (ft) | 98.43 |
| Length (m) | 30 |
| Polarity | Method B |
| Shielded | No |
| Strand Count | 16 |
| Termination Type | Crossover |
| Outer Diameter | 3.0mm |
Physical Specification
| Kit | No Kit - 1 Piece |
| Product Shipping Dimension(HxWxD) | 12 in. x 12 in. x 8 in. |
| Product Shipping Weight(LB) | 1.6 |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | No |
| UNSPSC Code | 26121609 |
| UPC Code | 195285896964 |
| What's In The Box | 1x patch cable |
Limited Lifetime
