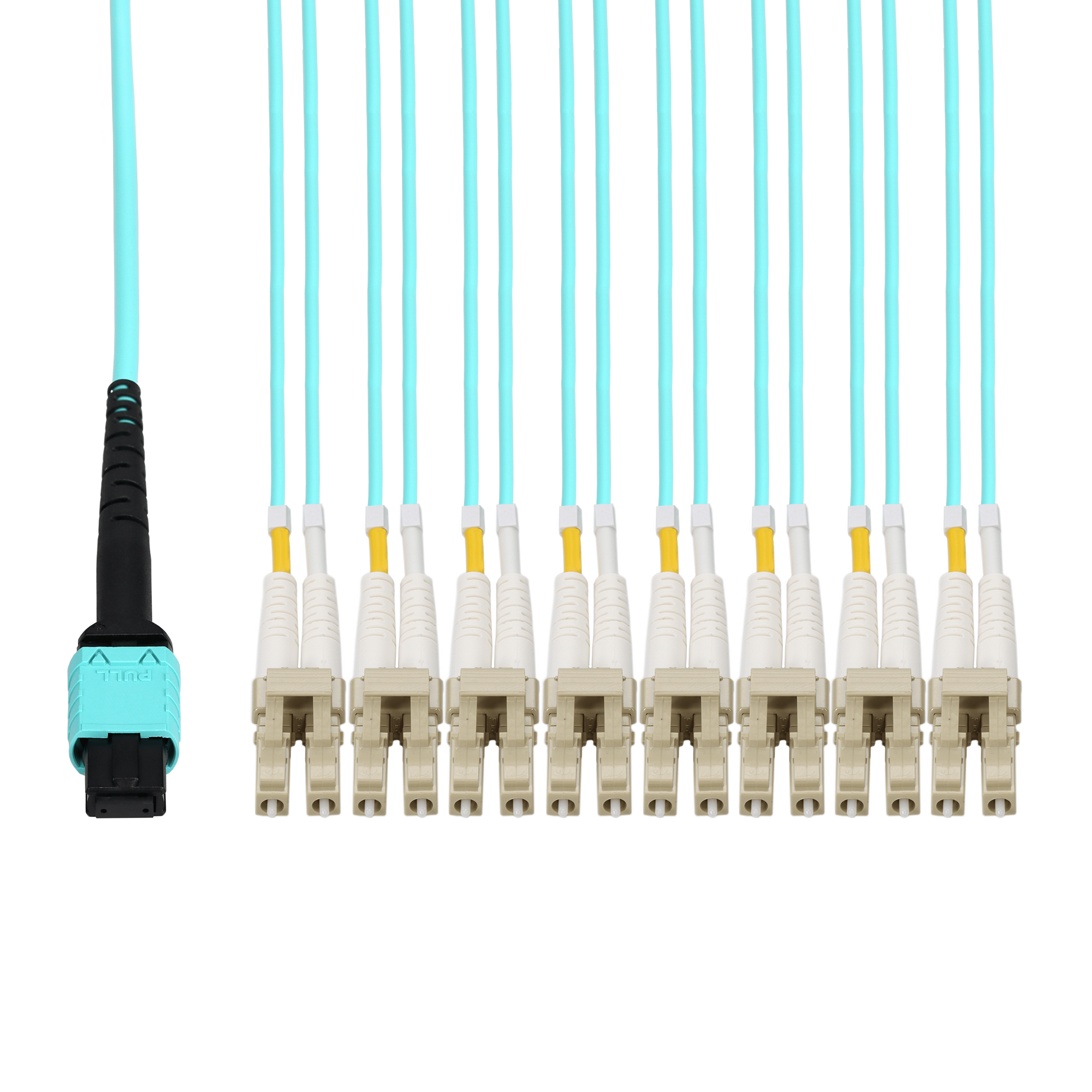

80m MPO/APC to 16xLC/UPC Aqua OM4 OFNR (Riser-Rated) 16-Strand Fiber Fanout Cable
SKU: ADD-16FAMPO-8LC80M5OM4
Belgium: 0 in stock
United Kingdom: 0 in stock
North America: 0 in stock
This is an 80m MPO/APC to 16xLC/UPC Aqua OM4 OFNR (Riser-Rated) 16-Strand Fiber Fanout Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. OFNR riser fiber cable jackets are designed for vertical installations in building risers, providing fire-resistant protection to ensure safe data transmission between floors. These cables meet strict safety standards, making them ideal for businesses that need reliable, in-building network infrastructure without the risk of fire spreading through conduits. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
| Armored | No |
| Bend Insensitivity | G.657.A1 |
| Cable Length | 80m |
| Cable Mode | Multiple |
| Cable Type | OM4 |
| Color | Aqua |
| Compatible OEM | Industry Standard |
| Connector | MPO-16 (Female) to 16xLC (Male) |
| Connector 1 Boot Style | Standard Boot |
| Connector 1 Color | Green |
| Connector 1 Ferrule Polish Type | APC (Angled Physical Contact) |
| Connector 2 Boot Style | Standard Boot |
| Connector 2 Color | Beige |
| Connector 2 Ferrule Polish Type | UPC (Ultra Physical Contact) |
| Core/Cladding | 50/125µm |
| Environment | Indoor |
| Fiber Termination | APC - Angled Physical Contact |
| Fiber Type | MMF |
| Fire Rating | Riser (OFNR) |
| Insertion Loss Grade | Grade C |
| Jacket Material | PVC (Polyvinyl Chloride) |
| Jacket Type | Riser |
| Length (ft) | 262.48 |
| Length (m) | 80 |
| Polarity | Method B |
| Shielded | No |
| Strand Count | 16 |
| Termination Type | Crossover |
| Outer Diameter | 3.0mm |
Physical Specification
| Kit | No Kit - 1 Piece |
| Product Shipping Dimension(HxWxD) | 12 in. x 12 in. x 8 in. |
| Product Shipping Weight(LB) | 4.1 |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | No |
| UNSPSC Code | 26121609 |
| UPC Code | 195285896209 |
| What's In The Box | 1x patch cable |
Limited Lifetime
