4+2 Channel OSP DWDM Mux or Demux C32-C35 with Upgrade and Express Ports, 42in Single-Mode Pigtails, and no connectors
SKU: ADD-WDM-O0411-32-000-UE
North America: 30 in stock
United Kingdom: 0 in stock
Belgium: 0 in stock
Available from the following dealers:

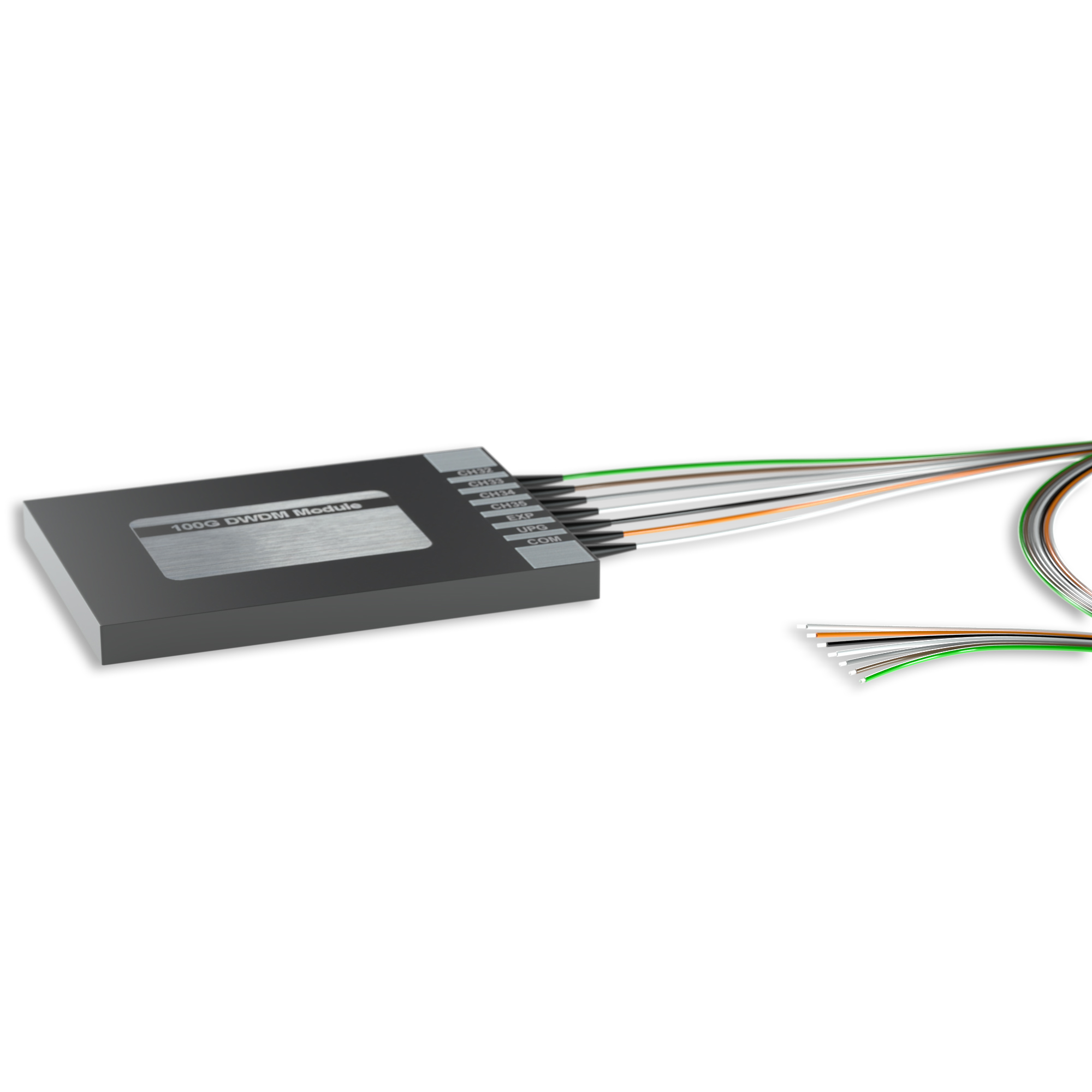

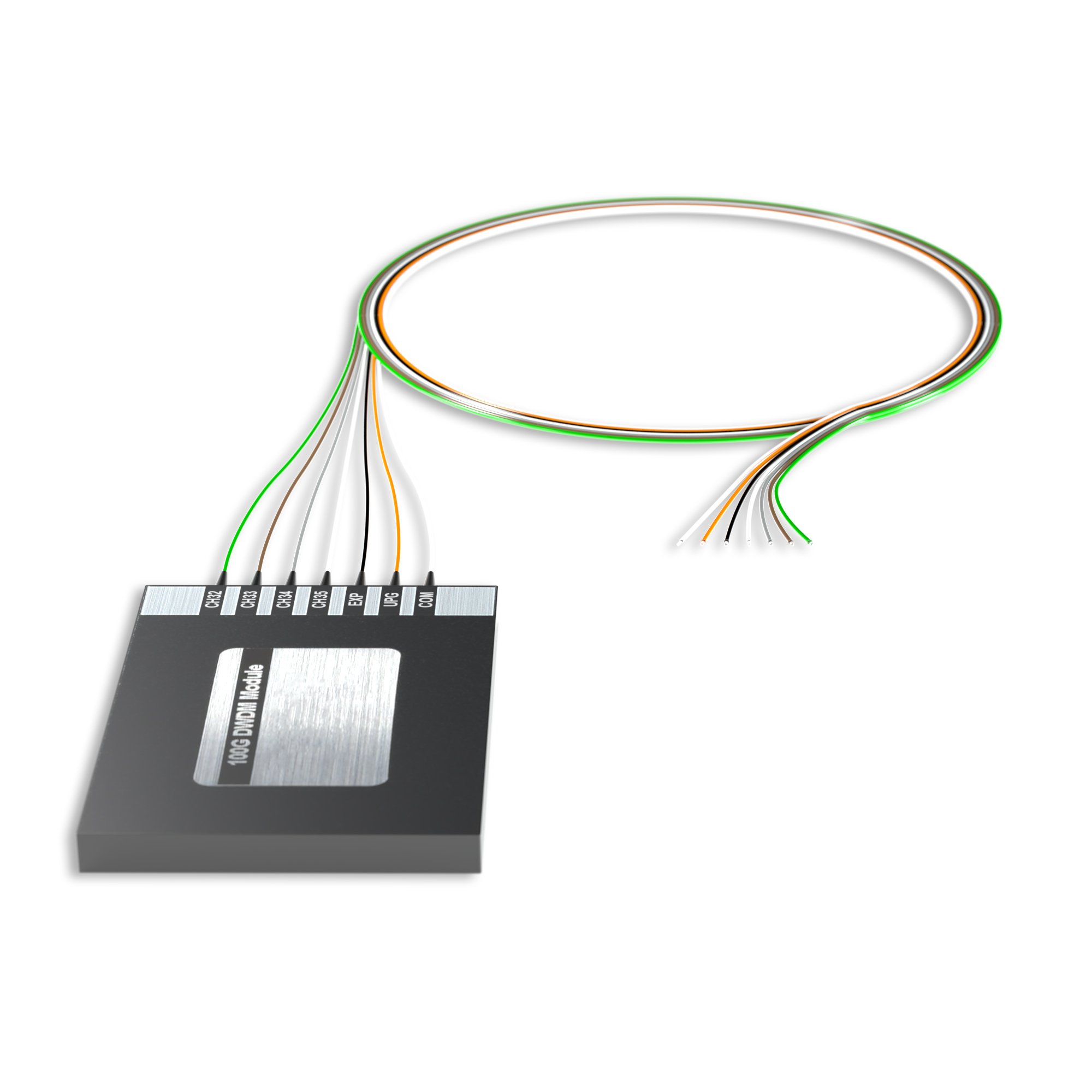

This 4-Channel DWDM Optical Passive Mux or Demux is engineered to maximize the capacity of existing fiber optic networks while minimizing the need for new fiber deployment. Operating with 100GHz channel spacing and supporting ITU channels C32-C35 (1525-1570nm range), this module enables the multiplexing or demultiplexing of four discrete wavelengths over a single-mode fiber. The unit includes both an Upgrade Port (UPG) and an Express Port (EXP) to ensure seamless scalability and future expansion. The UPG supports additional wavelengths within the 1525-1570nm range (excluding active channels), while the EXP accommodates O-band and L-band wavelengths (1260-1520nm and 1580-1620nm), providing a cost-effective path for network growth. Equipped with 42-inch, 900um fiber pigtails, this DWDM Mux or Demux is optimized for outside plant environments (OSP) and easily integrates into standard fiber optic splice enclosures.
Technical Specification
| Compatible OEM | Industry Standard |
| Directivity (dB) | ≥50 |
| DWDM Passband Ripple (dB) | ≤0.5 |
| Express Port | Yes |
| Fiber Length (Inches) | 42 |
| Fiber Size (μm) | 900 |
| Fiber Type | G.657.A2 |
| Insertion Loss Temperature Sensitivity (dB) | ≤0.5 |
| Maximum Power Handling (mW) | 300 |
| Operating Temperature (°C) | -40~+85 |
| Polarization Dependent Loss (dB) | ≤0.1 |
| Polarization Mode Dispersion (ps) | ≤0.25 |
| Return Loss (dB) | ≥45 |
| Wavelength Temperature Shifting (nm/°C) | ≤0.002 |
WDM Channel Specifications
| Channel Passband (@-0.5dB bandwidth) (nm) | ± 0.125 |
| Channel Spacing | 100 |
| DWDM Adjacent Channel Isolation (dB) | ≥30 |
| DWDM Non-Adjacent Channel Isolation (dB) | ≥40 |
| Max Channel Insertion Loss (dB) | 2.1 |
Upgrade Channel Specifications
| Max Upgrade Insertion Loss (dB) | 1.8 |
| Upgrade Isolation (dB) | ≥12 |
| Upgrade Port | Yes |
| Upgrade Wavelengths (nm) | 1525-1570 excluding CHs |
Express Channel Specifications
| Express Isolation (dB) | ≥12 |
| Express Wavelengths (nm) | 1260-1520 & 1580-1620 |
| Max Express Insertion Loss (dB) | 0.6 |
Physical Specification
| Product Shipping Dimension(HxWxD) | 2.8 in. x 1.8 in. x 1 in. |
| Product Shipping Weight(LB) | 0.5 |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 90138090 |
| HTS-Harmonized Code (US) | 9013.80.9100 |
| UNSPSC Code | 43221800 |
| UPC Code | 199278170215 |
| What's In The Box | 1 x WDM Module |
| Ingram Micro® | 240X48 |
| TD Synnex US | 15513862 |
Limited Lifetime
