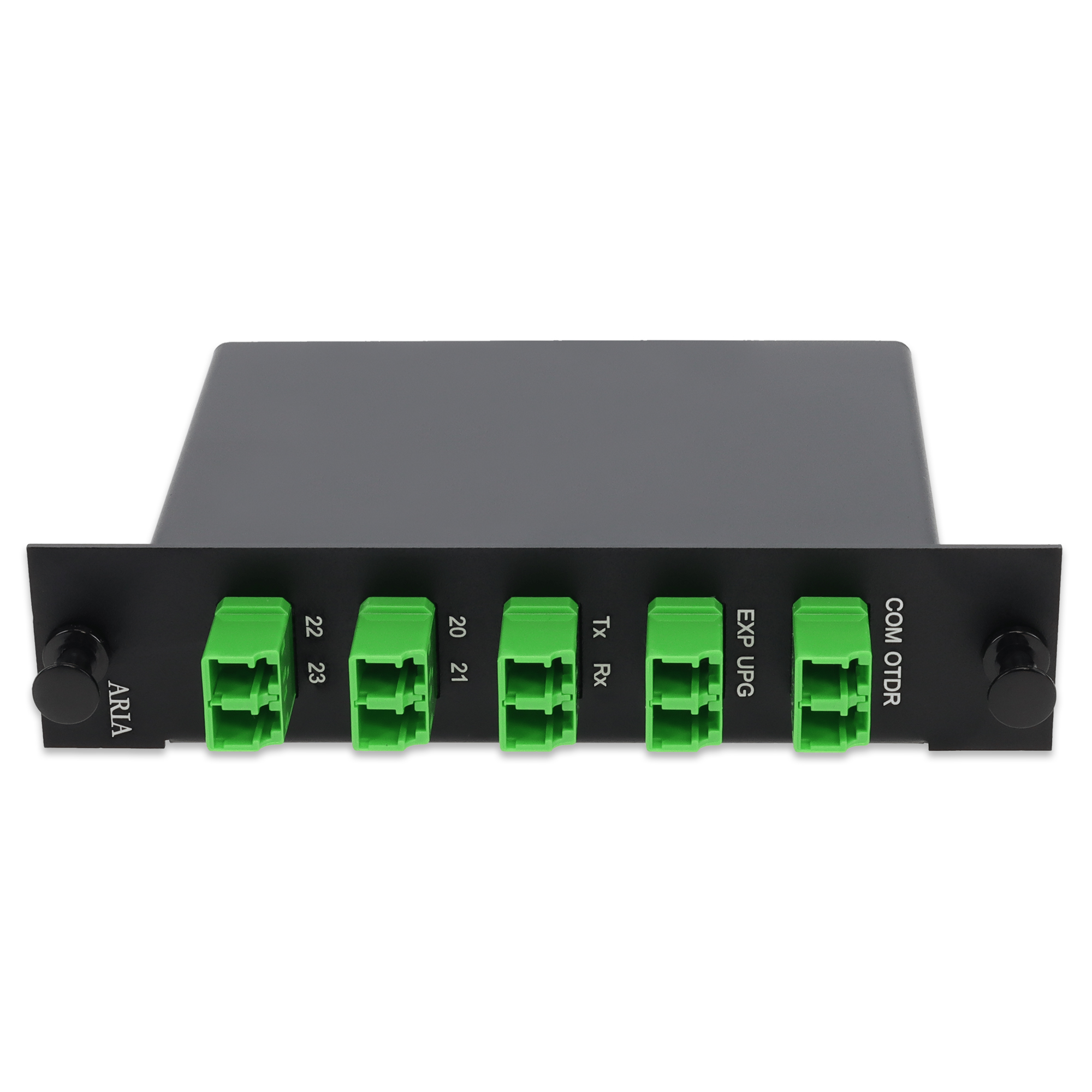

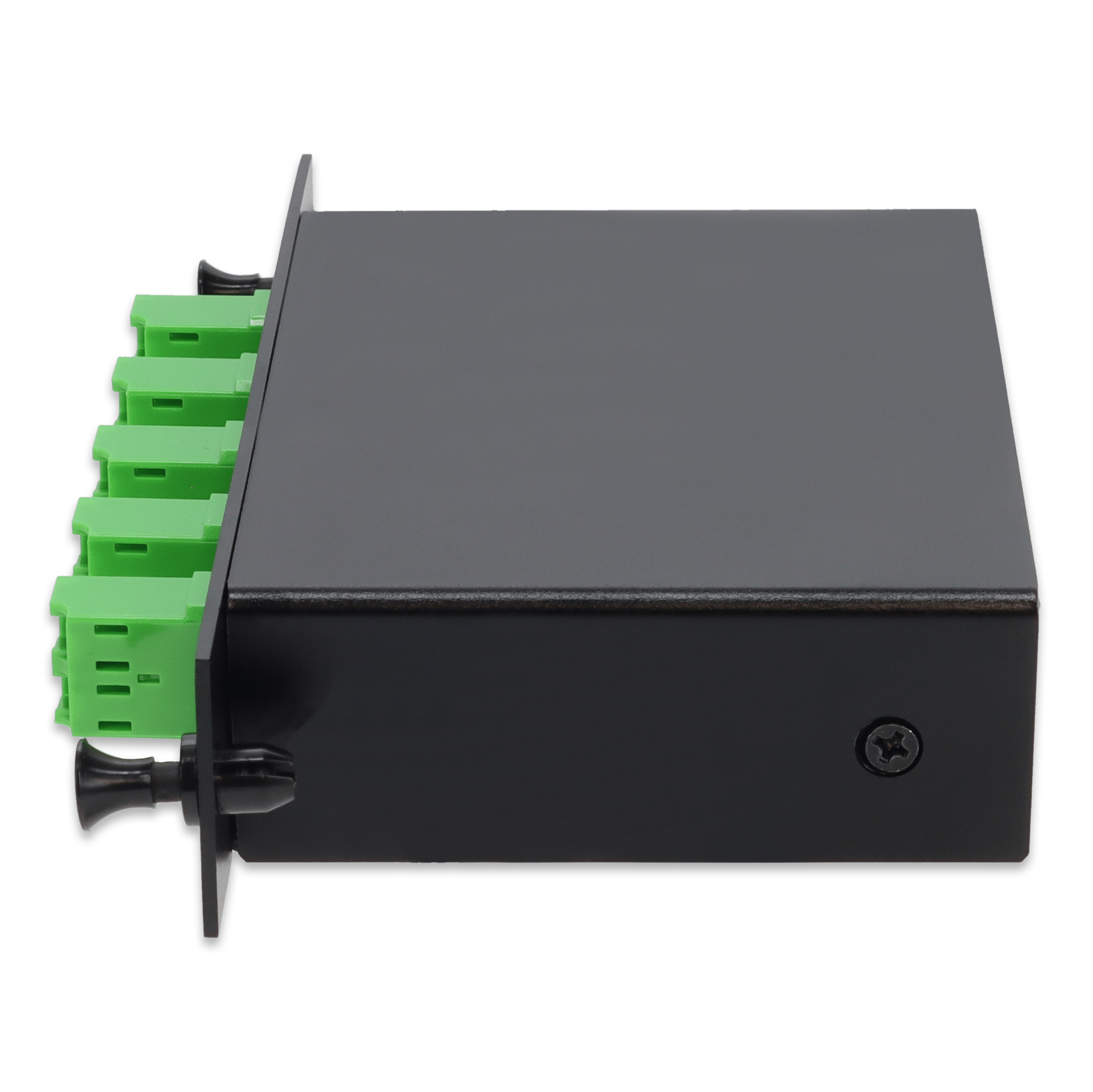

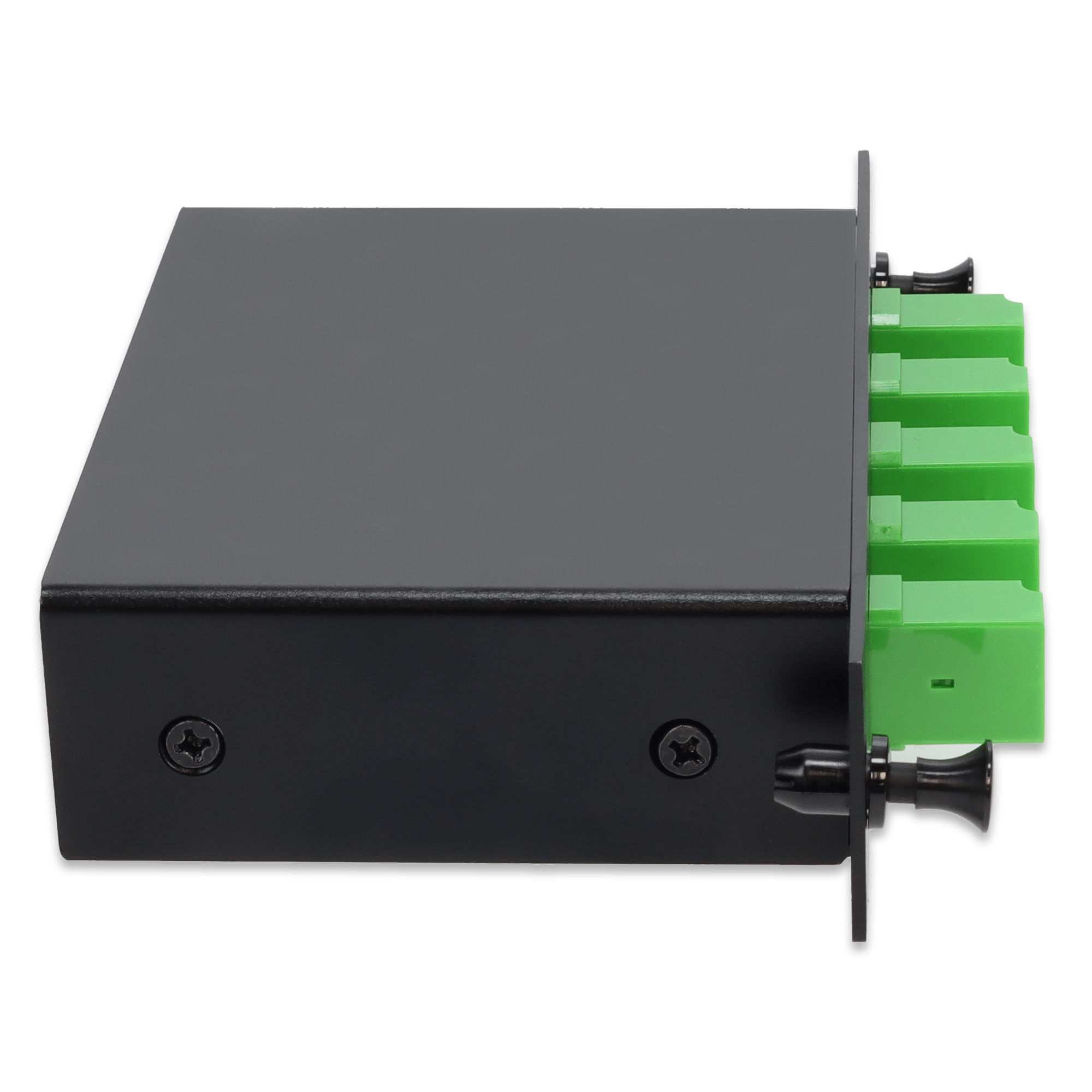

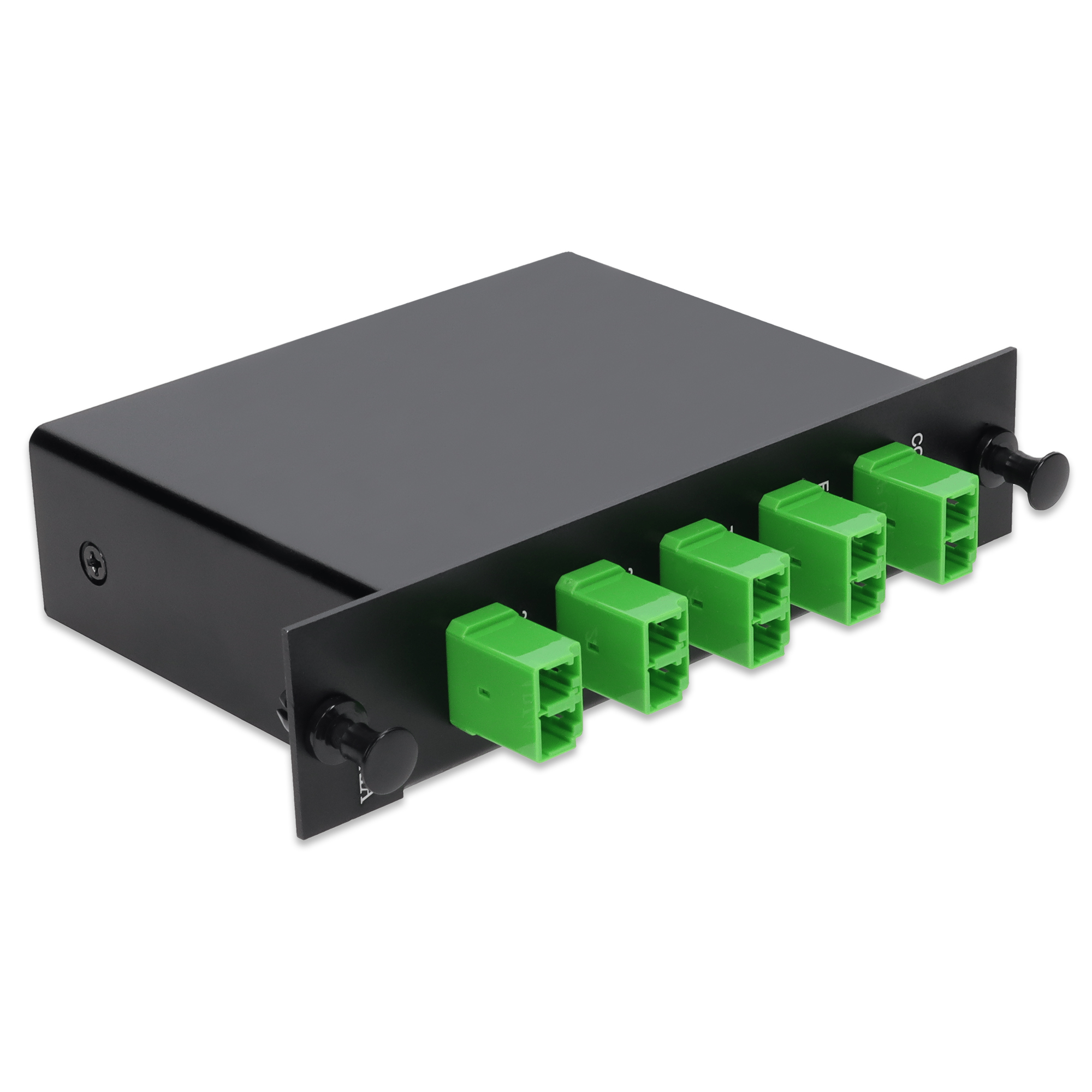

This 4-Channel DWDM Optical Passive Mux/Demux is engineered to maximize the capacity of existing fiber optic networks while minimizing the need for new fiber deployment. Operating with 100GHz channel spacing and supporting ITU channels C20C23 (1625-1670nm range), this module enables the multiplexing or demultiplexing of four discrete wavelengths over a single-mode fiber. The unit includes OTDR(1625nm-1670nm ),Test TX/RX, Upgrade Port (UPG) and an Express Port (EXP) to ensure seamless scalability and future expansion. The UPG supports additional wavelengths within the 15251570nm range (excluding active channels), while the EXP accommodates O-band and L-band wavelengths (12601520nm and 15801620nm), providing a cost-effective path for network growth. Equipped with LC/APC connectors and built in an industry-standard LGX form factor, this DWDM Mux/Demux delivers reliable performance and easy integration into existing fiber management systems.
Technical Specification
| Compatible OEM | Industry Standard |
| Additional Information | LGX Cassette MUX for DWDM Channels 20,21,22,23 |
| Connectors | LC/APC |
| DWDM Insertion loss Uniformity (dB) | ≤2.0 |
| DWDM Passband Ripple (dB) | ≤0.5 |
| Directivity (dB) | ≥50 |
| Fiber Type | G.657.A2 |
| Insertion Loss Temperature Sensitivity (dB) | ≤0.5 |
| Operating Temperature (°C) | -40~+85 |
| Polarization Dependent Loss (dB) | ≤0.1 |
| Polarization Mode Dispersion (ps) | ≤0.25 |
| Return Loss (dB) | ≥45 |
| Wavelength Temperature Shifting (nm/°C) | ≤0.002 |
WDM Channel Specifications
| Channel Passband (@-0.5dB bandwidth) (nm) | ± 0.125 |
| Channel Spacing | 100GHz (0.8nm) |
| DWDM Adjacent Channel Isolation (dB) | ≥30 |
| DWDM Non-Adjacent Channel Isolation (dB) | ≥40 |
| Max Channel Insertion Loss (dB) | 2.3 |
Upgrade Channel Specifications
| Upgrade Port | Yes |
| Max Upgrade Insertion Loss (dB) | 2.0 |
| Upgrade Isolation (dB) | ≥12 |
| Upgrade Wavelengths (nm) | 1525-1570 excluding CHs |
Express Channel Specifications
| Express Isolation (dB) | ≥12 |
| Express Wavelengths (nm) | 1260-1520 & 1580-1620 |
| Max Express Insertion Loss (dB) | 1.2 |
Test Channel Specifications
| Test/Monitor Port | Yes |
| Max Test Rx Insertion Loss (dB) | 19 |
| Max Test Tx Insertion Loss (dB) | 22 |
OTDR Channel Specifications
| Max OTDR Insertion Loss (dB) | 1.5 |
| OTDR Isolation (dB) | ≥30 |
Physical Specification
| Product Shipping Weight(LB) | 0.38 |
| Product Shipping Dimension(HxWxD) | 4.75in x 2in x 6.25in |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 90138090 |
| HTS-Harmonized Code (US) | 9013.80.9100 |
| TAA Compliant | No |
| UNSPSC Code | - |
| UPC Code | 199278001687 |
| What's In The Box | 1 x LGX mux cassette |
