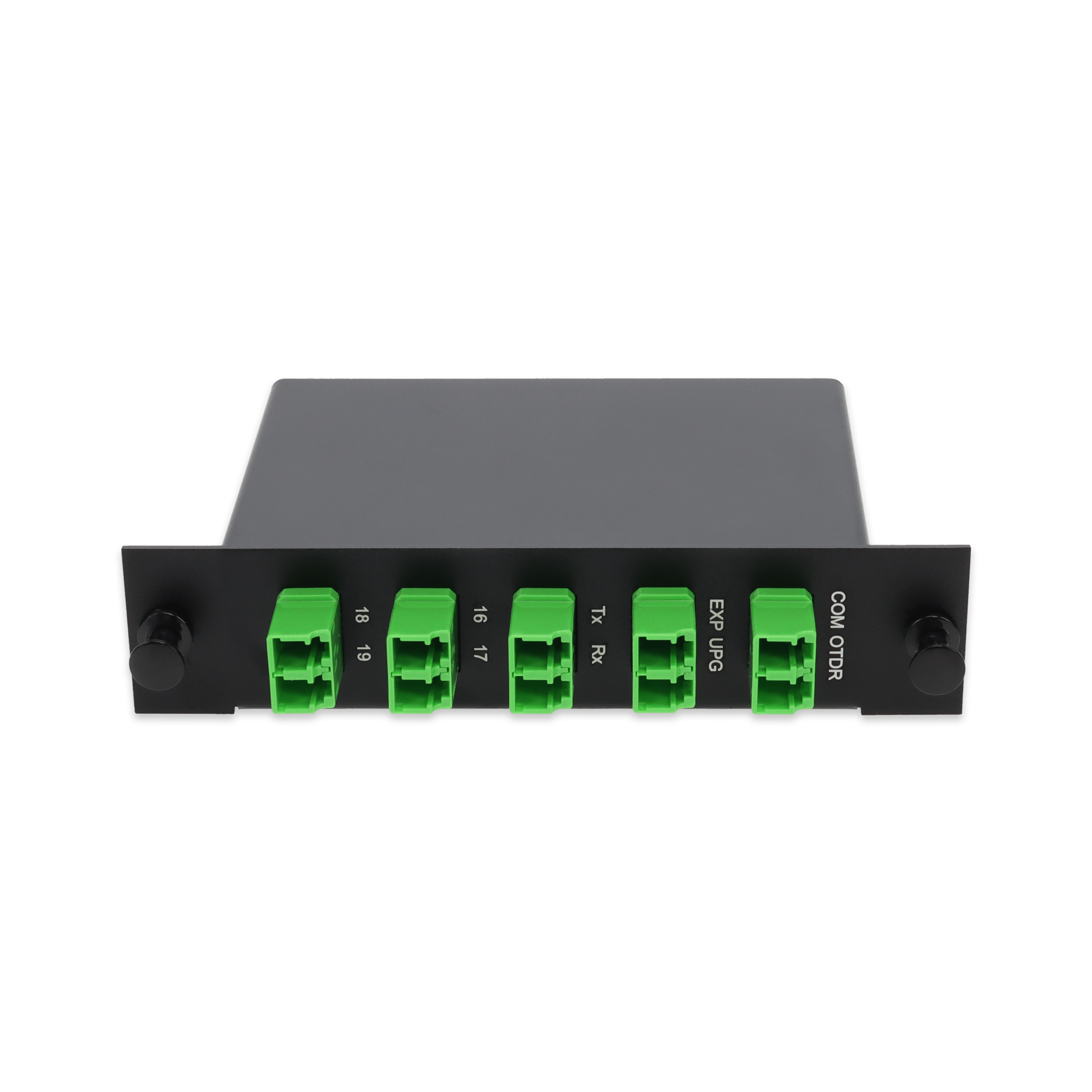

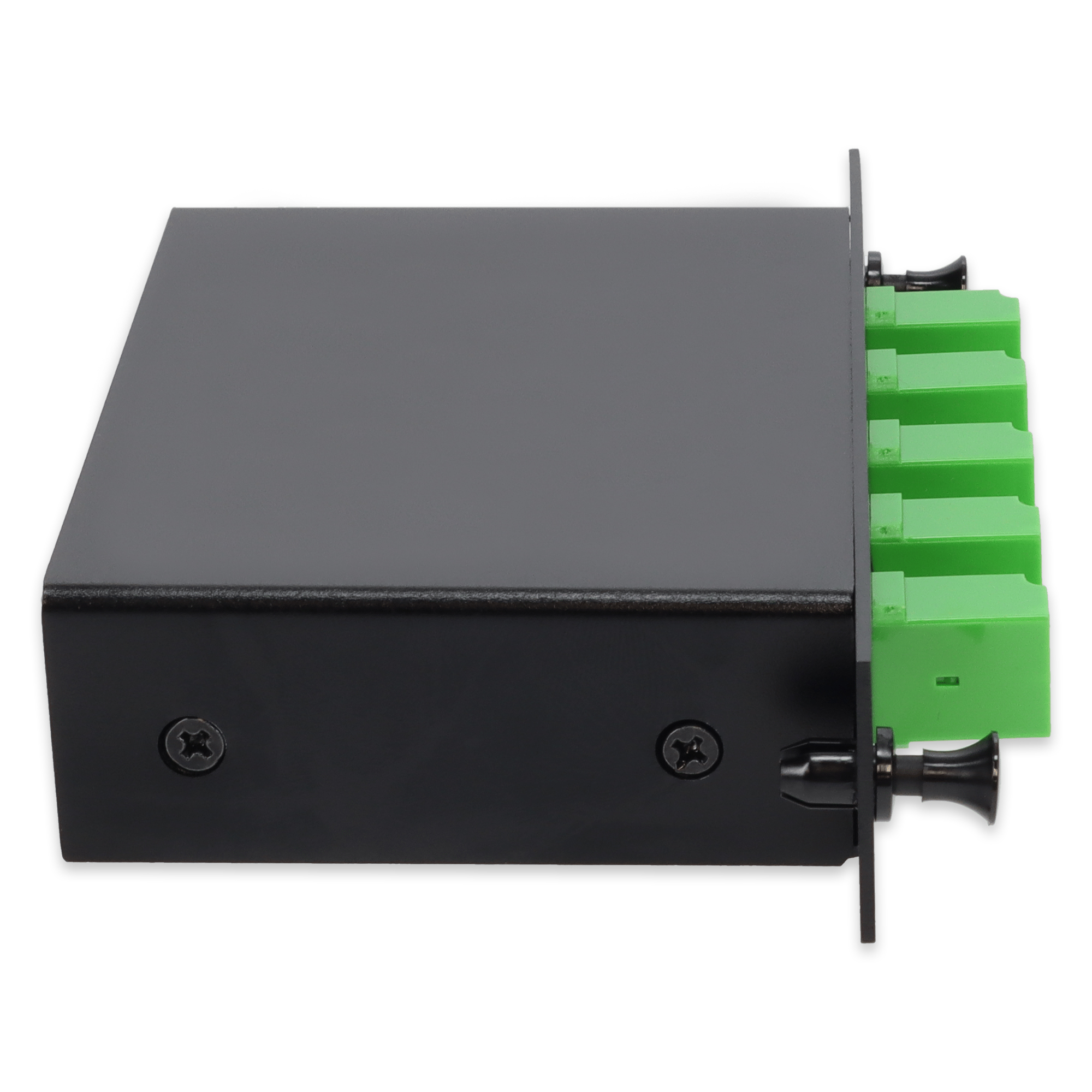

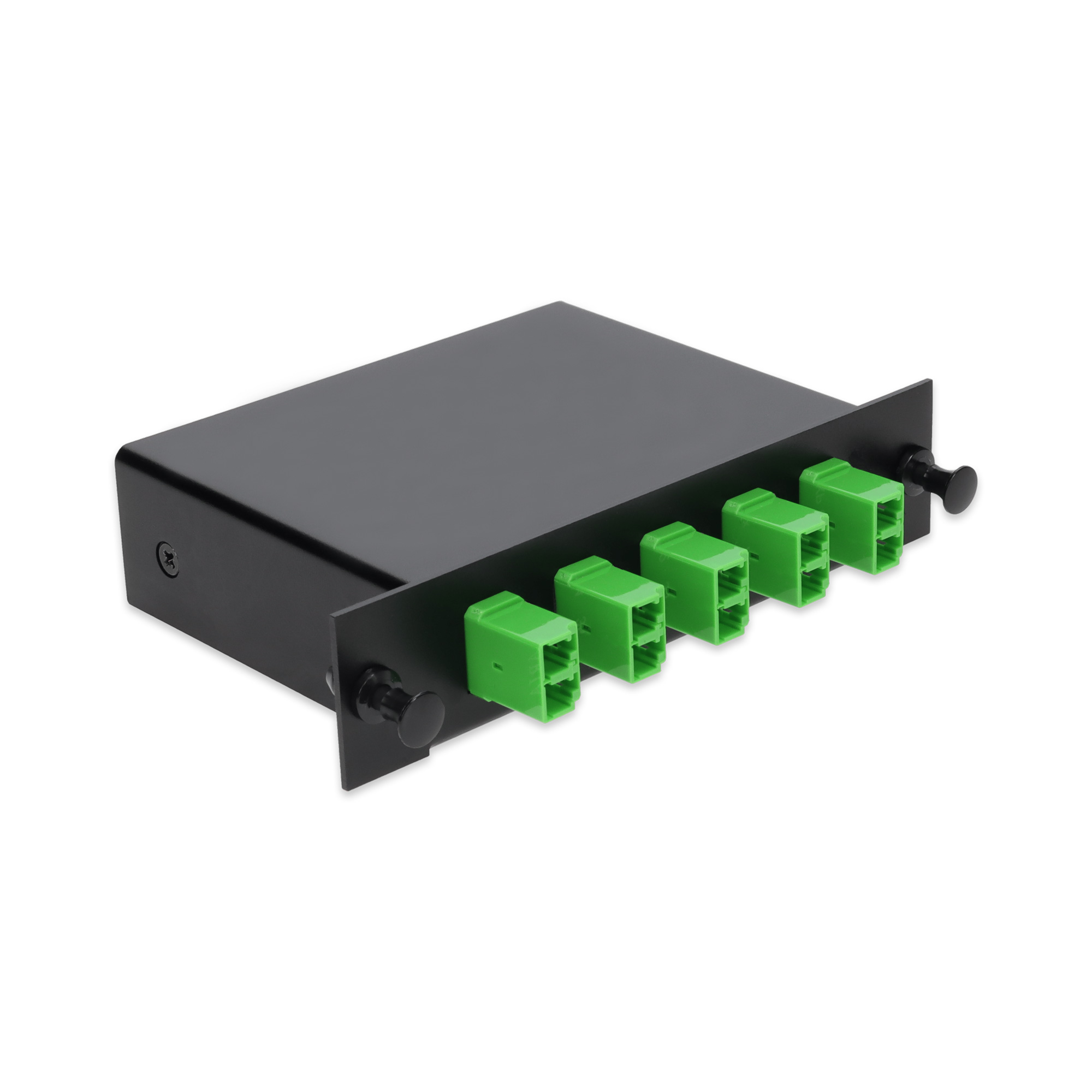

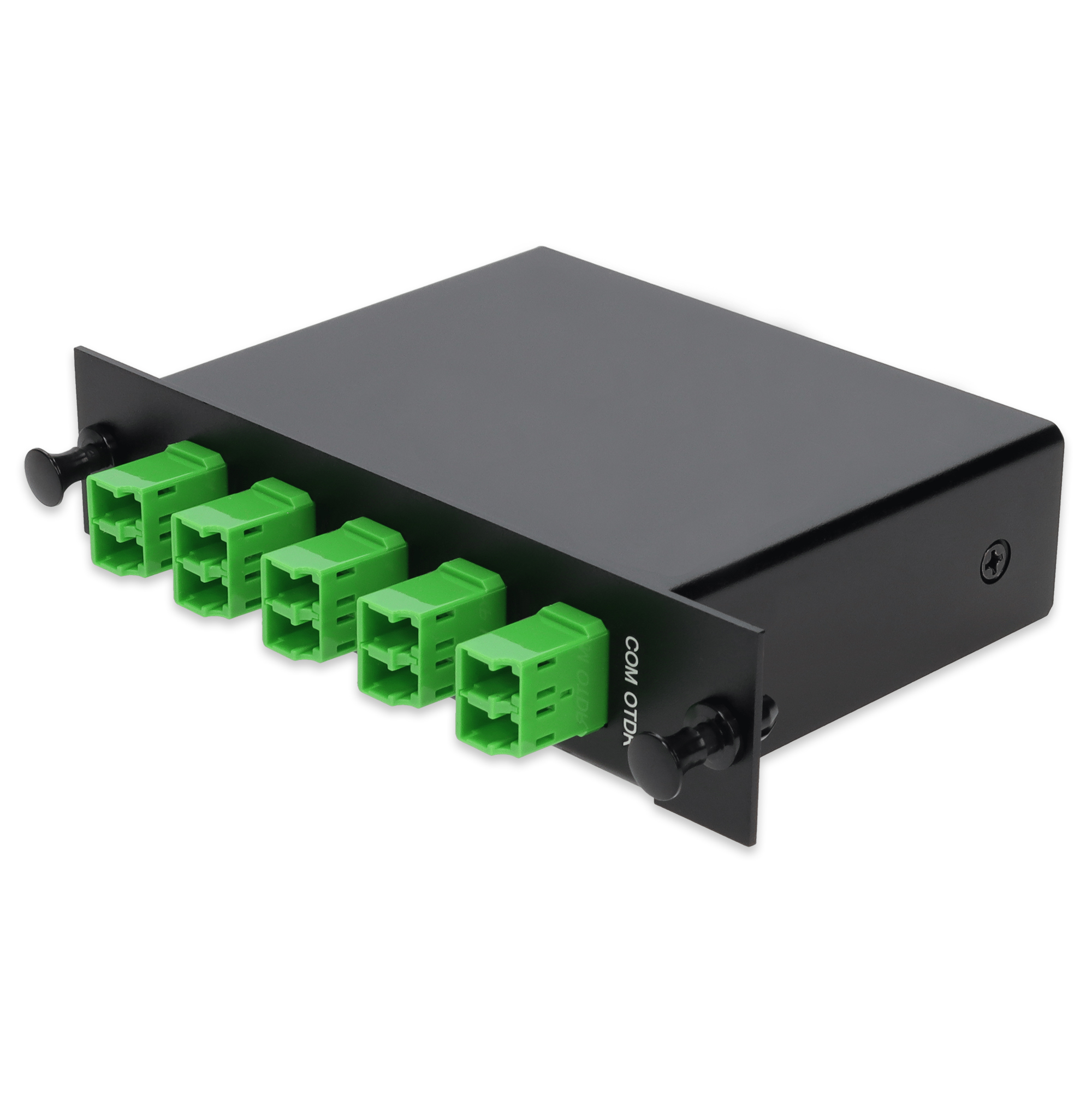

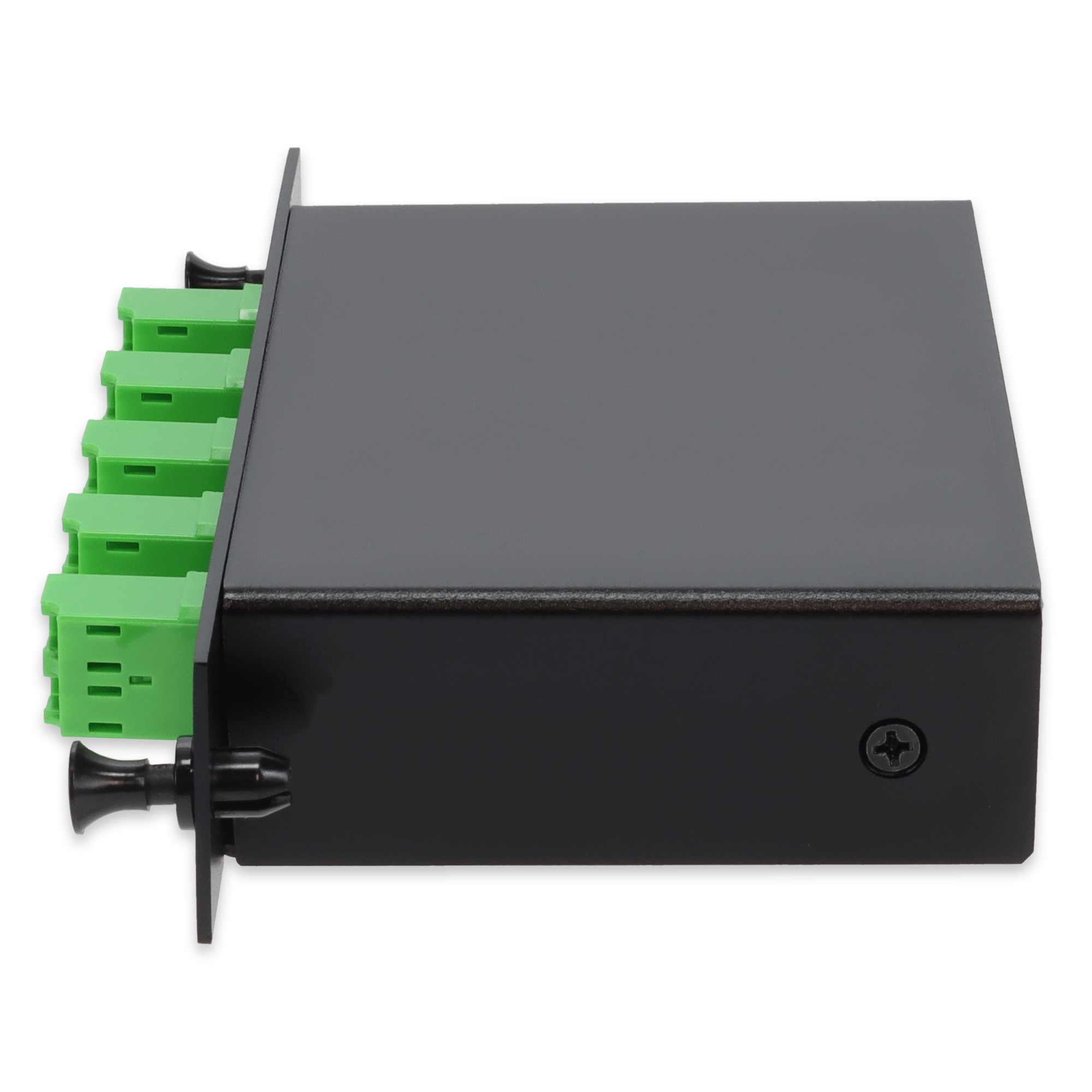

This 4-Channel DWDM Optical Passive Mux/Demux is engineered to maximize the capacity of existing fiber optic networks while minimizing the need for new fiber deployment. Operating with 100GHz channel spacing and supporting ITU channels C16C19 (1625-1670nm range), this module enables the multiplexing or demultiplexing of four discrete wavelengths over a single-mode fiber. The unit includes OTDR(1625nm-1670nm ),Test TX/RX, Upgrade Port (UPG) and an Express Port (EXP) to ensure seamless scalability and future expansion. The UPG supports additional wavelengths within the 15251570nm range (excluding active channels), while the EXP accommodates O-band and L-band wavelengths (12601520nm and 15801620nm), providing a cost-effective path for network growth. Equipped with LC/APC connectors and built in an industry-standard LGX form factor, this DWDM Mux/Demux delivers reliable performance and easy integration into existing fiber management systems.
Technical Specification
| Compatible OEM | Industry Standard |
| DWDM Passband Ripple (dB) | ≤0.5 |
| DWDM Insertion loss Uniformity (dB) | ≤2.0 |
| Insertion Loss Temperature Sensitivity (dB) | ≤0.5 |
| Wavelength Temperature Shifting (nm/°C) | ≤0.002 |
| Polarization Dependent Loss (dB) | ≤0.1 |
| Polarization Mode Dispersion (ps) | ≤0.25 |
| Directivity (dB) | ≥50 |
| Return Loss (dB) | ≥45 |
| Operating Temperature (°C) | -40~+85 |
| Fiber Type | G.657.A2 |
| Connectors | LC/APC |
| Additional Information | LGX Cassette MUX for DWDM Channels 16,17,18,19 |
WDM Channel Specifications
| Channel Spacing | 100GHz (0.8nm) |
| Channel Passband (@-0.5dB bandwidth) (nm) | ± 0.125 |
| Max Channel Insertion Loss (dB) | 2.3 |
| DWDM Adjacent Channel Isolation (dB) | ≥30 |
| DWDM Non-Adjacent Channel Isolation (dB) | ≥40 |
Upgrade Channel Specifications
| Upgrade Wavelengths (nm) | 1525-1570 excluding CHs |
| Max Upgrade Insertion Loss (dB) | 2.0 |
| Upgrade Isolation (dB) | ≥12 |
| Upgrade Port | Yes |
Express Channel Specifications
| Express Wavelengths (nm) | 1260-1520 & 1580-1620 |
| Max Express Insertion Loss (dB) | 1.2 |
| Express Isolation (dB) | ≥12 |
Test Channel Specifications
| Max Test Tx Insertion Loss (dB) | 22 |
| Max Test Rx Insertion Loss (dB) | 19 |
| Test/Monitor Port | Yes |
OTDR Channel Specifications
| Max OTDR Insertion Loss (dB) | 1.5 |
| OTDR Isolation (dB) | ≥30 |
| OTDR Wavelengths (nm) | 1625-1670 |
Physical Specification
| Product Shipping Weight(LB) | 0.37 |
| Product Shipping Dimension(HxWxD) | 1.06 in. x 5.06 in. x 2.94 in. |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 90138090 |
| HTS-Harmonized Code (US) | 9013.80.9100 |
| TAA Compliant | No |
| UNSPSC Code | 43222827 |
| UPC Code | 199278001670 |
| What's In The Box | 1 x LGX mux cassette |
