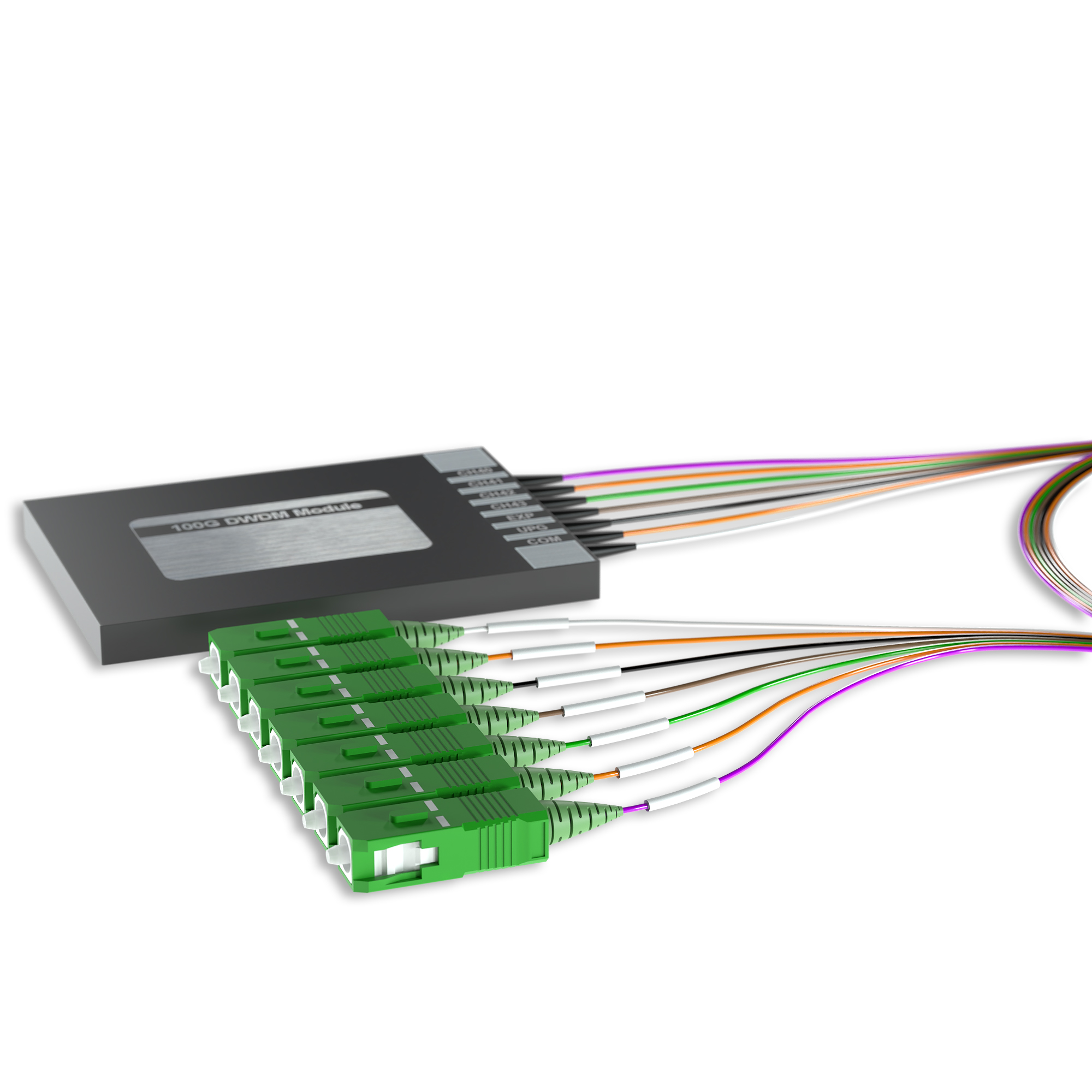

This 4-Channel DWDM Optical Passive Mux/Demux is engineered to maximize the capacity of existing fiber optic networks while minimizing the need for new fiber deployment. Operating with 100GHz channel spacing and supporting ITU channels C40C43 (15251570nm range), this module enables the multiplexing or demultiplexing of four discrete wavelengths over a single-mode fiber. The unit includes both an Upgrade Port (UPG) and an Express Port (EXP) to ensure seamless scalability and future expansion. The UPG supports additional wavelengths within the 15251570nm range (excluding active channels), while the EXP accommodates O-band and L-band wavelengths (12601520nm and 15801620nm), providing a cost-effective path for network growth. Equipped with SC/APC connectors on 24-inch, 900m fiber pigtails, this DWDM Mux/Demux is optimized for outside plant environments (OSP) and easily integrates into standard fiber optic splice enclosures.
Technical Specification
| Compatible OEM | Industry Standard |
| Connectors | SC/APC |
| Directivity (dB) | ≥50 |
| DWDM Passband Ripple (dB) | ≤0.5 |
| Fiber Size (μm) | 900 |
| Fiber Type | G.657.A2 |
| Insertion Loss Temperature Sensitivity (dB) | ≤0.5 |
| Maximum Power Handling (mW) | 300 |
| Operating Temperature (°C) | -40~+85 |
| Polarization Dependent Loss (dB) | ≤0.1 |
| Polarization Mode Dispersion (ps) | ≤0.25 |
| Return Loss (dB) | ≥45 |
| Wavelength Temperature Shifting (nm/°C) | ≤0.002 |
| Fiber Length (Inches) | 24 |
WDM Channel Specifications
| Channel Passband (@-0.5dB bandwidth) (nm) | ± 0.125 |
| Channel Spacing | 100GHz (0.8nm) |
| DWDM Adjacent Channel Isolation (dB) | ≥30 |
| DWDM Non-Adjacent Channel Isolation (dB) | ≥40 |
| Max Channel Insertion Loss (dB) | 2.1 |
Upgrade Channel Specifications
| Upgrade Isolation (dB) | ≥12 |
| Upgrade Wavelengths (nm) | 1525-1570 excluding CHs |
| Upgrade Port | Yes |
| Max Upgrade Insertion Loss (dB) | 1.8 |
Express Channel Specifications
| Express Isolation (dB) | ≥12 |
| Express Wavelengths (nm) | 1260-1520 & 1580-1620 |
| Max Express Insertion Loss (dB) | 0.6 |
Test Channel Specifications
Physical Specification
| Product Shipping Weight(LB) | 0.26 |
| Product Shipping Dimension(HxWxD) | 8in x 1.25in x 8.25in |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 90138090 |
| HTS-Harmonized Code (US) | 9013.80.9100 |
| TAA Compliant | No |
| UNSPSC Code | - |
| UPC Code | 199278002592 |
| What's In The Box | 1 x rackmount panel |
