Industrial Managed 10/100/1000Base-TX(RJ-45) x4 to 2 Open SFP Port Media Converter
SKU: ADD-IMGMC-4RJ2SFP
Belgium: 0 in stock
United Kingdom: 0 in stock
North America: 11 in stock
Available from the following dealers:

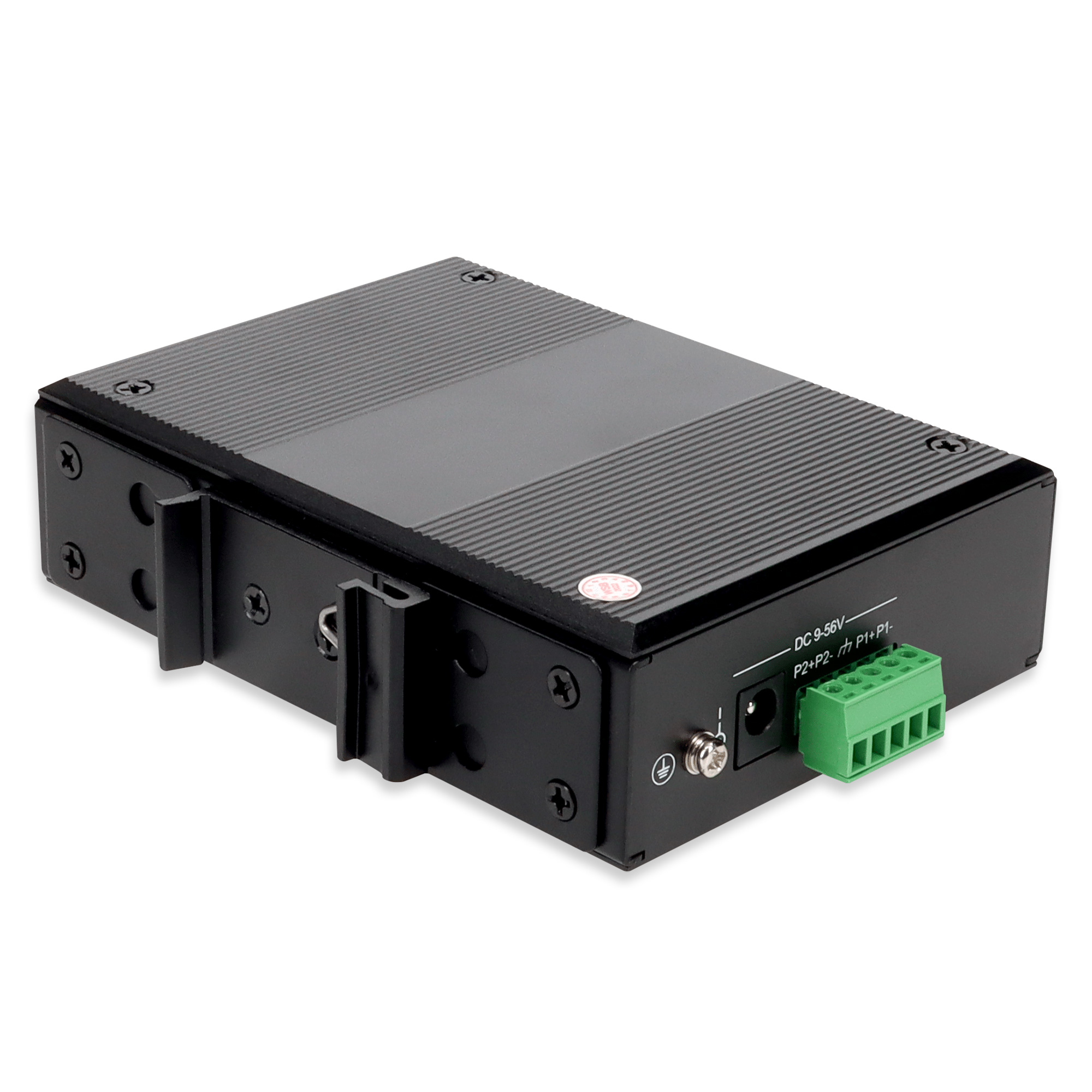

This is a six port media converter that converts and supports four 10/100/1000Base-TX(RJ-45) to two 1000Base-X via 2 open SFP port connectors. The open SFP ports allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from four 10/100/1000Base-TX(RJ-45) to two 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. All the four 10/100/1000Mbps UTP RJ-45 ports support full duplex 10/100/1000Mbps connectivity (half duplex only supported in 10/100Mbps mode). Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.
Technical Specification
| Compatible OEM | Industry Standard |
| Media Type | MMF or SMF |
| Data Rate | 1Gbs |
| Power Supply | Terminal Block |
| Media Conversion Type | Copper to MMF or SMF |
| Type | Media Converter |
| POE | No |
| Mountable | Wall/Rail Mountable |
| Management Type | Managed |
| IEEE Standard | 802.3af |
| Connector1 Number of Ports | 4 |
| Connector2 Number of Ports | 2 |
| Environment | Industrial |
| Connector Types | RJ-45 & SFP |
| Reach | Depends on the optical module |
| Wavelength | Depends on the optical module |
Physical Specification
| Product Shipping Dimension(HxWxD) | 6.0in. x 10.0in. x 4.0in. |
| Product Shipping Weight(LB) | 1 |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85176200 |
| HTS-Harmonized Code (US) | 8517.62.0090 |
| TAA Compliant | No |
| UNSPSC Code | 43201553 |
| UPC Code | 821456724544 |
| What's In The Box | 1x media converter |
| AddOn Part# | ADD-IMGMC-4RJ2SFP |
| Ingram Micro® | 380J26 |
| Insight Electronics® | ADD-IMGMC-4RJ2SFP |
| TD Synnex US | 6598145 |
3 years
