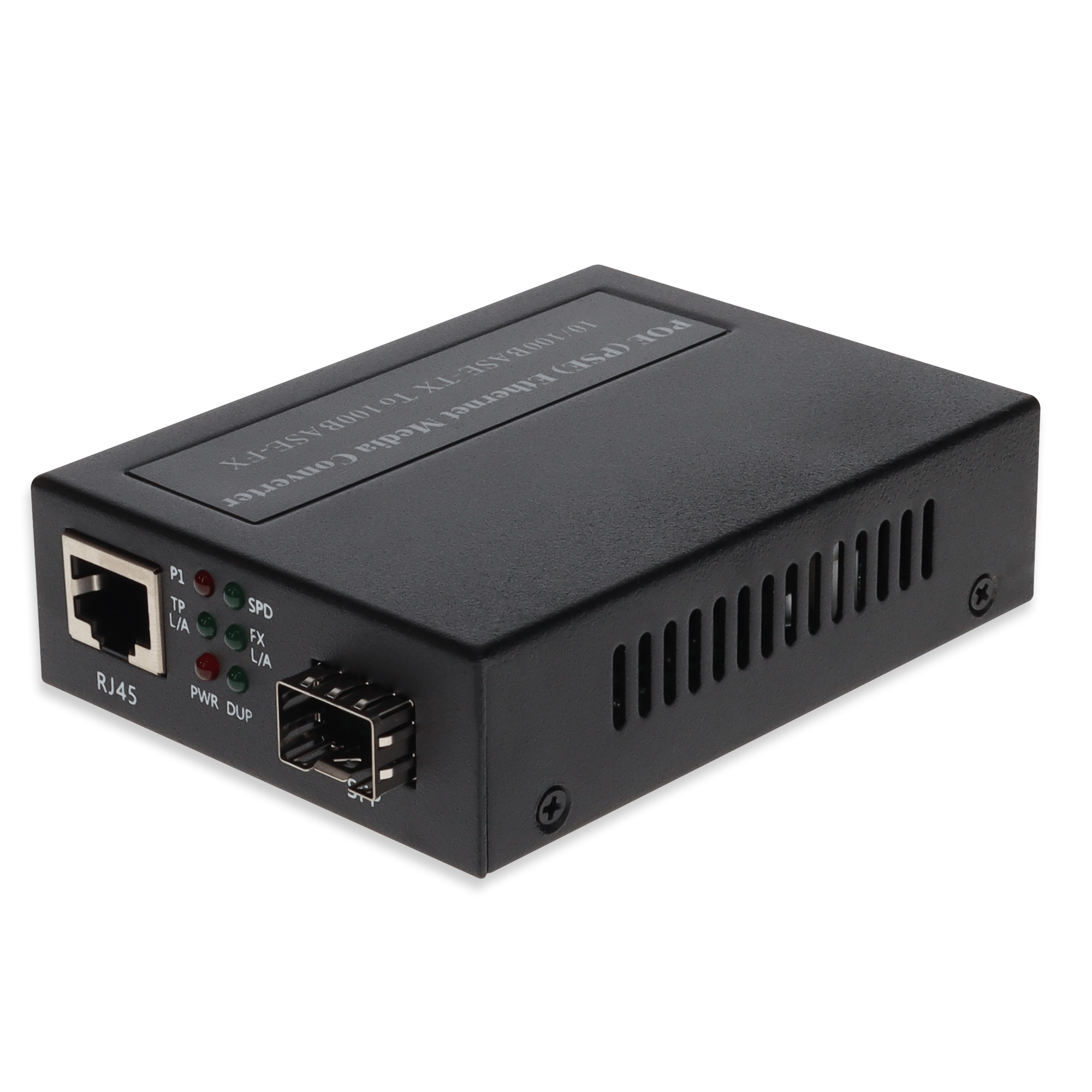

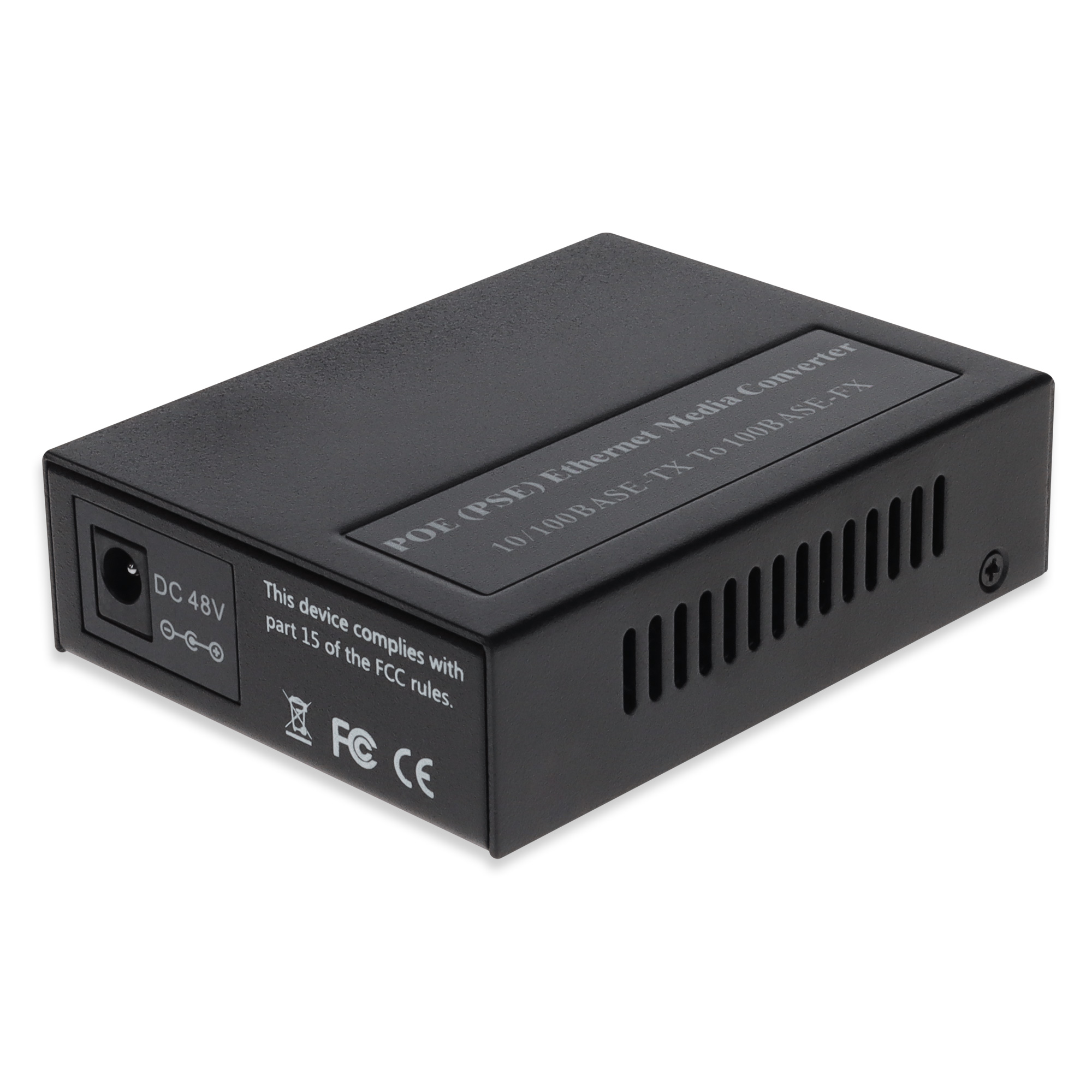

10/100Base-TX(RJ-45) to Open SFP Port Media Converter POE (15W)
SKU: ADD-FMCP-SFP
Available from the following dealers:
This is a media converter fiber switch that converts 10/100Base-TX(RJ-45) to an Open SFP port. This provides a cost effective conversion from 10/100Base-TX(RJ-45) to 100Base-X fiber, while extending the network reach beyond the 100m reach limitation of copper. The PoE(PSE) ethernet switch is a Power Sourcing Equipment (PSE) which combines data transfered over cable with 48V(typical) power supply, providing power to IEEE802.3af powered device (PD) over CAT5e UTP cable (cable length up to 100 meters/330 feet). The four UTP RJ-45 ports are organized to be PoE output port, and each PoE port can output up to 15.4 watts (DC 48V/.35A) power into CAT5e twisted-pair cable.This industrial grade product includes a terminal block and does not come with a power plug. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
Technical Specification
| Connector1 Number of Ports | 1 |
| Connector Types | RJ-45 & SFP |
| Compatible OEM | Industry Standard |
| Connector2 Number of Ports | 1 |
| Data Rate | 100Mbs |
| IEEE Standard | 802.3af |
| POE | POE |
| Media Conversion Type | Copper to MMF or SMF |
| Management Type | Unmanaged |
| POE Watts | 15W |
| Power Supply | Terminal Block |
| Media Type | MMF or SMF |
| Type | Media Converter |
Physical Specification
| Product Shipping Dimension(HxWxD) | 6.0 in. x 5.5 in. x 2.0 in. |
| Product Shipping Weight(LB) | 1.5 |
Miscellaneous
| Country Of Origin | Varies |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85176200 |
| HTS-Harmonized Code (US) | 8517.62.0090 |
| TAA Compliant | No |
| UNSPSC Code | 43201553 |
| UPC Code | 195285014542 |
| What's In The Box | 1x media converter |
| AddOn Part# | ADD-FMCP-SFP |
| Insight Electronics® | ADD-FMCP-SFP |
3 years
