8 Channel DWDM MUX (Duplex) CARTRIDGE, Channels 39-46, with Pass Ports and LC Connectors
SKU: DWDM-MUX-8D-39-46-AO
Belgium: 0 in stock
United Kingdom: 0 in stock
North America: 0 in stock
Available from the following dealers:

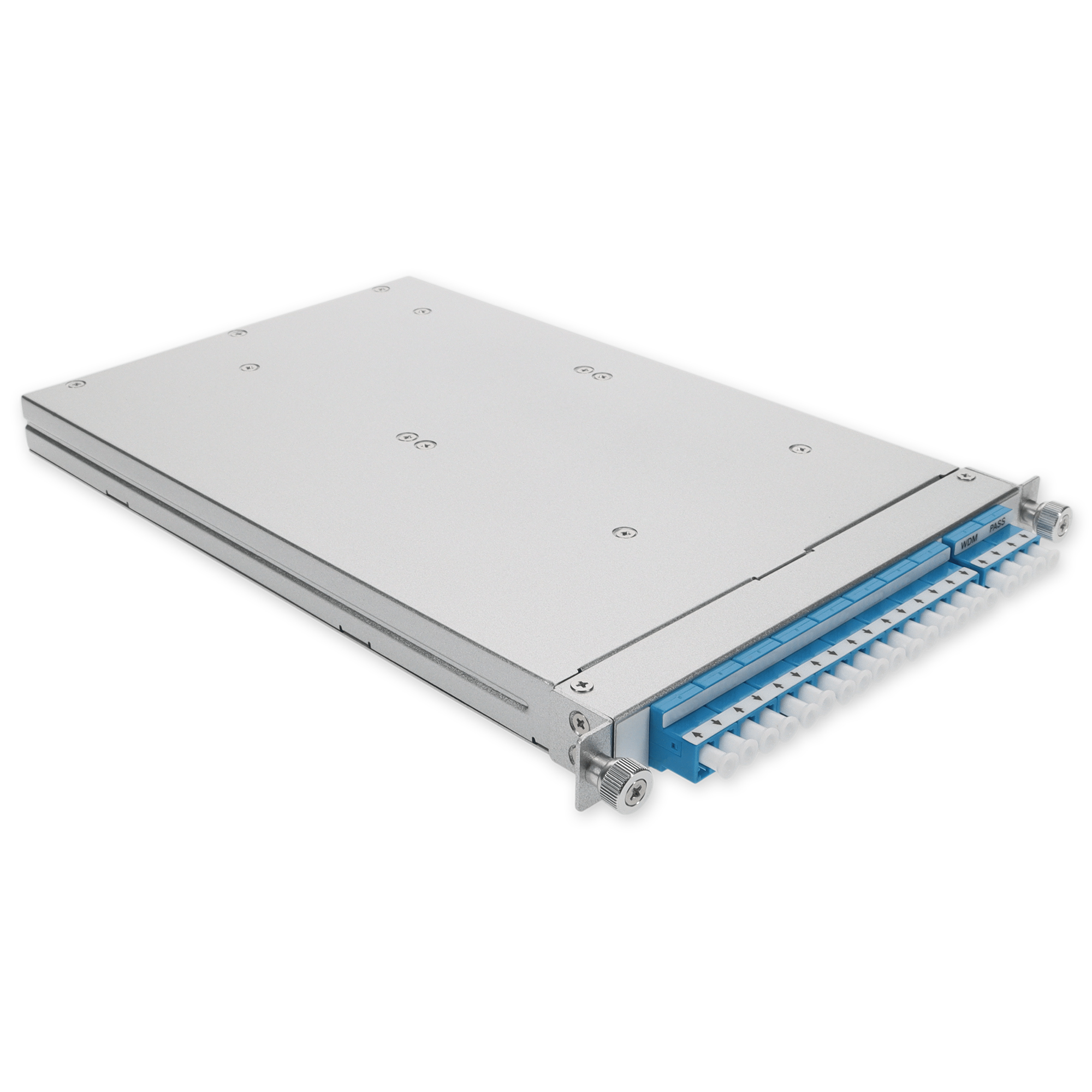

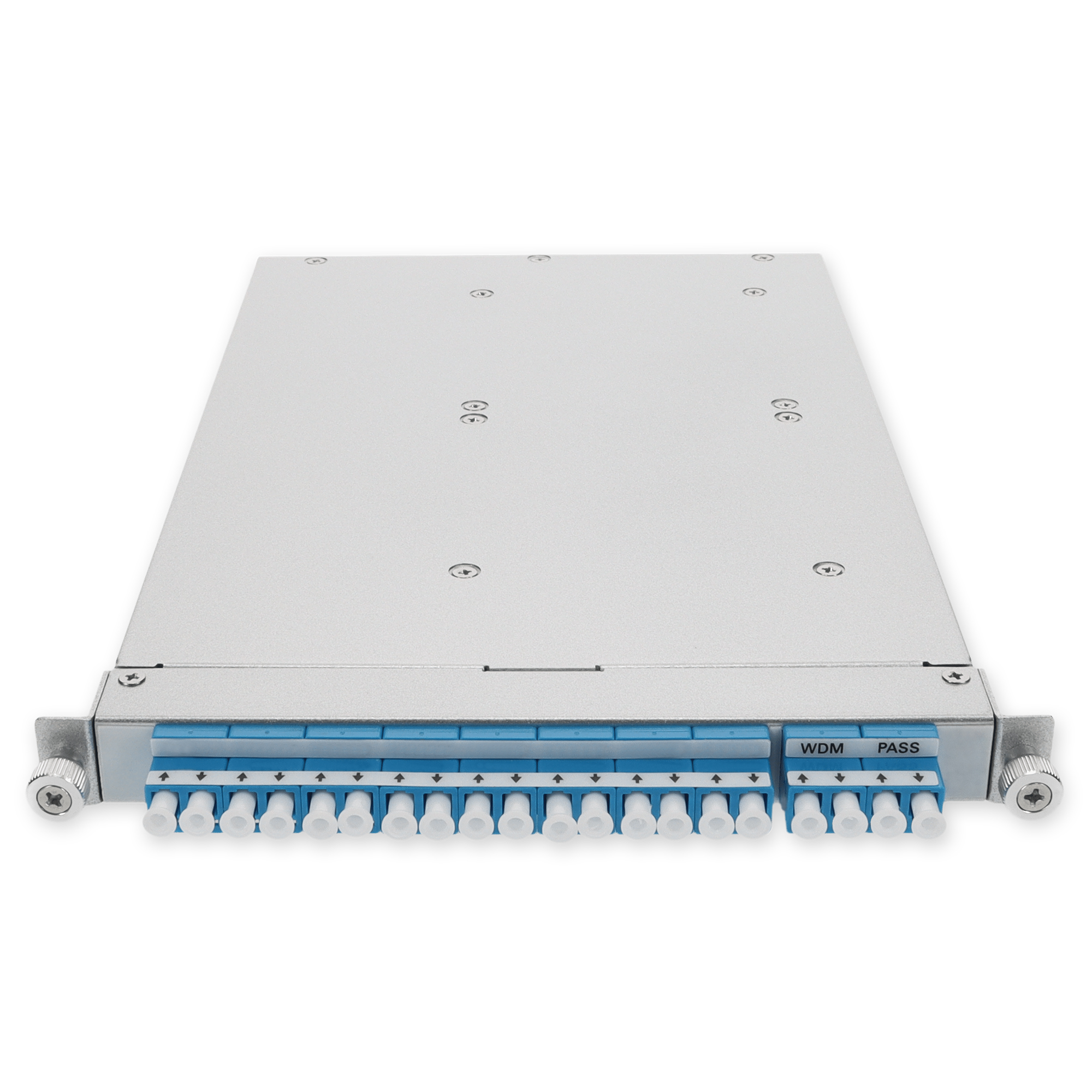

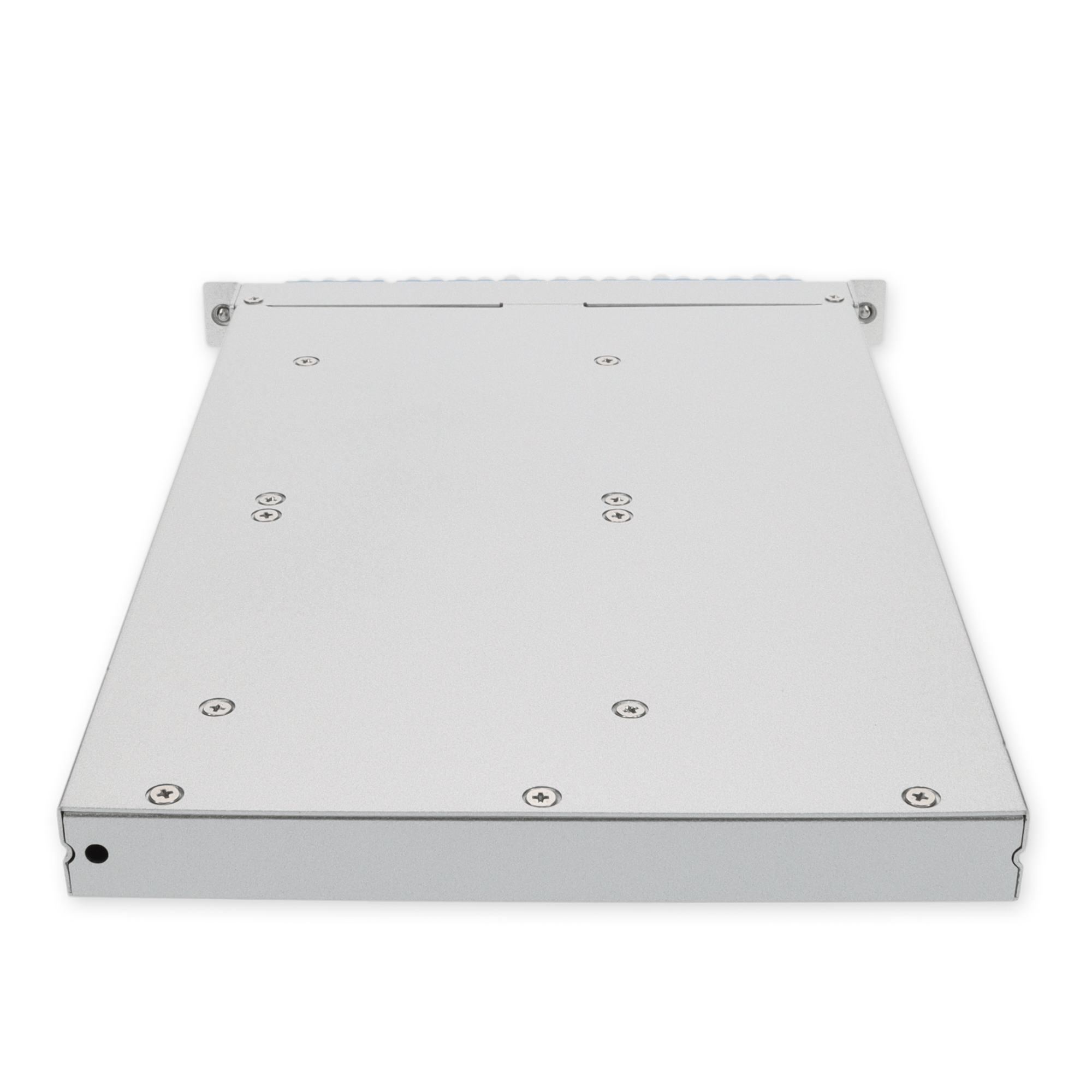

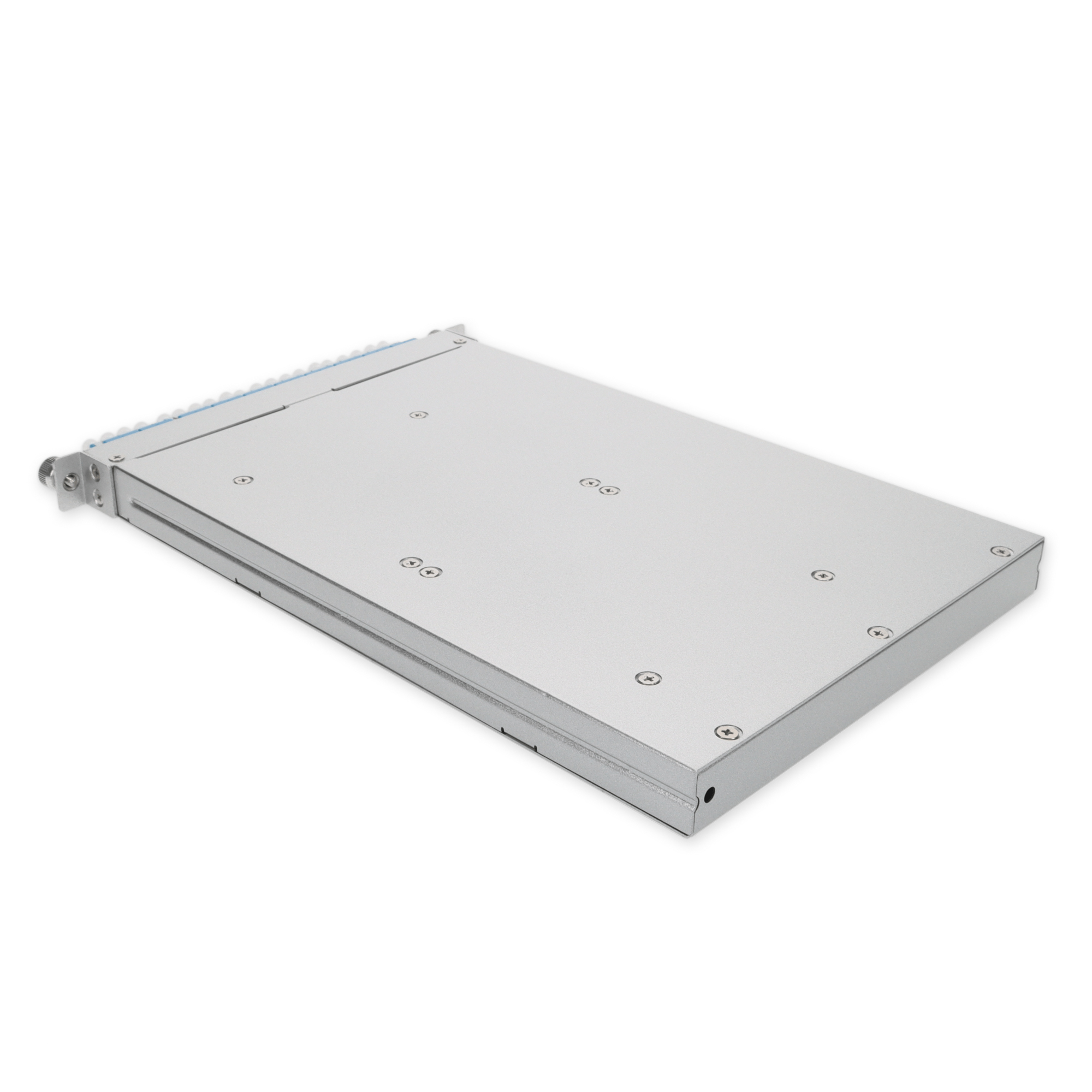

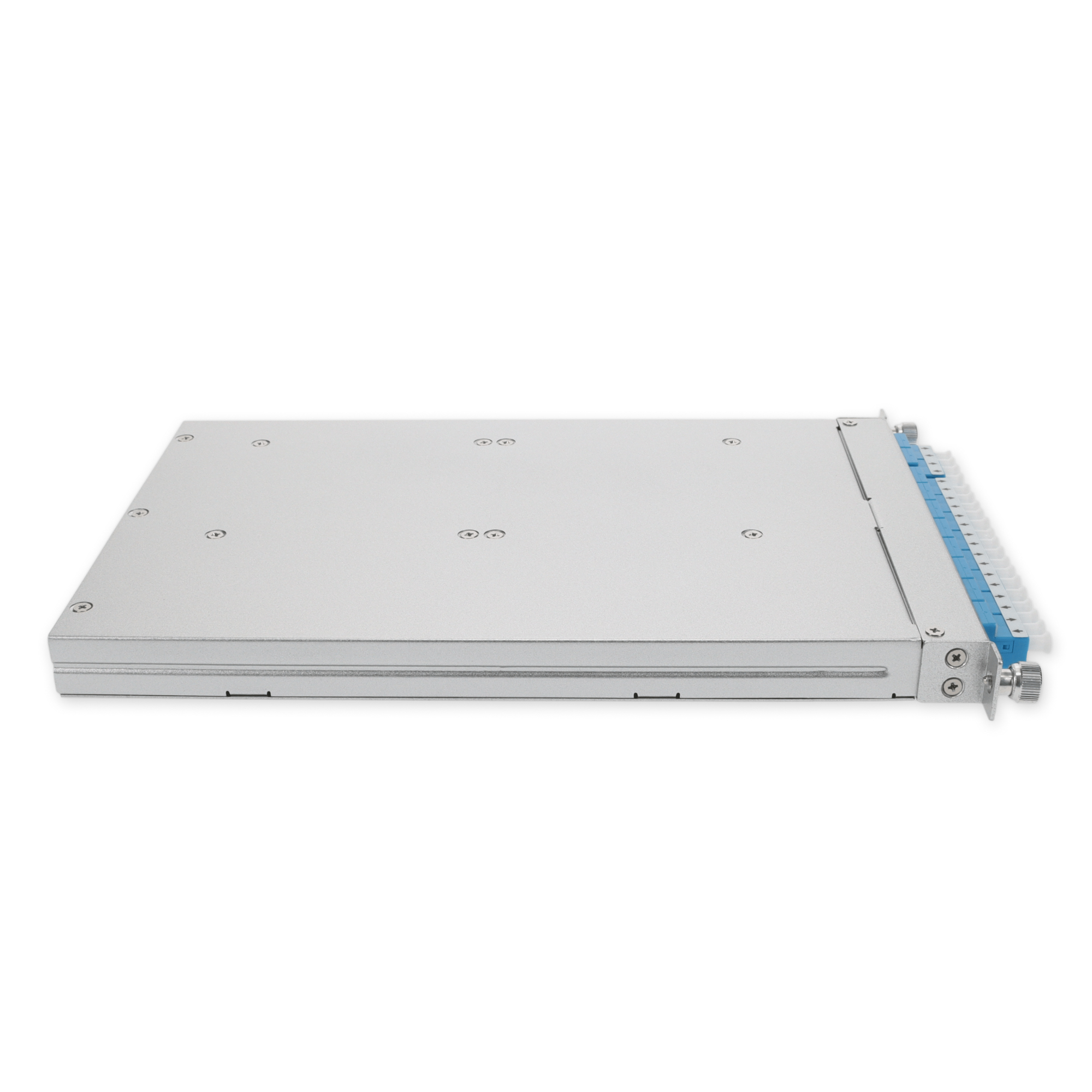

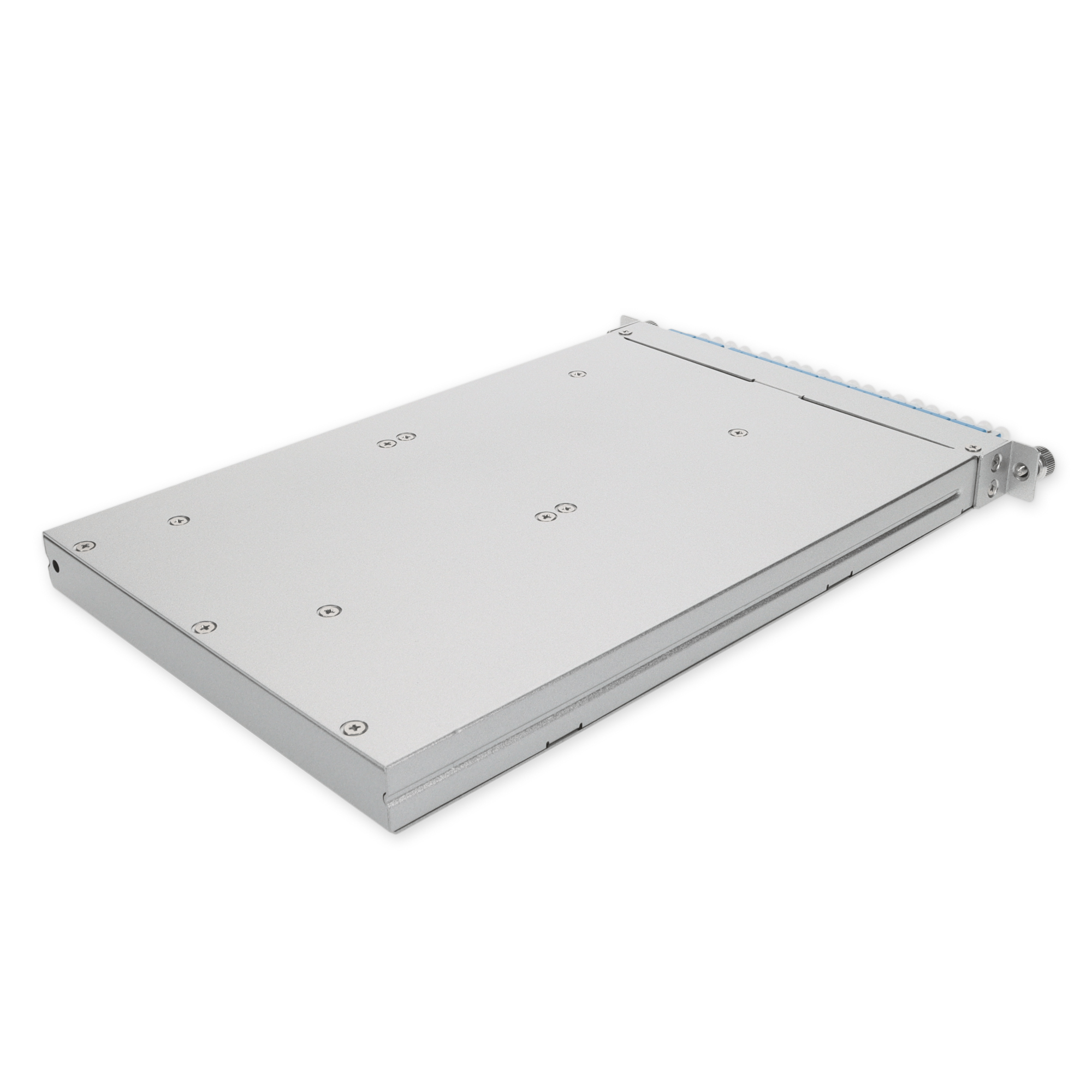

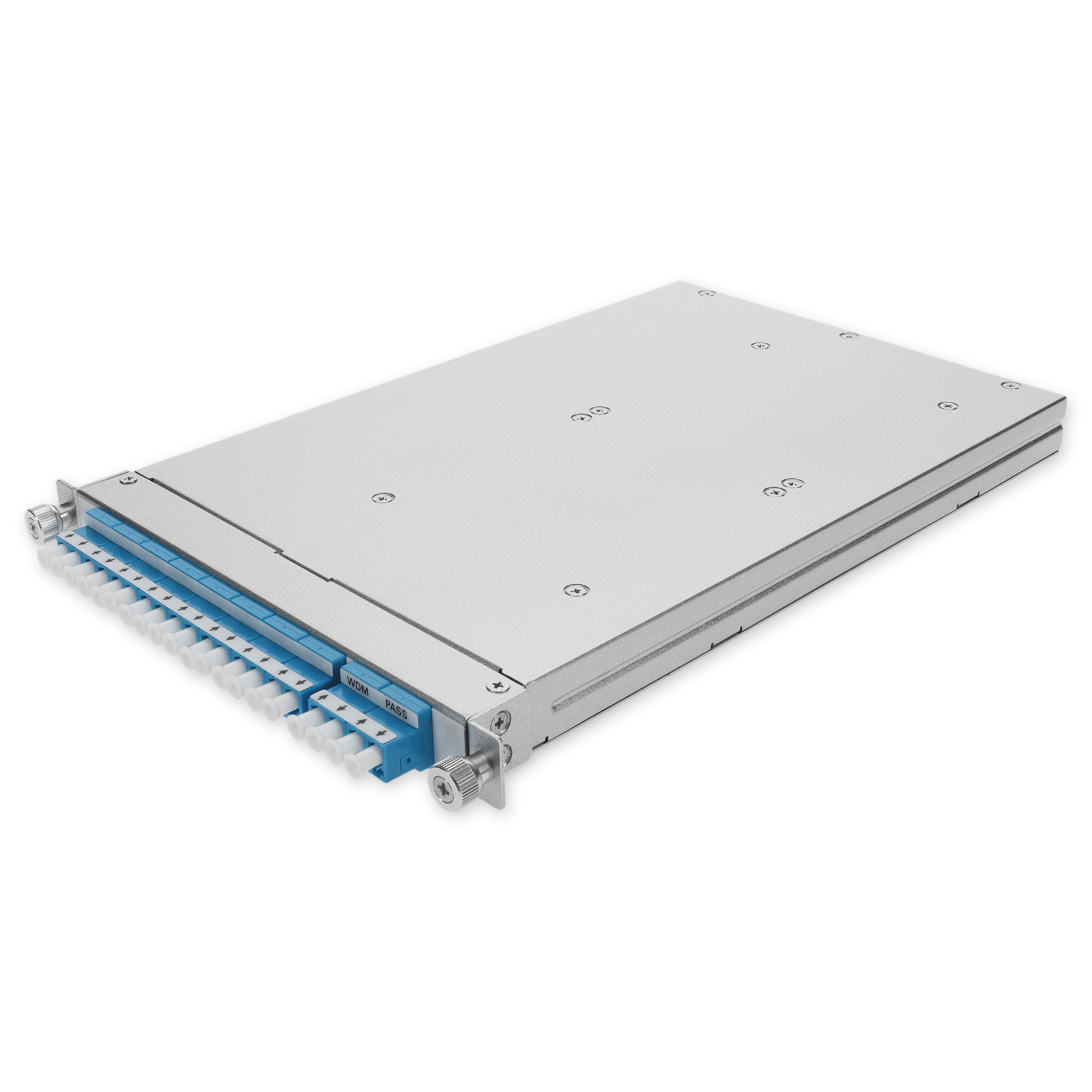

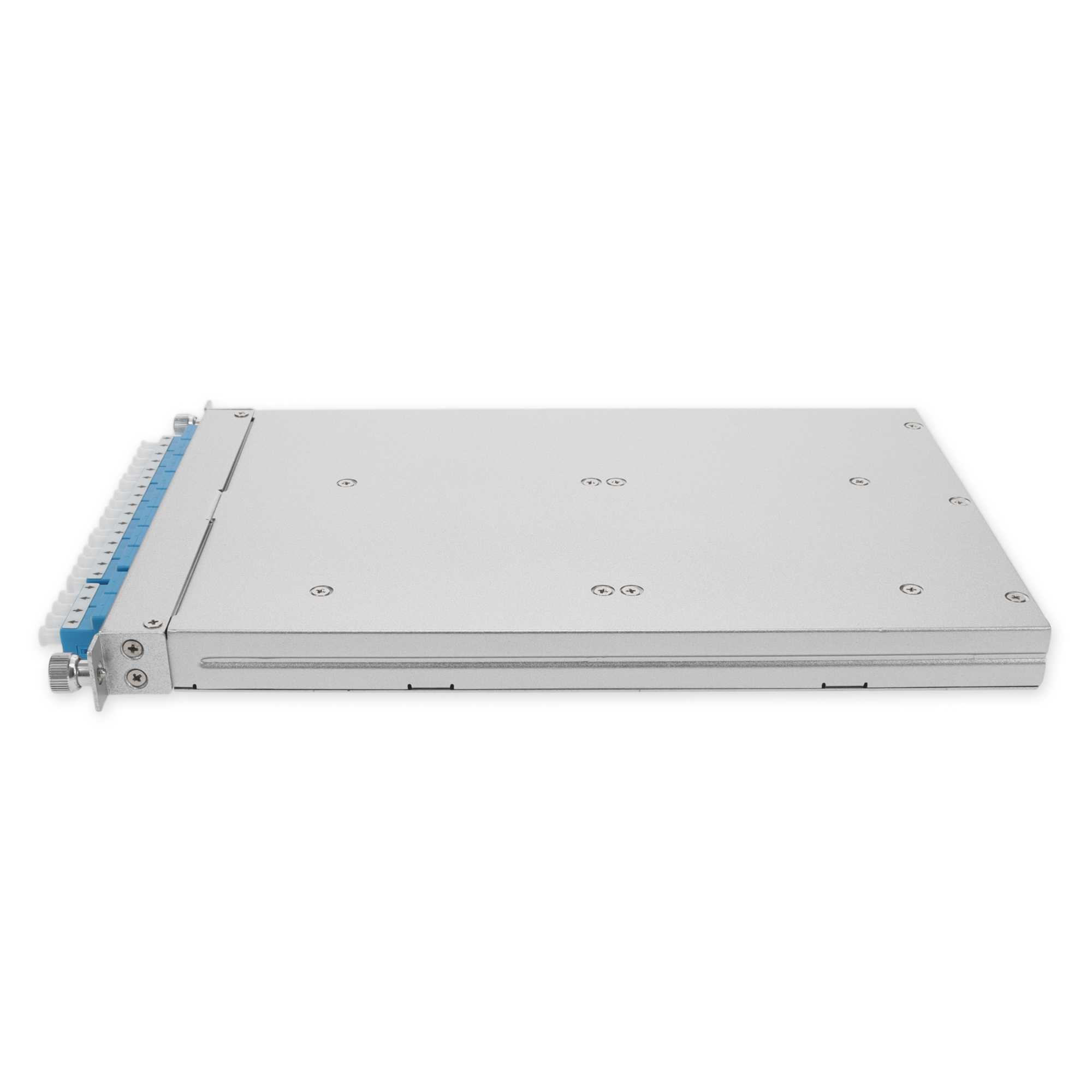

This is a 8ch DWDM mux cartridgethat operates over channels 39, 40, 41, 42, 43, 44, 45 and 46, and includes pass portsand uses duplex LC connectors. This mux/demux can bundle, and respectively unbundle, several fiber optic signals into a single fiber optic circuit. This mux/demux supports wavelengths between 1530.33nm and 1560.61nm, and can be configured among a selection of 38 channels with 50GHz spacing between channels. Our mux/demux products are 100% compliant and a cost effective solution to your network upgrade needs. With our certification test program, we guarantee your product will work right the first time.
Technical Specification
| Compatible OEM | Industry Standard |
| Media | SMF |
| Size | 1U 19inch |
| DWDM Channels | 8 |
| Cable Mode | Duplex |
Physical Specification
| Product Shipping Dimension(HxWxD) | 22 in. x 17 in. x 12 in. |
| Product Shipping Weight(LB) | 7.8 |
Miscellaneous
| Country Of Origin | Varies |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85176200 |
| HTS-Harmonized Code (US) | 9013.80.9100 |
| TAA Compliant | No |
| UNSPSC Code | 43222827 |
| UPC Code | 821456469964 |
| What's In The Box | 1x mux/demux |
| AddOn Part# | DWDM-MUX-8D-39-46-AO |
| Insight Electronics® | DWDM-MUX-8D-39-46-AO |
Limited Lifetime
