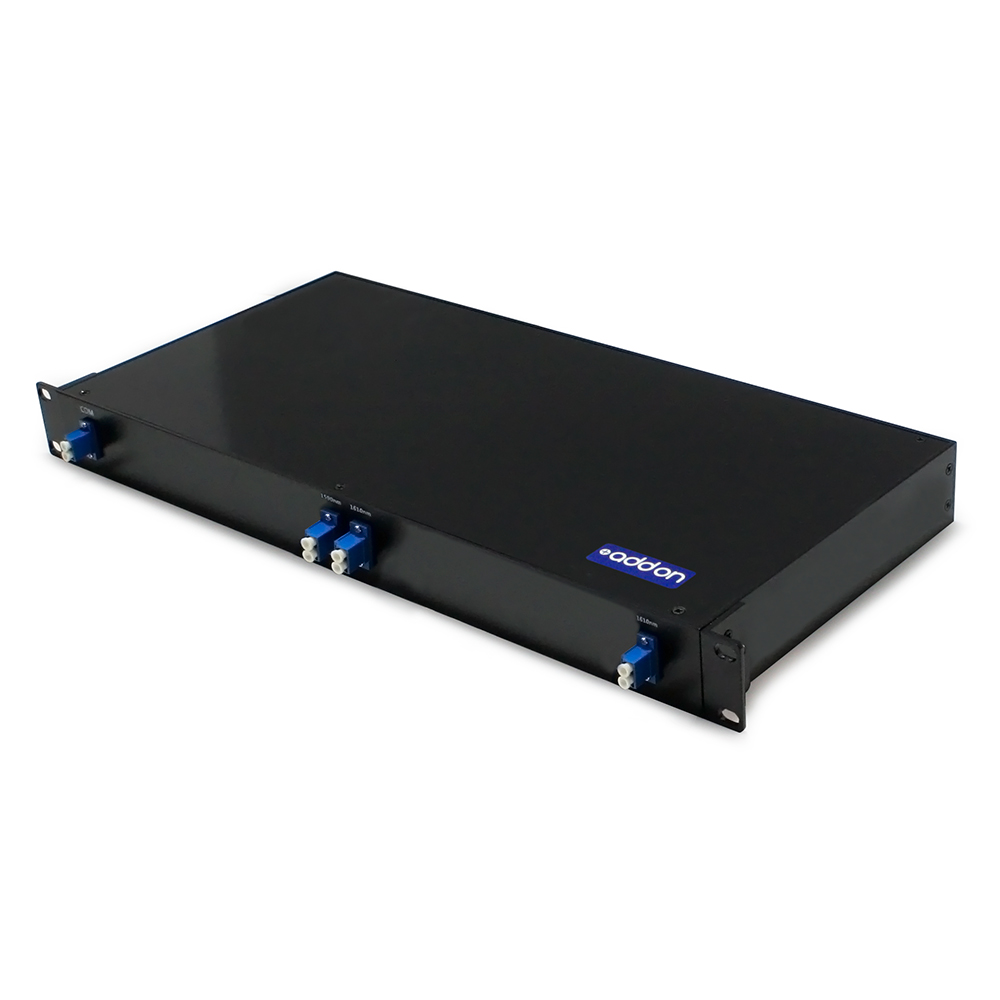

2 Channel DWDM OAD MUX, 19in Rack Mount, with Express Port and LC Connector
SKU: ADD-OADM-2DWDM-E
This is a 2 channel DWDM optical add-drop multiplexer with a LC connector and express port. It measures 19 inches, and is rack mountable. This unit can be used as either a multiplexer or de-multiplexer (mux/demux), and is a plug and play system. This OADM supports wavelengths between 1530.33nm and 1560.61nm, and can be customized among a variety of DWDM channels. All of our mux/demux products are 100% compliant and provide a cost effective solution for your network upgrade needs. With our certification test program, we guarantee your product will work correctly the first time.
Technical Specification
| Compatible OEM | Industry Standard |
| DWDM Channels | 2 |
| Size | 1U 19inch |
| Special Function | Optical Add/Drop |
| Express Port | Express Port |
Physical Specification
| Product Shipping Dimension(HxWxD) | 22 in. x 17 in. x 12 in. |
| Product Shipping Weight(LB) | 7.8 |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 90138090 |
| HTS-Harmonized Code (US) | 9013.80.9100 |
| TAA Compliant | No |
| UNSPSC Code | 43222827 |
| UPC Code | 821455658185 |
| What's In The Box | 1x mux/demux |
Limited Lifetime
