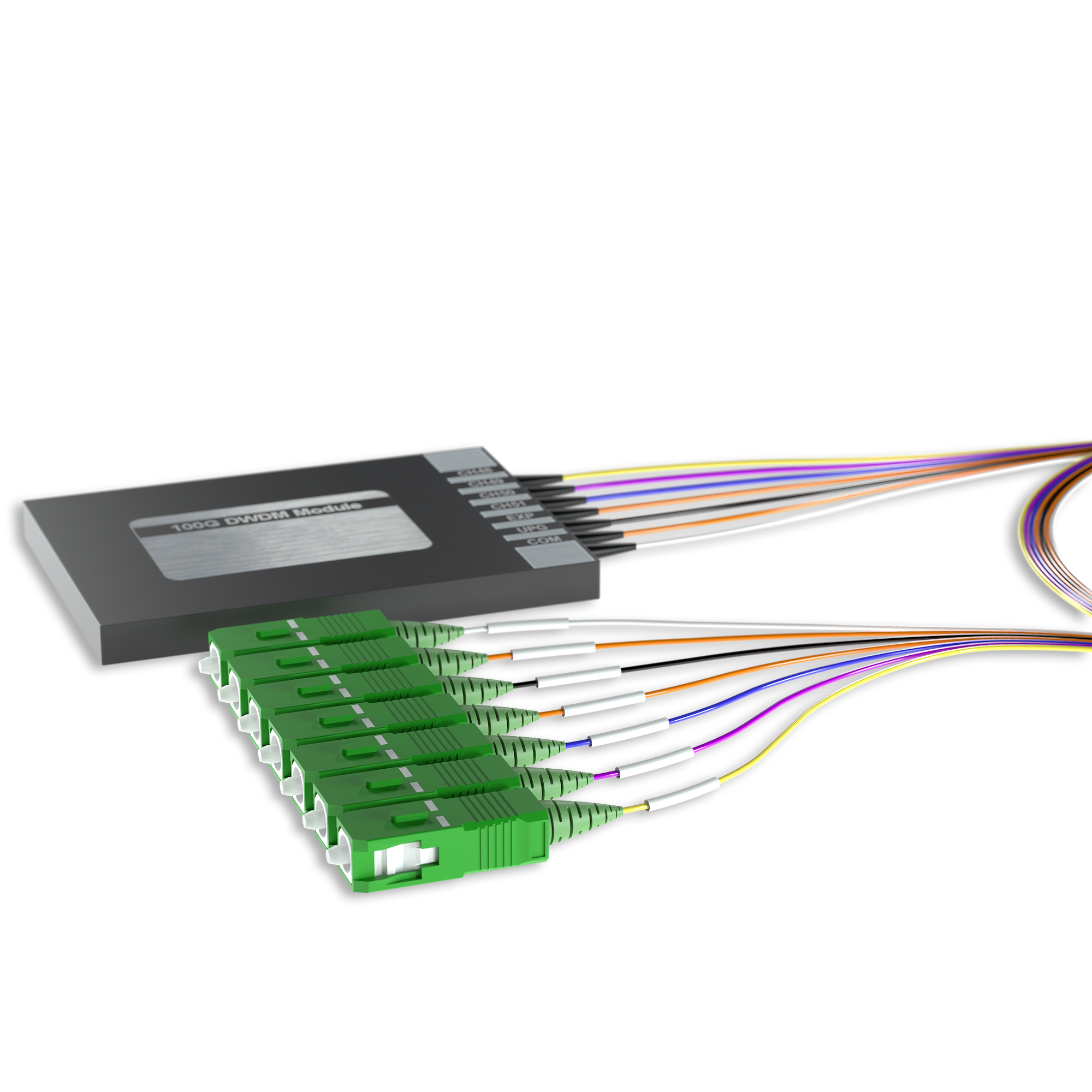

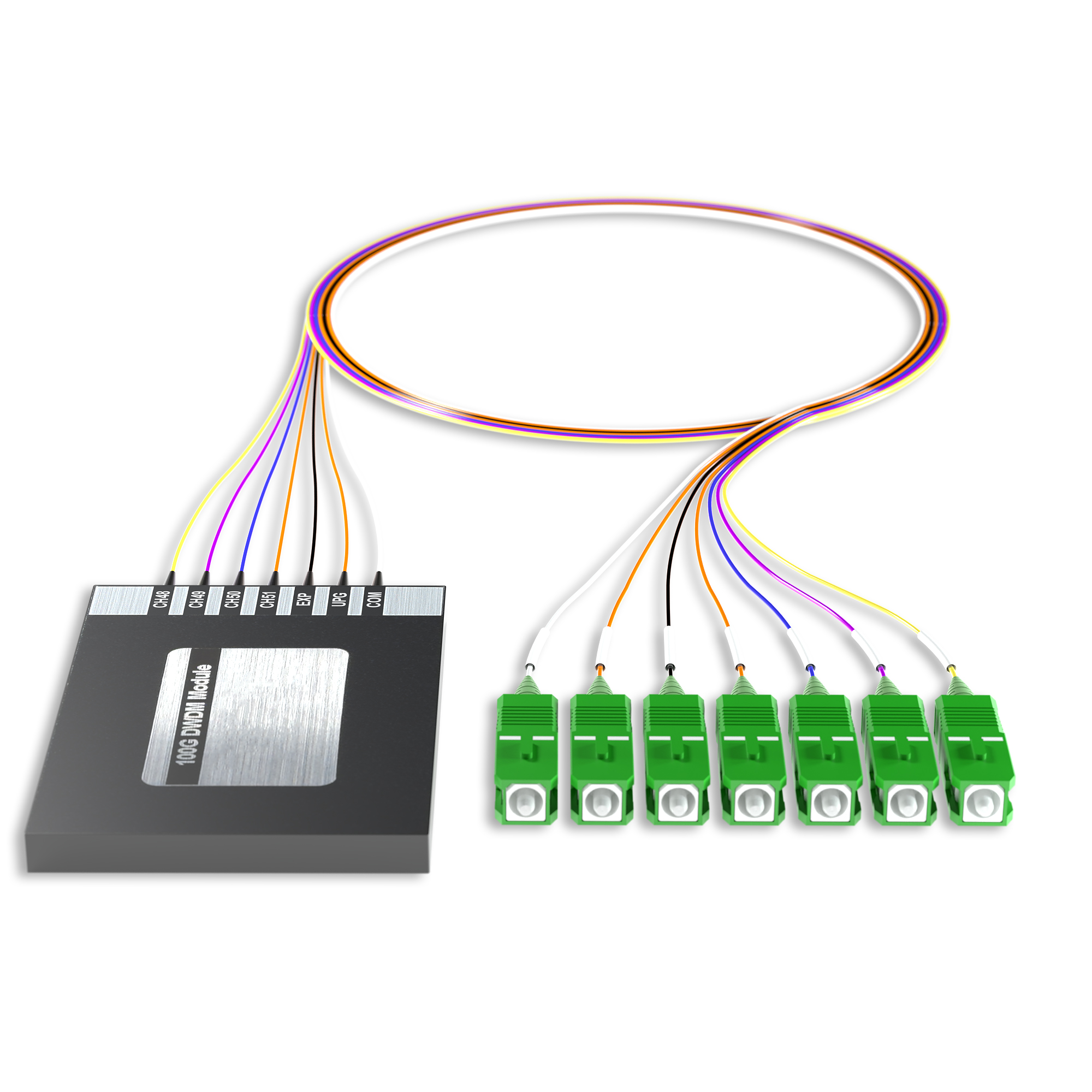

4+2 Channel OSP DWDM Mux/Demux C48-C51 with Upgrade and Express Ports, SC/APC Connectors on 24in Single-Mode Pigtails
SKU: ADD-DWDM-OSP-04S1-48-ASC-UE
Belgium: 0 in stock
United Kingdom: 0 in stock
North America: 0 in stock
This 4-Channel DWDM Optical Passive Mux/Demux is engineered to maximize the capacity of existing fiber optic networks while minimizing the need for new fiber deployment. Operating with 100GHz channel spacing and supporting ITU channels C48-C51 (1525-1570nm range), this module enables the multiplexing or demultiplexing of four discrete wavelengths over a single-mode fiber. The unit includes both an Upgrade Port (UPG) and an Express Port (EXP) to ensure seamless scalability and future expansion. The UPG supports additional wavelengths within the 1525-1570nm range (excluding active channels), while the EXP accommodates O-band and L-band wavelengths (1260-1520nm and 1580-1620nm), providing a cost-effective path for network growth. Equipped with SC/APC connectors on 24-inch, 900um fiber pigtails, this DWDM Mux/Demux is optimized for outside plant environments (OSP) and easily integrates into standard fiber optic splice enclosures.
Technical Specification
| Compatible OEM | Industry Standard |
| Directivity (dB) | ≥50 |
| DWDM Passband Ripple (dB) | ≤0.5 |
| Express Port | Yes |
| Fiber Length (Inches) | 24 |
| Fiber Size (μm) | 900 |
| Fiber Type | G.657.A2 |
| Insertion Loss Temperature Sensitivity (dB) | ≤0.5 |
| Maximum Power Handling (mW) | 300 |
| Operating Temperature (°C) | -40~+85 |
| Polarization Dependent Loss (dB) | ≤0.1 |
| Polarization Mode Dispersion (ps) | ≤0.25 |
| Return Loss (dB) | ≥45 |
| Wavelength Temperature Shifting (nm/°C) | ≤0.002 |
WDM Channel Specifications
| Channel Passband (@-0.5dB bandwidth) (nm) | ± 0.125 |
| Channel Spacing | 100 |
| DWDM Adjacent Channel Isolation (dB) | ≥30 |
| DWDM Non-Adjacent Channel Isolation (dB) | ≥40 |
| Max Channel Insertion Loss (dB) | 2.1 |
Upgrade Channel Specifications
| Max Upgrade Insertion Loss (dB) | 1.8 |
| Upgrade Isolation (dB) | ≥12 |
| Upgrade Port | Yes |
| Upgrade Wavelengths (nm) | 1525-1570 excluding CHs |
Express Channel Specifications
| Express Isolation (dB) | ≥12 |
| Express Wavelengths (nm) | 1260-1520 & 1580-1620 |
| Max Express Insertion Loss (dB) | 0.6 |
Physical Specification
| Product Shipping Dimension(HxWxD) | 2.8 in. x 1.8 in. x 1 in. |
| Product Shipping Weight(LB) | 0.5 |
Miscellaneous
| Country Of Origin | China |
| HTS-Harmonized Code (UK) | 90138090 |
| HTS-Harmonized Code (US) | 9013.80.9100 |
| UNSPSC Code | 43221800 |
| UPC Code | 199278147309 |
| What's In The Box | 1 x WDM Module |
Limited Lifetime
