ADD-GMCP50-MX-SC image

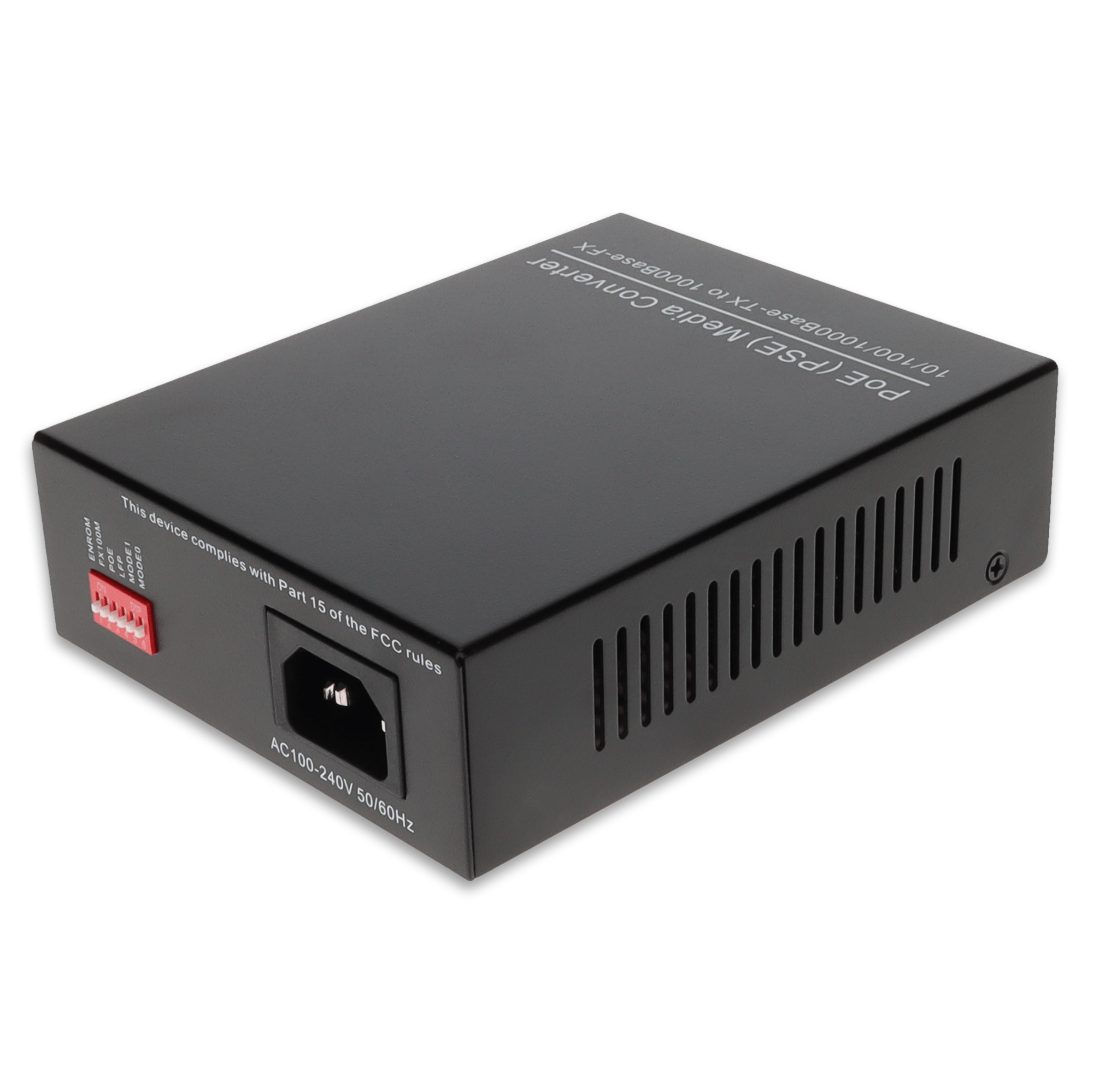

10/100/1000Base-TX(RJ-45) to 1000Base-MX(SC) MMF 1310nm 2km IEEE802.3at/48V/1.0A/50W POE Media Converter

SKU: ADD-GMCP50-MX-SC

North America: 0 in stock

United Kingdom: 0 in stock

Available from the following dealers:

Ingram Micro®Ingram Micro® CanadaSynnex Corporation®Tech Data®

This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-MX(SC) via a 1310nm multi-mode fiber (MMF) SC connector, which allows distance reach up to 2km. This provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-MX fiber, while extending the network reach beyond the 100m reach limitation of copper. This is an AC/DC powered PoE media converter complies with IEEE802.3af and IEEE802.3at standards. It is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V power supply, providing power to either IEEE802.3af or IEEE802.3at powered devices (PD) up to 100m (330feet) over CAT5e, CAT6, or CAT6A UTP cable. This provides 52V/1.0A/50 watts of output power. This media converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.

Technical Specification

Compatible OEMIndustry Standard
Connector TypesRJ-45 & SC
Connector1 Number of Ports1
Connector2 Number of Ports1
Data Rate1Gbs
ManagedUnmanaged
Media Conversion TypeCopper to MMF
Media TypeMMF
POEPOE+
Reach2km
Wavelength1310nm
POE Watts50W
Power Supply120V AC Power Cable
TypeMedia Converter
IEEE Standard802.3at

Physical Specification

Product Shipping Dimension(HxWxD)6.0in. x 5.0in. x 2.0in.
Product Shipping Weight(LB)7.5

Miscellaneous

Country Of OriginVaries
ECCNEAR99
HTS-Harmonized Code (US)8517.62.00.90
TAA CompliantNo
UNSPSC Code43201553
UPC Code821455191101
What's In The Box1x media converter

AddOn Part#ADD-GMCP50-MX-SC
Ingram Micro®6E3708
Ingram Micro® Canada2666DB
Synnex Corporation®4295939
Tech Data®12012913

3 years
