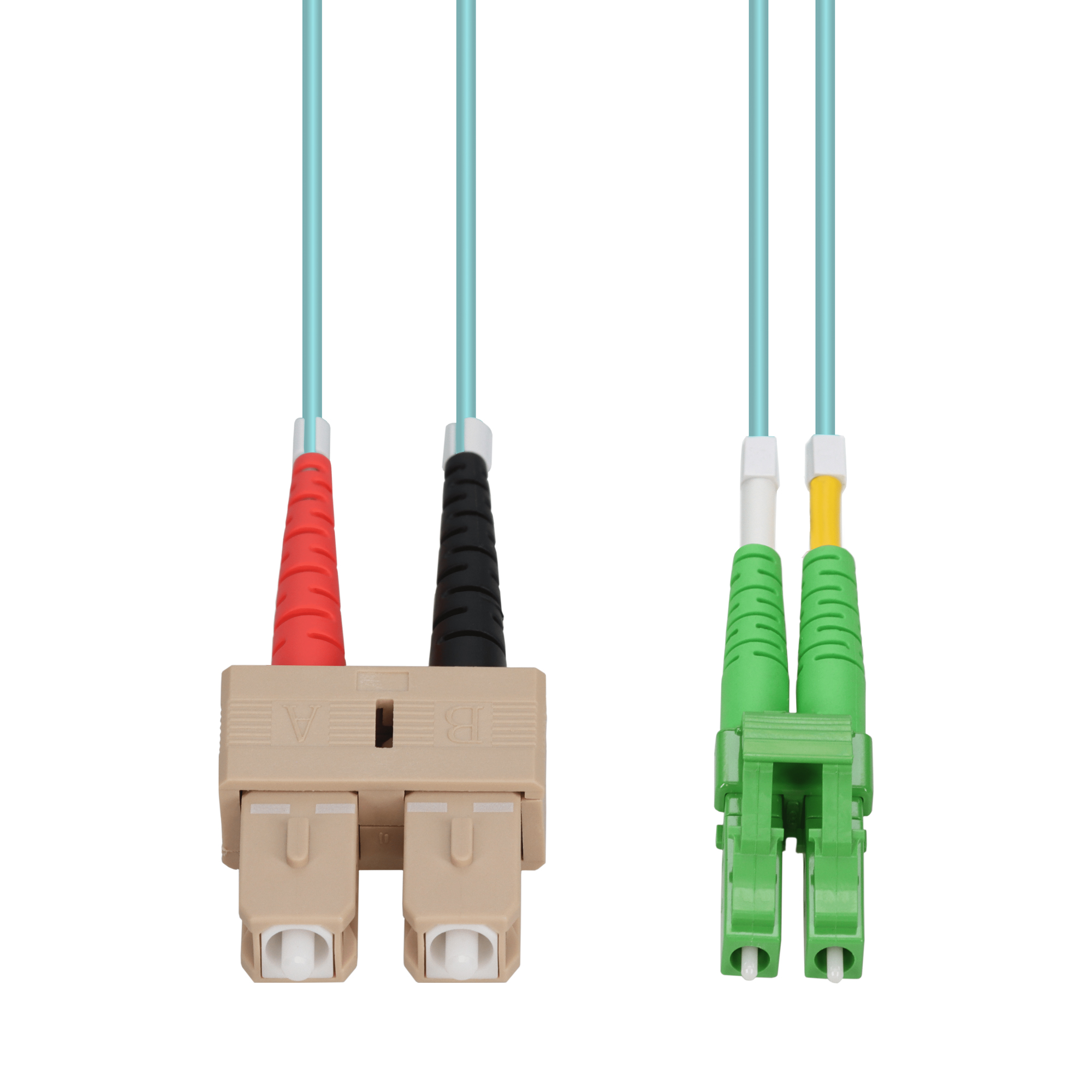

10m SC to ALC Aqua OM4 Duplex OFNR (Riser-Rated) Fiber Patch Cable
SKU: ADD-SC-ALC-10M5OM4
Belgium: 0 in stock
United Kingdom: 0 in stock
North America: 0 in stock
This is a 10m SC to ALC Aqua OM4 Duplex OFNR (Riser-Rated) Fiber Patch Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. OFNR riser fiber cable jackets are designed for vertical installations in building risers, providing fire-resistant protection to ensure safe data transmission between floors. These cables meet strict safety standards, making them ideal for businesses that need reliable, in-building network infrastructure without the risk of fire spreading through conduits. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
| Armored | No |
| Bend Insensitivity | G.657.A1 |
| Cable Length | 10m |
| Cable Mode | Duplex |
| Cable Type | OM4 |
| Color | Aqua |
| Compatible OEM | Industry Standard |
| Connector | SC (Male) to ALC (Male) |
| Connector 1 Boot Style | Standard Boot |
| Connector 1 Color | Beige |
| Connector 1 Ferrule Polish | UPC (Ultra Physical Contact) |
| Connector 2 Boot Style | Standard Boot |
| Connector 2 Color | Green |
| Connector 2 Ferrule Polish | APC (Angled Physical Contact) |
| Core/Cladding | 50/125µm |
| Environment | Indoor |
| Fiber Termination | APC - Angled Physical Contact |
| Fiber Type | MMF |
| Fire Rating | Riser (OFNR) |
| Insertion Loss Grade | Grade C |
| Jacket Material | PVC (Polyvinyl Chloride) |
| Jacket Type | Riser |
| Length (ft) | 32.81 |
| Length (m) | 10 |
| Polarity | Type A-B |
| Shielded | No |
| Strand Count | 2 |
| Termination Type | Crossover |
Physical Specification
| Kit | No Kit - 1 Piece |
| Product Shipping Dimension(HxWxD) | 5 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight(LB) | 0.8 |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | No |
| UNSPSC Code | 26121609 |
| UPC Code | 821455031278 |
| What's In The Box | 1x patch cable |
Limited Lifetime
